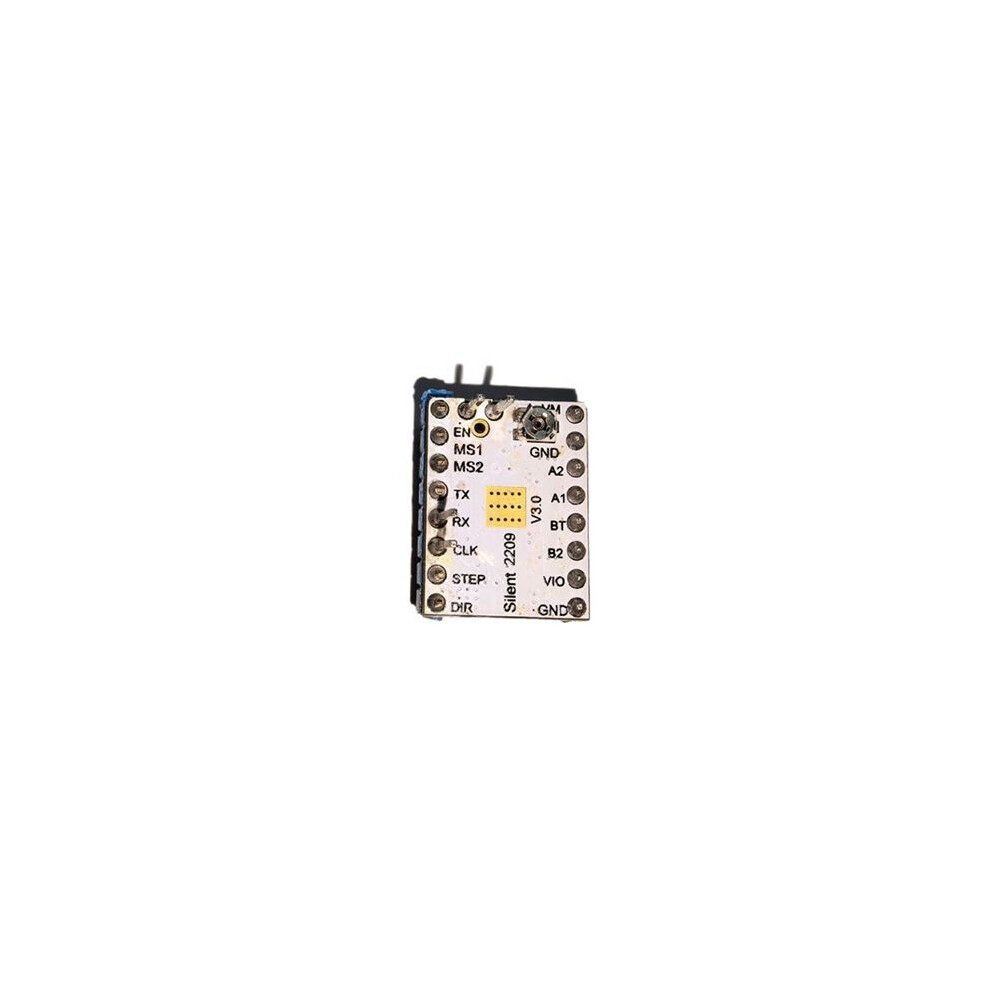

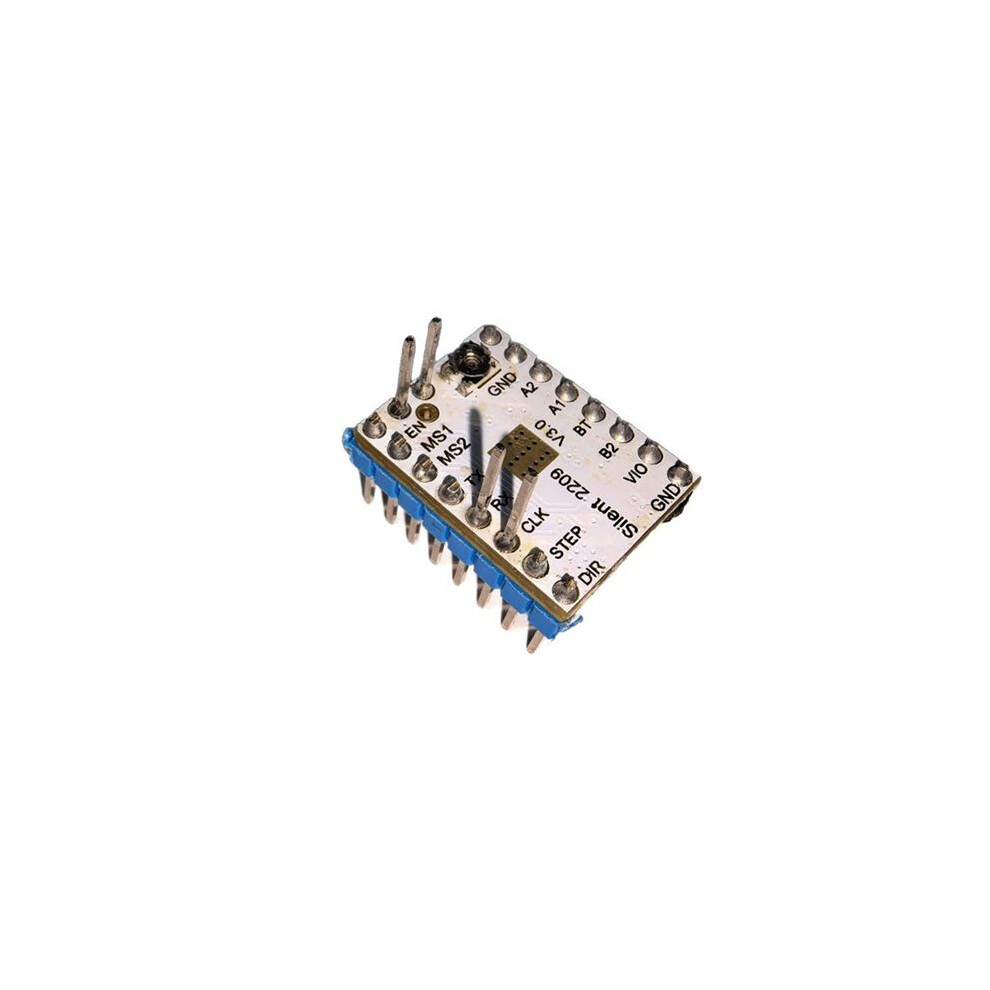

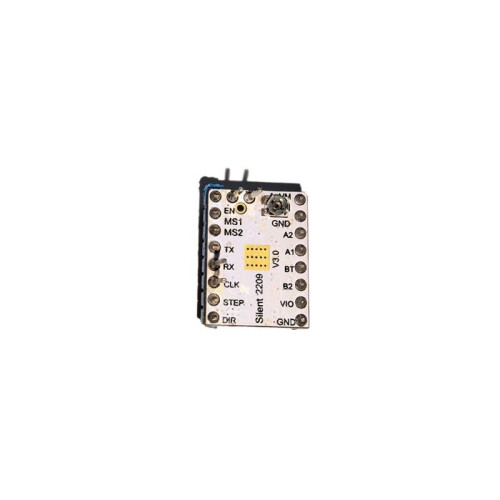

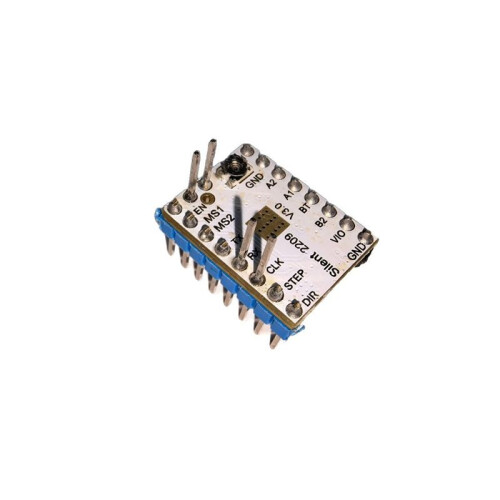

3D Printer Motherboard Silent Driver TMC2209 V3.0 Super Silent Stepper Motor Driver

3D Printer Motherboard Silent Driver TMC2209 V3.0 Super Silent Stepper Motor Driver Popis

Hardware compatible with for StepStick and for Pololu A4988
Drive capability to 1.7A (RMS) continuous coil current - 2.8A
Step/Dir interface with microstep interpolation ( to 256 microsteps)
Configuration via CFG pins or UART interface
Motor voltage: 5.5...28V

Logic voltage: 3.3...5V
RSense: 0.11 Ohm
stealthChop2 - for quiet operation and smooth motion
spreadCycle - highly dynamic motor control chopper (enableable via UART, OTP, CFG Pin)
coolStep - current control for savings
The TMC2209 is an ultra-quiet motor driver IC ( imported chip) for two-phase stepper motors. The TMC2209 is pin-compatible with many legacy drivers as well as the TMC2208. advanced StealthChop2 chopper ensures silent motor operation, high efficiency, and maximum torque. Its combination of fast current regulation and resonance suppression enables highly dynamic motion. StallGuard prevents stalls by providing sensorless homing. Built-in power MOSFETs handle motor currents to 2A RMS and feature protection and diagnostic features for stable and reliable operation. An easy-to-use UART interface opens tuning and control options. Application tuning can be stored in OTP memory. Separate pulse directions allow the drive to be configured for silent operation and very precise operation, resulting in a cost-effective and competitive solution.
Color: As Shown
Material: plastic

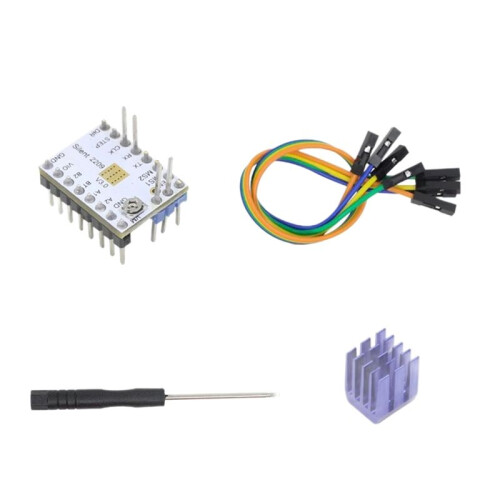

Package Contents:
1 * Driver
1 * Heat sink
1 * Screwdriver
1 * Ribbon cable
