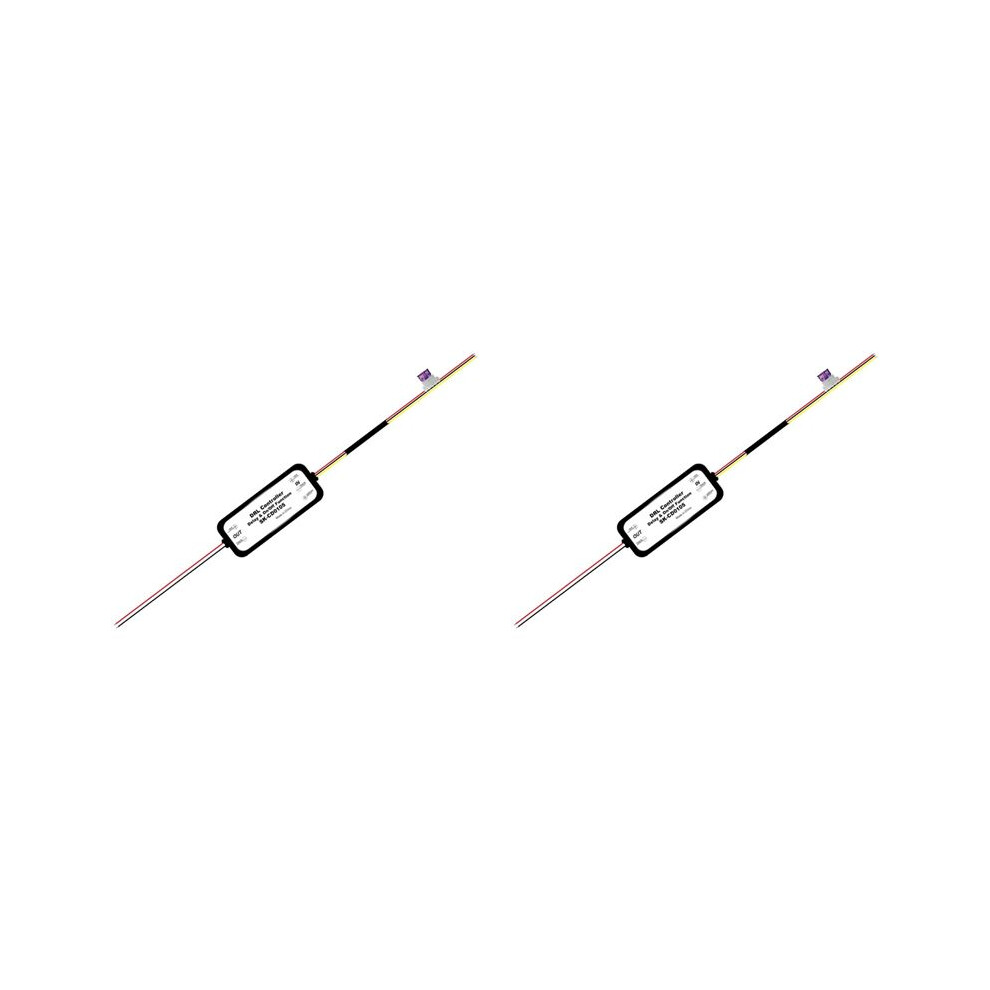

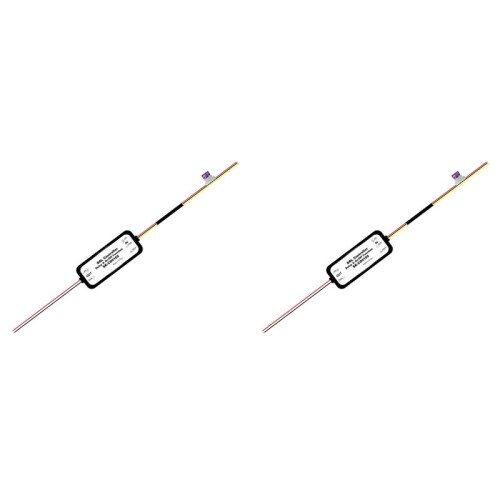

2Pcs DRL Controller Auto Car LED Daytime Running Light Relay Harness Dimmer /Off 12-18V Fog Light Controller SK-CD0105

2Pcs DRL Controller Auto Car LED Daytime Running Light Relay Harness Dimmer /Off 12-18V Fog Light Controller SK-CD0105 Beskrivelse

The starting voltage is 13V+, and the flameout voltage is lower than 12.5V (if it is higher than this value, it will be extended for a few minutes until the voltage drops before the light goes out).
The total power of a pair of daytime running lights does not exceed 18W (the total power of most daytime running lights will not exceed).
When the car engine is started, the voltage reaches 13V+, and the daytime running lights automatically light . When the car is turned off, the voltage is lower than 12.5V (not suitable for cars with a voltage higher than 12.5V after the engine is turned off), and the daytime running lights will automatically turn off after a delay of 15 seconds, which is convenient for lighting the owner to go home and realize the delayed light-off function!
Tips: After the battery is connected, it is normal for the daytime running lights to light for about 15 seconds and then turn off (delay function).

Wiring method:1. First connect the positive and negative poles of the left and right daytime running lights
2. Connect the red and black wires with fuses the input end of the controller to the positive and negative poles of the battery, and the red and black wires the output end to the positive and negative poles of the daytime running lights
3. Connect the yellow wire the controller to the positive pole of the headlight (or reading light) . When the headlight (or reading light) is turned , the brightness of the daytime running lights will be halved (darkened) to achieve the dimming function (the yellow wire can be chosen not to be connected, that is, to give this function without affecting other uses)
The printing/appearance may vary from batch to batch, but it will not affect the use; the actual product may have color difference due to different light or display.
Voltage: 12-18V
