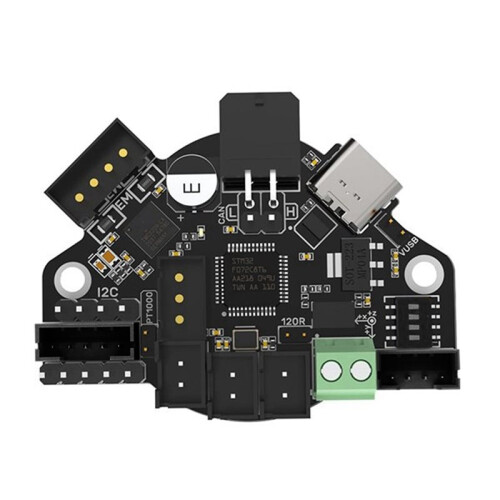

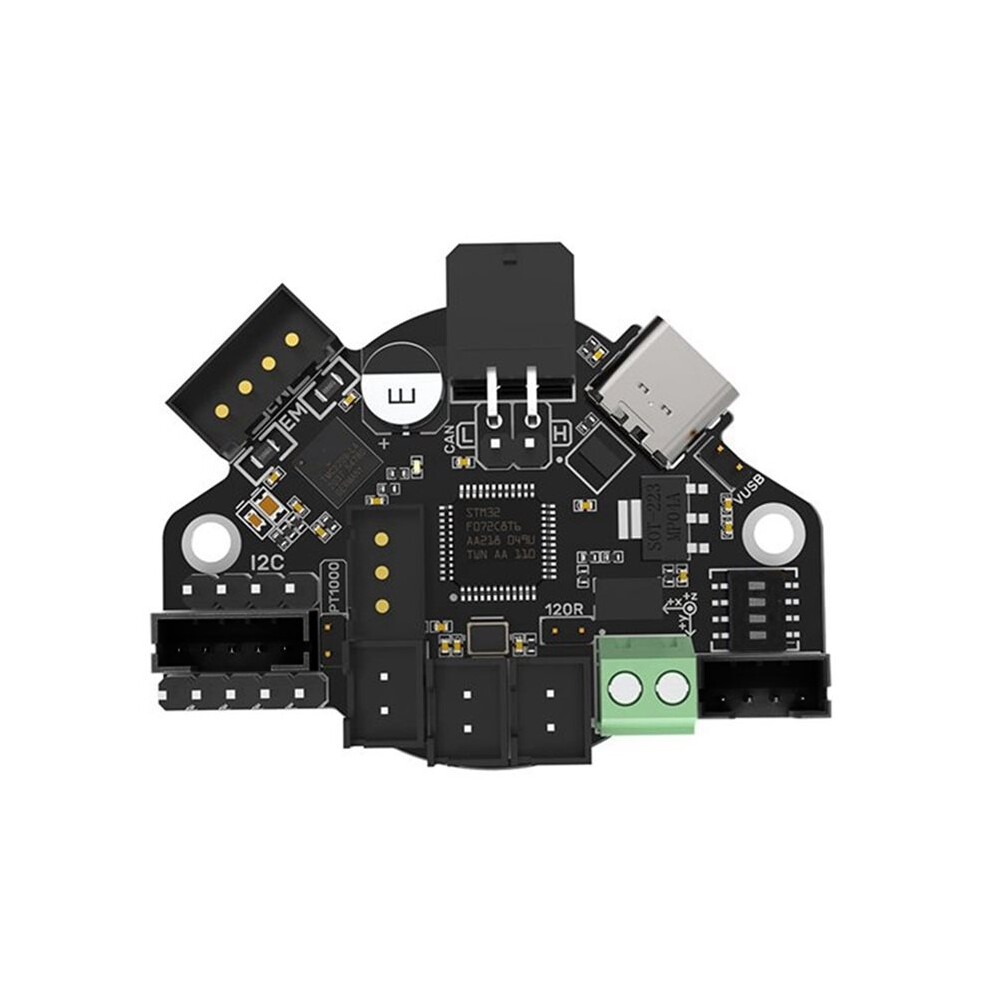

Extruder Breakout Board Support Canbus Without MAX31865 for U2C Ender3 3D Printer Mainboard Klipper Expansion EBB36
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 132,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (30,00 kr.) | tir. 8. - man. 14. sep.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Oversigt
- 1. With BOOT and RESET buttons reserved, users can update the firmware via DFU mode by USB.
- 2. Added protection circuit on the thermistor avoids burning the main control chip caused by leakage current from the heating rod.
- 3. Connect the USB witha jumper cap to get it power on, which effectively isolates the main control board DC-DC from USB 5V.
- 4. Reserved I2C interface allows for filament broke and clogged detection, and supports other DIY functions.
- 5. Added anti-flyback diodes on the heating rod and fans' ports effectively protect the MOS tube from being burned due to reverse voltage.
Extruder Breakout Board Support Canbus Without MAX31865 for U2C Ender3 3D Printer Mainboard Klipper Expansion EBB36 Beskrivelse
1. With BOOT and RESET buttons reserved, users can update the firmware via DFU mode by USB.
2. Added protection circuit the thermistor avoids burning the main control chip caused by leakage current from the heating rod.
3. Connect the USB witha jumper cap to get it power , which effectively isolates the main control board - from USB 5V.
4. Reserved I2C interface allows for filament broke and clogged detection, and supports other DIY functions.
5. Added anti-flyback diodes the heating rod and fans' effectively protect the MOS tube from being burned due to reverse voltage.
6. Anti-reverse connection protection the power interface prevents users from burning the motherboard when mistakenly connecting the reverse power during DIY.
Specifications:
External Dimensions: 40mmx 40mm
Installation Dimensions:Hole spacing 31mmx 31mm, M3 screw holex 4
Microprocessor: ARM Cortex-M0 STM32F072C8T6 48MHz
Input Voltage: DC12V-DC24V 9A
Logic Voltage: 3.3V
Heating Interface: Heating Rod (E0), maximum output current: 5A
Onboard Sensor: ADXL345
Colour:As shown
Material:PCB
style:EBB36
note:Without MAX31865
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Package Contents:
1 * Extruder Breakout Board Kit
Detaljer
| OPC | PWD5VDG |
|---|---|
| Koder | 6033733792038 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3cm |
|---|---|
| Width | 6cm |
| Length | 10cm |
| Weight | 0.046kg |
| Colour | As Shown |
| Size | Ebb36 |
| Material | PCB |
