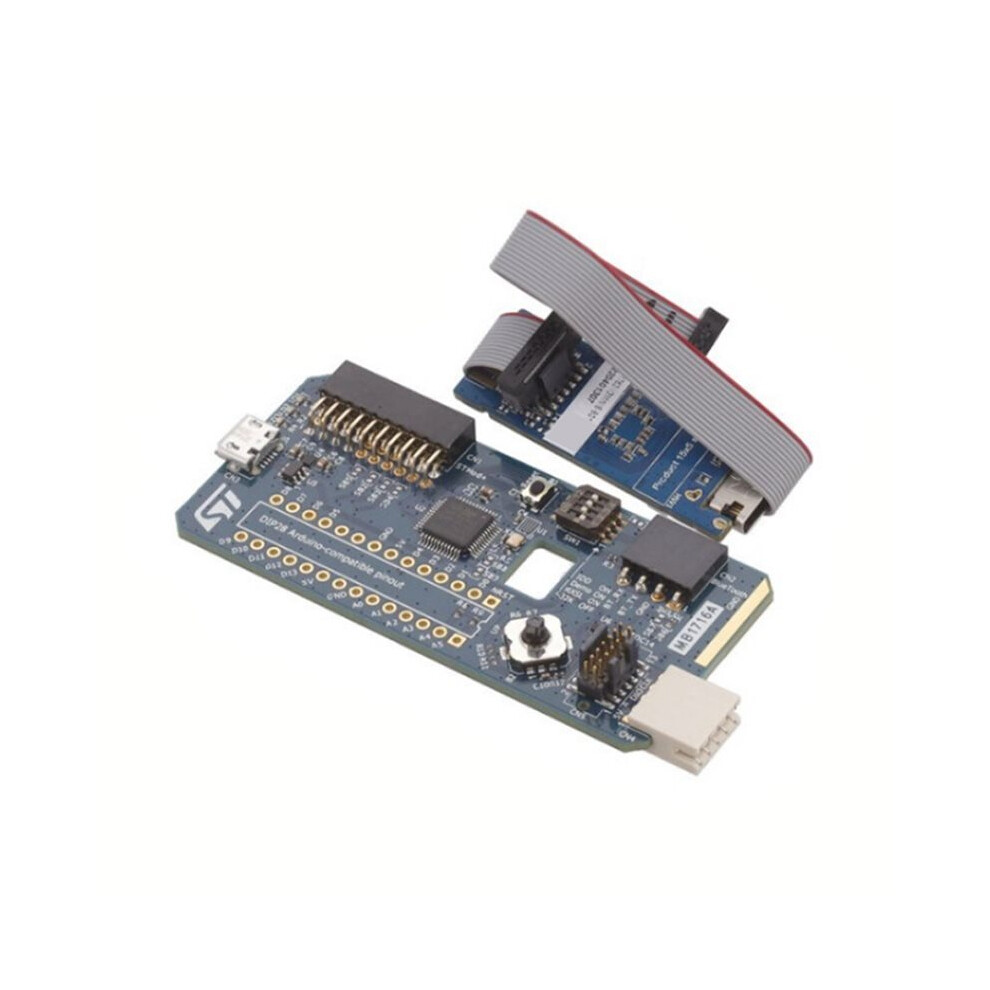

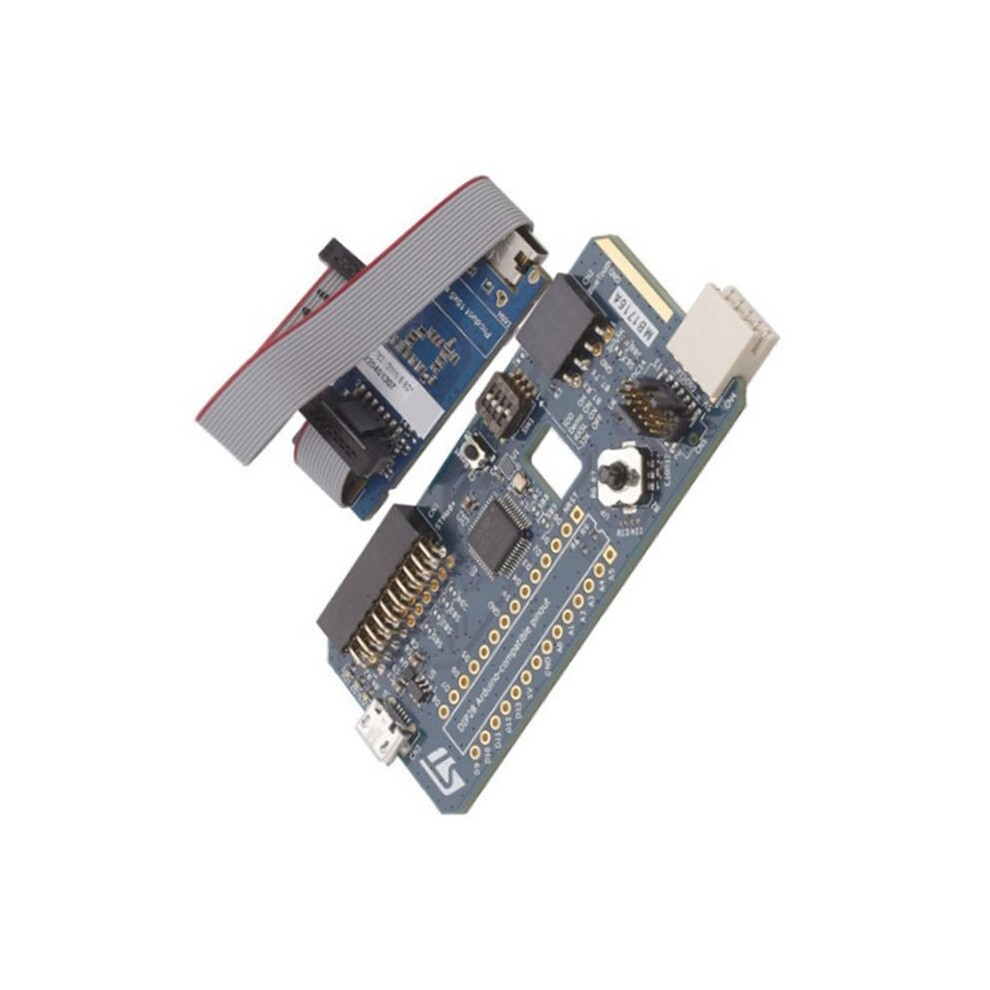

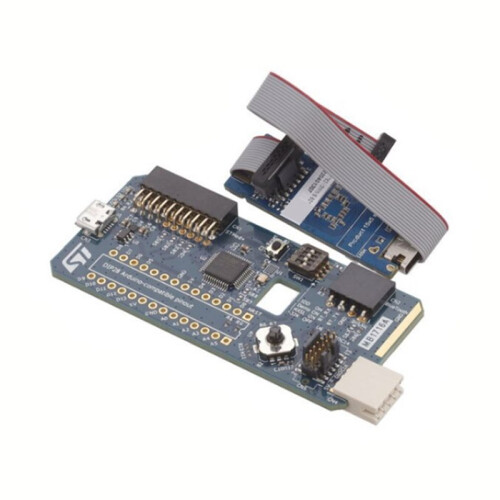

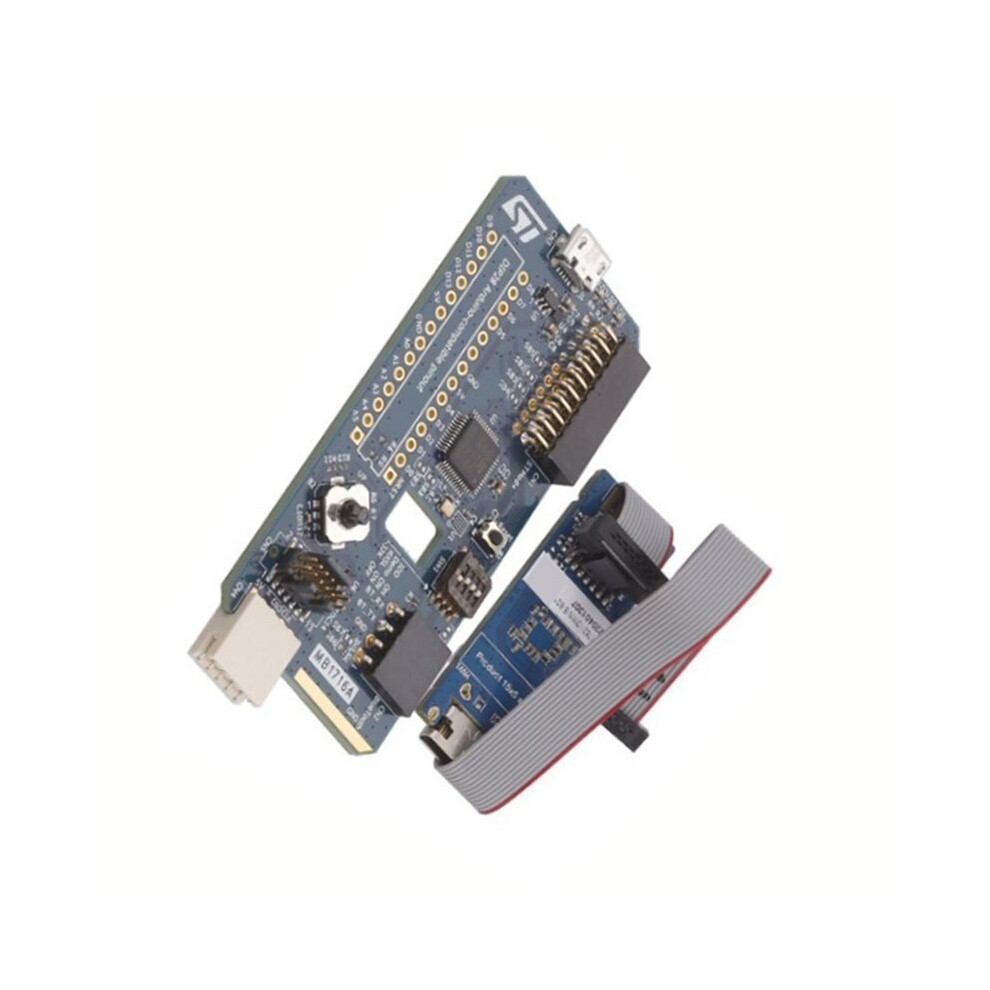

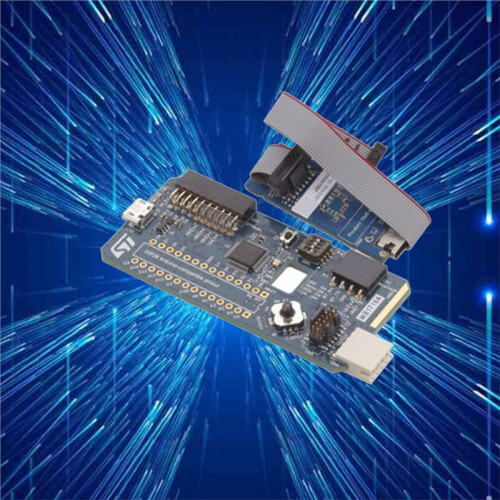

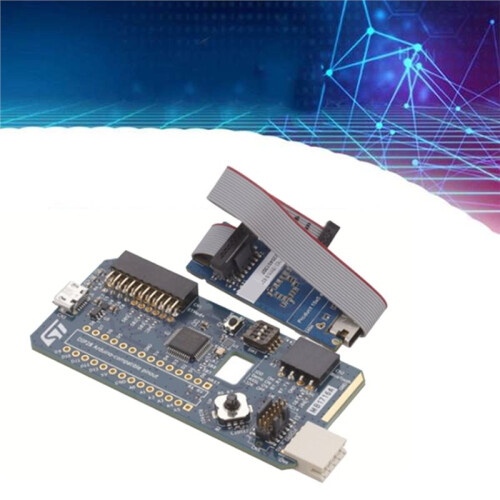

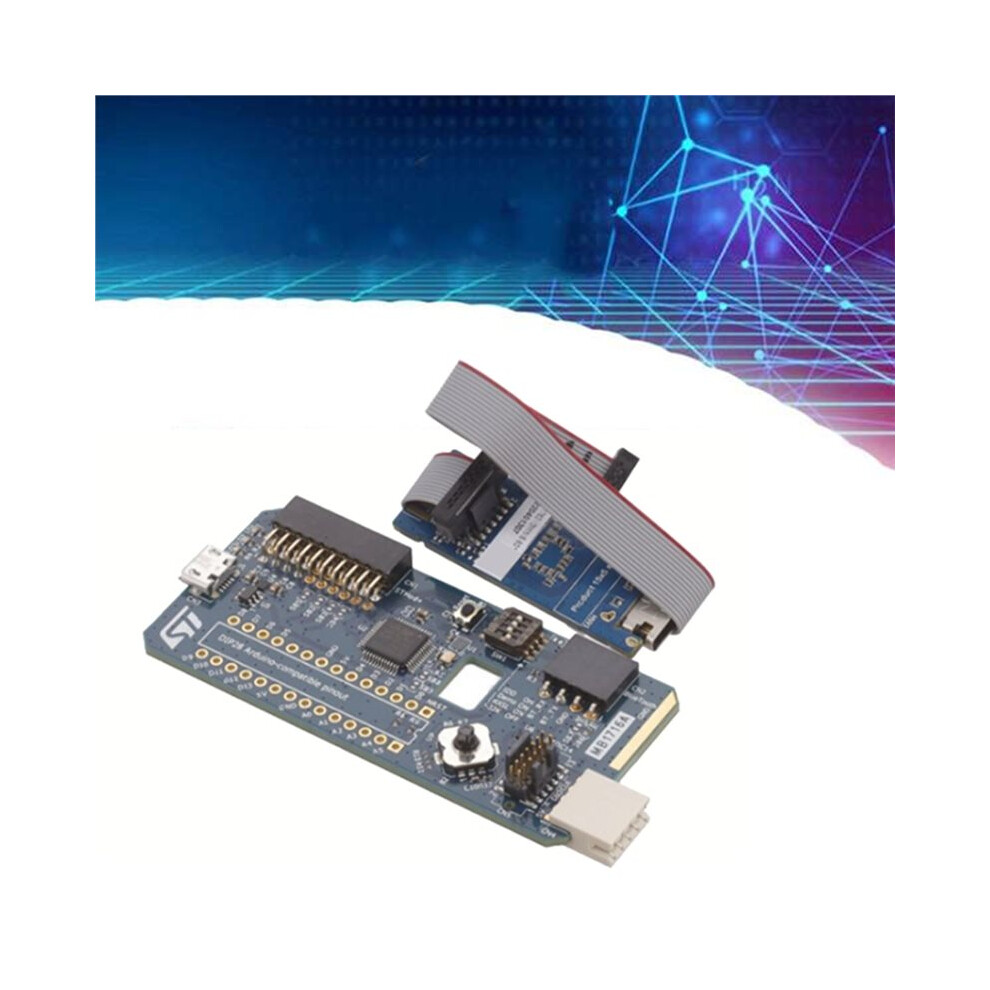

STM32C0316-DK Development Kit Development Board for MCU Evaluation and Embedded Prototyping

STM32C0316-DK Development Kit Development Board for MCU Evaluation and Embedded Prototyping Kuvaus

STMicroelectronics STM32C0316-DK Explorer Kit provides alternative features to the corresponding NUCLEO-C031C6 board, allowing users to access the standard 20-pin layout of the STM32C0 microcontroller. Users can cover the SWD debug pins by disconnecting the debug probe.
The 5-way analog rocker and LEDs can be replaced by a slide . All pins are supported by DIP28 connectors. The connector type is user-selectable. A 32768Hz onboard 1-pin clock generator for the RTC can be disconnected using a slide .
The STM32C0316-DK Explorer Kit facilitates migration from 8-bit to STM32C0 microcontrollers and between STM32C0 and STM32G0 microcontrollers.
The DIP28 pinout is designed for maximum compatibility with the ATmega328 8-bit microcontroller; the LQFP48 is compatible with the STM32G031/071/0B1 microcontrollers; the UFQFPN20 is compatible with the STM32C01 microcontroller; and finally, the WLCSP20 is compatible with the STM32G051 microcontroller.
A 5V to 3.3V regulator is bypassed when the supply voltage exceeds 3.3V. A debug probe level shifter modifies the debug signal level to the target microcontroller supply voltage.

Features: 32768Hz onboard clock generator
1 user LED and 2 power LEDs
Reset button
5-way joystick with a single ADC input pin
Slide for easy disconnection of the embedded user demo component
Comprehensive free software library and examples included with the STM32Cube MCU software package
Board connectors:
USB Micro-B for 5V power
STMod+ connector
Bluetooth (HC05, 115200 bps) as a simple wireless serial adapter
Non-standard DIP28 compatible expansion connector
STDC14 debug connector for third-party debug probes
Two onboard side pads for BTB card connectors
Standalone STLINK-V3MINIE debugger/programmer miniature probe for STM32 microcont
