AD831 Low-Distortion Active Mixer RF Mixer Module 500MHz Supports and Down Mixing

AD831 Low-Distortion Active Mixer RF Mixer Module 500MHz Supports and Down Mixing Περιγραφή

Low distortion and high linearity: Utilizes a dual-differential analog multiplier mixer circuit, featuring a +24 dBm third-order intercept point (IP3), minimal third-order intermodulation distortion, and a wide linear dynamic range.
Low LO drive requirement: The Local Oscillator (LO) input signal requires only -10 dBm, eliminating the need for a high-power LO driver; this effectively avoids shielding and isolation issues associated with high-power LOs and significantly reduces system costs.
Wide frequency range: Both RF and LO input frequencies can reach 500 MHz. The IF output supports differential current output ( to 250 MHz) and single-ended voltage output (greater than 200 MHz).
Flexible power supply: Supports either dual-supply (5 V) or single-supply operation. With dual-supply operation, all can be -coupled, allowing users to flexibly control power consumption via peripheral circuitry.
High integration: Integrates a mixer, limiting amplifier, low-noise output amplifier, and bias circuitry -chip, resulting in simple peripheral circuitry and ease of use.

Supply voltage: 5V (typical current: 100mA)
RF/LO operating frequency: - 500MHz
Input/output impedance: 50 ohms
Output signal range: - 200MHz (single-ended output); to 500MHz with differential output
LO input signal power: -10dBm (nominal)
Circuit protection: Module includes a reverse-polarity protection diode

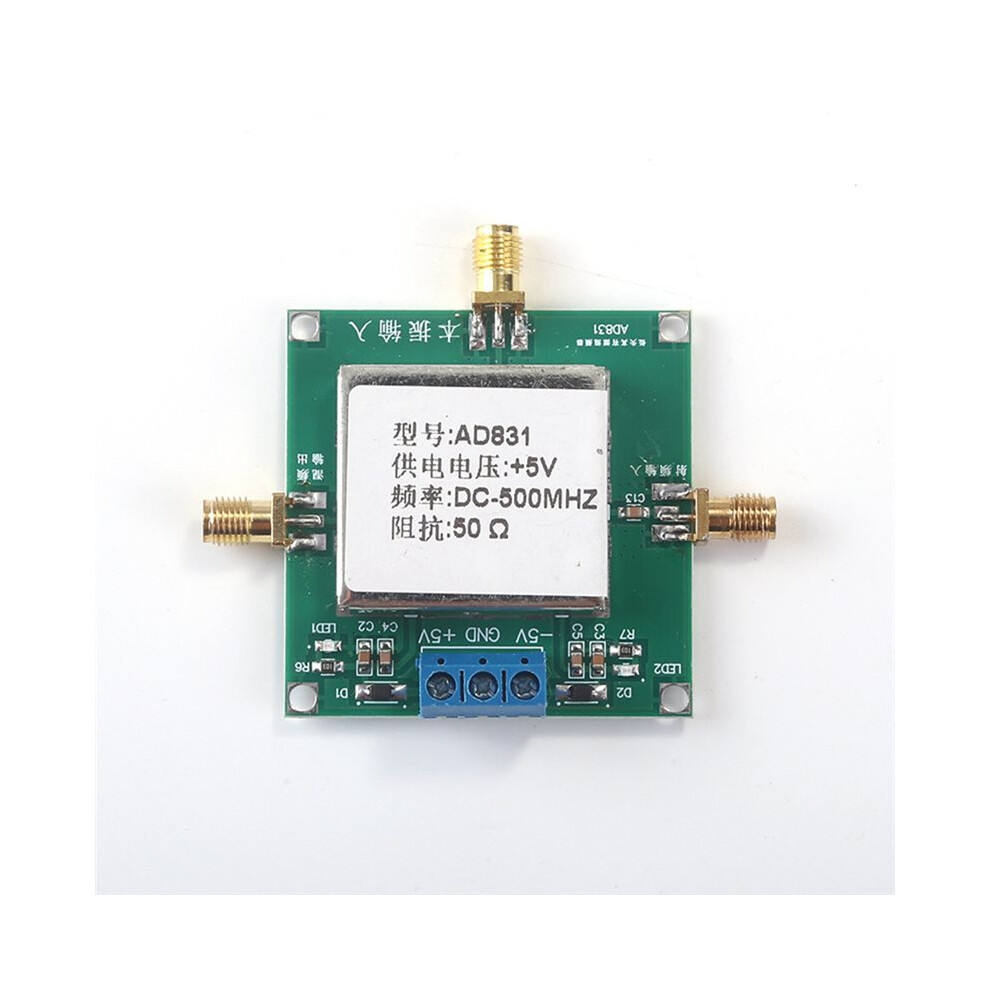

Note: This product is based the AD831 and is intended for educational demonstrations, laboratory testing, student experiments, and low-cost applications.
Color: As Shown
Material: PCB

Package Contents:
1*Low-Distortion Active Mixer
