2X 433Mhz 3.6-24V 1CH Relay Wireless RF Remote Control Module with Transmitter Type B

2X 433Mhz 3.6-24V 1CH Relay Wireless RF Remote Control Module with Transmitter Type B Popis

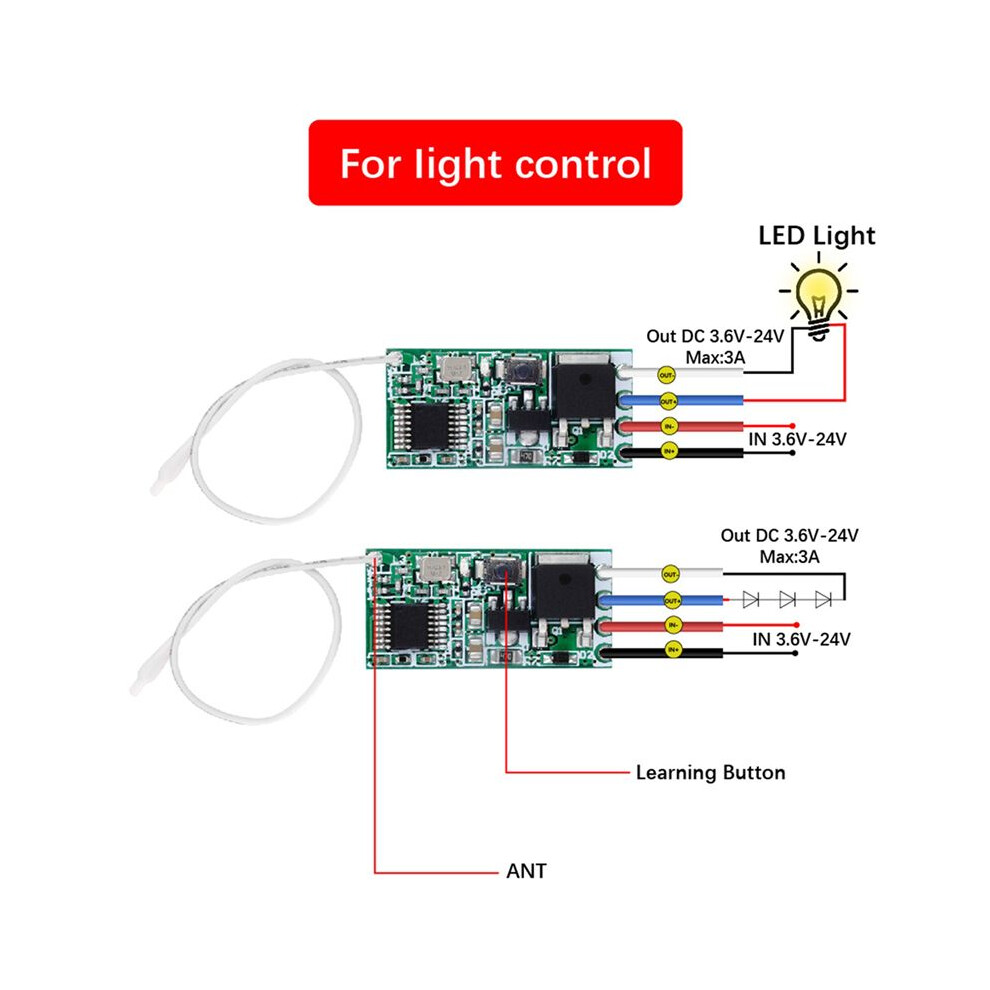

Wireless control LED lamp string, Christmas tree light string, light control .
Long range working voltage. Ultra low power,High sensitive response.
Application environment: Remote control ,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control MP3.

Type B

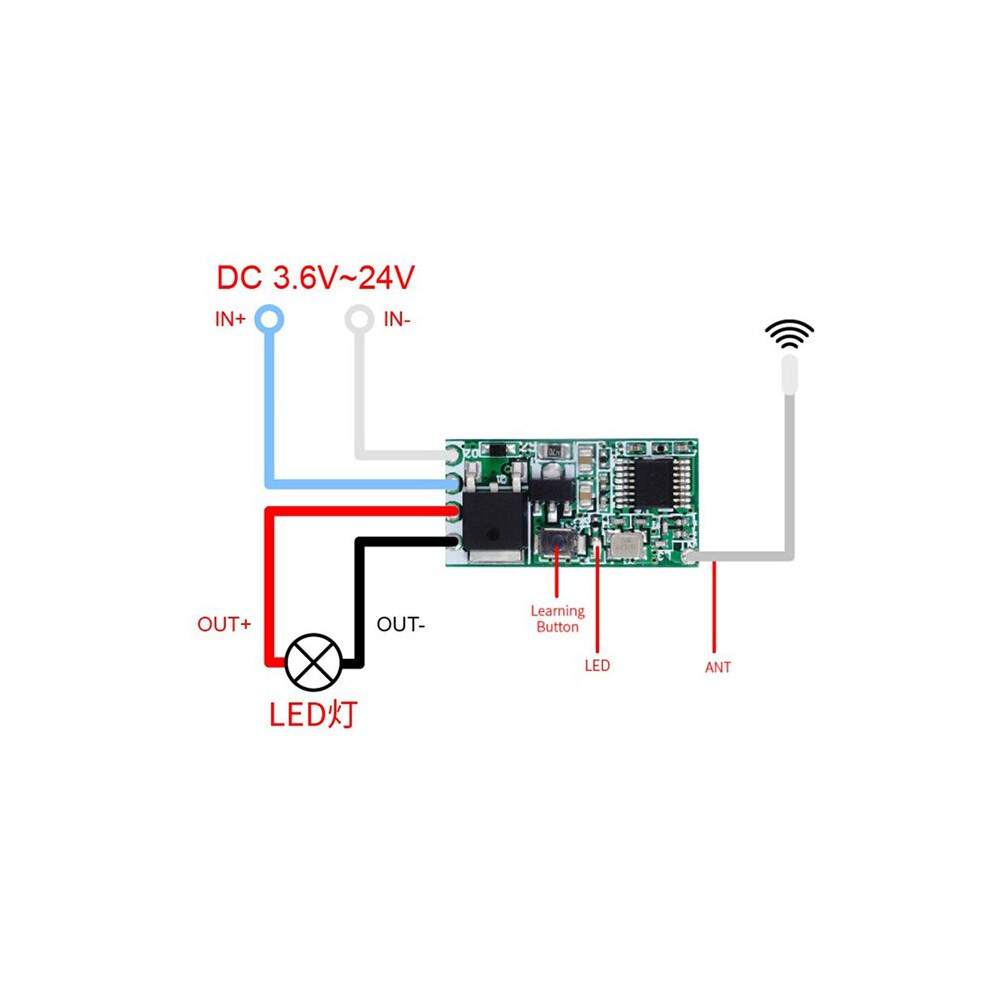

Operating Voltage: 3.6V-24V
Encoding : EV1527 Learning code.

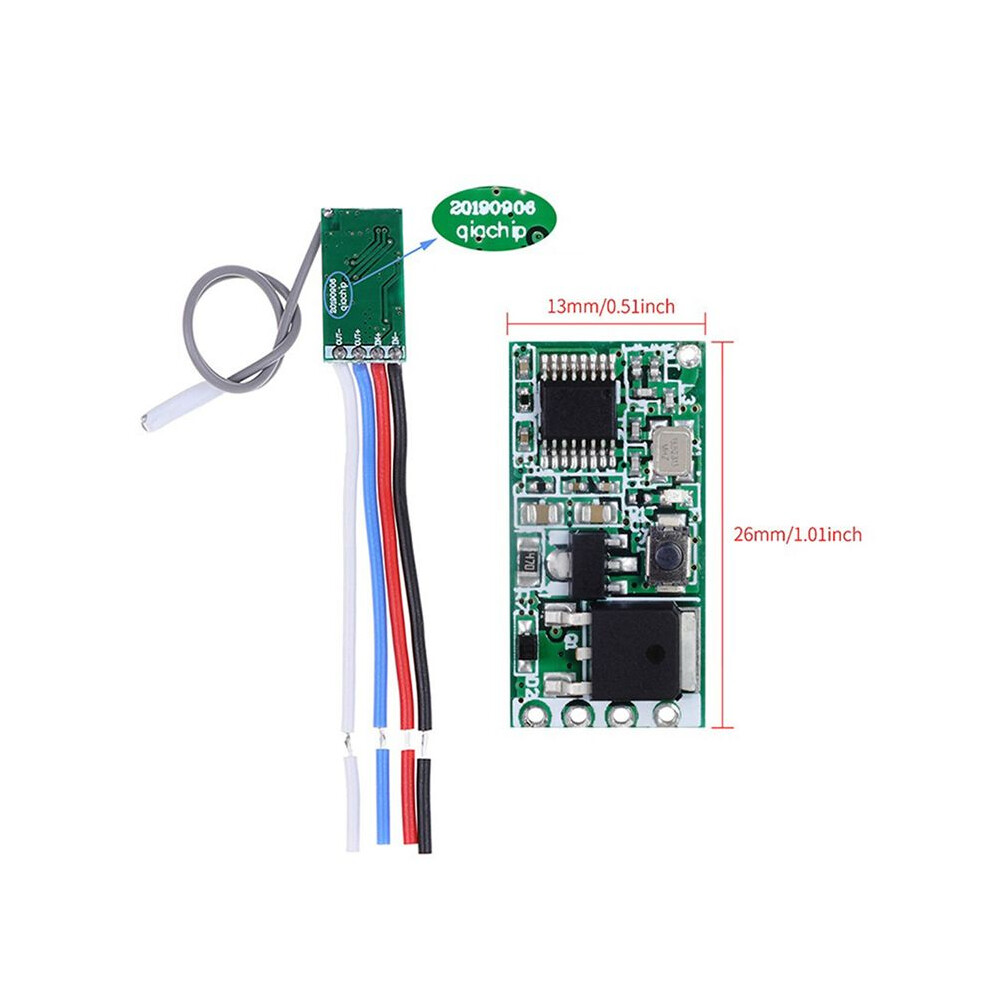

Specifications Of The Receiver:

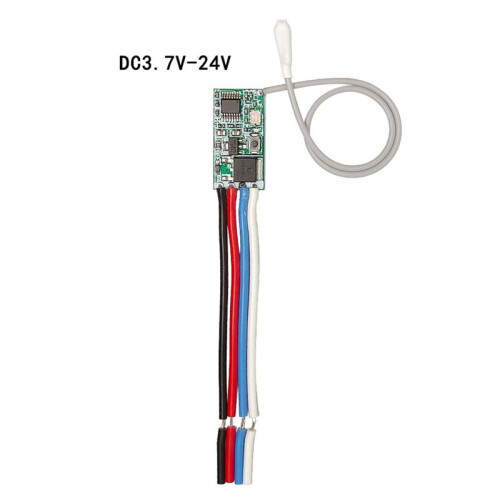

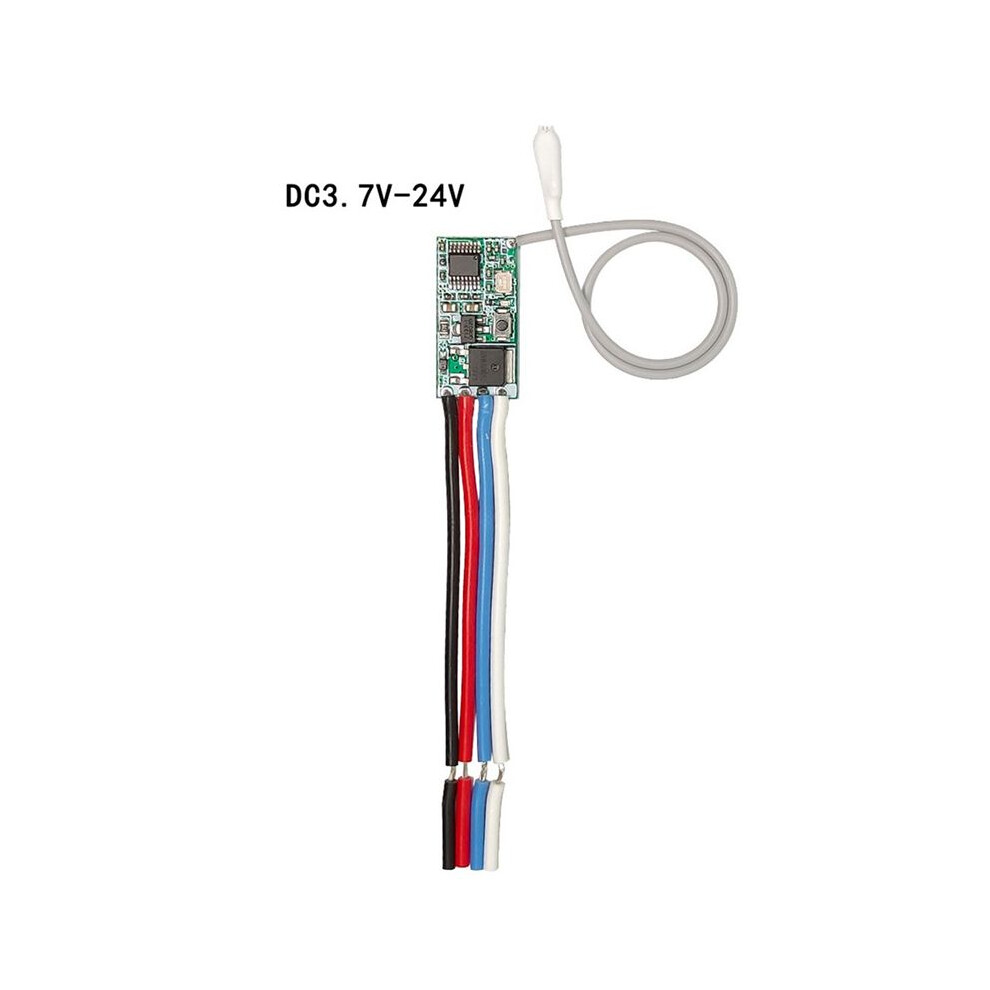

Working Voltage: 3.6V~24V.
Maximum Load: 2A(Maximum load power 48W).
Static Current: 3.6mA ~ 5.5mA(6.08mA)
Working Frequency: 433MHz.
Reception Sensitivity: -107dBm.
Modulation Mode:ASK (superheterodyne).
Number Of Stored Remote Controls: 10.
Working Mode: Momentary, Toggle, Latching Mode.

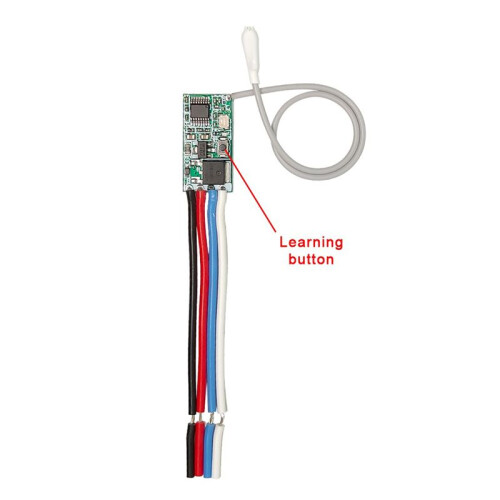

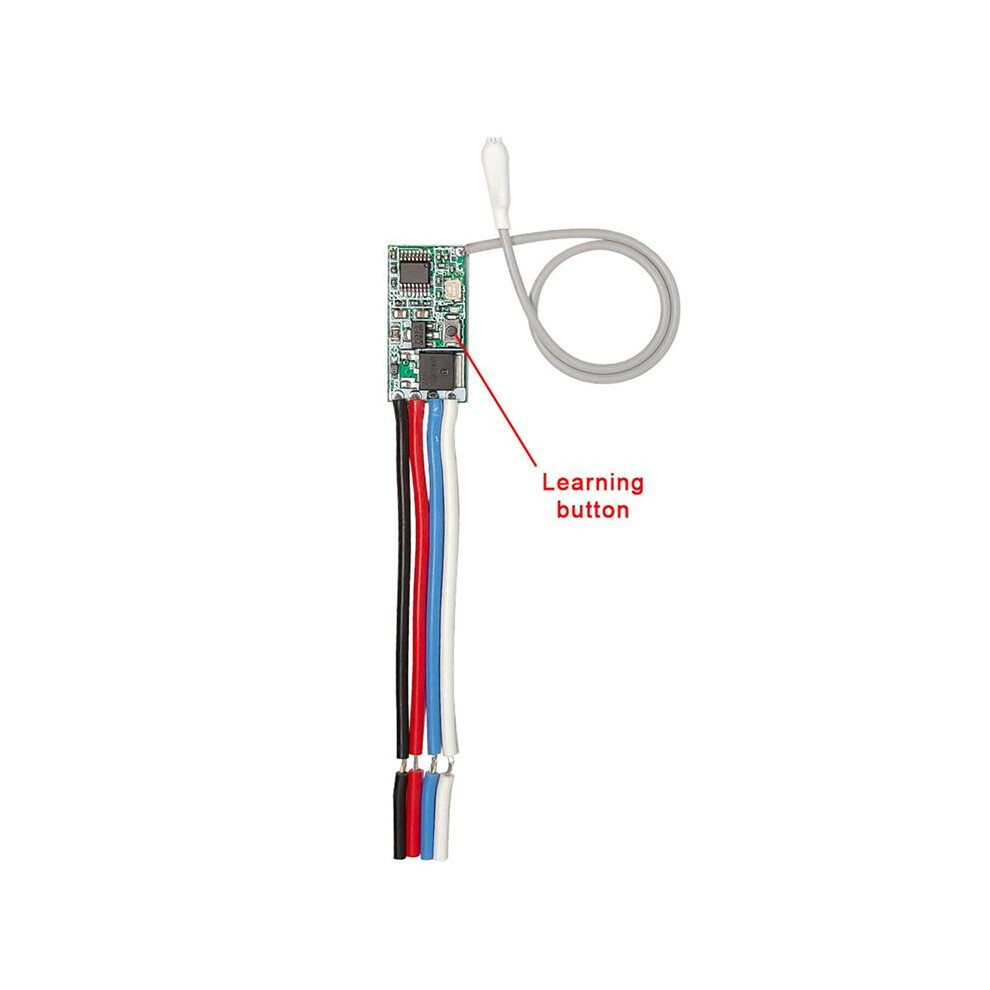

Learning Style: Learning Button.
Supported encoding format: 1527 learning code
Working Temperature: -20 degrees 80 degrees.
Specifications Of The Transmitter:
Operating RF Frequency: 433MHz
Coded System: 1527 Learning Code
Working Voltage: 6V
Working Current: 12mA
Transmitting Power: 10mW
Wireless Operating Distance: 50m(Free Space)
Transmission Rate: 50 ~ 60KHz
Frequency Deviation: 0.2MHz
Material: Plastic + Metal
colour:As shown

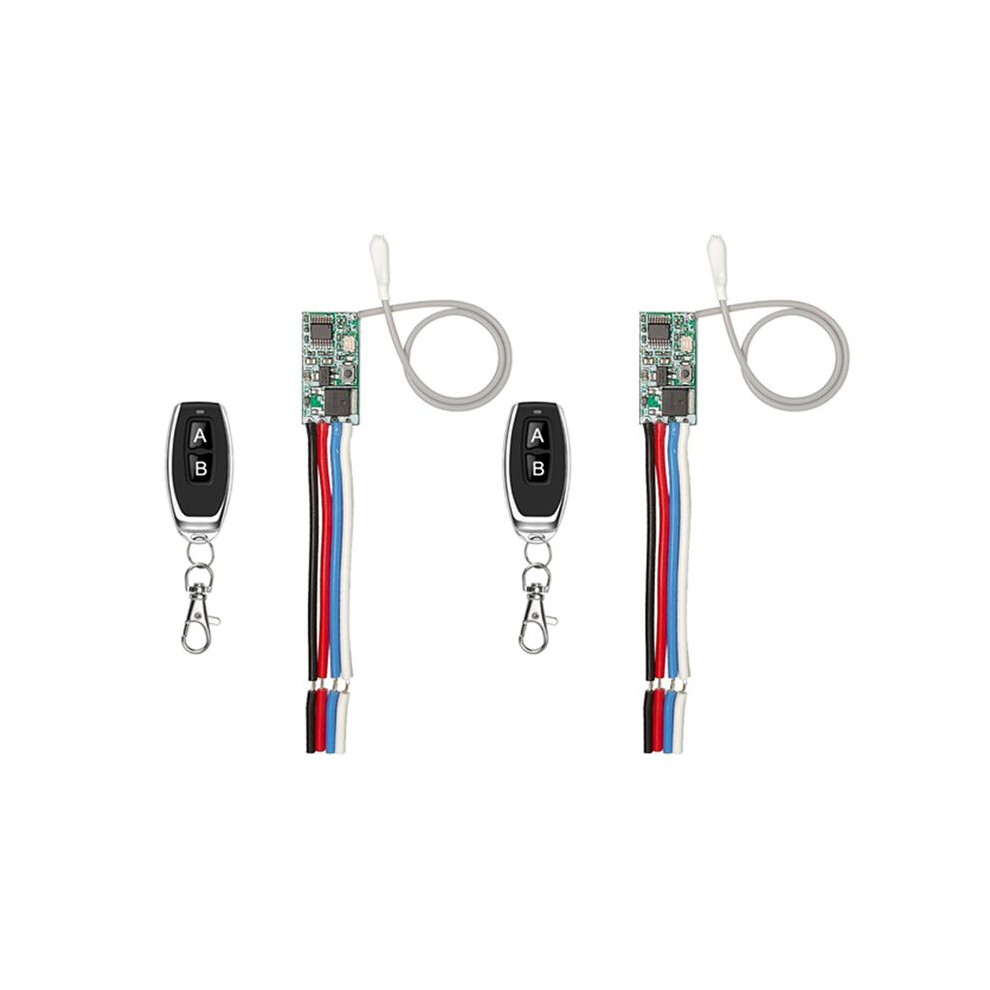

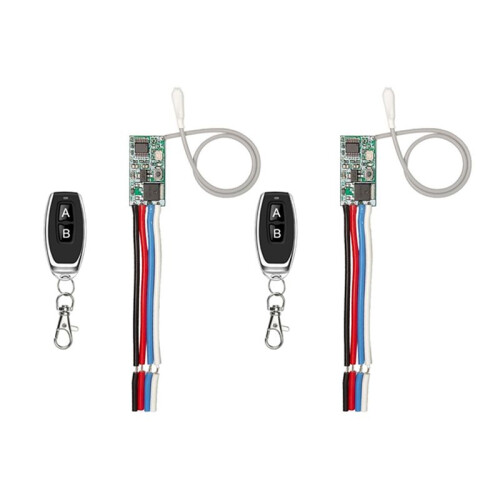

Package Contents:
2 x Receiver
2 x A/B button Remote Control
