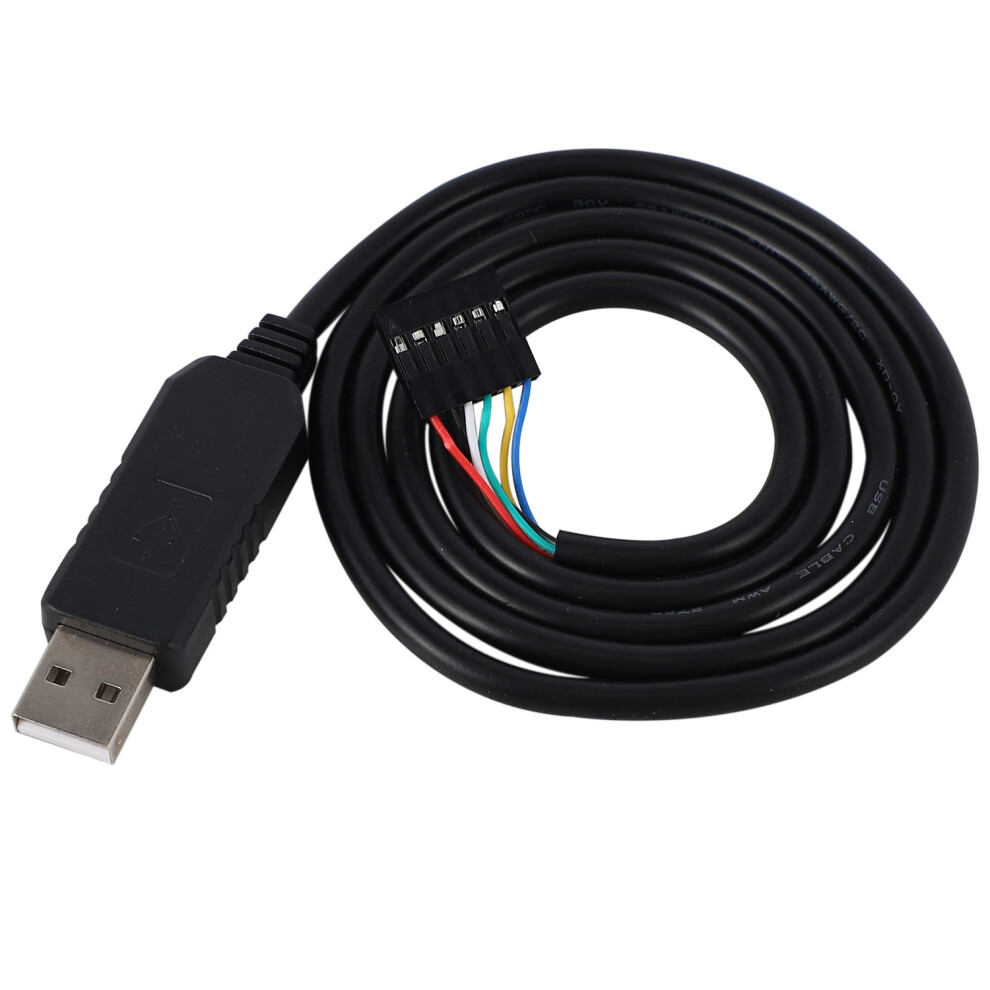

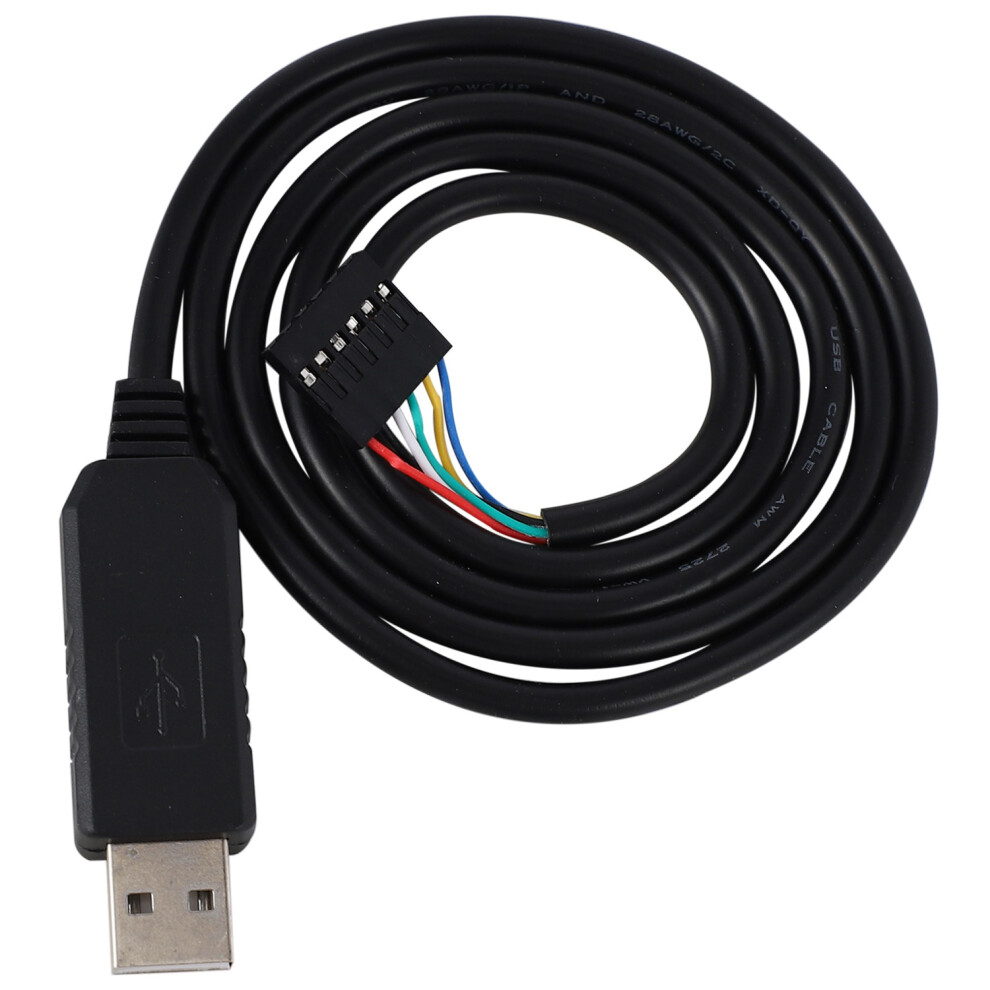

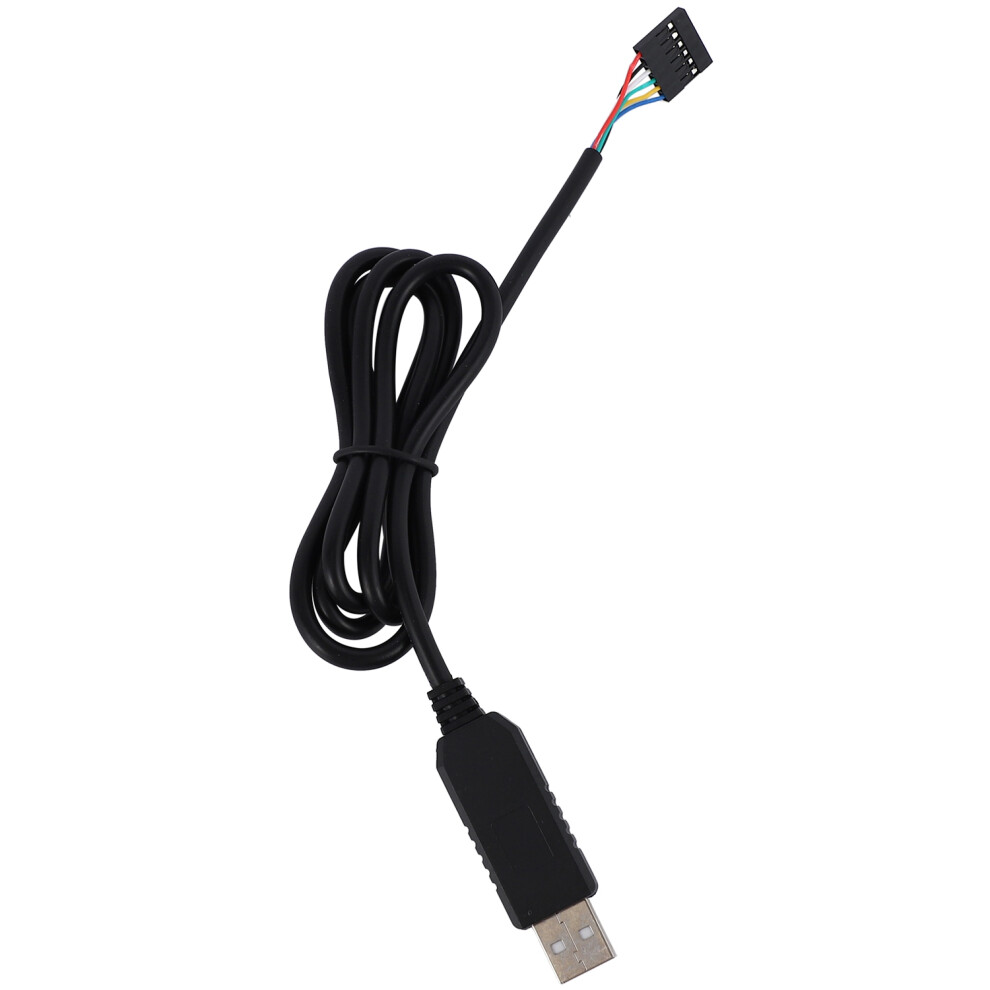

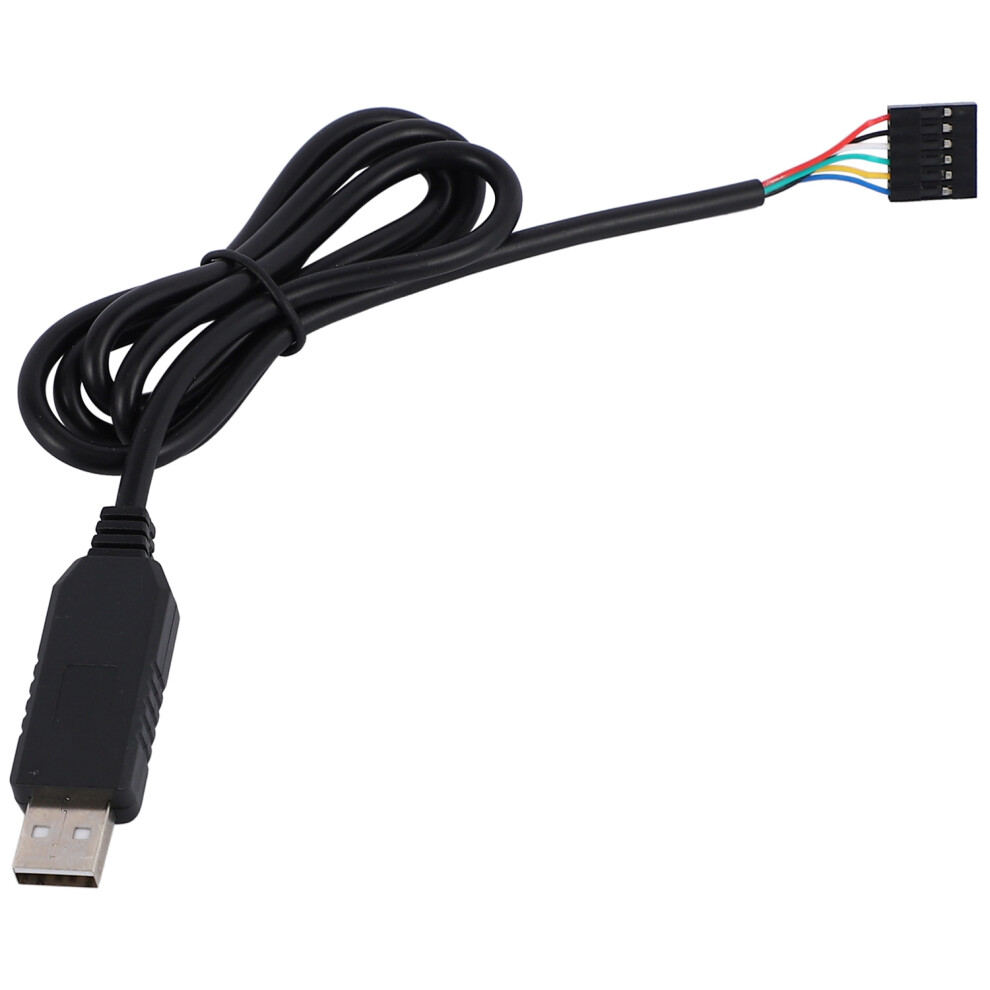

6Pin Ftdi Ft232Rl Ft232 Module for Usb To Ttl Uart Serial Wire Adapter Rs232 Download Cable Module Led Indicator

6Pin Ftdi Ft232Rl Ft232 Module for Usb To Ttl Uart Serial Wire Adapter Rs232 Download Cable Module Led Indicator Popis

FTDI based USB to TTL Serial Cable are designed using the the standard FT232RL chipset.
The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.
The cables are available with a 6-way SIL, 0.1inch connector TTL levels is 3.3V
The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD's FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols.
The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB Each TTL-232R cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The other end of the cable comes with a selection of different connectors supporting various applications .
Cables are available with either a 6-way SIL,0.1inch pitch connector, a 3.5mmAudio Jack, an 8 way, keyed 2mmpitch connector (intended for use with VMUSIC2 or VDRIVE2) or bare, tinned wire ended connections

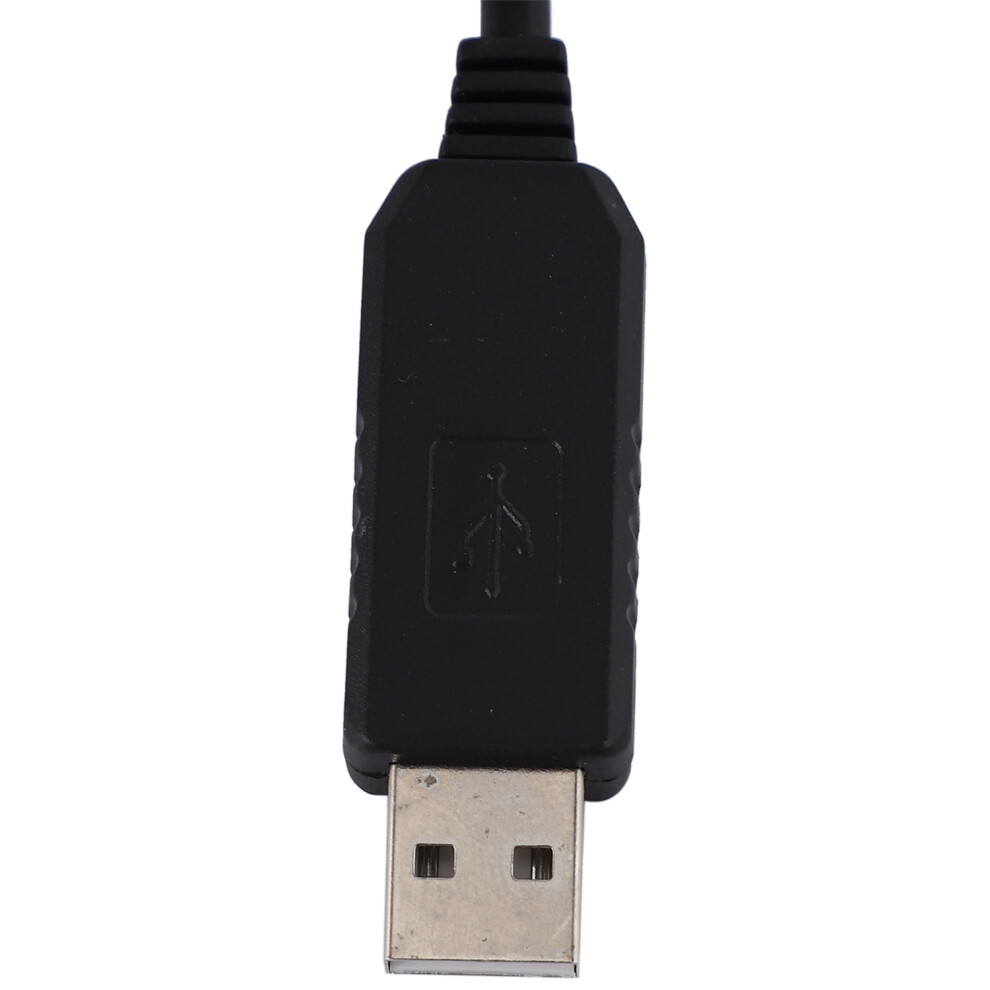

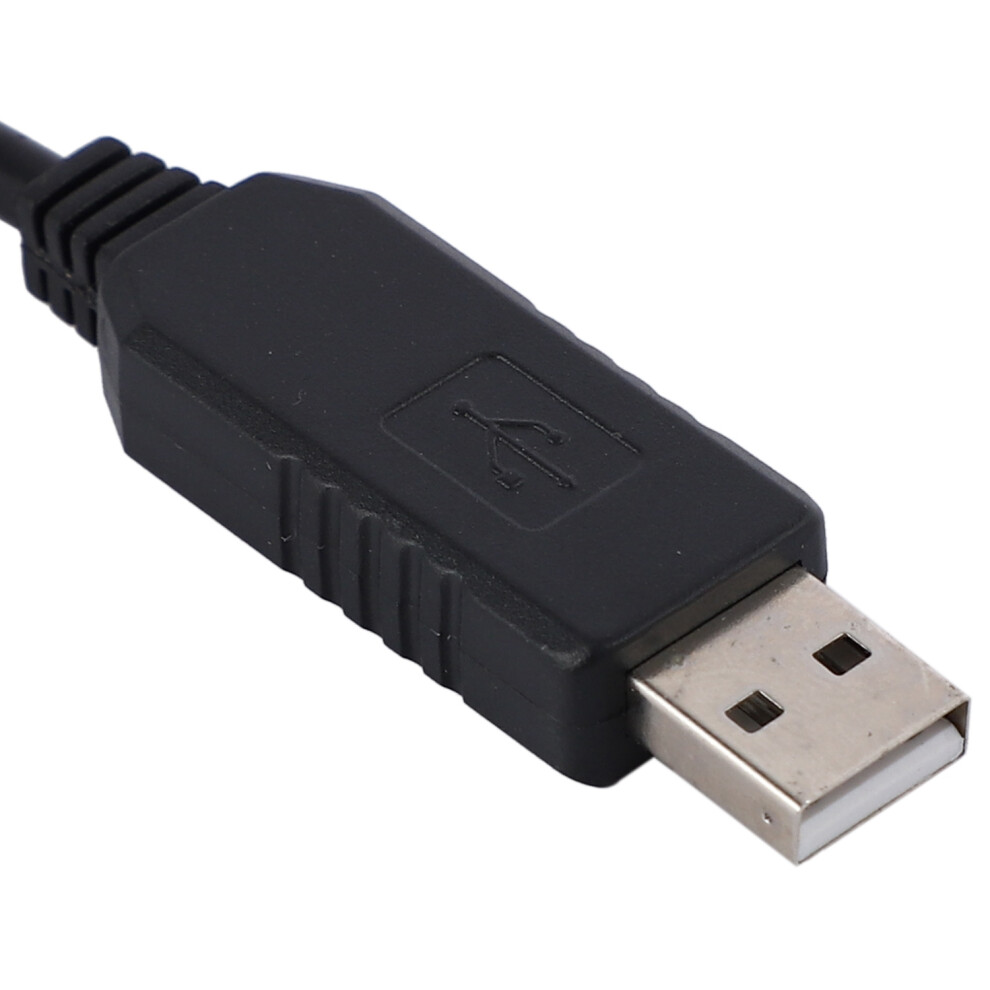

The USB side of the cable is USB powered and USB 2.0 full speed compatible.

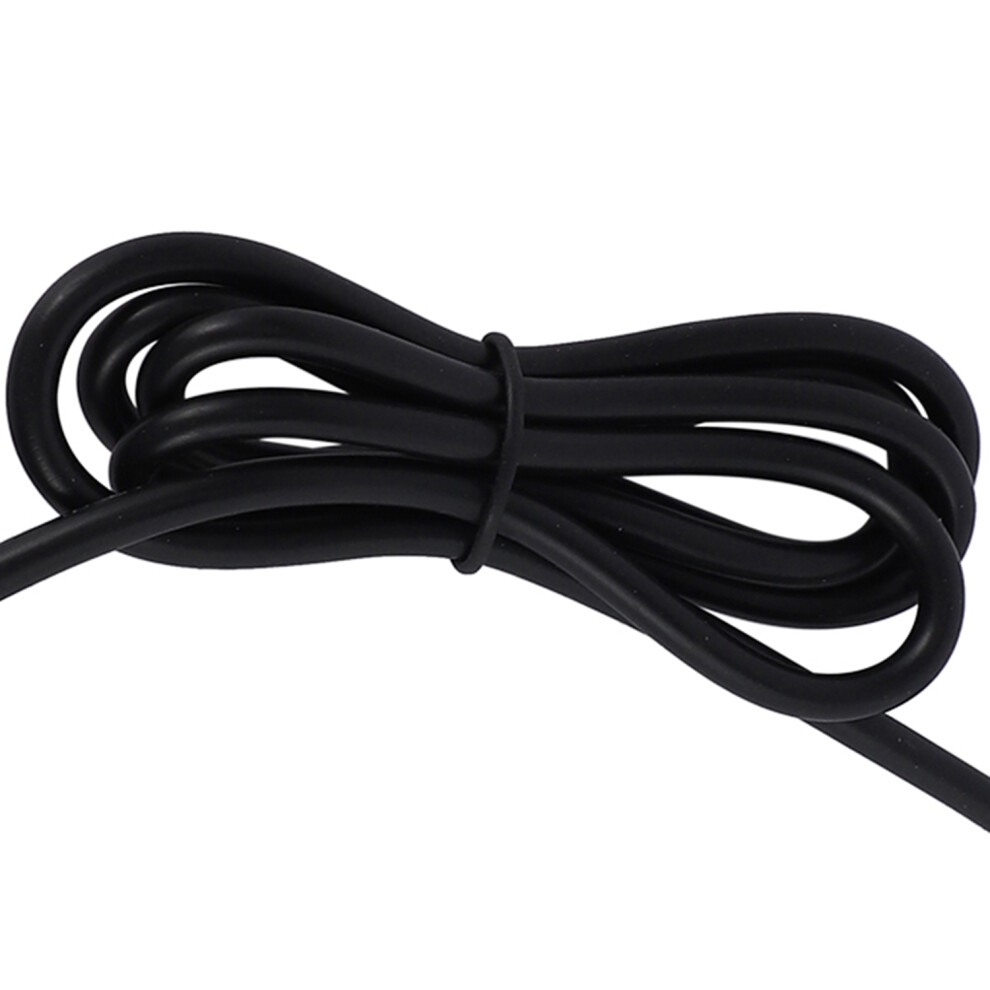

Each cable is 1.0m long and supports a data transfer rate to 3 Mbaud

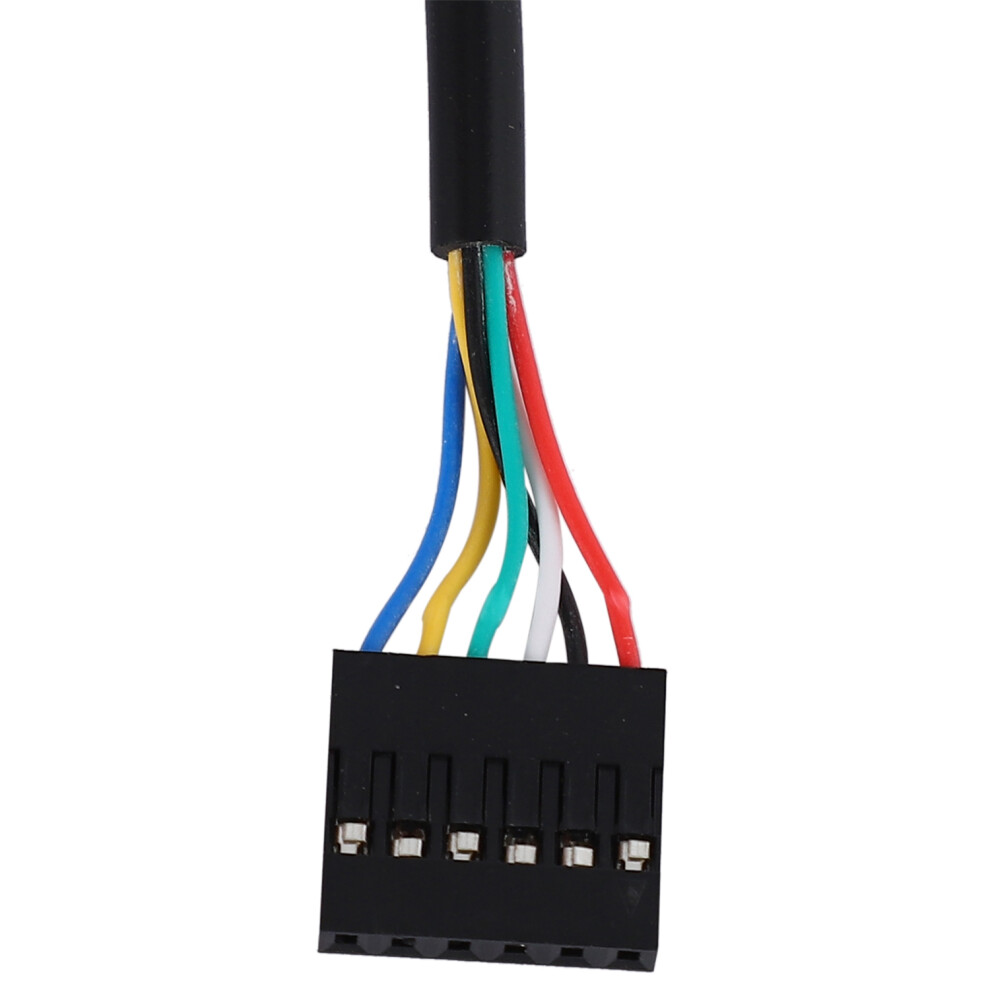

Red wire: 5V
Black wire: GND
White wire: RXD
Green wire: TXD
Yellow wire: RTS
wire: CTS
Colour:black
Material:plastic
Package Contents:
1* 6Pin FTDI FT232RL FT232 Module
