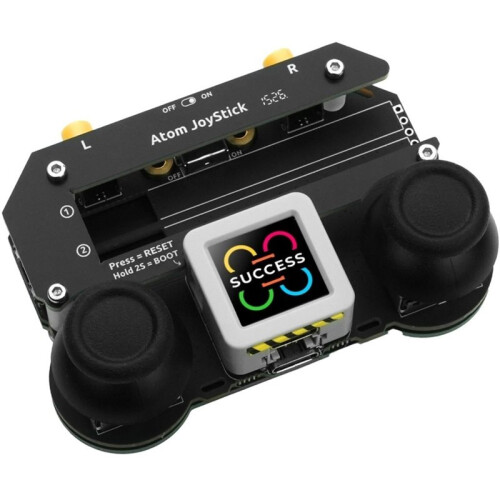

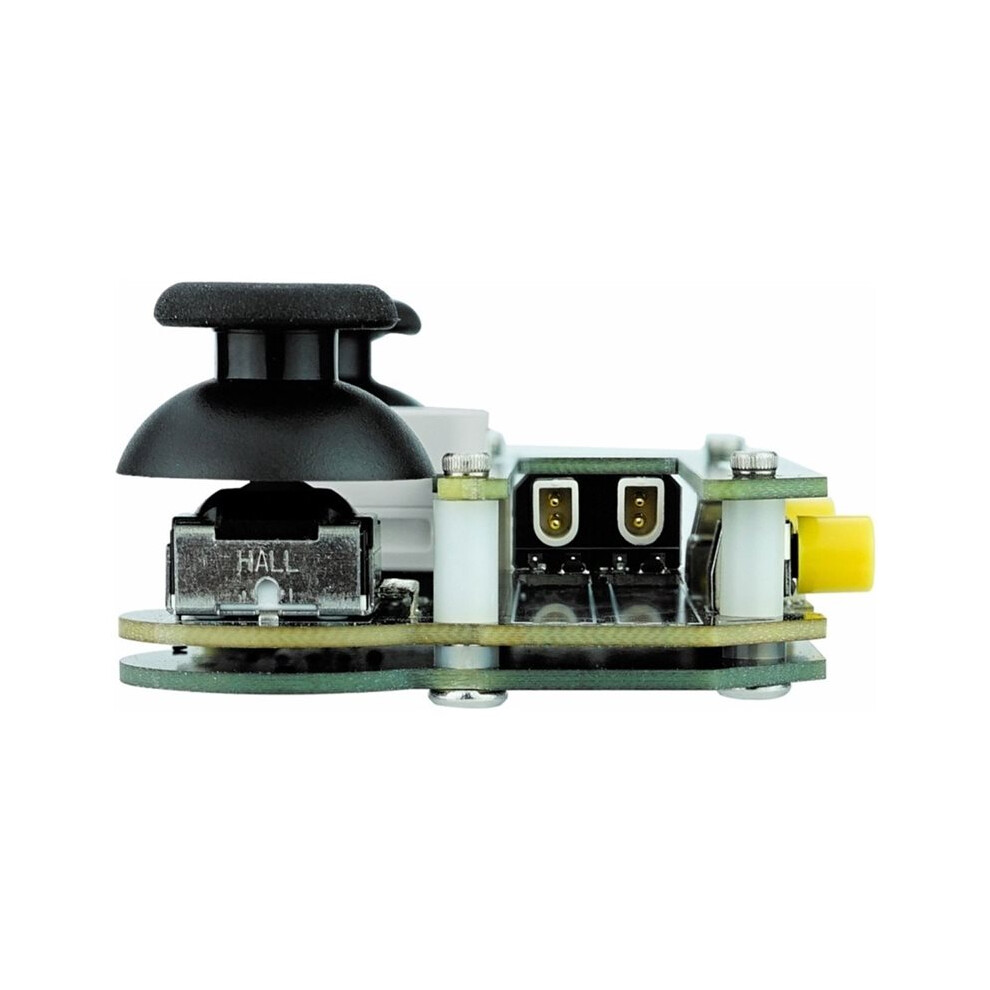

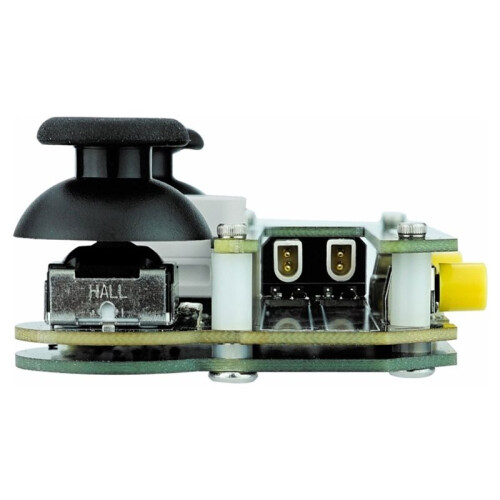

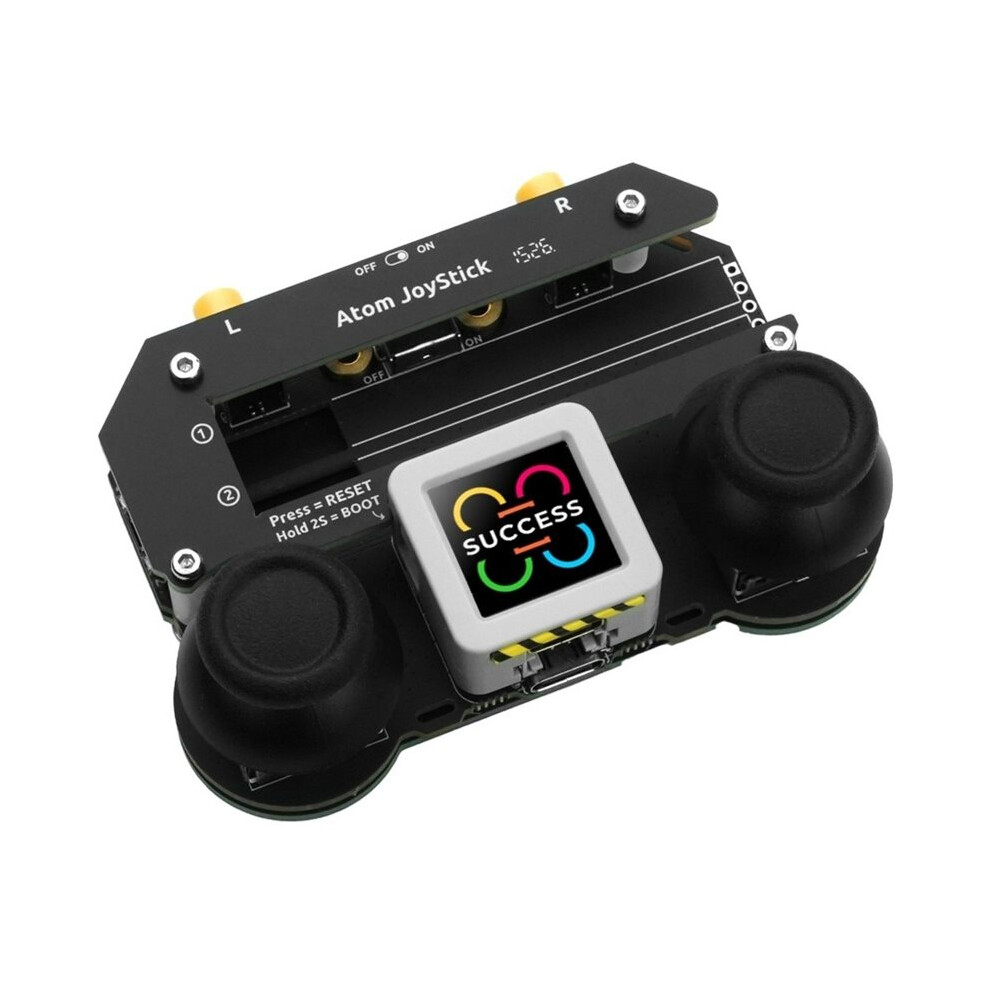

Atom JoyStick V1.1 Multi-Functional Programmable Dual-Joystick Remote Controller AtomS3R Controller BMI270 BMM150

Atom JoyStick V1.1 Multi-Functional Programmable Dual-Joystick Remote Controller AtomS3R Controller BMI270 BMM150 Popis

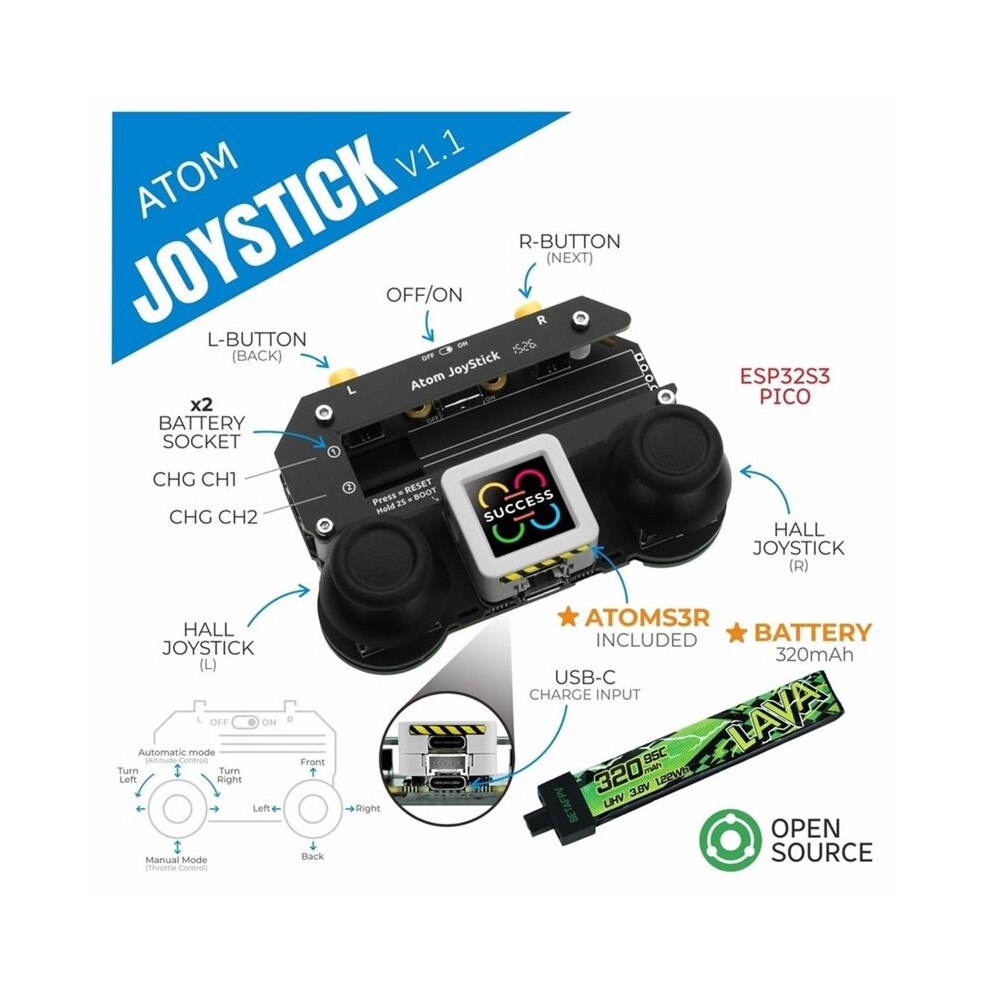

Atom JoyStick v1.1 is a multi-functional programmable dual-joystick remote controller. As an iterative version of the Atom JoyStick, its core improvement is that the main controller has been upgraded from AtomS3 to AtomS3R.
The AtomS3R integrates the ESP32-S3--1-N8R8, features 8MB Flash, 8MB PSRAM, and 2.4 GHz Wi-Fi, and includes a built-in BMI270 6-axis attitude sensor and BMM150 3-axis geomagnetic sensor.
The controller base integrates an STM32 core main controller and uses an I2C communication interface. It is equipped with 2 Hall-effect five-way joysticks, 2 function buttons, an independent power , and RGB LED indicators.

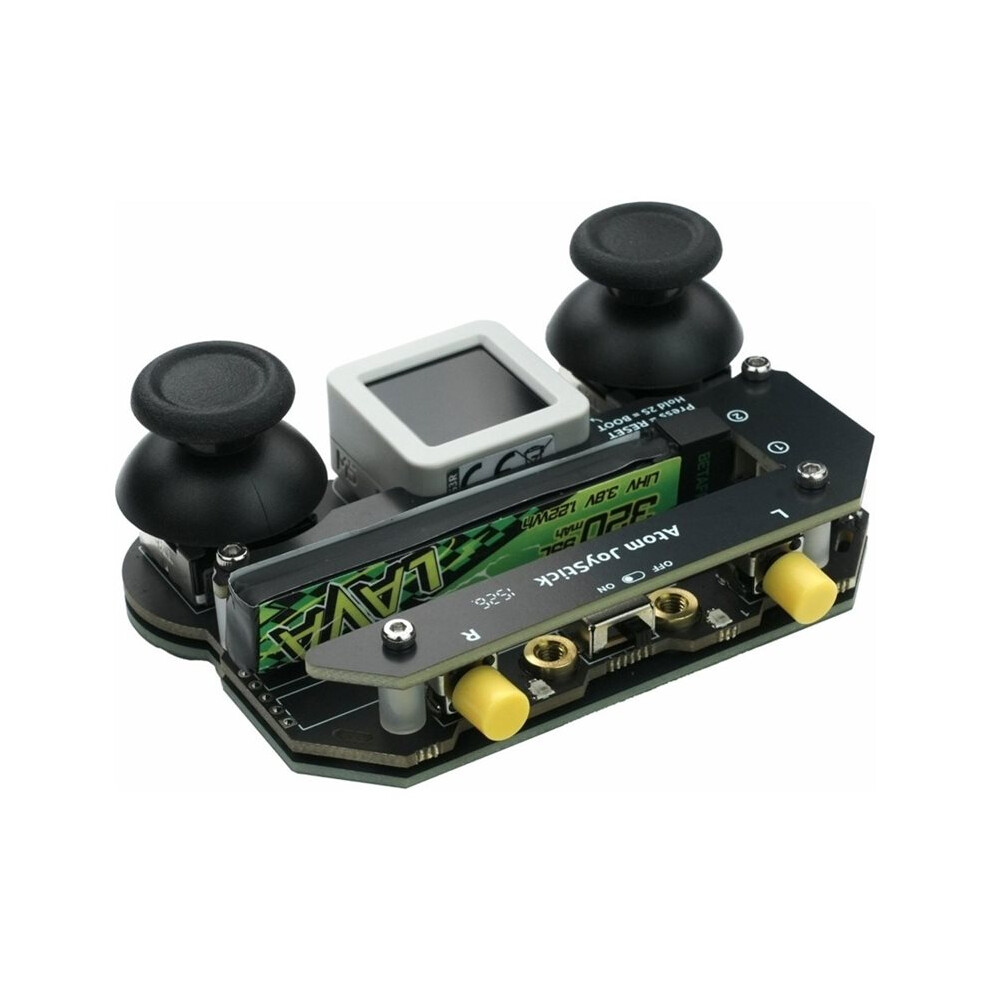

It is powered by a high-voltage battery for stronger endurance. There are two onboard battery charging interfaces that can charge the battery of the StampFly v1.1 at the same .
The product is pre-flashed with StampFly remote-control firmware at the factory and communicates with the StampFly via the ESP-NOW protocol. The firmware source code is open source, making it suitable for drone control, robot control, cars, and various DIY projects.

Features
Atom JoyStick v1.1
STM32F030F4P6 core main controller
Dual joysticks, dual buttons, independent power
2x WS2812C RGB LED

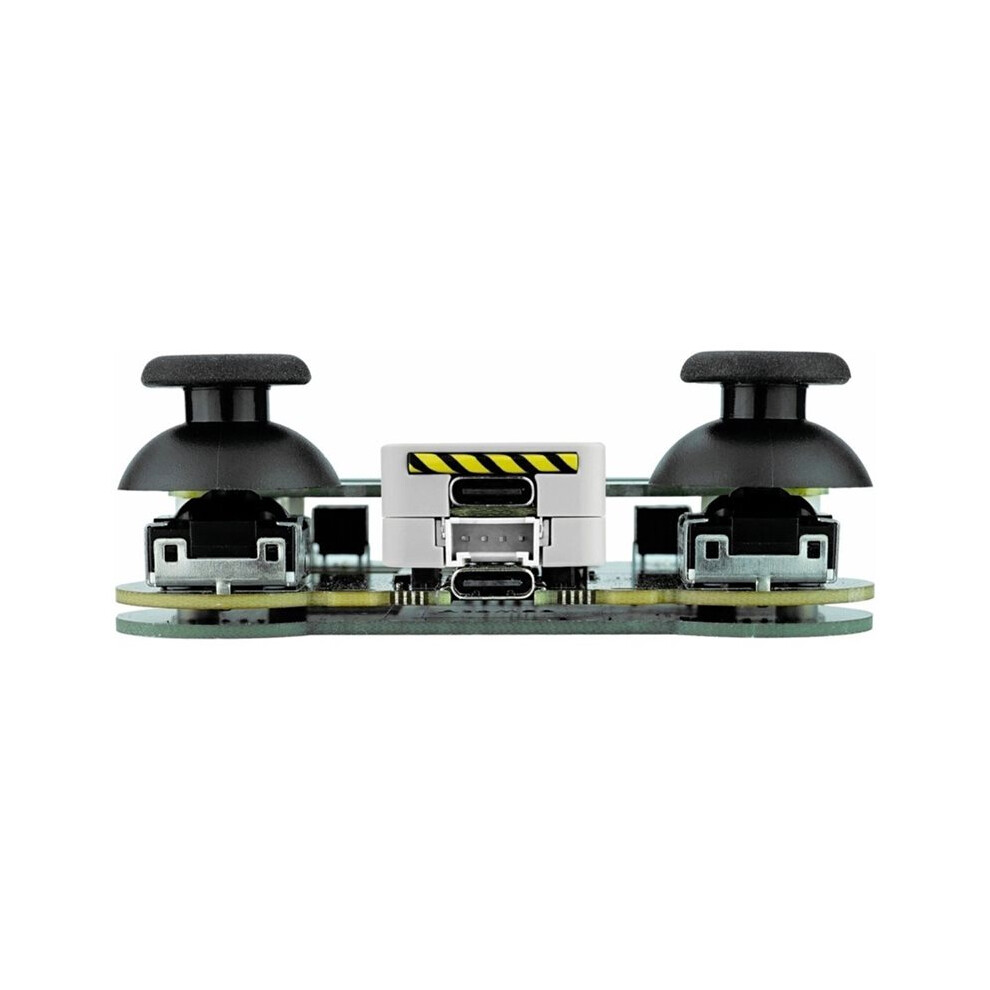

USB Type-C charging interface
Buzzer notification
Battery voltage detection
Two battery charging interfaces
AtomS3R Controller
ESP32-S3--1-N8R8
8MB Flash and 8MB PSRAM
0.85" LCD @ 128x128
BMI270 6-axis attitude sensor
BMM150 3-axis geomagnetic sensor
Enhanced 3D antenna
Specifications
Controller: AtomS3R
SoC: ESP32-S3--1-N8R8 @ 32-bit LX7 dual-core processor, to 240MHz
Flash: 8MB
PSRAM: 8MB Octal
Wi-Fi: 2.4 GHz Wi-Fi
Display: 0.85" LCD @ 128x128
6-Axis Attitude Sensor: BMI270 (I2C @ 0x68)
3-Axis Ge
