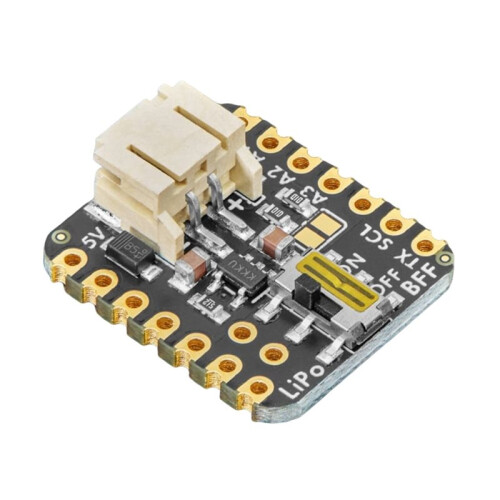

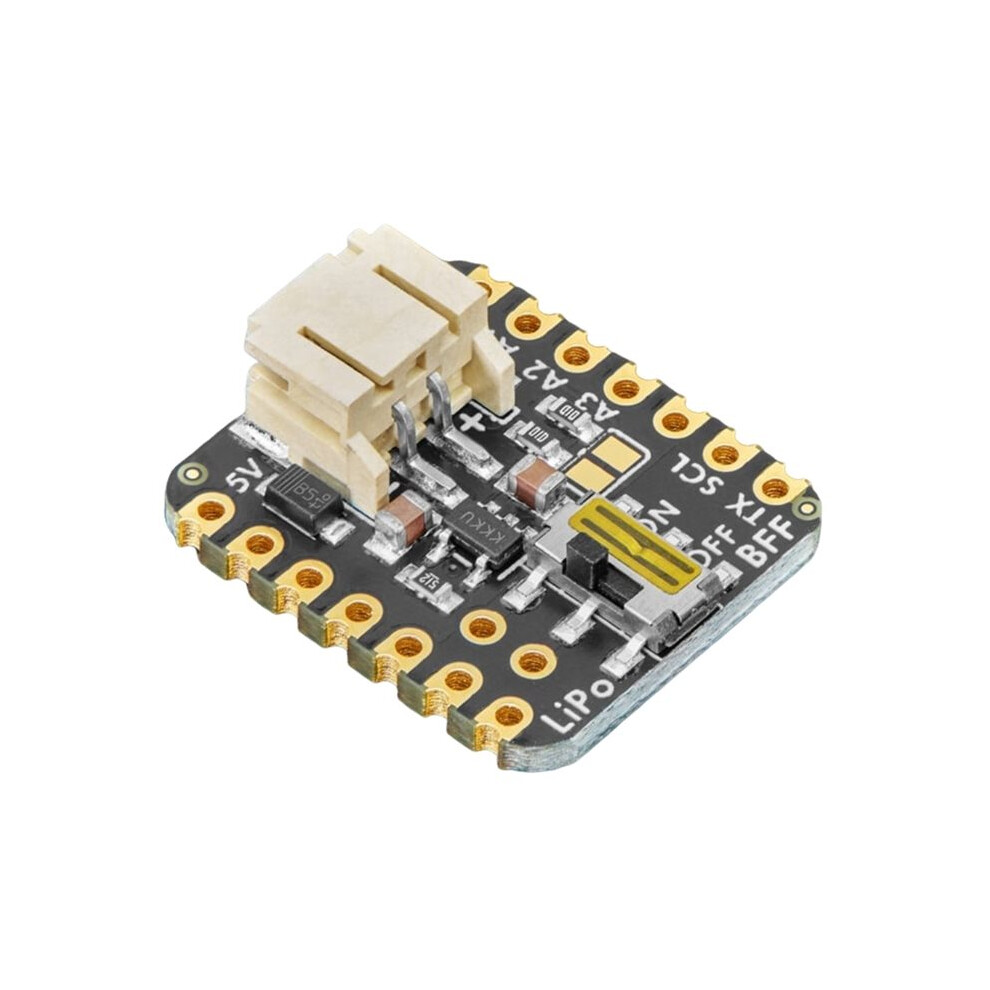

LiIon or LiPoly Charger Module BFF Add- for QT Py for Adafruit
Na sklade
Prečo si zamilujete nakupovanie na OnBuy:
- Získajte cashback pri každom nákupe – použite ho okamžite na ďalšiu objednávku
- Doprava zadarmo – na milióny produktov na celej stránke
- Zákazníci nás milujú – 129,000 hodnotení s “Vynikajúcim” hodnotením
Ceny produktov predávaných spoločnosťou OnBuy sú uvedené s DPH.
K dispozícii sú aj bezúročné možnosti platby
Zobraziť celý popis a podrobnosti o produkte
Doručenie: Štandard (8,02 €) | str 29 júl - uto 4 aug
Vrátenie tovaru: 30 dní
180-dňová ochrana platieb
Najobľúbenejšie v Nabíjačky batérií pre domácnosť
Zhrnutie
- This little lipo charger is designed to fit onto the back of any QT Py board, and make it easy for portable powering. Simply plug any standard 3.7V/4.2V lithium polymer or lithium-ion rechargeable battery into the JST plug on the end. We include some header that you can solder to your QT Py.
- When powered by the USB port on the QT Py, the charger kicks in and will charge up the battery at 200mA max rate. You'll see the yellow LED light up when that happens.
- When the USB is removed, the battery will reverse charge into the 5V port via a Schottky diode. You can turn it on or off with the built in slide switch as well.
- A simple voltage divider on the cathode side of the diode and connected to pin A2 will let your firmware detect basic modes: if the voltage is over 4.3V, it is probably plugged into USB. If the voltage is 4.2V or below its probably running on the Lipoly battery and you can roughly determine the battery state.
- For use with LiPoly/LiIon batteries only! Other batteries may have different voltage, chemistry, polarity, or pinout.
LiIon or LiPoly Charger Module BFF Add- for QT Py for Adafruit Popis
This little lipo charger is designed to fit onto the back of any QT Py board, and make it easy for portable powering. Simply plug any standard 3.7V/4.2V lithium polymer or lithium-ion rechargeable battery into the JST plug the end. We include some header that you can solder to your QT Py.
When powered by the USB port the QT Py, the charger kicks in and will charge the battery at 200mA max rate. You'll see the yellow LED light when that happens.
When the USB is removed, the battery will reverse charge into the 5V port via a Schottky diode. You can turn it or off with the built in slide as well.
A simple voltage divider the cathode side of the diode and connected to pin A2 will let your firmware detect basic modes: if the voltage is over 4.3V, it is probably plugged into USB. If the voltage is 4.2V or below its probably running the Lipoly battery and you can roughly determine the battery state.
For use with LiPoly/LiIon batteries only! Other batteries may have different voltage, chemistry, polarity, or pinout.
Uses the 5V input via USB Type-C connector QT Py
For charging single Lithium Ion/Lithium Polymer 3.7/4.2v batteries (not for older 3.6/4.1v cells)
200mA charge current
Color: Black
Material: PCB
Package Contents:
1 * Module
Podrobnosti
| OPC | PWMKHN7 |
|---|---|
| Kódy | 6032694930930 (EAN) |
| Informácie o produkte a bezpečnosti |
Údaje o produkte
| Height | 5cm |
|---|---|
| Width | 10cm |
| Length | 10cm |
| Weight | 0.005kg |
| Colour | Black |
| Material | PCB |
