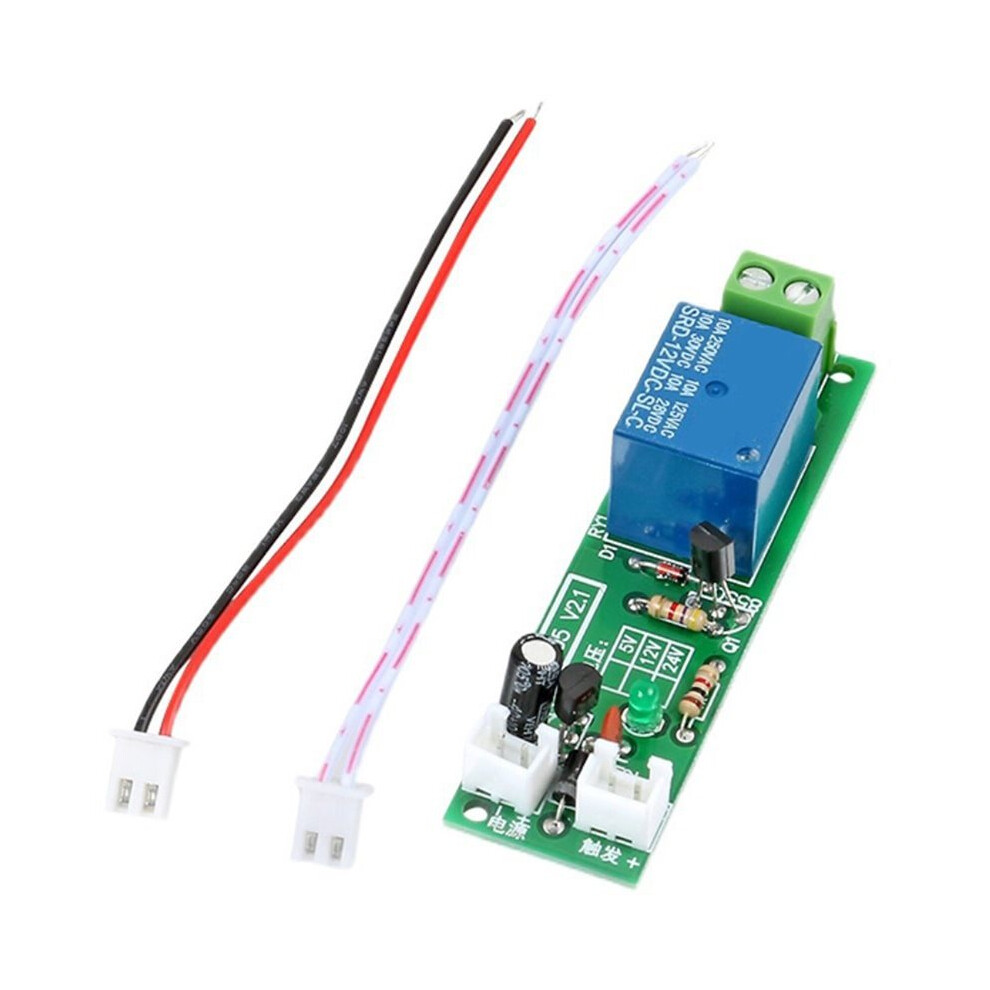

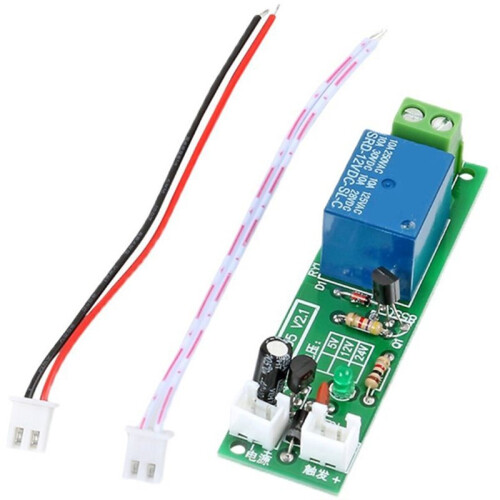

Taidacent 0 to 60 Minutes Delay Timer Relay 12V Multifunction Relay Module Normally Open Relay 10A Load MCU Control
Ny
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 136,000 anmeldelser med vurderingen “Utmerket”
92,17 kr
138,25 kr
33 % rabatt!
+1,50 kr levering
1%
Tjen 0,92 kr med én gang
Les mer
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (1,50 kr) | tir 13. - tor 15. okt
Solgt av: YPDblue
Returer: 30 dager
180 dagers betalingsbeskyttelse
Du vil kanskje også like
Beskrivelse og detaljer
Sammendrag
- This module is a normally open type, press the switch once, the relay will be turned on immediately, and will be turned off when the set time is reached. The timing from 0 seconds to 1 hour can be set, and 64 time values can be set.

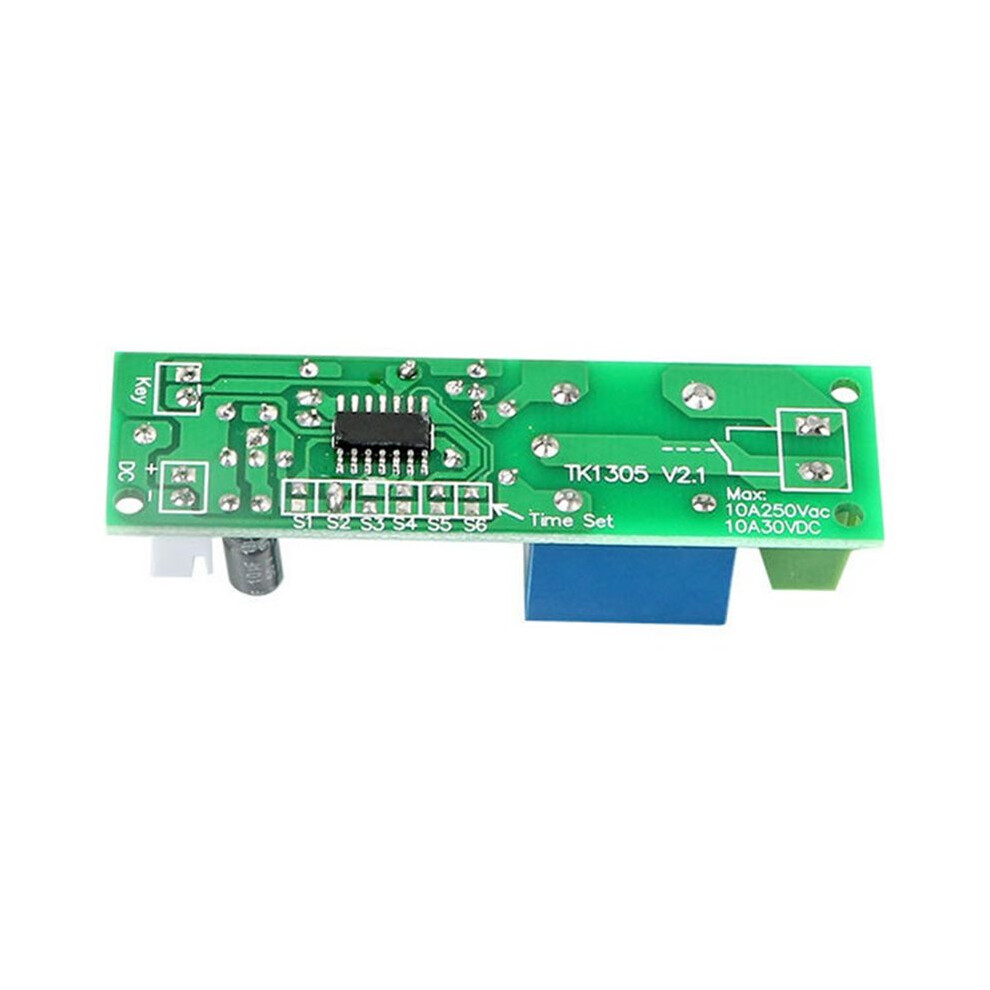

- 1. Turn on after triggering, turn off after delay. Configuration method: trigger the termination button, S6 is disconnected.
- 2. Delay after trigger, turn on after the time is reached. Configuration method: trigger button, S6 connection.
- 3. After the module is energized, it will be turned on immediately, and it will be turned off after the delay is reached. Configuration method: short-circuit the trigger terminal and disconnect S6.
- 4. After the module is energized, (the contact is off), it will delay immediately when it opens, and it will turn on after the delay arrives. Configuration method: short-circuit the trigger terminal and connect S6.
Taidacent 0 to 60 Minutes Delay Timer Relay 12V Multifunction Relay Module Normally Open Relay 10A Load MCU Control Beskrivelse
This module is a normally open type, press the once, the relay will be turned immediately, and will be turned off when the set is reached. The timing from 0 seconds to 1 hour can be set, and 64 values can be set.
1. Turn after triggering, turn off after delay. Configuration method: trigger the termination button, S6 is disconnected.
2. Delay after trigger, turn after the is reached. Configuration method: trigger button, S6 connection.
3. After the module is energized, it will be turned immediately, and it will be turned off after the delay is reached. Configuration method: short-circuit the trigger terminal and disconnect S6.
4. After the module is energized, (the contact is off), it will delay immediately when it opens, and it will turn after the delay arrives. Configuration method: short-circuit the trigger terminal and connect S6.
Color: As Shown
Material: PCB+Electronic Components+Plastic
Package Contents:
1*Delay Timer Relay kit
Detaljer
| OPC | PWSVNZR |
|---|---|
| Koder | 6033267609758 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 8cm |
|---|---|
| Width | 8cm |
| Length | 10cm |
| Weight | 0.06kg |
| Colour | As Shown |
| Material | PCB+Electronic Components+Plastic |
