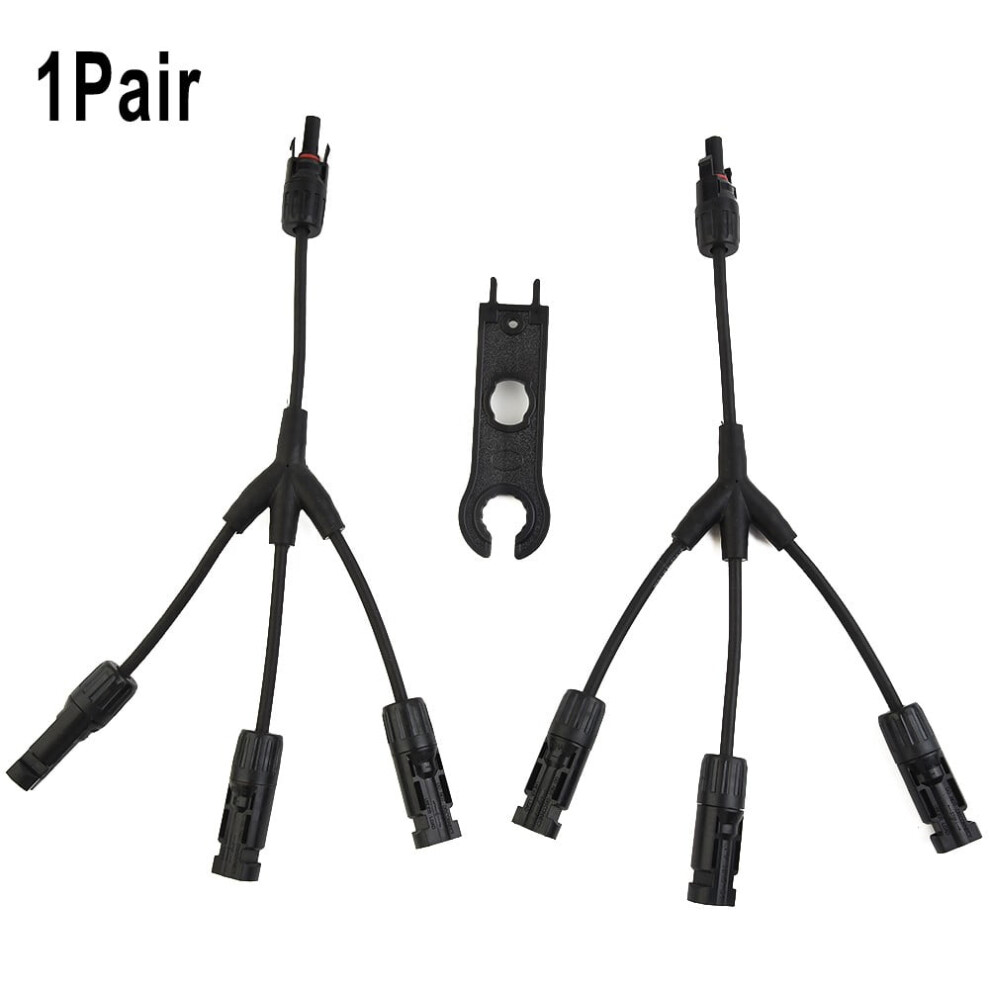

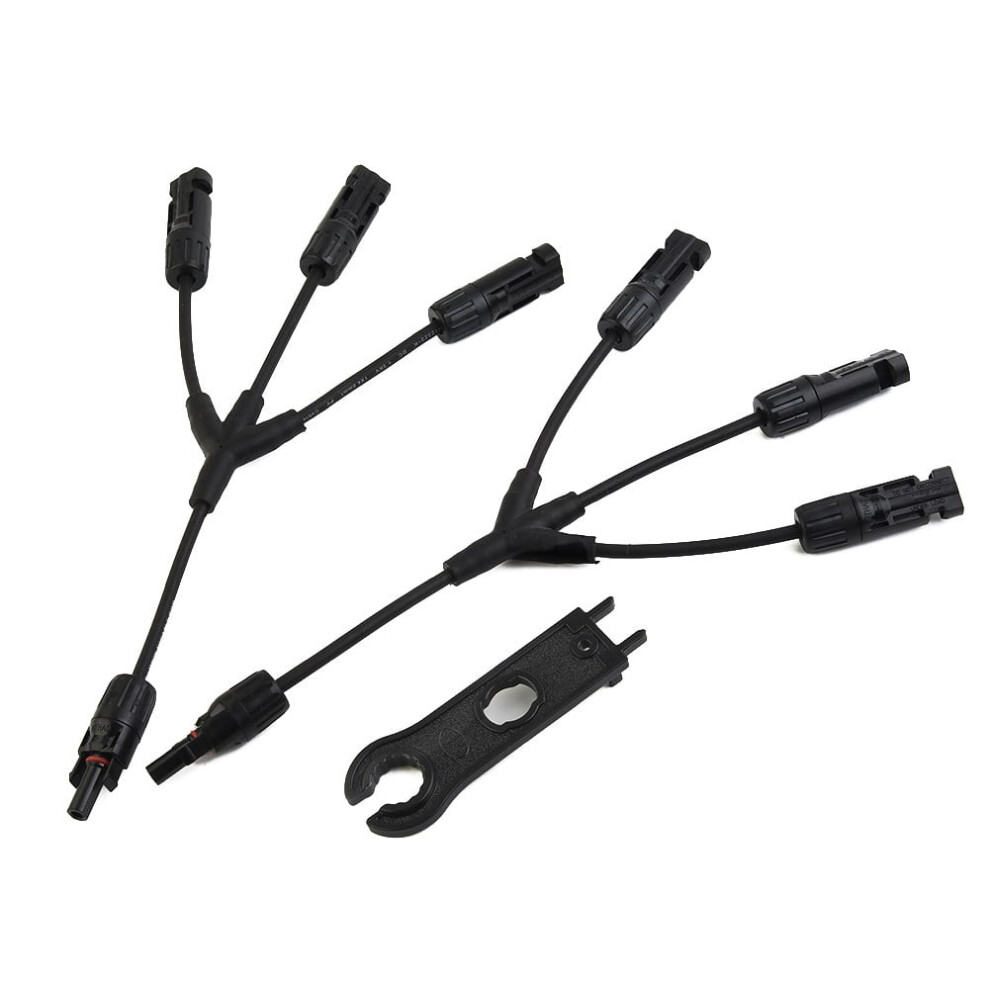

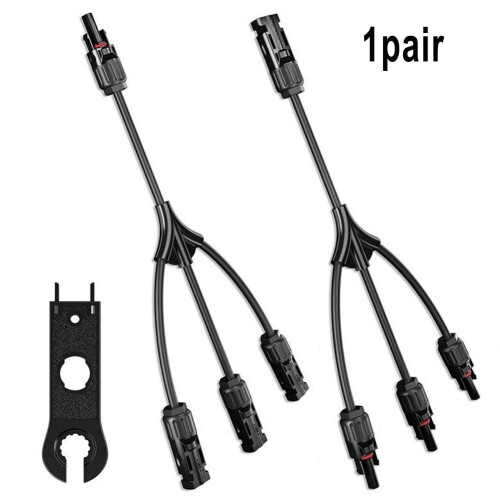

1 Pair Solar PV Panel Y Branch Cable Connection Waterproof Adapter with Wrench

1 Pair Solar PV Panel Y Branch Cable Connection Waterproof Adapter with Wrench Description

Features: - Brand new and high quality - Made of high quality materials, durable - This Y-shaped solar cable connector kit is the perfect solution for connecting multiple panels together in parallel. - Simple and fast help and simple plugin for the whole process without any additional equipment. - High temperature resistance, material does not melt or flow well cold elastic, long service life. - Electron beam crosslinking compound UV and ozone resistant to hydrolysis. Specification: - Model: 1 to 2 - Rated current: 20A(4mm²)30A(6mm²) - Rated voltage: 1000V DC - Contact resistance: 500mΩ - Applicable single-core cable section: 2.5mm2, 4mm2, 6mm2 - Cable outer diameter: Φ5mmΦ7mm - Connector insulation material: PPO - Protection class: IP67 - Working temperature range: -40+105 - Model : 1 to 3 - Rated voltage: TUV1000V DC /UL 600V DC - Current: 20A~30A - Wire gauge: 2.5mm²~6mm² / 14AWG~10AWG - Terminal specification: φ4.0mm - High voltage: TUV6000V AC(1min) /UL 2200V DC(1min) - Security: II - Connector conductor material: copper, silver plated - Contact resistance: 5mΩ - Material: PPO - Protection class: IP68 (IEC 60529) - Temperature level: -40 degrees to +85 degrees - Flame retardant grade: UL94V-O - Model : 1 to 4 - Can be used in harsh environments - Create a sealed, dust-proof design - Strong pulling ability - Lower contact resistance - High current and high voltage load capacity - Double sealing ring, better waterproof effect - Has excellent anti-aging and anti-ultraviolet ability - Compatible with photovoltaic cables with different insulation diameters - Resistant to high and low temperature, fireproof - Quick and easy assembly handling and simple plug removal without any additional tools Package Included: 1*Pair Y-Branch Solar Panel Cable Connector (Optional) 1*Wrench Notes: 1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture. 2. Please allow a slight deviation between the data and the manual measurement. Made of high quality materials, durable This Y-shaped solar cable connector kit is the perfect solution for connecting multiple panels together in parallel. Simple and fast help and simple plugin for the whole process without any additional equipment. High temperature resistance, material does not melt or flow well cold elastic, long service life. Electron beam crosslinking compound UV and ozone resistant to hydrolysis.
