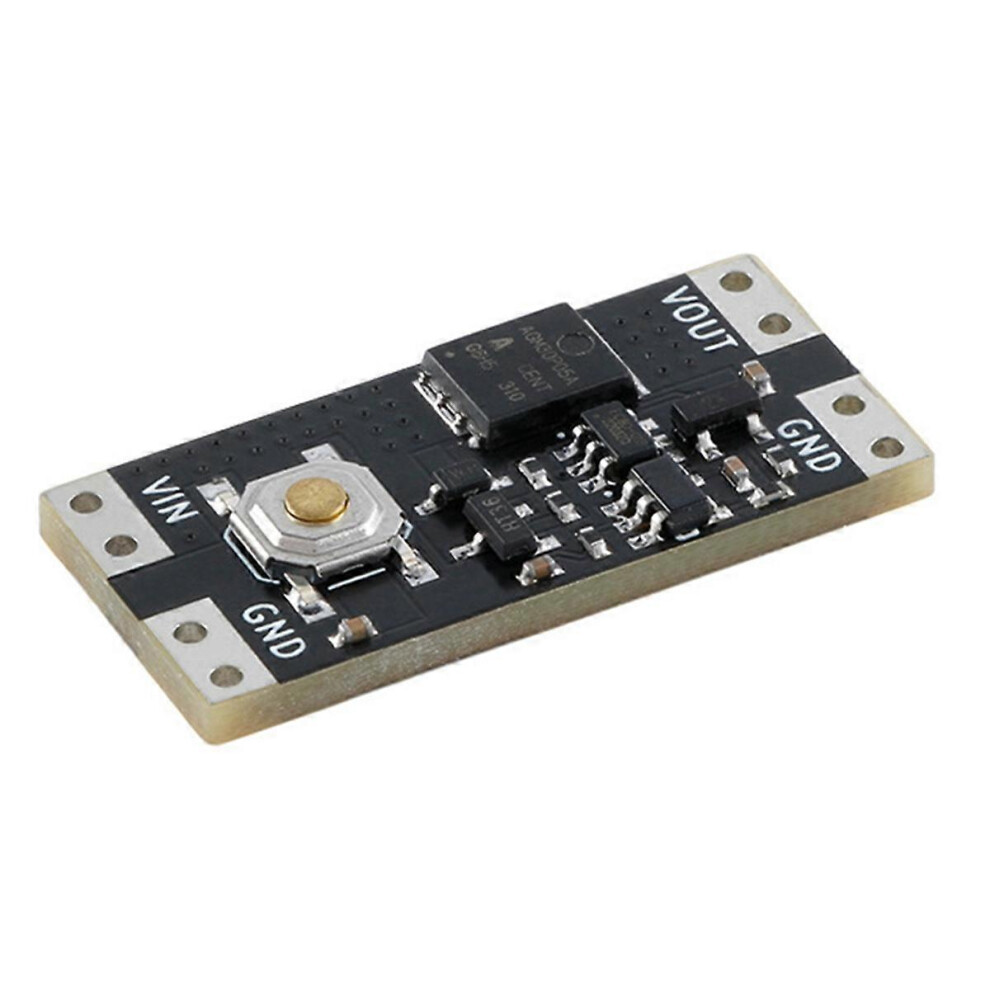

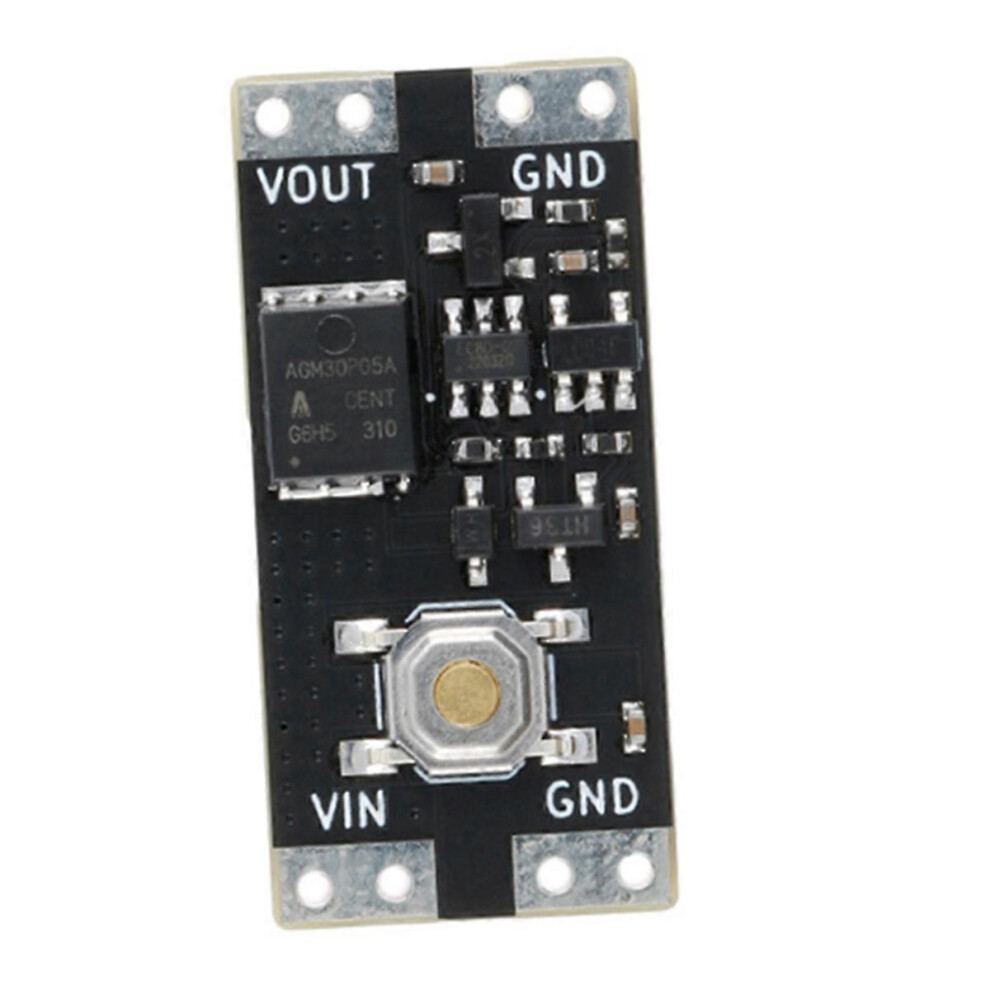

1 Pc Single Bond Button Bistable Switch Module, 4.5-26V 1.3UA Load 10A Low Current Wide Voltage Mini On

1 Pc Single Bond Button Bistable Switch Module, 4.5-26V 1.3UA Load 10A Low Current Wide Voltage Mini On Description

①The XL-10AH is a wide-voltage version. This module can achieve the same function as latching switches by lightly touching the switch to turn the power supply on and off.
②It can support a load with a maximum switching current of 10A, supports a wide voltage range of 4.5-26V, and has an idle current of approximately 1.3µA when off.
③The module's good characteristics cover the operating voltage and functionality required for most DC loads. The small design also doesn't take up too much space on your device.
④ For the button area: If you want to use other types of buttons, you can also connect various other types of touch buttons to our switch control board via wires.
⑤ Model: XL-10AH
⑥ Operating voltage: 4.5-26V
⑦ Idle current: 1.3µA (measured at 12V)
⑧ Load current: 10A (30-minute test at 12V)
⑨ Voltage drop: 120mV (measured at 12V 10A)
⑩ Color: Black
⑪ Material: PCB
⑫ Package contents:
1 x XL-10AH switching module
⑬ Only the above package contents are included Included, other products are not included.
⑭Note: Light reflection and different displays may cause the color of the item in the picture to be slightly different from the real product. The allowed measurement error is +/- 1-3cm.
