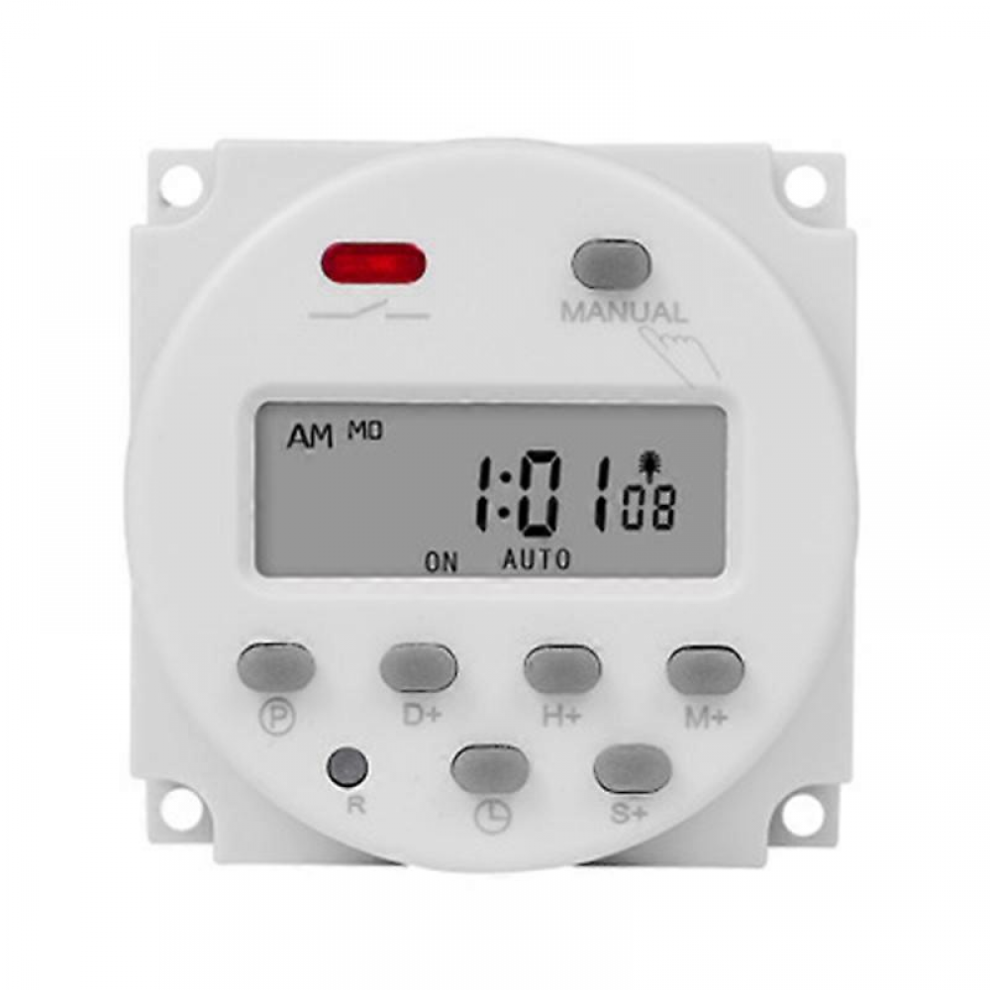

1 Second Interval 12V Digital LCD Timer Switch Weekly Programmable Time Relay Programmer CN101S

1 Second Interval 12V Digital LCD Timer Switch Weekly Programmable Time Relay Programmer CN101S Description

Features:

1.Easy to read LCD display, LED indicators.

2.Mimimum 1 second interval.

3.8 ON\/OFF programs per day, 15 combinations to a week.

4.24 hours \/ a week programmable.

Countdown function. Max 24 hours countdown to OFF.

Built-in rechargeable battery for saving the memory when power failure.

Repeat programs with 8 on\/off settings, and setting on\/off manually.

perfect for household use in pannel mounted.

color: White

Material: ABS+electronic components

Parameter:

1.Model number : CN101S

2.Power supply:5V,12V,24V,110V,220V 50\/60Hz

3.Max load:16A

4.Min interval:1 second

5.Timing range:1 second to 168 hours

6.Setting groups:8 ON\/OFF per day

7.Programs:15 Groups

8.Black-out:60 days

9.Average error:Less than \u00B1 2 sec\/day

10.Battery type:1.2V,inside,rechargeable

11.Installation:Pannel\/wall mounted

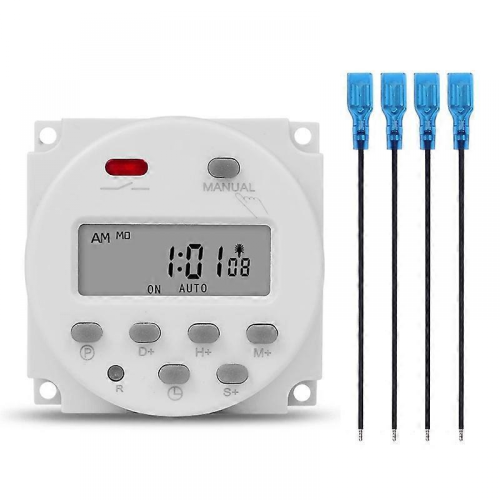

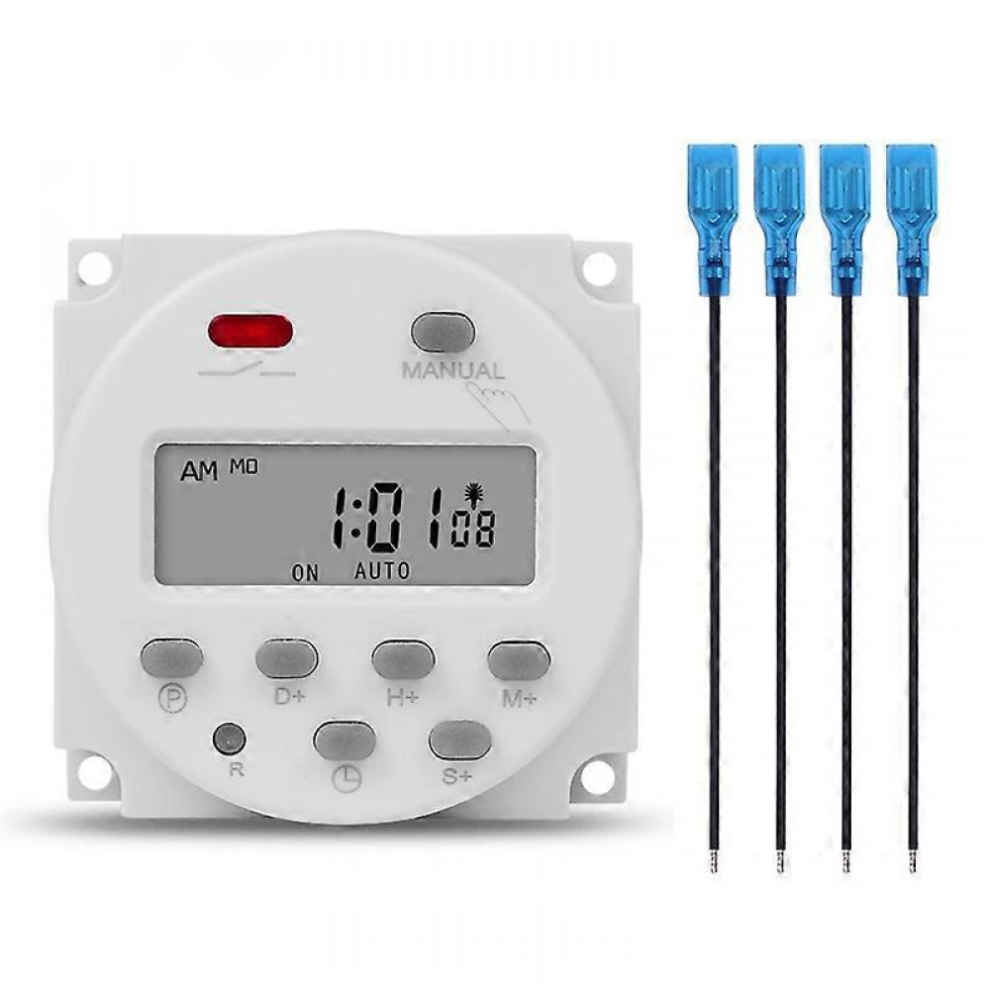

Package Contents:

1 x Timer switch

4 x terminal

1 x User Manual

Only the above package content, other products are not included.

Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
