10-100V 40A 2000W E-Bike Battery Module Single Discharge Dual-Battery Parallel Switch

10-100V 40A 2000W E-Bike Battery Module Single Discharge Dual-Battery Parallel Switch Description

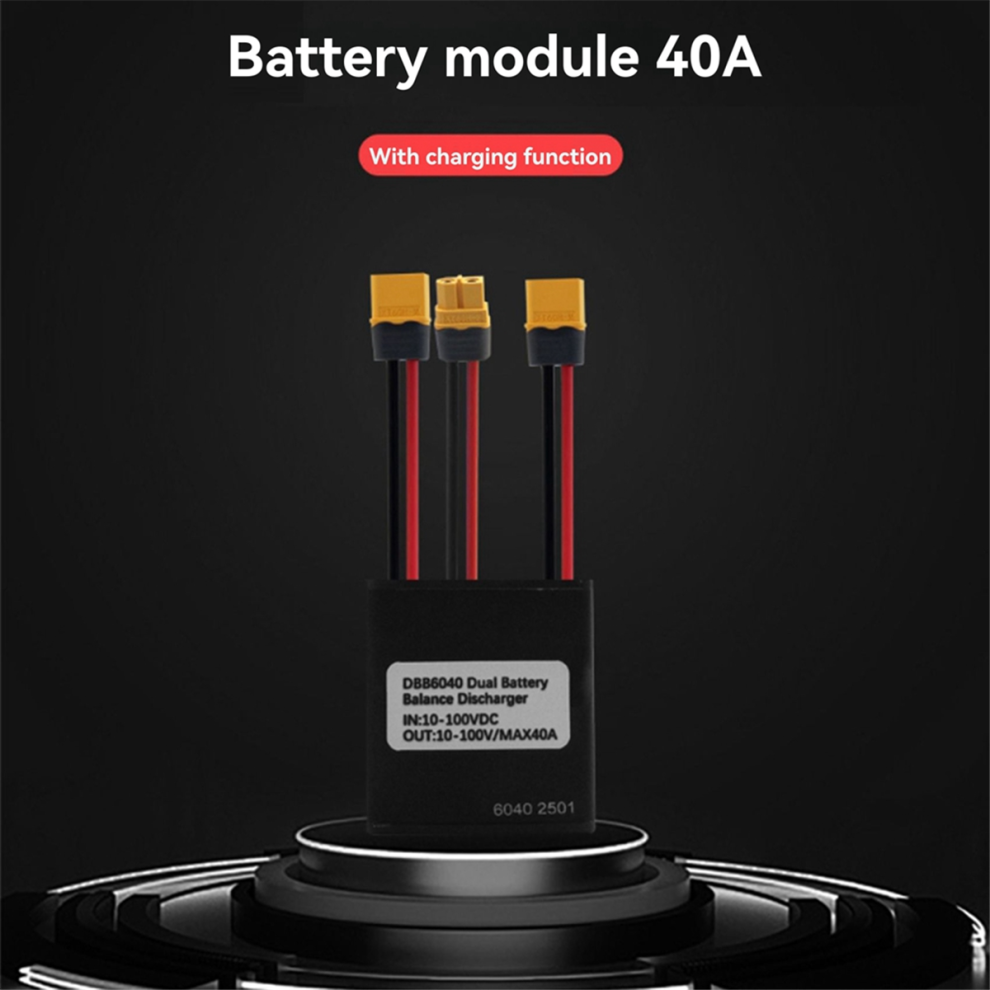

10-100V 40A 2000W E Bike Battery Module - Single Discharge

Power two parallel battery packs with intelligent management. This EBKE single-discharge module is built for 10-100V systems and up to 40A, delivering reliable, high-output performance while protecting your controller and batteries.

Key features:

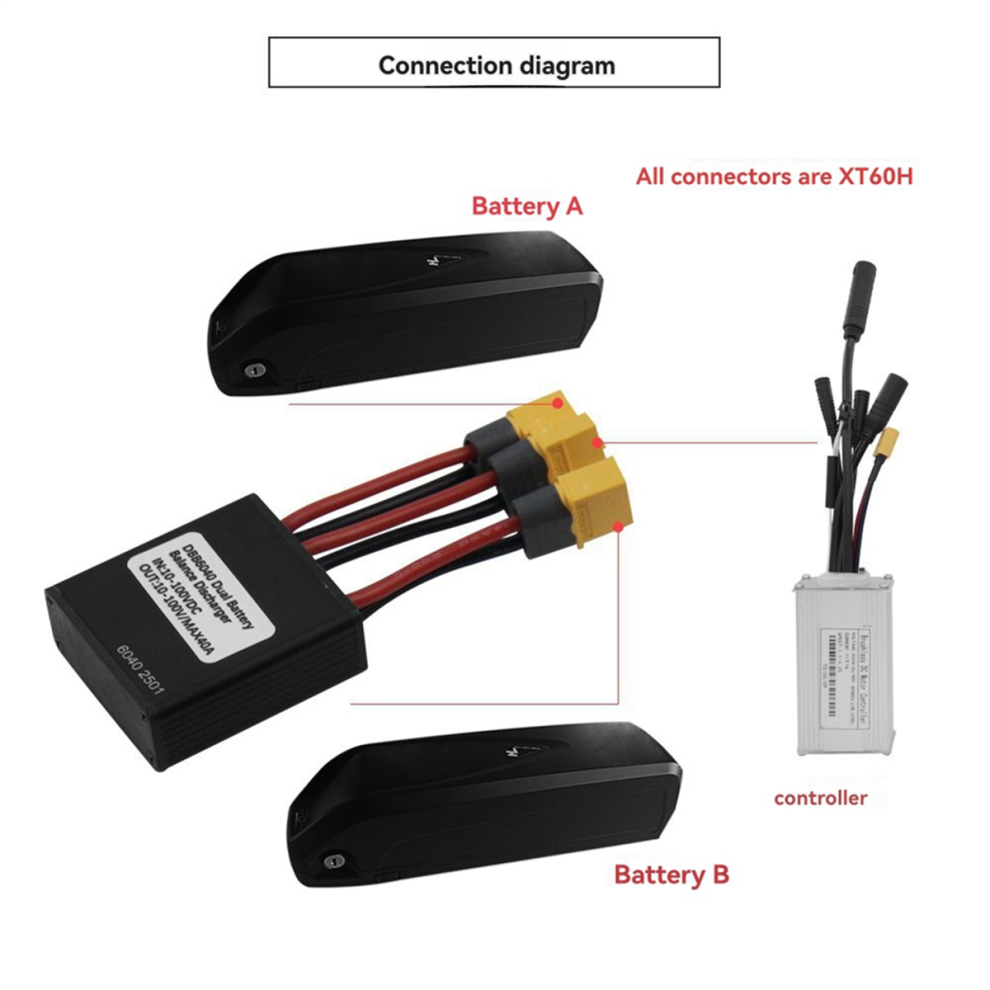

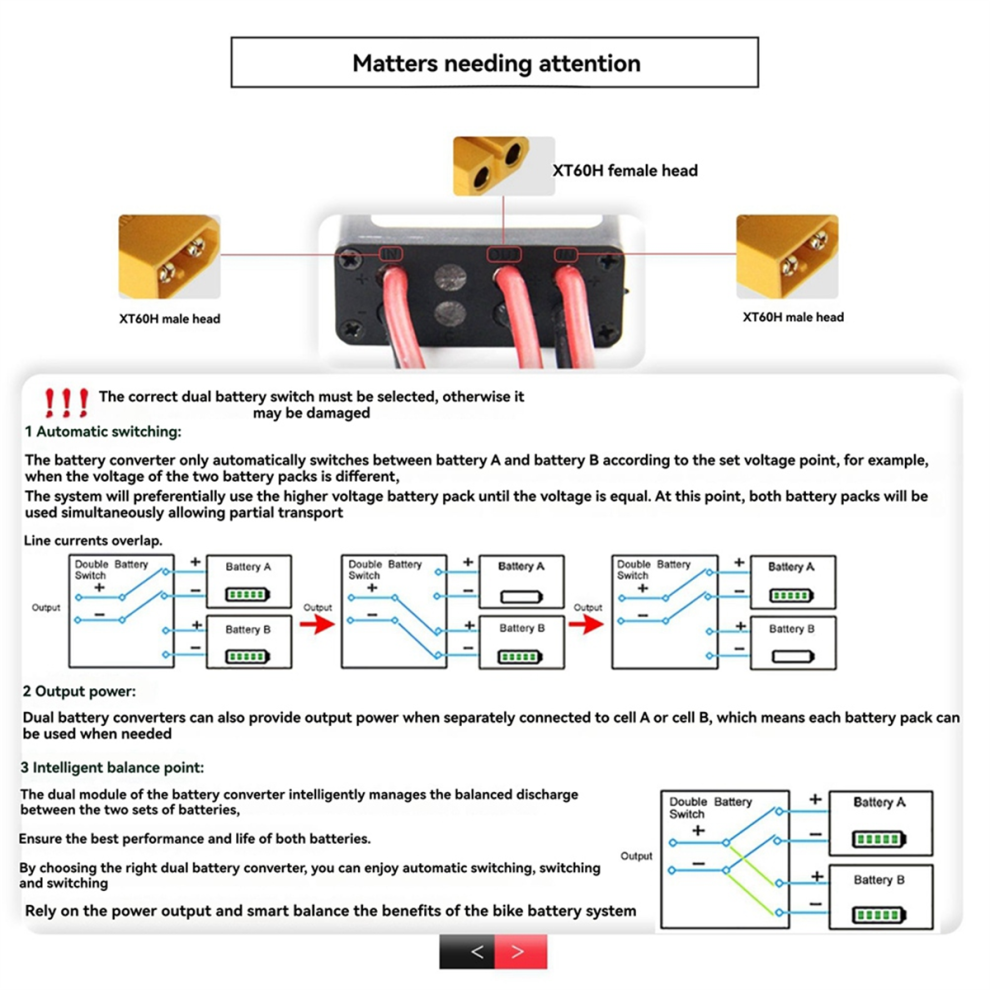

• Single discharge dual battery management: connect two identical-voltage groups (e.g., 2 x 36V or 2 x 48V) in parallel. The module prioritizes the higher-voltage group until it is near depletion, then automatically switches to the second group to extend ride time.
• Controller compatibility: set the module current to match your controller's maximum protection current. The recommended maximum is 40A (the module supports up to 40A).
• Regenerative charging compatibility: if your controller supports renewable charging and electronic braking, this version allows reverse energy flow back to the battery while preserving normal operation.

Technical and build details:

• Voltage range: 10V-100V
• Maximum operating current: 40A
• Recommended maximum power: less than 2000W
• Operating temperature: up to 65C
• Main component: MOSFET-based design (adequate heat dissipation recommended). Note: MOSFETs may heat during extended use; 65C is typical.
• Color: black
• Material: aluminium
• Note: This connection is the single discharge version; a dual battery parallel module switch version exists as a separate product

Appearance and build notes:

Due to batch variations, there may be minor differences in appearance, color, and printed text between products. These differences do not affect performance.

Package contents:

1 x Battery Module
