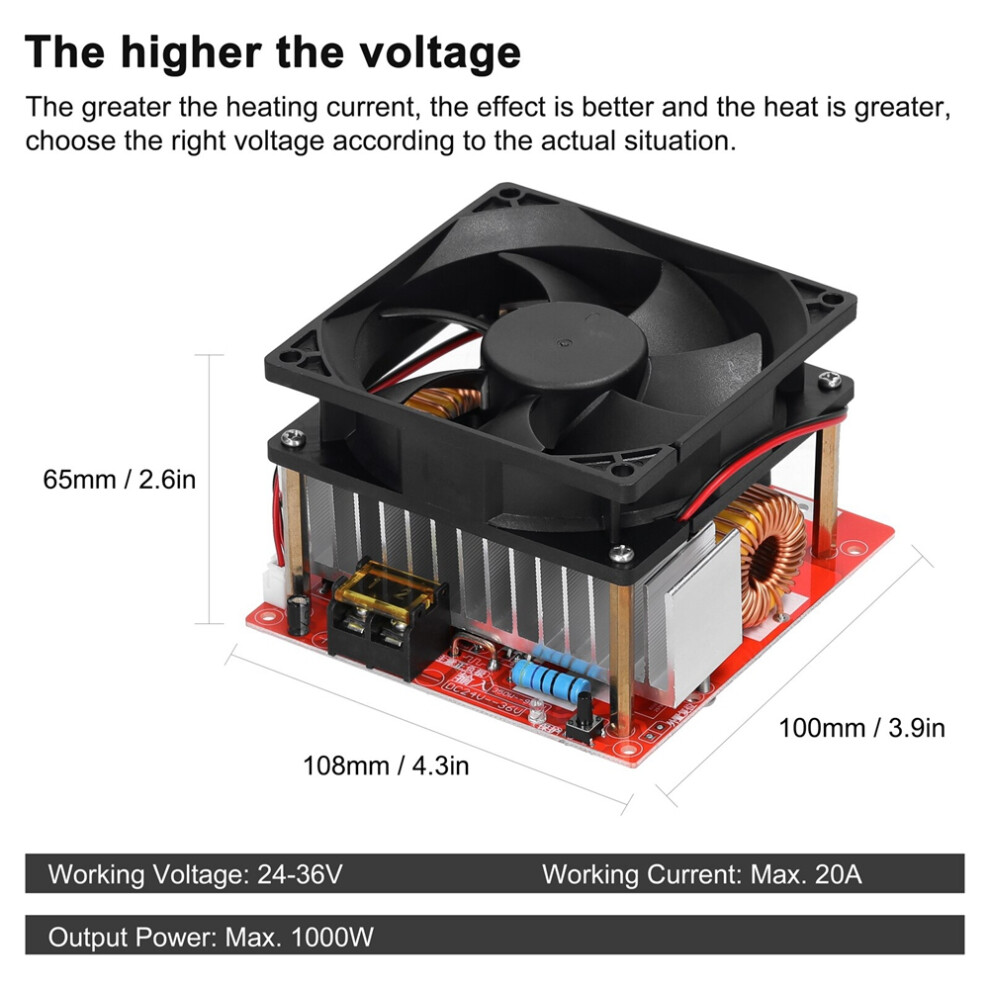

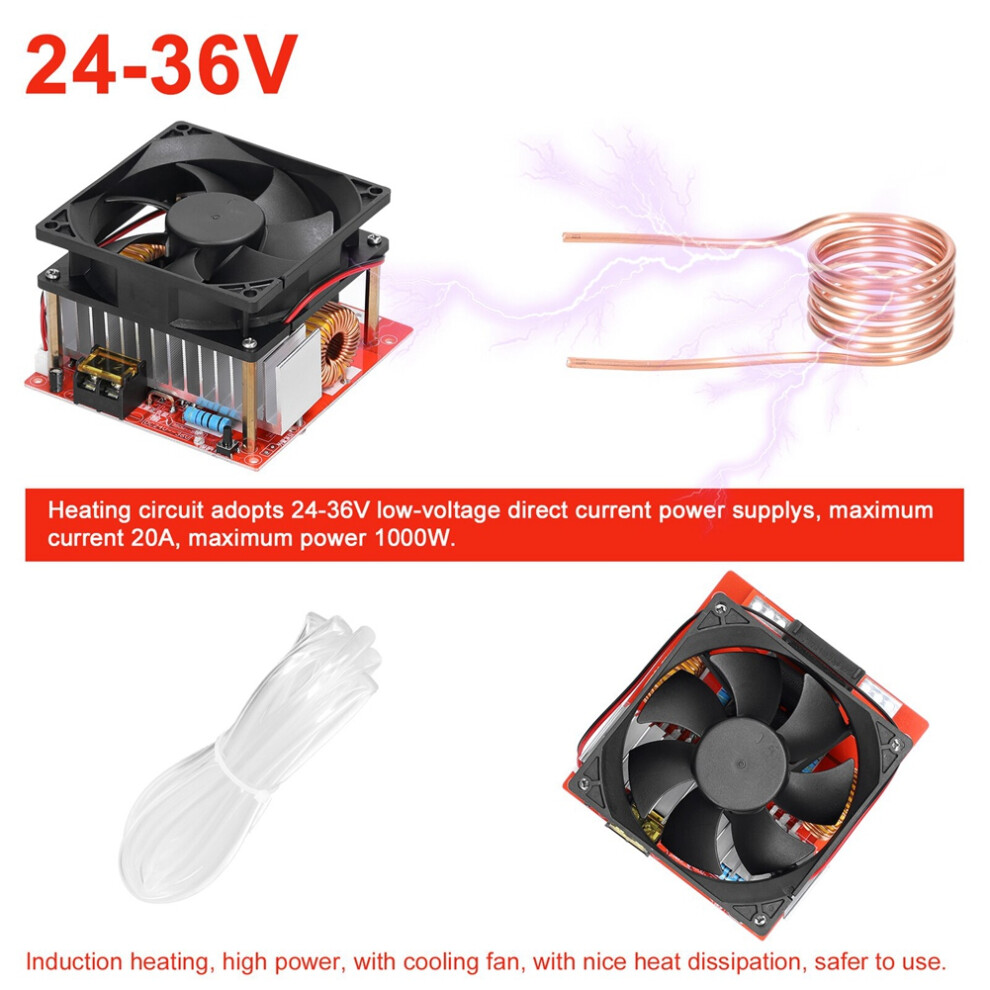

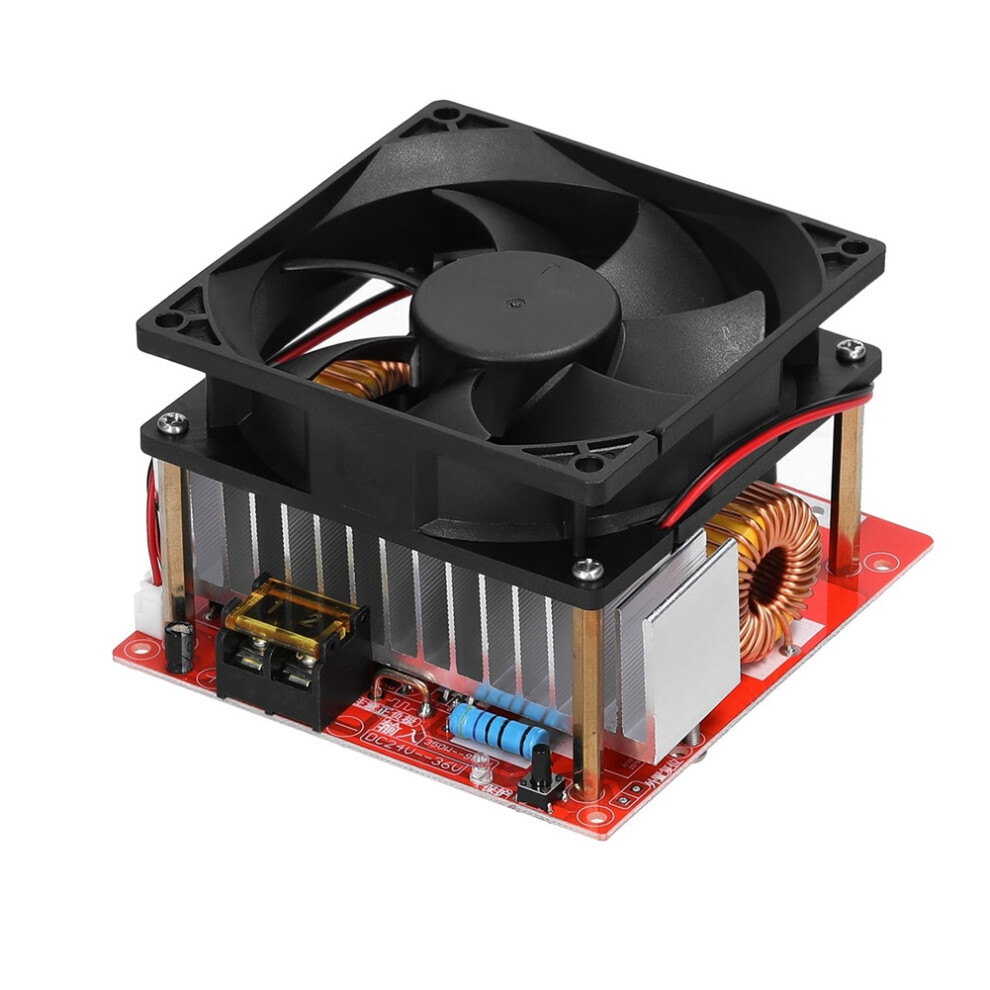

1000W ZVS Induction Heating Board Module

1000W ZVS Induction Heating Board Module Description

Work "brass" be great heat, circulating cooling water needed, so the default shipping transparent pipes with an inner diameter of 2 meters of 4mm, the proposed buyer to buy a small low voltage pumps, such as the aquarium, the kind of small tea pumps can be. No pump can also access the faucet, take a bucket or high self-discharge water. If you do not add water cooling may also be used, but be burned black brass, it not have much impact.
Found with a 36V power supply completely into the new 30 * 30 crucible input current of 25A
Found molten aluminum Power Requirements: 24V 350W - 500W power supply (15A to 20A) [melting point: 660 ]
Found melting copper, gold, silver, power requirements: 36V 700W - 900W power supply (20A to 25A), respectively [melting point: 1083 , 1065 , 962 ]
Uses: DIY small parts made of steel hardening, annealing below the melting point of 1100 metal smelting, DIY small cooker and so on.

Notice: Only direct heating a steel material ( the magnet can be adsorbed material) Gold, silver, copper, aluminum can not be directly heated, need to match the crucible melting,
Work brass heating need to use a lot of water circulation cooling,Without water circulating cooling are possible, but burn into a black brass, it not be much affected.
The appearance may be slightly different due to different factory batches, but it not affect the use
Colour:Black
Material:plastic

Package Contents:

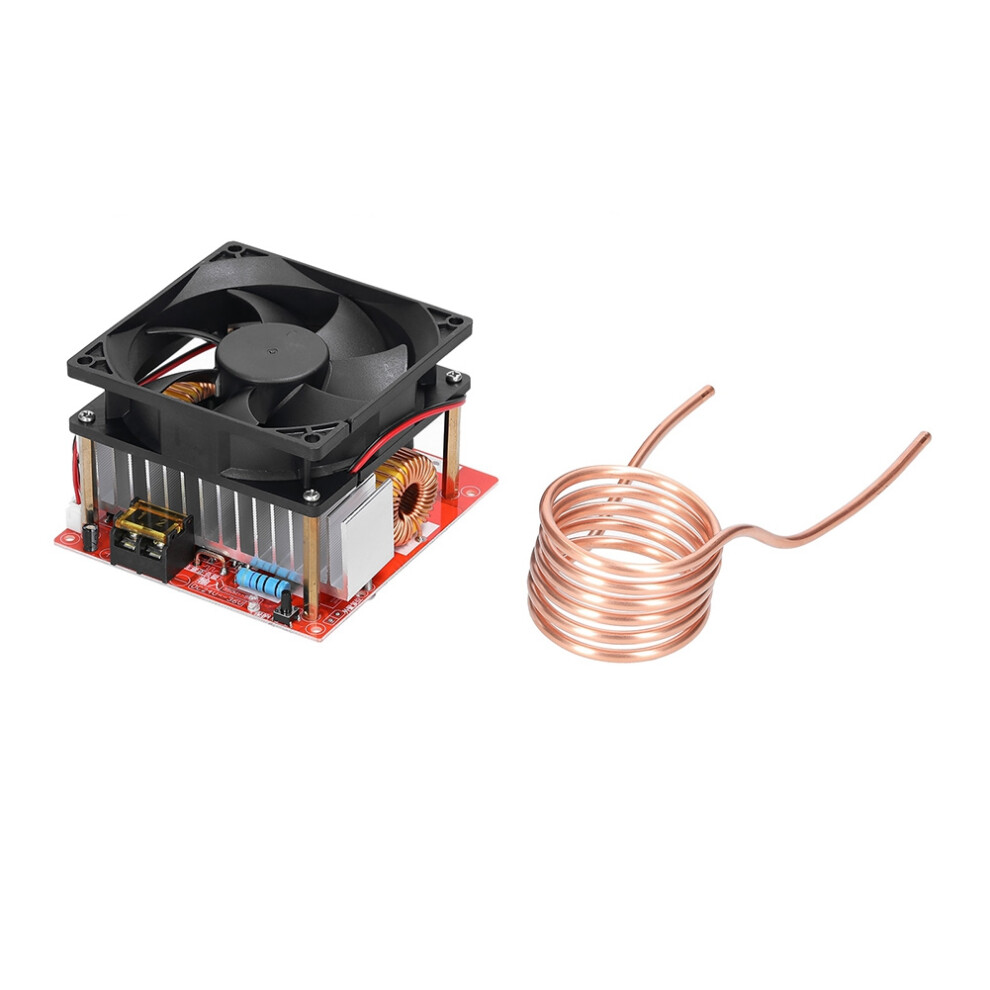

1set x ZVS Induction Heating Board Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
