110V-2600V IGBT Voltage Capability Tester Diode MOS Triode Digital Voltmeter Tester Portable Withstand Voltage Tester B

110V-2600V IGBT Voltage Capability Tester Diode MOS Triode Digital Voltmeter Tester Portable Withstand Voltage Tester B Description

The output voltage is direct current 110~2600V, you can turn the voltage adjust button clockwise to make the voltage bigger and counterclockwise to make the voltage smaller.
The output current is 0.25~3.4mAh, you can turn the voltage adjust button clockwise to make the current bigger, and counterclockwise to make the current smaller.
When testing MOS tubes, transistors, and Zener diodes, it is recommended to adjust the current to the minimum scale of 0.25mA. When testing the LED back light board, it is recommended to adjust the current to the maximum scale of 3.4mAh.
Built-in 660mAh large capacity lithium battery to supplys power, and you can recharge it through the Type-C interface in .
Wide Applications: This tool can be widely used for testing MOS, triode, IGBT, diode, zener diodes, diode bridges max. voltage capacity, capacitor and varistors' voltage verification, LED backlight and light board testing, etc.

Specifications:
Output voltage: direct current 110~2600V
Output current: 0.25~3.4mAh
Battery: 1 x lithium battery, 660mAh (included)
Recharge port: TYPE-C
Font color: B-Red
Material: ABS
color: white

Package Contents:

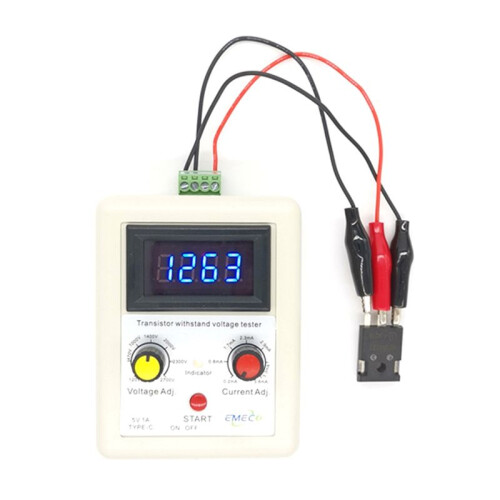

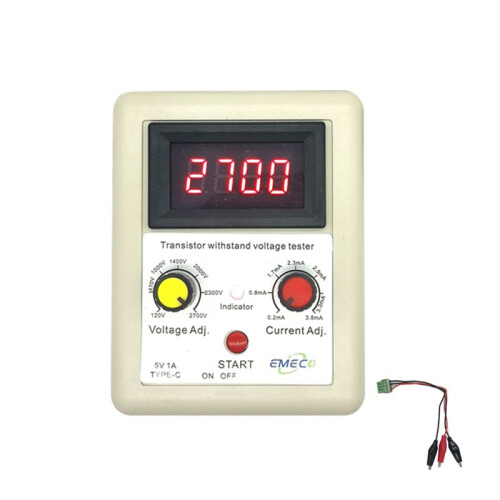

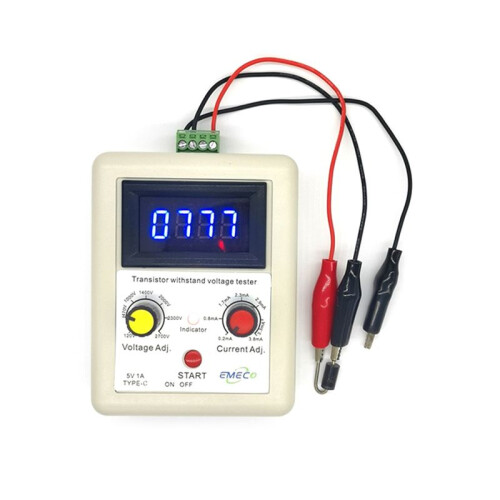

1 x Transistor Withstand Voltage Tester with Test Pen
