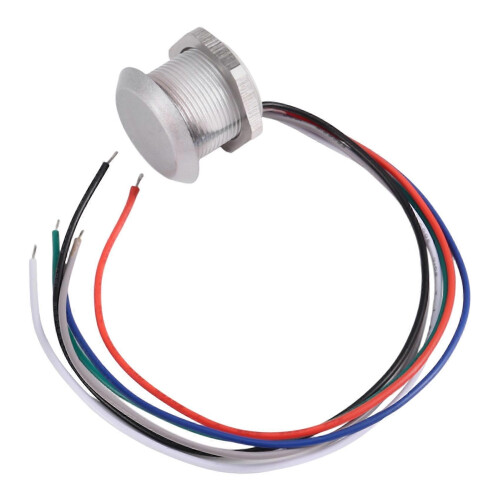

125Khz RFID Compatible EM Marine Small Mini Card Wiegand26 ID Reader

125Khz RFID Compatible EM Marine Small Mini Card Wiegand26 ID Reader Description

125Khz RFID Compatible EM Marine Small Mini Card Wiegand26 ID Reader
ID 125khz EM Card Reader
125khz EM Small Mini Wiegand Reader
Wiegand 26; 12 V
Controller is used in access control systems (ACS).
The reader is used to read and transfer ID numbers to the controller
Operating frequency: 125 kHz
Type readable cards: EM Marine (such as EM4100, EM4305, T5577. etc.)
Range of card reading to 2-6 cm
Protocol for connection to the controller: Wiegand 26
Maximum length of line from reader to controller: up to 15m
Power supply: 8 - 18 VDC
Current consumption: 35 mA
Size (mm): Diameter 25 mm., Height 22 mm.
Please Note: The reader case is not made of Metal but Plastic.
As RF can not penetrate metal. If made of metal, the RFID reader can not work .
Color: As Shown
Material: Metal+Plastic
Package Contents:
1 * 125Khz RFID Reader
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
