18650 Type-C LCD 4/1 Channel Display Battery Capacity Tester

18650 Type-C LCD 4/1 Channel Display Battery Capacity Tester Description

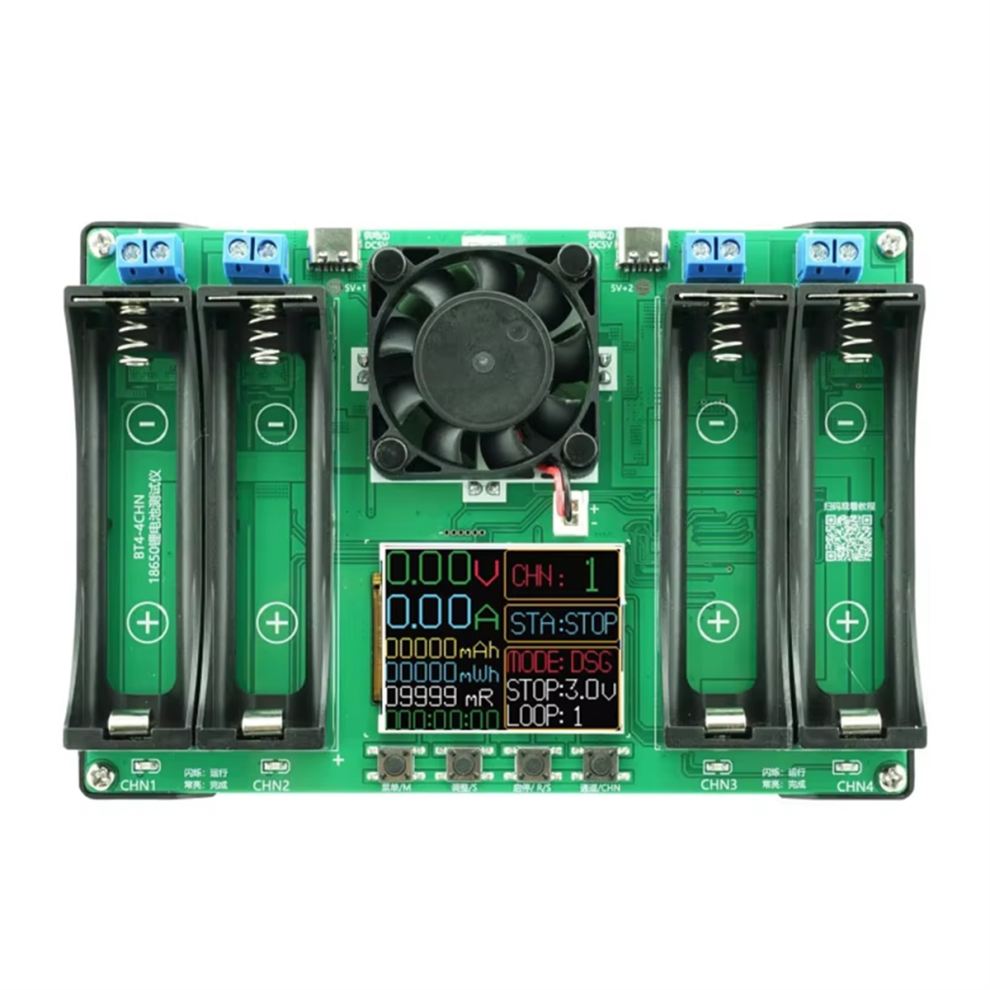

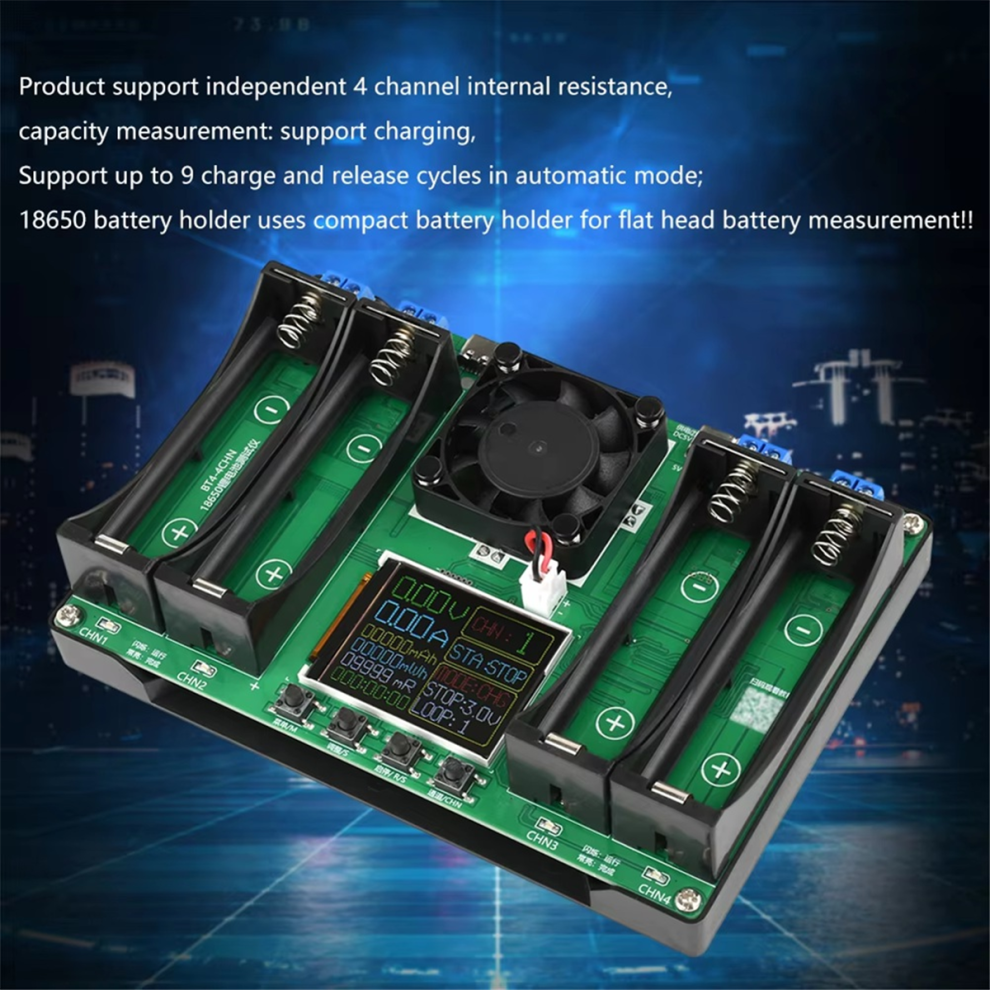

4 Channel Display Battery Capacity Tester. The product supports four-channel capacity and internal resistance measurement. Support separate charging and discharging, and support up to 9 charging and discharging cycles in automatic mode. Each channel is of each other, set separately, operates independently, and does not interfere with each other
18650 battery holder uses compact battery holder, suitable for flat-head battery measurement. Active cooling of fan supports overheating protection. Using DC two-wire method to measure internal resistance
Note: lithium iron phosphate battery charging is not supported
Working voltage: DC5V. Applicable battery: suitable for all batteries that meet requirements of stopping discharge voltage of 2.5~3.5V and starting from 2.8V to 4.2V. Power supply interface: Two-way Type-C power supply interface(Excluding power supply and power cord). System language: English/Chinese can be switched
Test quantity: 4-way charging and discharging measurement. Internal resistance measurement: support, use DC two-wire method to test internal resistance. Charging function: support, automatic cut-off charging when fully (lithium iron phosphate battery charging is not supported)

Discharge function: support, automatically stop when conditions are met, and discharge current is not adjustable
Automatic charging and discharging: supported. The battery is fully at of automatic mode
Cyclic charging and discharging: supported, 1~9 cycles adjustable (only supported in automatic mode)
Status prompt: Supported
Cooling mode: fan active cooling
Overheat protection: support
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 adjustable gears
Discharge current: the maximum current is about 1A, which is not adjustable, and does not support transformation
Charging voltage: controlled by a special battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2V

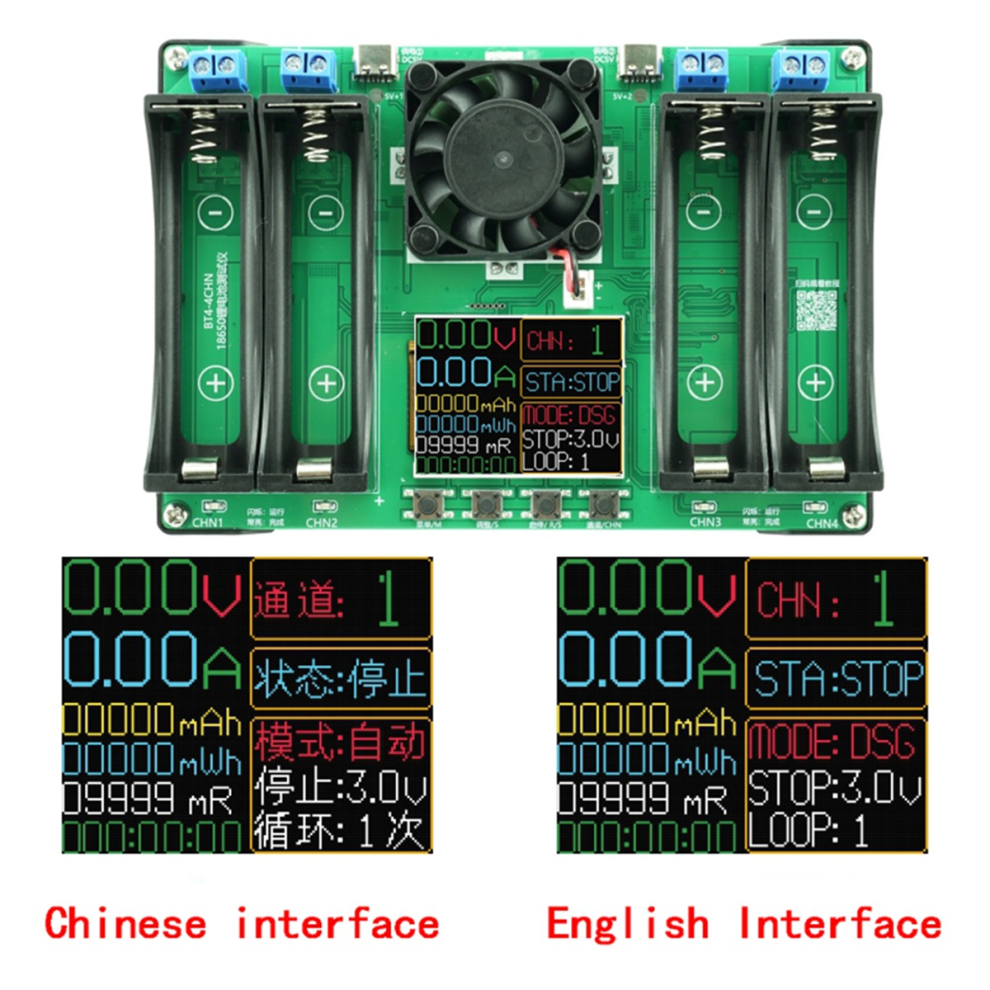

Power-off saving: only save set parameters, not measurement data

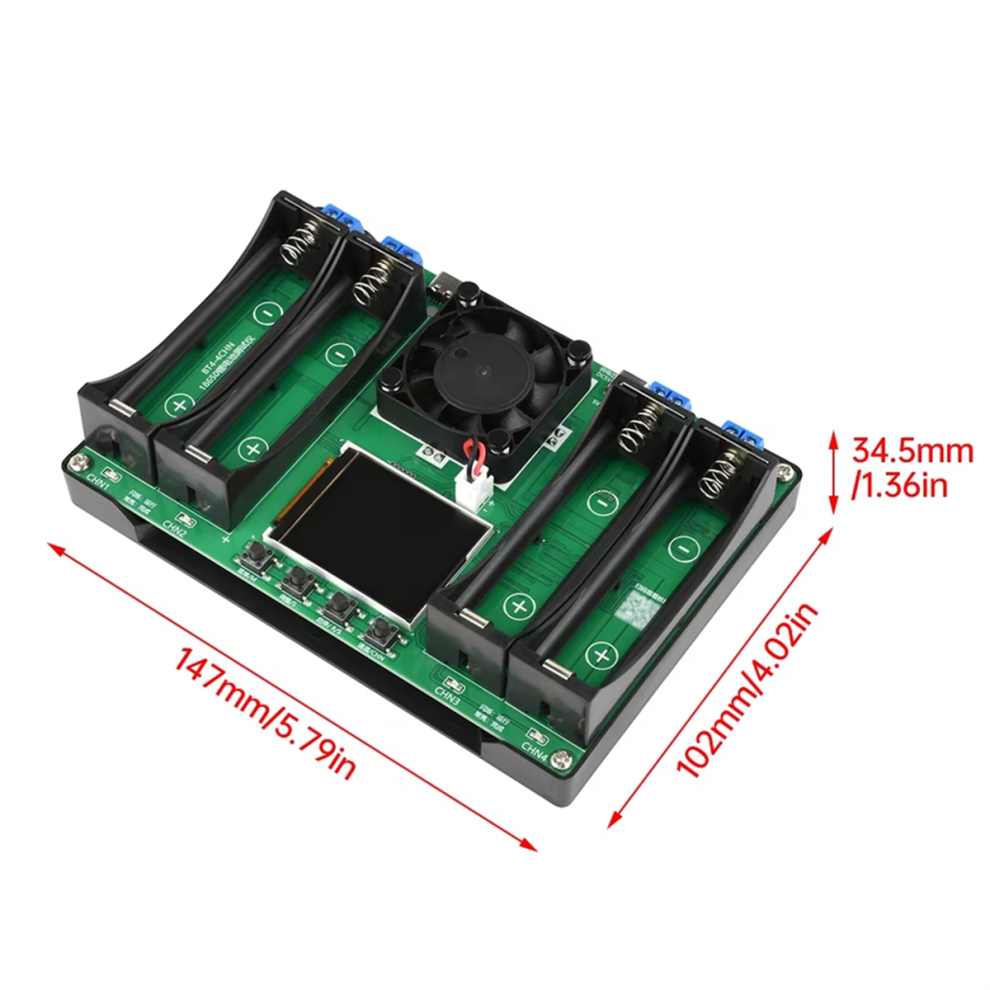

Product size: 150 x one hundred and three x 36mm
Color: Green
Material: plastic

Package Contents:
1 * Battery Capacity Tester

Only above package content, other products are not included.
Note: Light reflection and different displays may cause color of item in picture a little different from real thing. The measurement allowed error is +/- 1-3cm.
