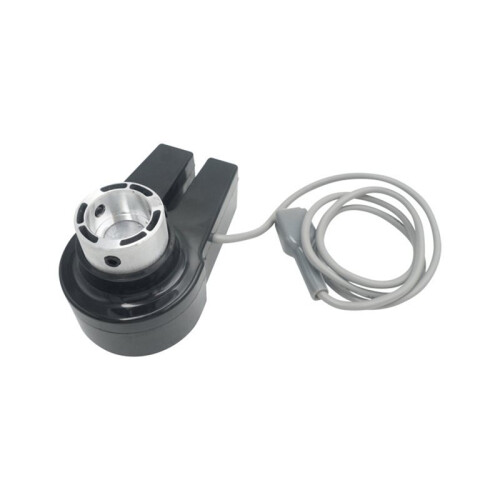

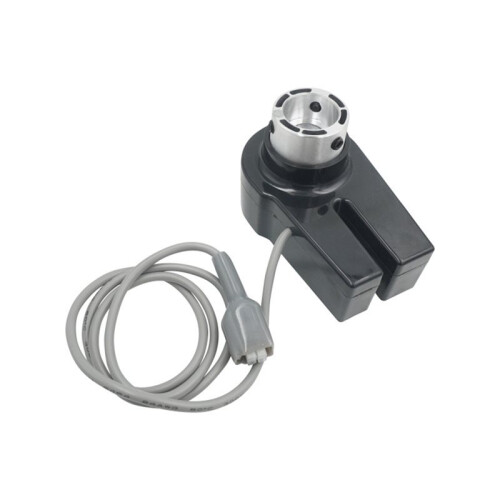

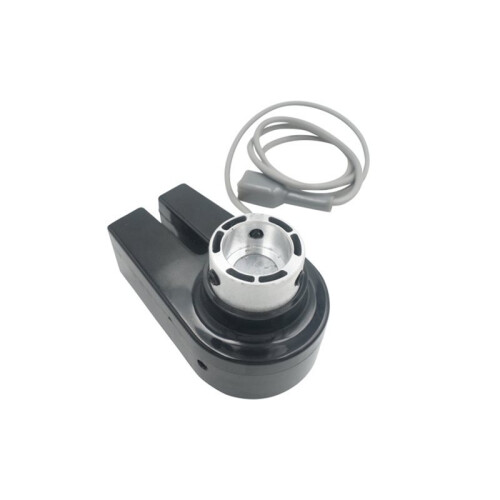

1set External Positioner Industrial Sewing Machine Brushless Synchronous Motor External Fixer Locators

1set External Positioner Industrial Sewing Machine Brushless Synchronous Motor External Fixer Locators Description

Set Type: Professional set
High-concerned chemical: None
Material: Metal
Model Number: External positioner
Origin: Mainland China
Features:
1: Pair your industrial sewing machine with a synchronizer to precisely control your sewing operation.
2: stop or down positioner, synchronizer for brushless motors of industrial sewing machines.
4: Only suitable for industrial sewing machines with handwheel fixed or screwed to the spindle. Not suitable for all
Part name: External positioner
Positioning sensor installation steps
1. Remove the fixing screws at the end of the machine pulley shaft.
2. Fix the accessory "connector" to the shaft end with the "connector screw".

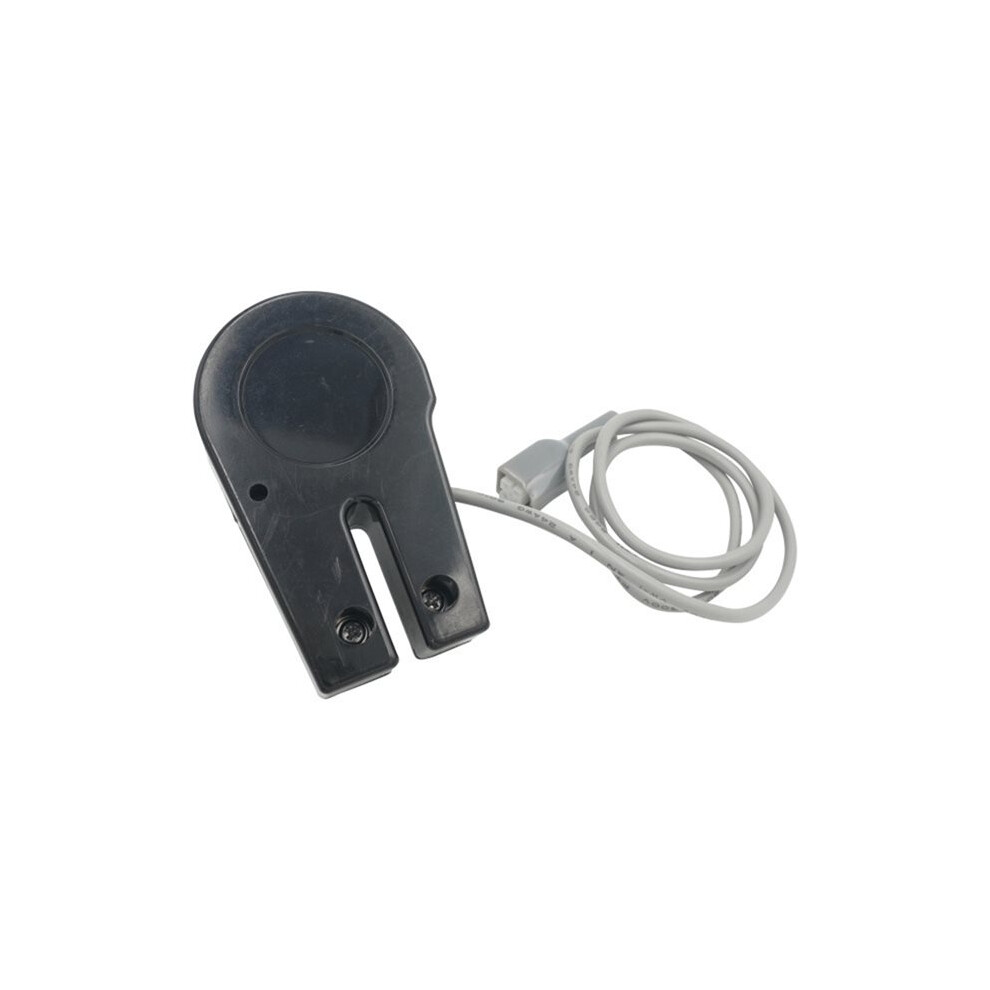

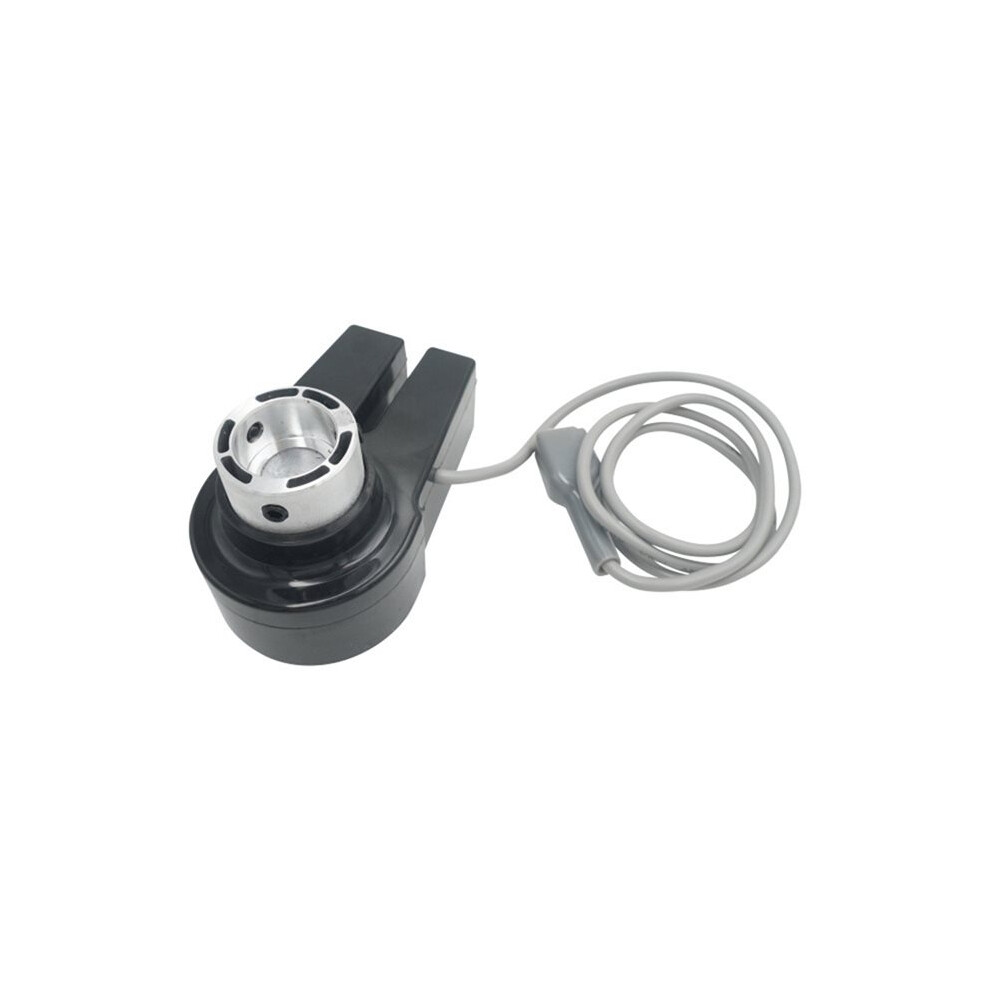

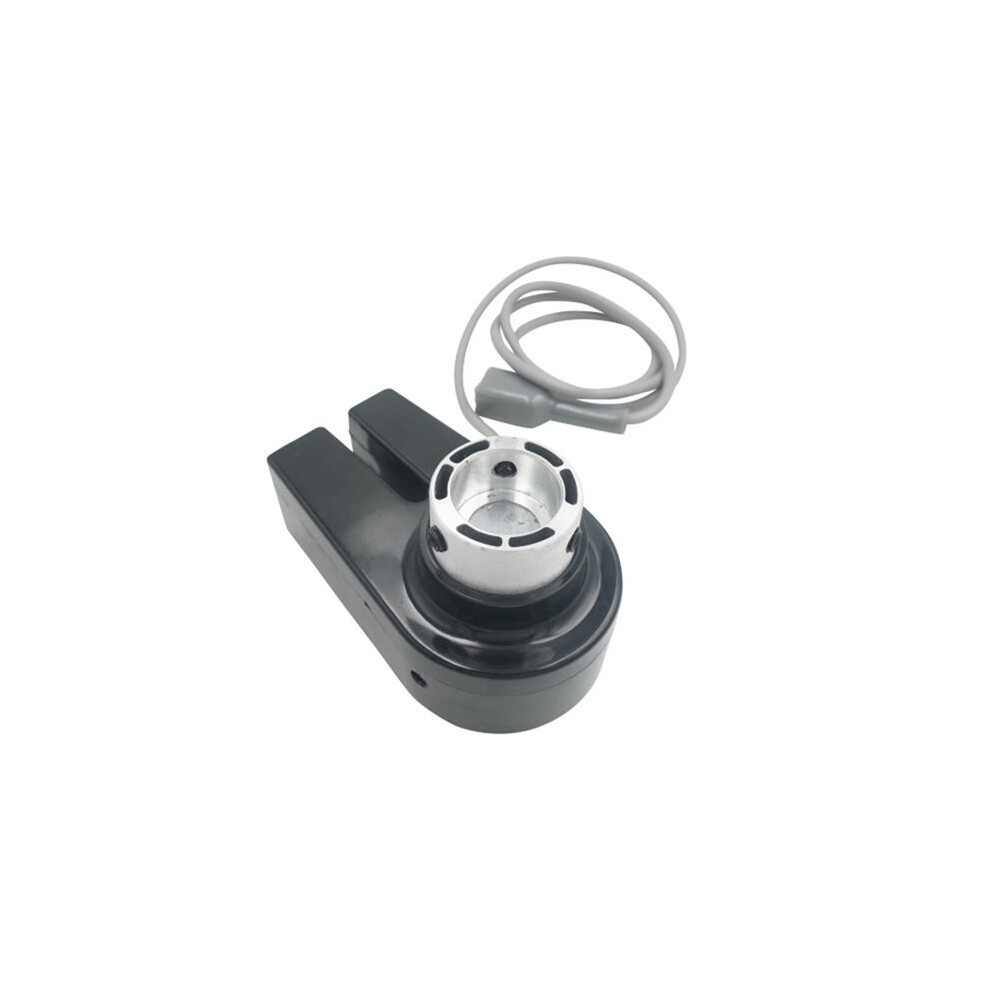

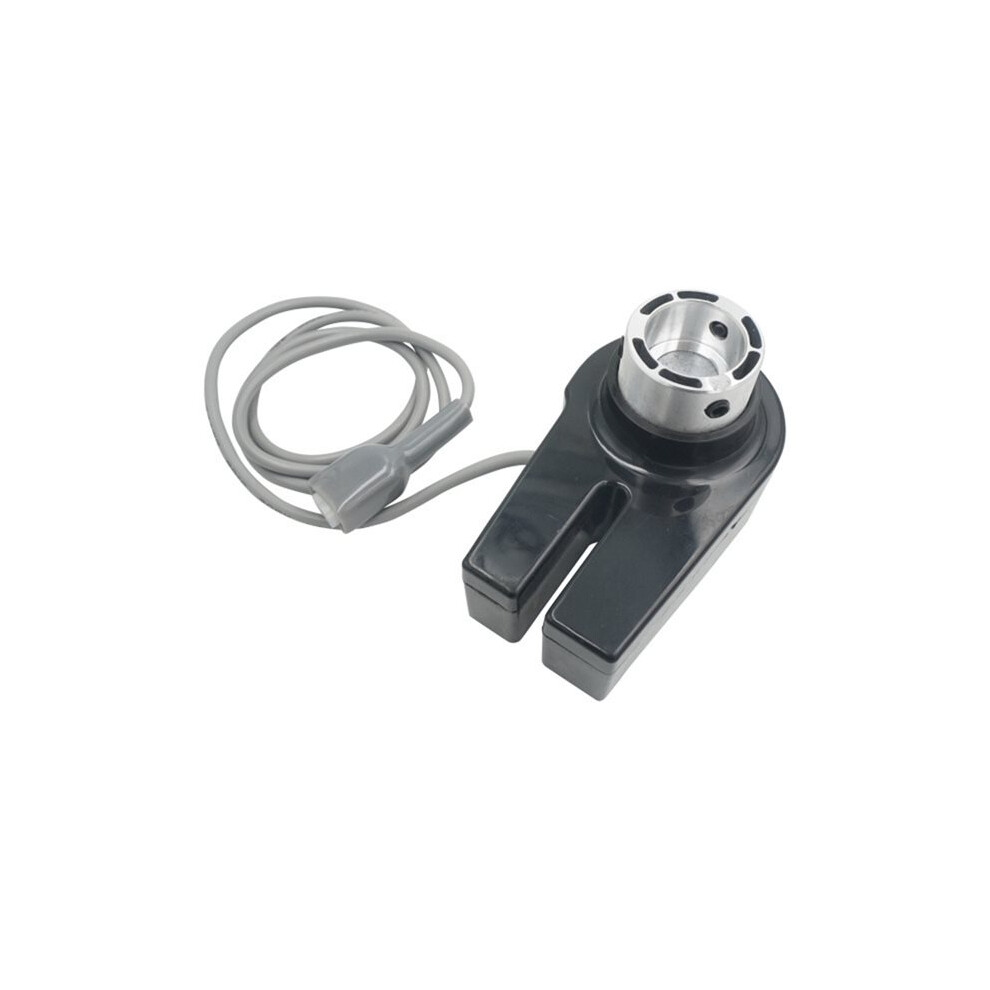

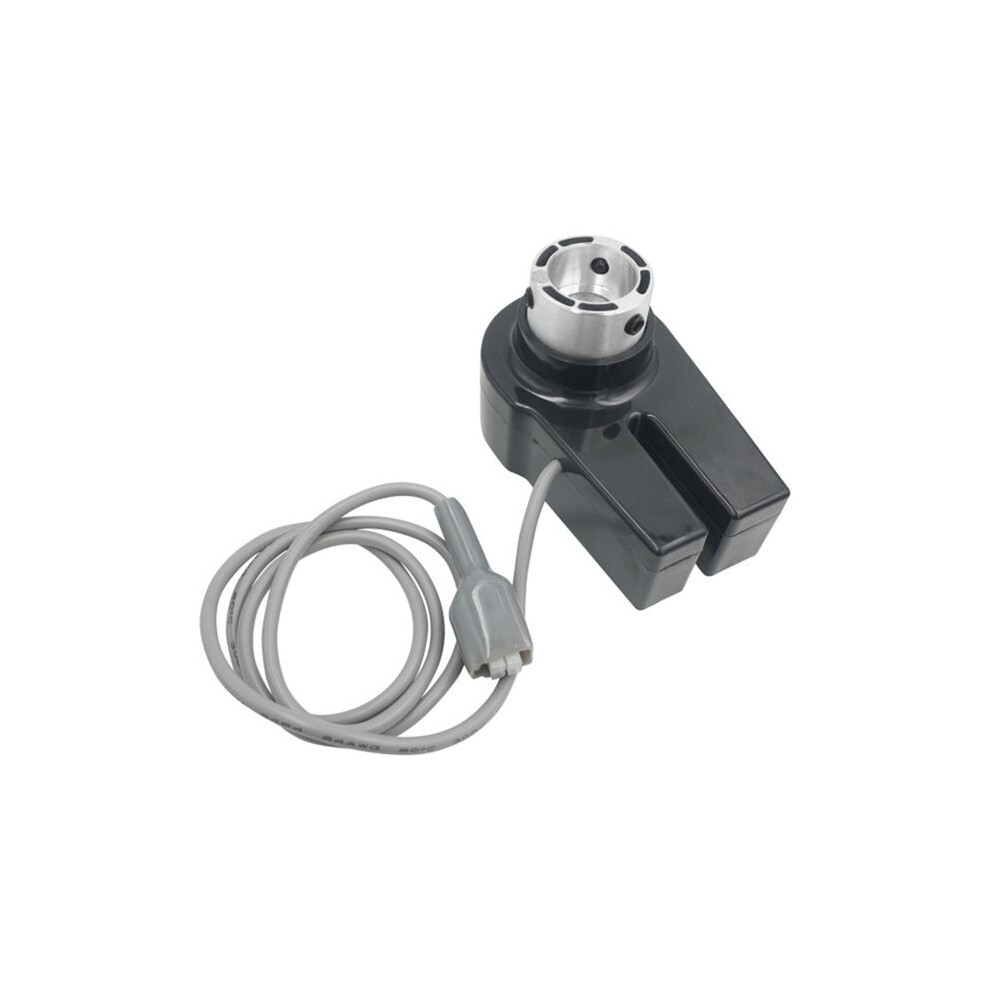

3. Install the external sensor and tighten the two set screws to fix the positioning rod in the slot of the sensor.
4. Insert the sensor signal into the sensor socket of the motor.
5. Start the motor and detect the stop position. If there is any deviation, first loosen the two set screws the
sensor, then turn the pulley (do not let the sensor rotate) to foralignthe position, and then tighten the two
screws.

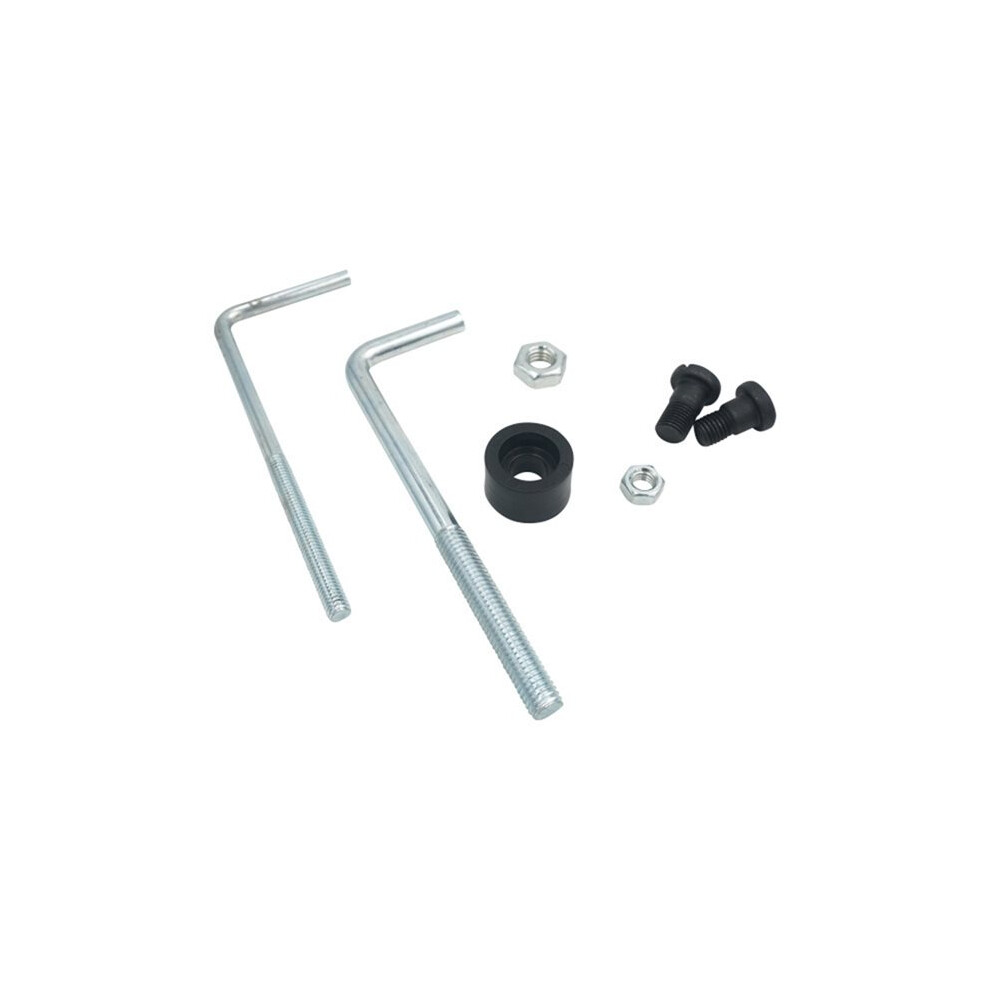

Package Contents:
1 x Holder
2 x Wrench
1 Set of Matching Accessories
Note:
Light and different monitors may cause the color of the items in the picture to be slightly different from the actual item
The allowable measurement error is +/- 1-3 cm.
Color: As Shown
Material: Metal+Plastic
