2 Stroke Mini Power Engine Kit with Fuel Tank

2 Stroke Mini Power Engine Kit with Fuel Tank Description

2 Stroke Mini Motor Kit With Fuel Tank g20243086988
This well-designed engine delivers powerful torque and excellent acceleration response, ensuring seamless driving in various environments while saving fuel consumption, and achieving a perfect balance between power performance and fuel economy. Whether it's for cross-country adventure enthusiasts or professional drivers, it's your ideal choice.
Key Features
Durable Design: Designed with premium aluminum, this engine has high hardness, wear resistance, and corrosion resistance. So it can adapt to complex environments and conditions.
Effective Cooling System: By adopting an air cooling system, the temperature of the engine can be quickly reduced, effectively preventing overheating and ensuring smooth and long-lasting driving.
Easy to Operate: The engine features a electronic ignition system, which leads to higher energy and ignition efficiency. So you can start the engine quickly and safely.
Large Capacity: Designed with a large capacity fuel tank (0.32 gal), this engine can work for a long time and meet the needs of long-distance driving (15-20km with full oil). It ensures reliable performance without frequent refilling.
User-friendly Design: This one has the upgraded CVT gearbox, which effectively improves the operational efficiency and response speed of the entire system. It is also equipped with a stable bearing to ensure its operation process smoothly.
Details
Practical Carburetor: It is equipped with a carburetor, which can mix oil and gas evenly.
Air Filter: It is equipped with an air filter, which can effectively prevent impurities from entering the cylinder.
Pull Rope Start: Compared to electric starting, the rope starting engine has a simpler structure and more convenient operation.
Application
It is fit for 49cc 2-stroke pocket bike, mini dirt bike, beach bike, ATV or scooter.
Specification
Engine Type: Single Cylinder, 2 Stroke, Air-cooling
Material: Aluminum
Color: Silver, Black
Ignition System: Electronic Ignition
Start Mode: Pull Rope Start
Shifting Way: Sprocket
Clutch: Dry Swing Block Clutch
Displacement: 49.85CC
Max. Power: 1.9kw/7000rpm
Rated Power: 1.7kw/6000rpm
Continuous Power: 1.6kw/5500rpm
Overload Power: 1.83kw/6500rpm
No-load Speed: 12500rpm
Max. Speed: 48km/h
Max. Torque: 2.7N.M/6500rpm
Max. Horsepower: 3PS
Max. Load Capacity: 180kg/396.8lbs
Min. Fuel Consumption: 610g/kW.h
Spark Plug: L6T or MB6A
Spark Plug Gap: 0.5mm/0.02in
Bore * Stroke: 44*32.8mm/1.7*1.3in
Carburetor Type: H117B
Reduction Ratio: 1:1
Noise Level: 100.7dB (SPL); 116.9dB (SWL)
Fuel Mixture (90# Gasoline : 2-stroke Engine Oil): 25:1 (Early); 30:1 (Later)
Fuel Tank Capacity: 1.2L/0.32gal
Fuel Tank Size: 23*12*12cm/9.1*4.7*4.7in
Engine Dimensions: 29*14*22.6cm/11.4*5.5*8.9in
Package Size: 34*21*23.5cm/13.4*8.3*9.3in
Net Weight: 3.85kg/lbs
Gross Weight: 4.3kg/lbs

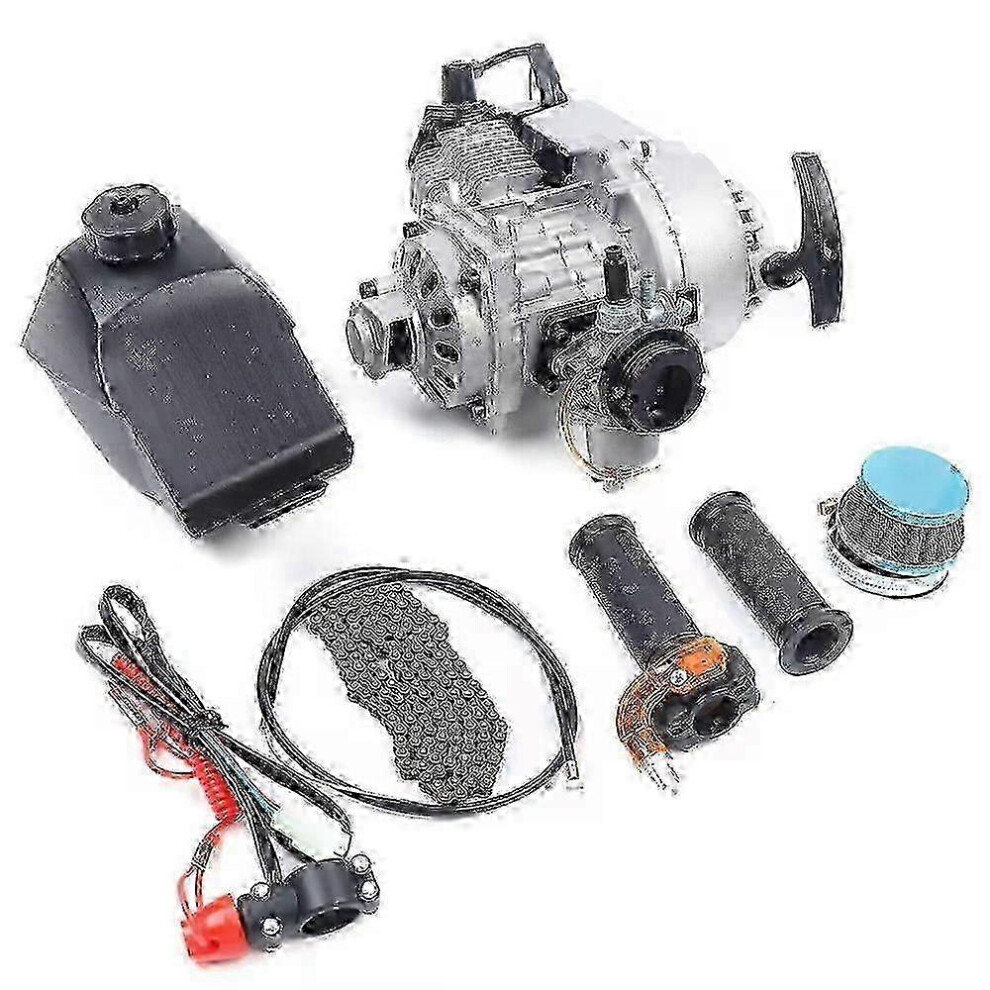

Package Included
1* Engine
1* 25H-136L Chain
1* Kill Switch
1* Throttle Grip
1* Left Grip Cover
1* Fuel Tank
1* Throttle Cable
Other Accessories for Installation
Notes
1.Please check the parameters carefully before making payment.
