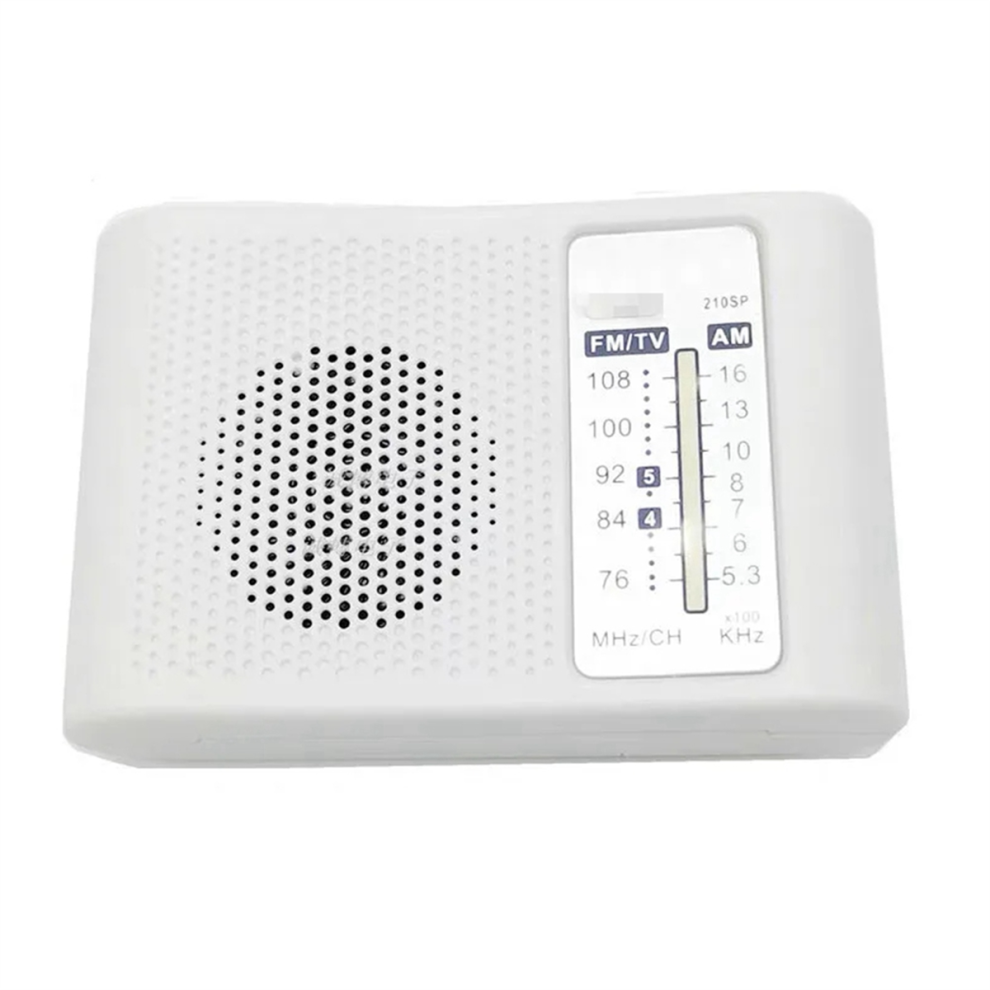

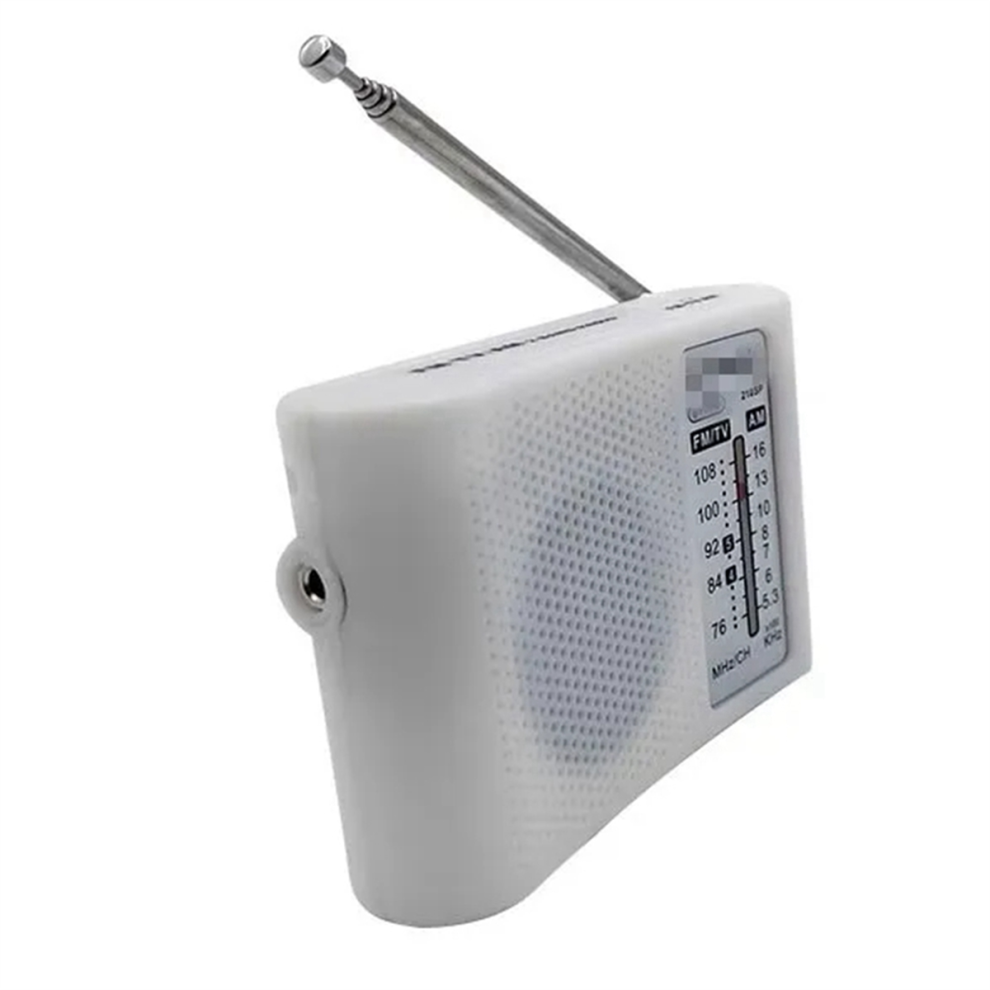

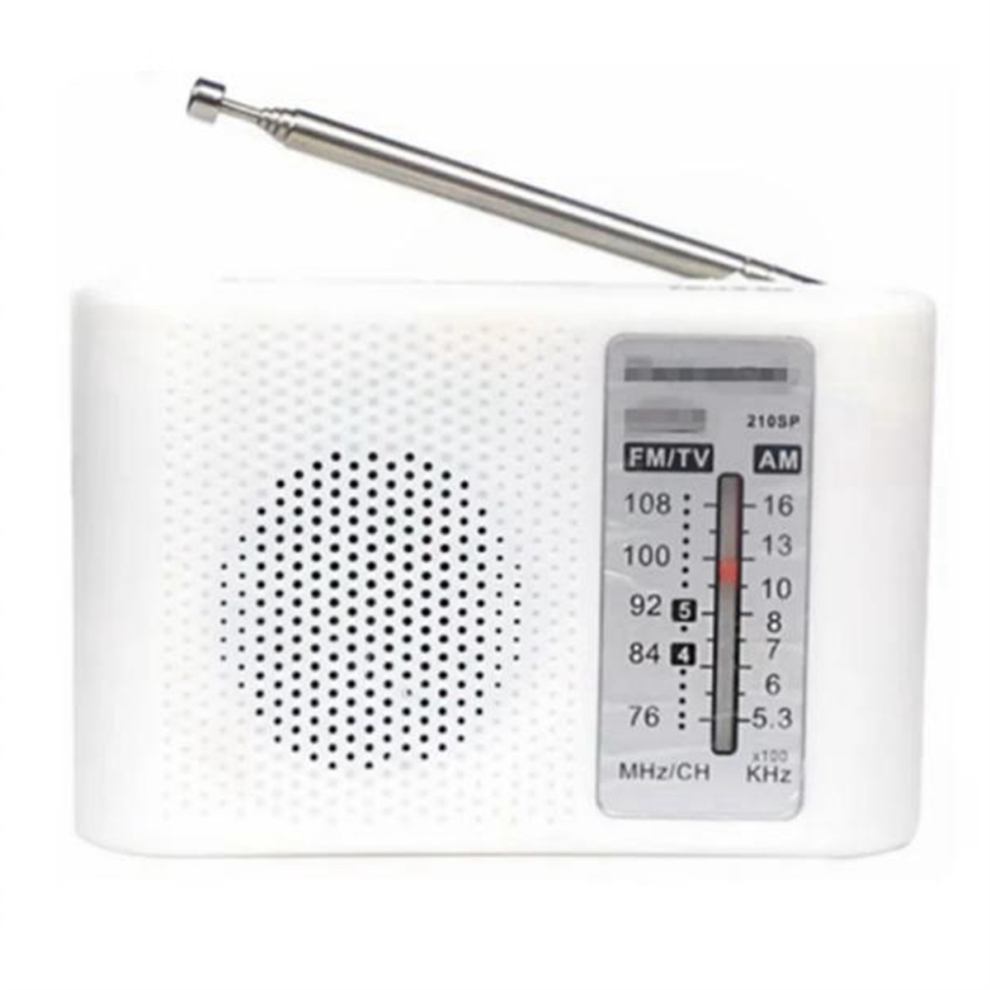

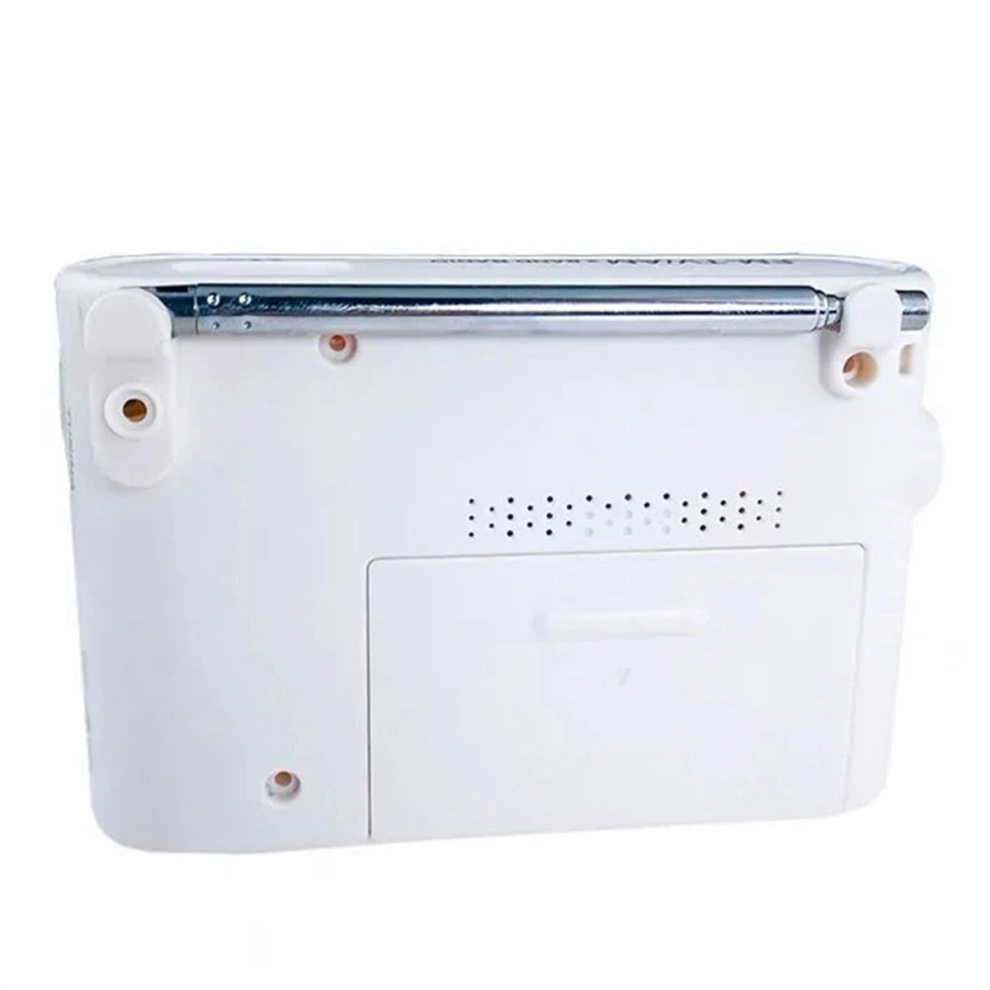

210SP Radio Assembly Kit Not Included Batteries Kit

210SP Radio Assembly Kit Not Included Batteries Kit Description

1. The Jc210sp Kit Is A Novel And Appearance Fm And Am Two-Band Radio.

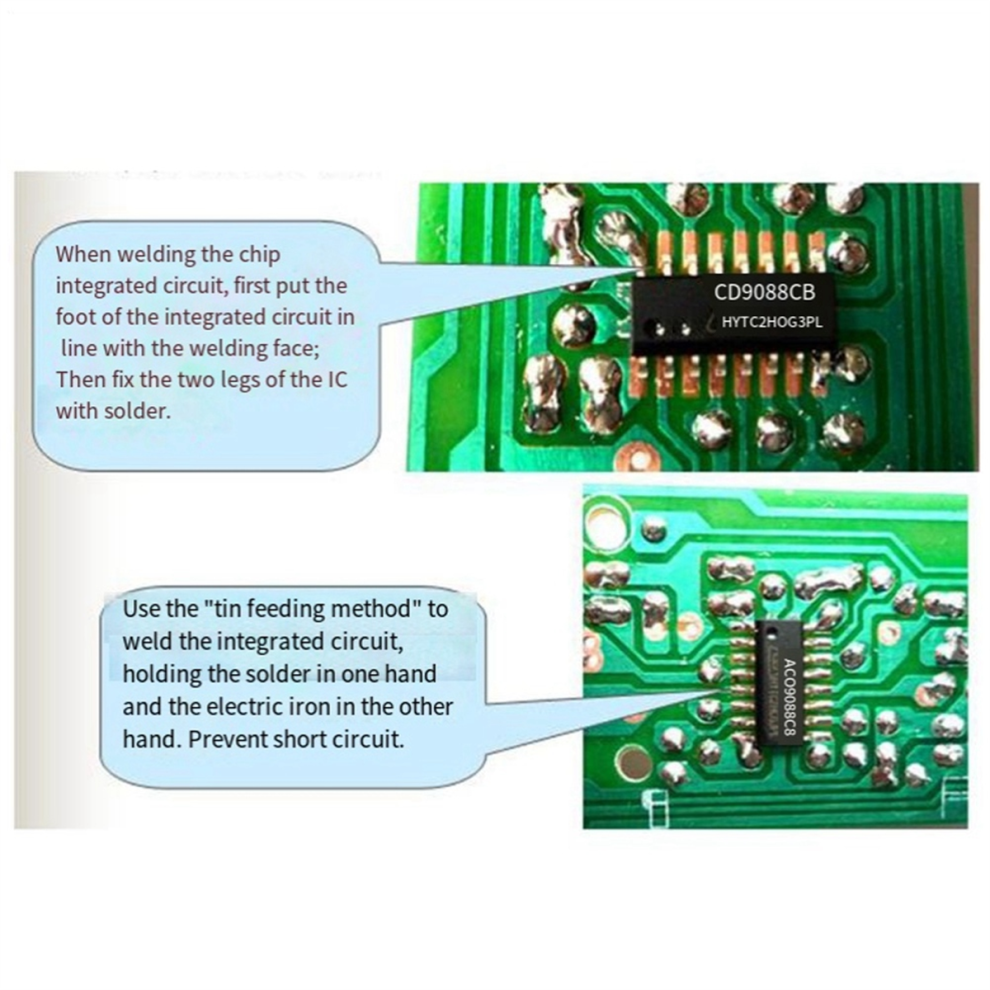

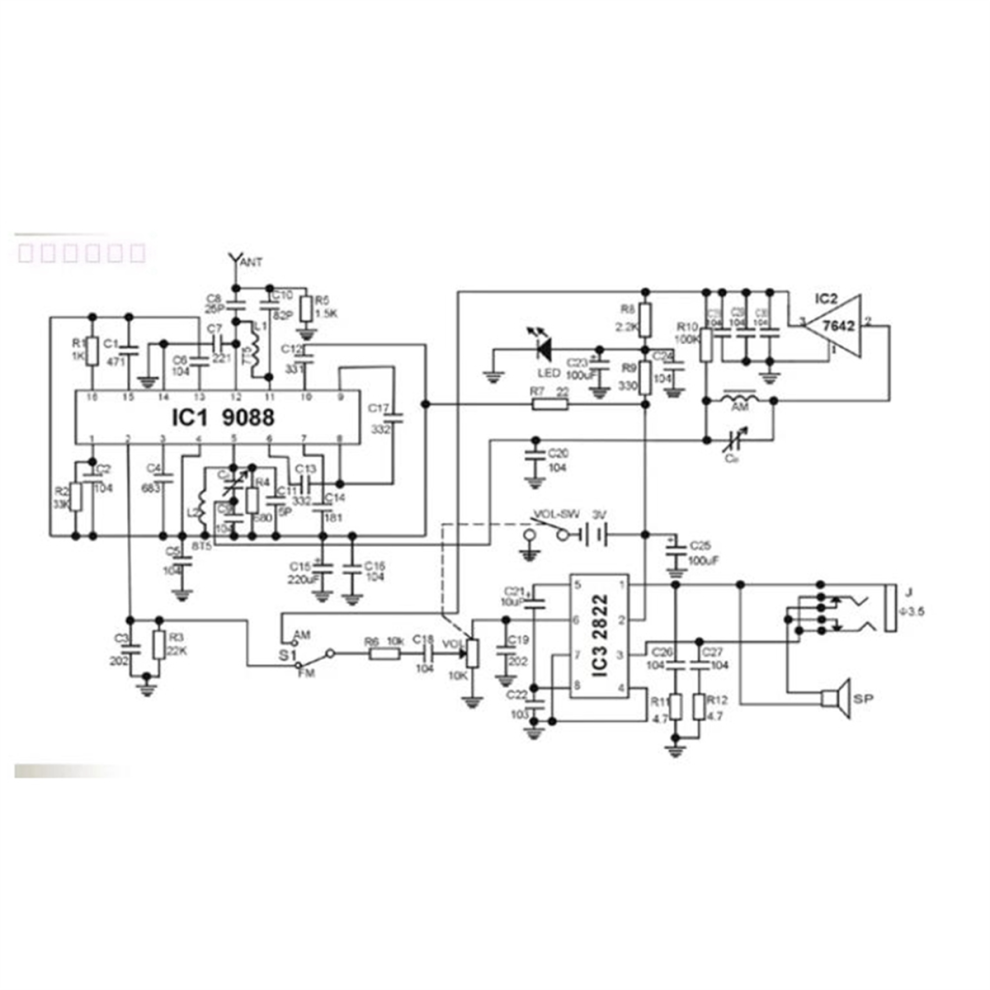

2. The Fm Band Uses The Cd9088 Chip
3. It Adopts Smt Package Of Chip Components And Has A Receiving Frequency Range Of 76-108mhz. It Can Not Only Receive Fm Broadcasts, But Also Audio Signals From Campus Broadcasts And Some Tv Stations;
4. The Am Band Uses Direct Amplification Integrated Circuit Ta7642, With A Receiving Frequency Range Of 525-1605khz. It Has The Advantages Of Simple Circuit, High Assembly Success Rate, And Good Selectivity;
5. The Power Amplifier Circuit Uses Tda2822, Which Has The Advantages Of Loud Sound And Good Sound Quality.

After The Kit, Put It In And Check It Carefully To Prevent Loss!

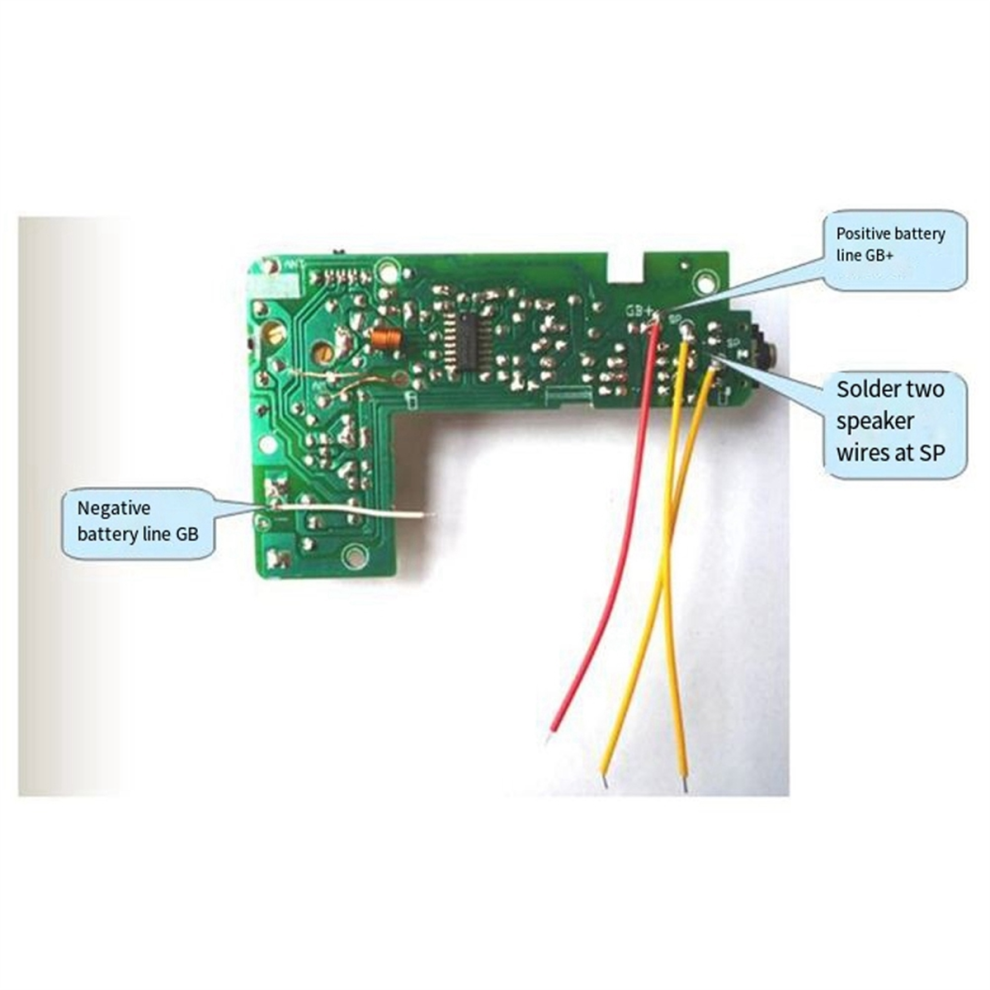

After The Kit, First Read The Instructions Carefully And Put All The Vitality Parts Into A Container. The Resistors, Capacitors And Other Components Are Very Small To Prevent Loss, And The Parameters Must Be Carefully Identified. When Holding The Circuit Board, Please Hold It By The Edge, Not The , To Prevent Oxidation Of The Circuit Board Due To Dust On Your Hands. The Parameters Of The Devices Are Marked On The Circuit Board. Just Insert The Corresponding Devices As Required To Prevent Incorrect Insertion.
Function: Built-In Speaker
Model: 210sp
Type Of Recorder: Radio
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Colour:As Shown
Material:ABS

Package Contents:
1 Set Of 210sp Radio Assembly Kit Parts[Battery not included]

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
