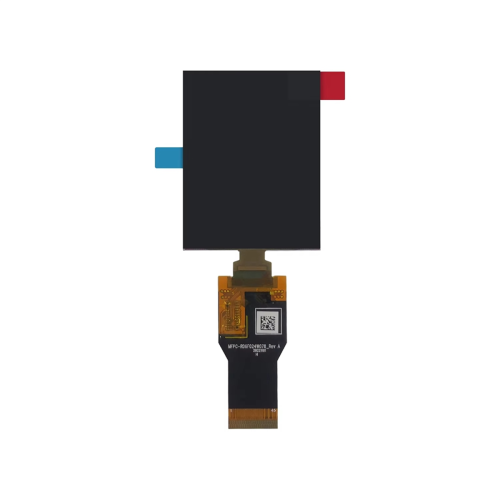

2.4 Inch 450(RGB)X600 Rigid AMOLED Display for Consumer Electronics

2.4 Inch 450(RGB)X600 Rigid AMOLED Display for Consumer Electronics Description

This module has a 2.4 inch diagonally measured active area with 450RGBx600 resolutions (600 horizontal by 450 vertical pixel arrays).
Each pixel is divided into RED, GREEN, BLUE dots.
This module is display terminals for sports camera and smart home.

Display type: Rigid AMOLED
Display Size: 2.4 Inch
Active Area: 36.72x48.96 mm

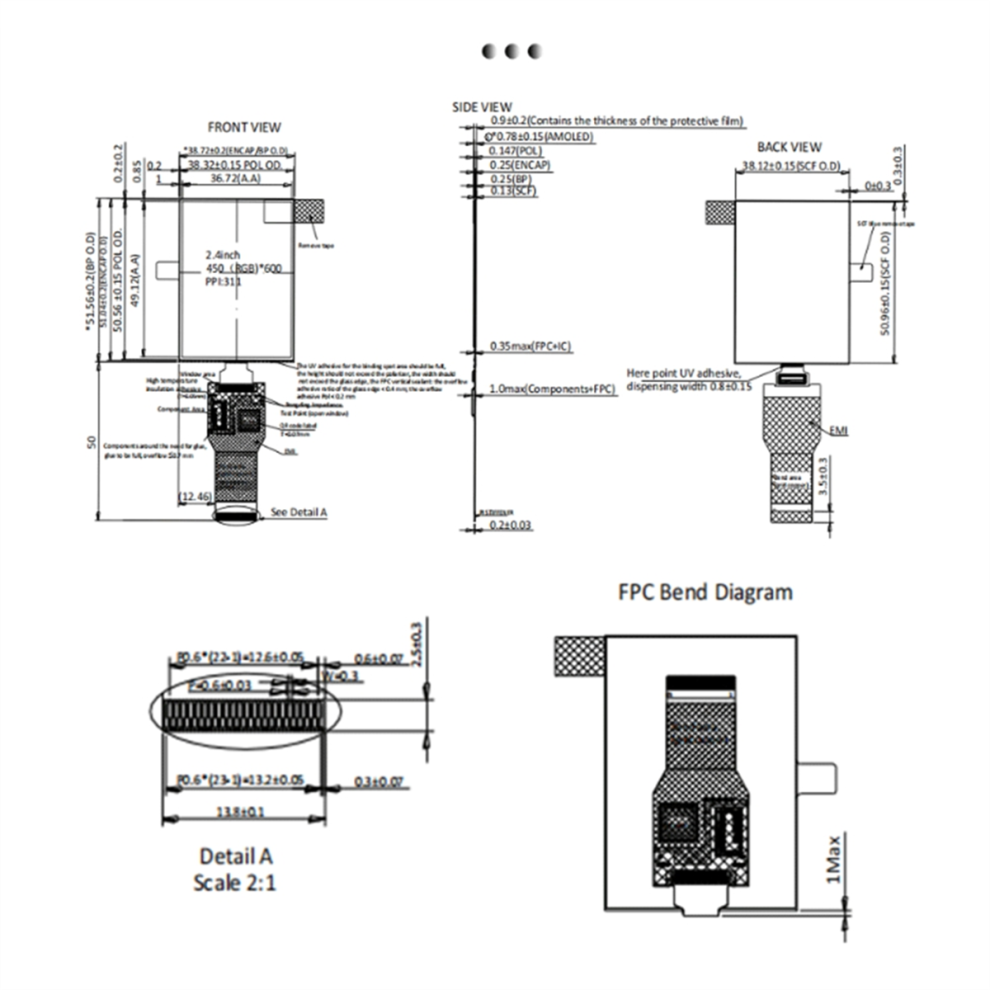

Panel outline(H x V): 38.72x51.56 mm
Pixel Size: 81.6 x 81.6 um
Pixel Pitch: 81.6 um
Pixel Per inch: 311
Resolution: 450RGB*600
Color Depth: 16.7M(24bit)
Viewing Direction: All direction
Pixel Aspect Ratio: 3:4
Frame rate: 60 Hz
Drive mux: 1:6
Driver IC (Type): RM690B0
Driver IC/RAM Size: 1/3RAM
Interface: SPI/MCU/MIPI
Polarizer Type: 0.147 mm
Brightness: 800 cd/m
contrast ratio: 100000:1
Operation Temperature: -20-+80
Storage Temperature : -40-+80
Pin:45Pins
Color:As Shown
Material:PCB

Package Contents:
1 * OLED Display

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
