24V 6S 40A 18650 Li-Ion Lithium Battery Board Solar

24V 6S 40A 18650 Li-Ion Lithium Battery Board Solar Description

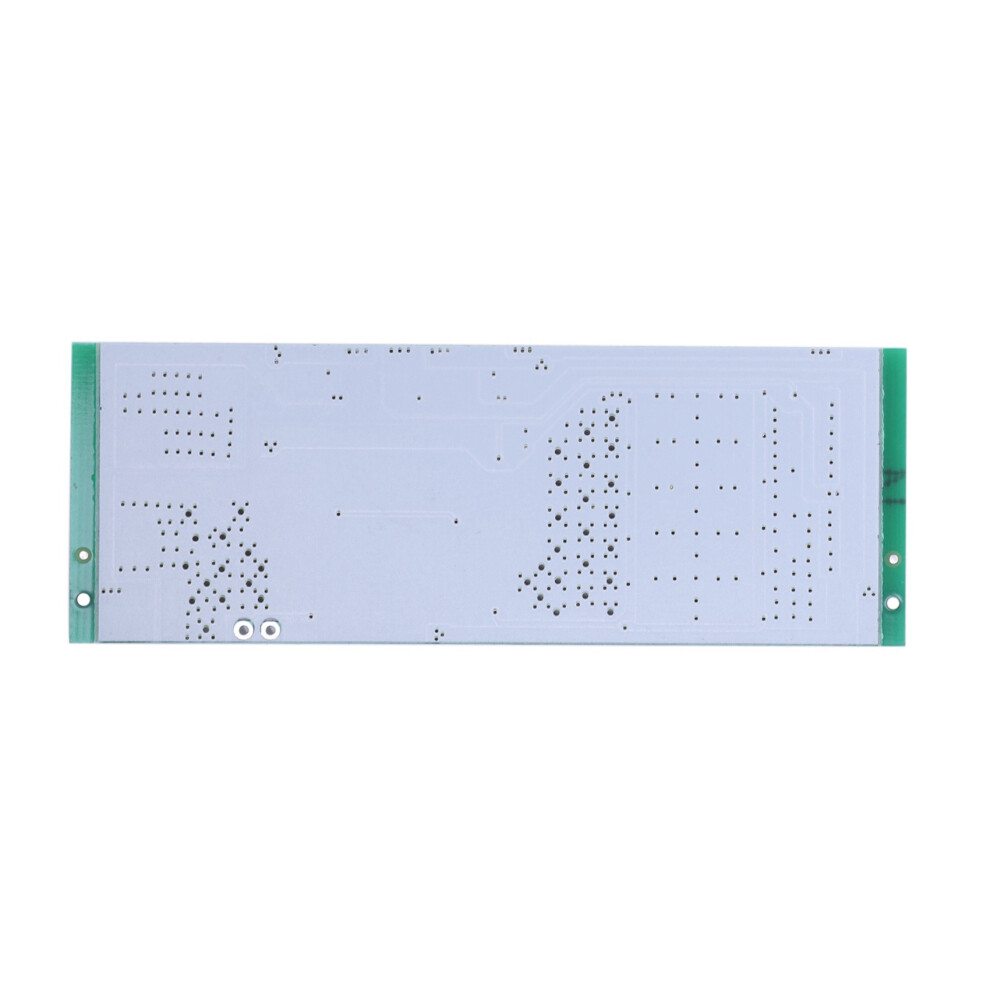

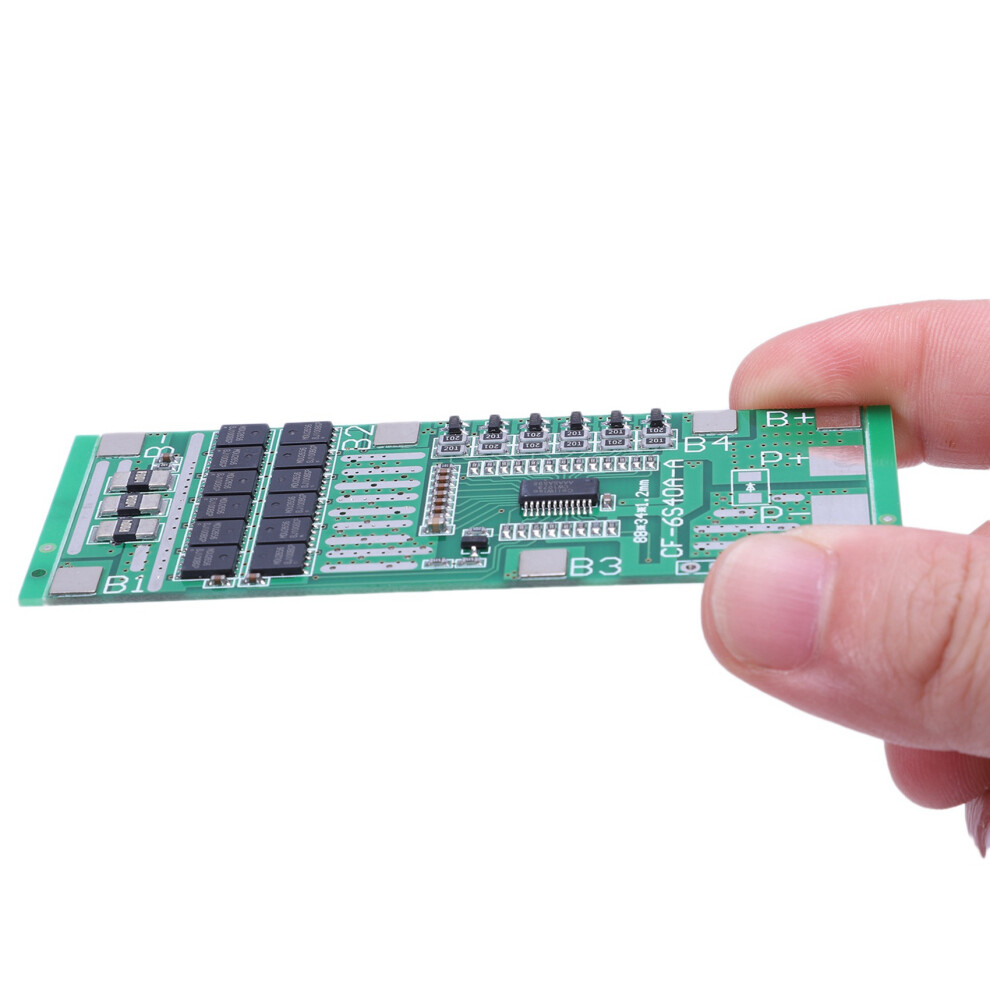

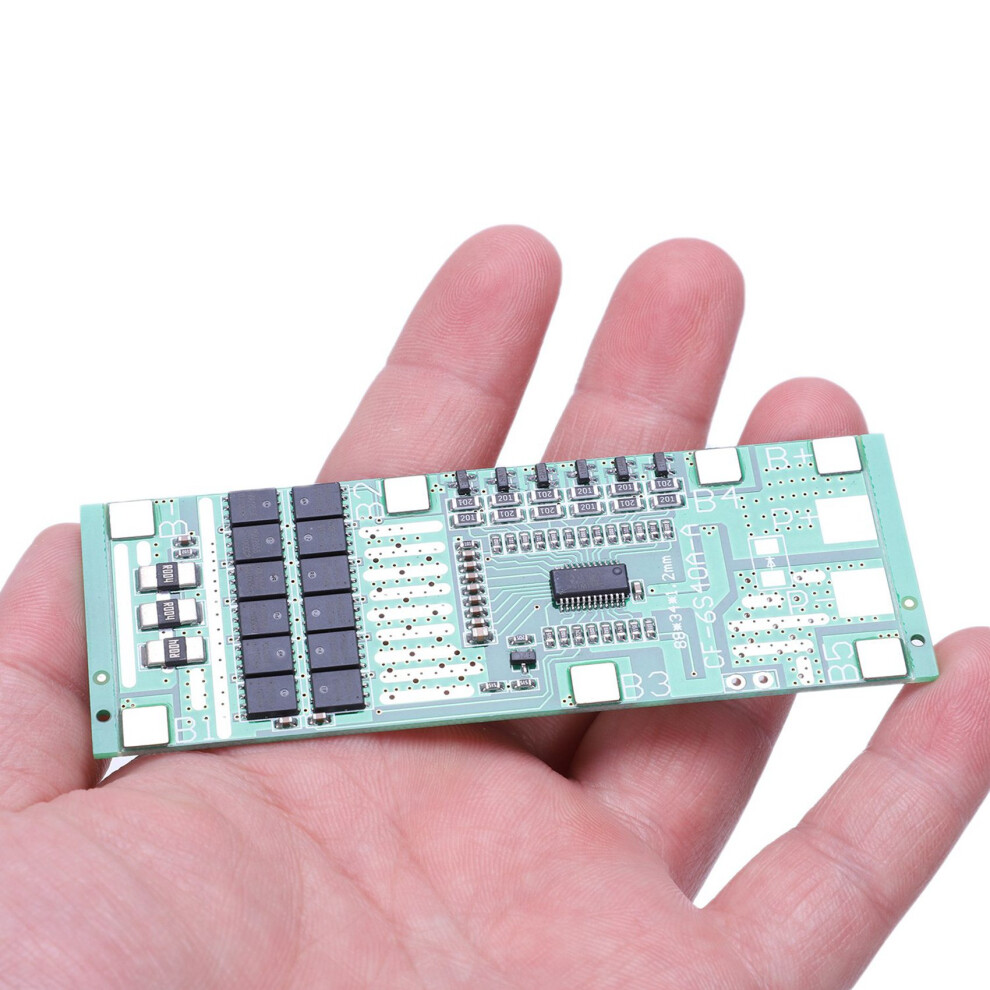

This product is 6 string 24V 6-Cell lithium battery power protection board
Split-mouth 40A discharge current
With heat sink
Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection

Color: green
Material: PCB
Maximum discharge current: 40A
Instantaneous discharge current: 70A
Charging voltage: 25.5V
Maximum charging current: 40A
Overcharge detection voltage: 4.250.025V
Overcharge protection delay: 1.00.5S
Overcharge release voltage: 4.150.05V
Battery balance detection voltage: 4.1250.025V
Battery balance release voltage: 4.1250.05V
Battery balance current: 415mA
Overdischarge detection voltage: 2.7 0.1V
Overdischarge detection delay: 1.00.5S
Overdischarge release voltage: 3.00.1V
Overcurrent detection voltage: 100mV
Overcurrent detection delay: 10.3S
Overcurrent protection current: 755A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 250uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: 20mΩ
Working current: 40uA
Temperature range: -30/+80C
Size: 88*34*2.8mm

Package Contents:

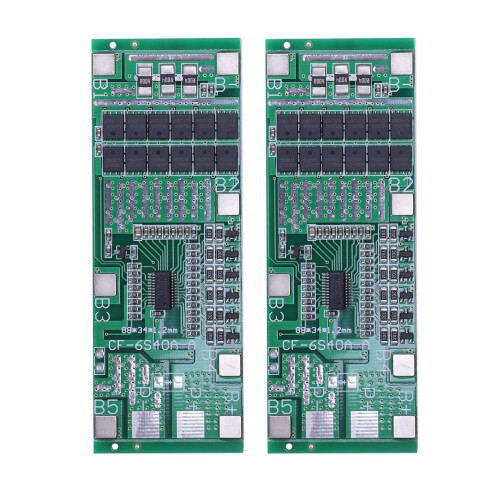

2 x Board

Only the above package content, other products are not included.
