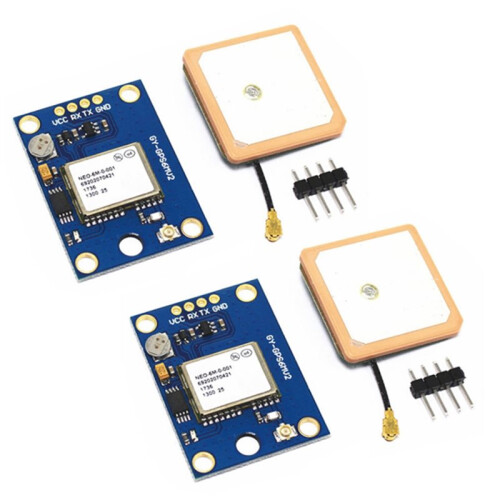

2pcs GY-NEO-6MV2 NEO-6M GPS Module Flight Control Module with Flight Control EEPROM MWC APM2.5 Ceramic Antenna
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 131,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Thu 27th Aug - Wed 2nd Sep
Sold by: LLhappy
Returns: 30 days
180-day payment protection
You might also like
Summary
- Accurate Positioning: Equipped with NEO-6MV2, this GPS module supports GPS and GLONASS, tracking up to 22 satellites simultaneously. It boasts a tracking sensitivity of -162dBm and a cold-start sensitivity of -148 dBm, ensuring precise positioning up to ±2.5m in open environments and reliable performance in urban or jungle settings.
- Energy Efficiency: Designed for low power consumption, the module supports a 3V-5V power supply, operating at 67mA, reducing to 11mA in standby, and 1mA in sleep mode. This feature not only maintains positioning accuracy but also maximizes energy efficiency, making it ideal for endurance-sensitive applications and reducing maintenance costs.
- Hardware Compatibility: Features a standard UART-TTL level interface and supports 3.3V/5V dual voltage, making it easily connectable to Arduino, Raspberry Pi, and ESP32. It includes a 4Pin interface (VCC, GND, TX, RX) and a hardware reset pin, with a baud rate adjustable from 4800bps to 115200bps via AT instructions or UBX commands.
- Plug and Play Functionality: The onboard EEPROM chip saves configuration parameters after power outages and automatically retrieves them upon restart. This eliminates the need for repeated initializations, facilitating a seamless plug-and-play experience for users.
- Versatile Applications: Ideal for high-precision tasks such as vehicle monitoring, UAV navigation, and handheld terminals. It can also be integrated with Arduino, STM32, or LoRa modules to develop GPS trackers, weather stations, and other IoT applications.
2pcs GY-NEO-6MV2 NEO-6M GPS Module Flight Control Module with Flight Control EEPROM MWC APM2.5 Ceramic Antenna Description
Accurate Positioning: Equipped with NEO-6MV2, this GPS module supports GPS and GLONASS, tracking to 22 satellites simultaneously. It boasts a tracking sensitivity of -162dBm and a cold-start sensitivity of -148 dBm, ensuring precise positioning to 2.5m in open environments and reliable performance in urban or jungle settings.
Efficiency: Designed for low power consumption, the module supports a 3V-5V power supply, operating at 67mA, reducing to 11mA in standby, and 1mA in sleep mode. This feature not only maintains positioning accuracy but also maximizes efficiency, making it ideal for endurance-sensitive applications and reducing maintenance costs.
Hardware Compatibility: Features a standard UART-TTL level interface and supports 3.3V/5V dual voltage, making it easily connectable to , Raspberry Pi, and ESP32. It includes a 4Pin interface (VCC, GND, TX, RX) and a hardware reset pin, with a baud rate adjustable from 4800bps to 115200bps via AT instructions or UBX commands.
Plug and Functionality: The onboard EEPROM chip saves configuration parameters after power outages and automatically retrieves them upon restart. This eliminates the need for repeated initializations, facilitating a seamless plug-and- experience for users.
Versatile Applications: Ideal for high-precision tasks such as vehicle monitoring, UAV navigation, and handheld terminals. It can also be integrated with , STM32, or LoRa modules to develop GPS trackers, weather stations, and other IoT applications.
Model: GY-GPS6MV2
Antenna Size: 25*25mm
Module Size: 25mm*35mm
Mounting Hole Diameter: 3mm
Default Baud Rate: 9600
Compatible with various flight control modules; GPS computer testing software provided.
Color: As Shown
Material: PCB
Package Contents:
2 x module kit
Details
| OPC | PV88DYJ |
|---|---|
| Brand | Zandonà |
| Codes | 6033986767197 (EAN) |
Product Data
| Height | 1cm |
|---|---|
| Width | 5cm |
| Length | 10cm |
| Weight | 0.0355kg |
| Colour | As Shown |
| Material | PCB |
