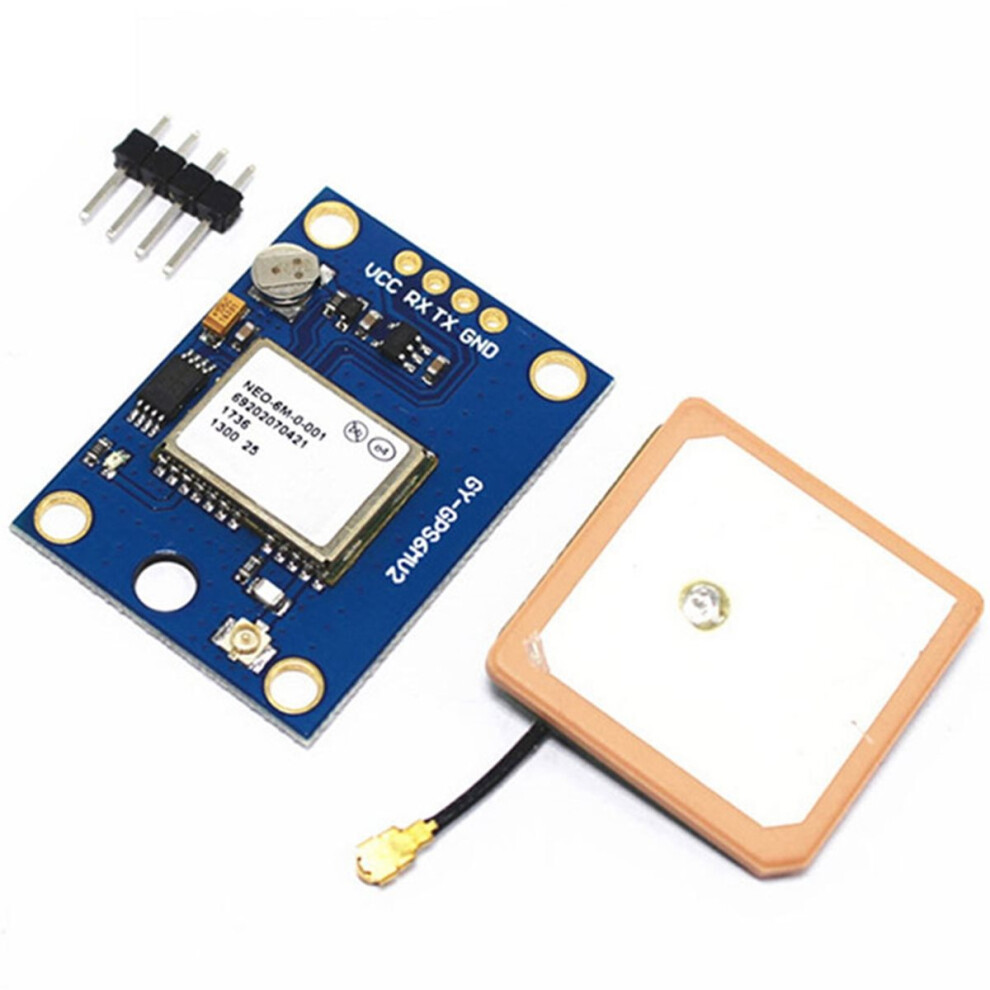

2pcs -NEO-6MV2 NEO-6M GPS Module Flight Control Module with Flight Control EEPROM APM2.5 Ceramic Antenna

2pcs -NEO-6MV2 NEO-6M GPS Module Flight Control Module with Flight Control EEPROM APM2.5 Ceramic Antenna Description

Accurate Positioning: Equipped with NEO-6MV2, this GPS module supports GPS and GLONASS, tracking up to 22 satellites simultaneously. It boasts a tracking sensitivity of -162dBm and a cold- sensitivity of -148 dBm, ensuring precise positioning up to 2.5m in open environments and reliable performance in urban or jungle settings.
Energy Efficiency: Designed for low power consumption, the module supports a 3V-5V power supply, operating at 67mA, reducing to 11mA in standby, and 1mA in sleep mode. This feature not only maintains positioning accuracy but also maximizes energy efficiency, making it ideal for endurance-sensitive applications and reducing maintenance costs.
Hardware Compatibility: Features a standard UART-TTL level interface and supports 3.3V/5V dual voltage, making it easily connectable to , , and ESP32. It includes a 4Pin interface (VCC, GND, TX, RX) and a hardware reset pin, with a baud rate adjustable from 4800bps to 115200bps via AT instructions or UBX commands.
Plug and Play Functionality: The onboard EEPROM chip saves configuration parameters after power outages and automatically retrieves them upon restart. This eliminates the need for repeated initializations, facilitating a seamless plug-and-play experience for users.
Versatile Applications: Ideal for high- tasks such as vehicle monitoring, UAV navigation, and handheld terminals. It can also be integrated with , STM32, or LoRa modules to develop GPS trackers, weather stations, and other IoT applications.

Model: -GPS6MV2

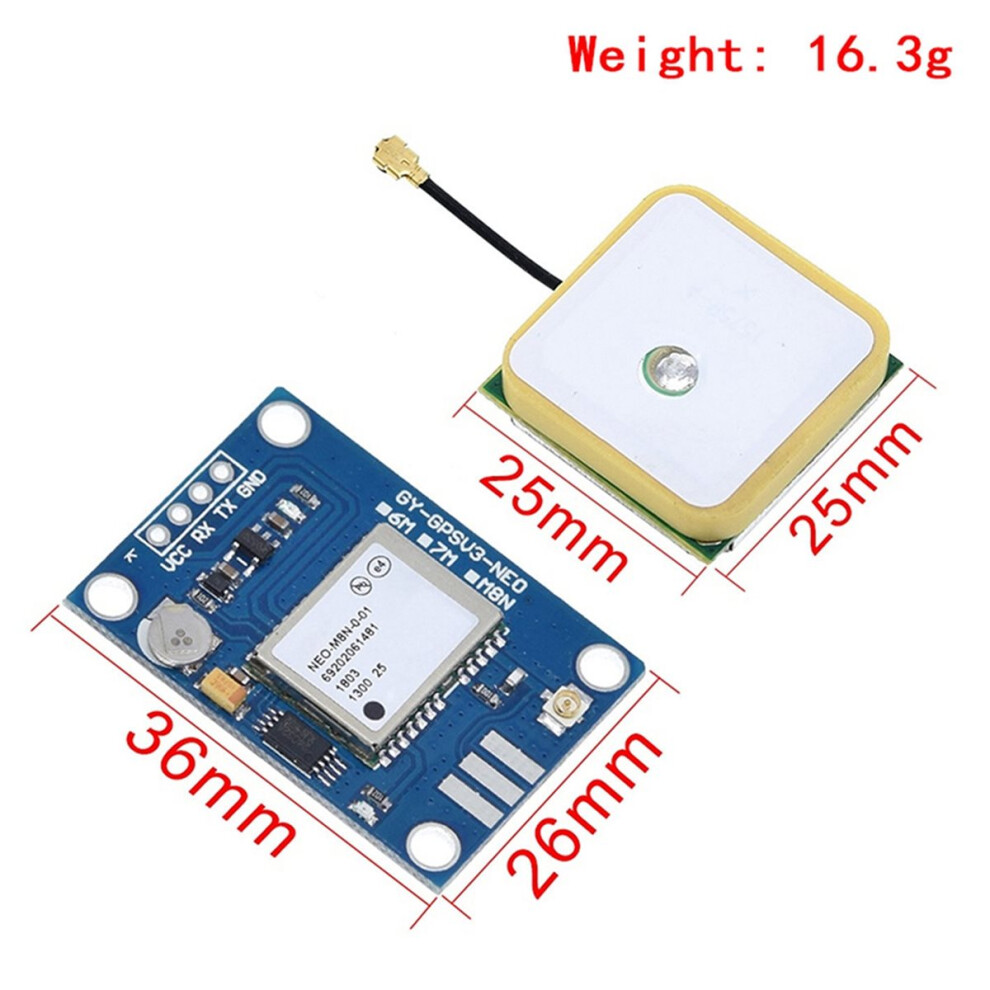

Antenna Size: 25*25mm
Module Size: 25mm*35mm
Mounting Hole Diameter: 3mm
Default Baud Rate: 9600
Compatible with flight control modules; GPS computer testing software provided.
Color: As Shown
Material: PCB

Package Contents:

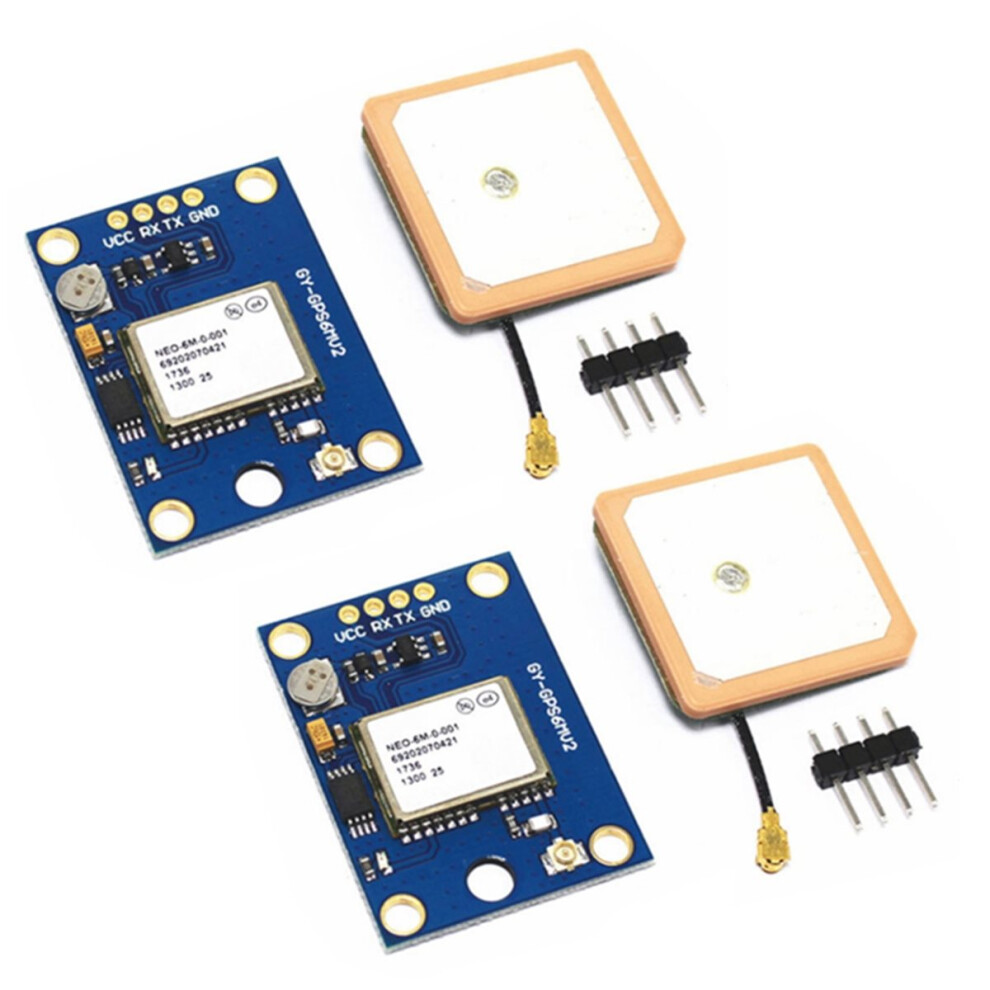

2 x module kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
