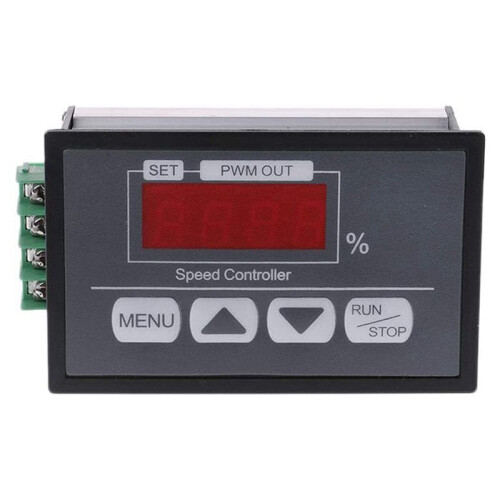

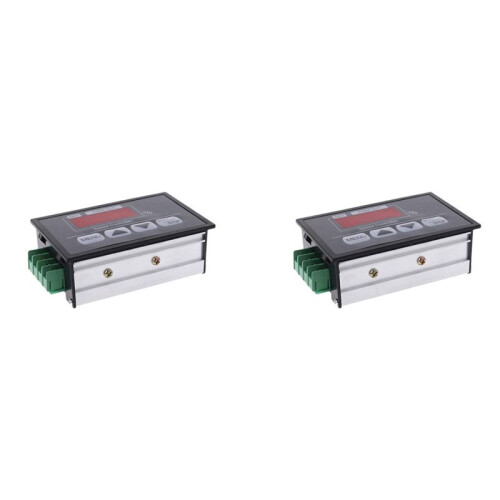

2X 6-60V Pwm Motor Speed Controller with Digital Display Panel Button Governor

2X 6-60V Pwm Motor Speed Controller with Digital Display Panel Button Governor Description

The digital display 0-100 percentage table is accurate.
Point move start / stop .
Slow start setting function 1: 000 - 100 Slow start to Speed adjustable between 0-10 seconds Default is 1 second.
Slow stop setting function 2: 000 - 100 Slow stop is adjustable between 0-10 seconds Default is 1 second.
Speed lower limit setting function 3: 000 - 080 The minimum speed is between 0-80% adjustable and less than the maximum speed setting The default is 0.

Speed upper limit setting function 4: 000 - 100 The maximum speed is adjustable between 0- and greater than the minimum speed setting The default is .
Acceleration and deceleration value setting Function 5: 001 002 005 010 015 020 025 Each you press the /minus key, the speed changes correspondingly by 1%, 2%, 5%, 10%, 15%, 20%, 25%.
Note: The input voltage must be equal to the rated voltage of the motor.
Input voltage: 6-60V
Output voltage: Linear
Output current: 0-30A
Continuous current: 20A
Speed regulation type: Regulating current
Speed regulating mode: Potentiometer
Speed range: 0 -
Control frequency: 21KHZ
Type of wiring: Palisade terminal
Colour:As shown
Material:plastic

Package Contents:

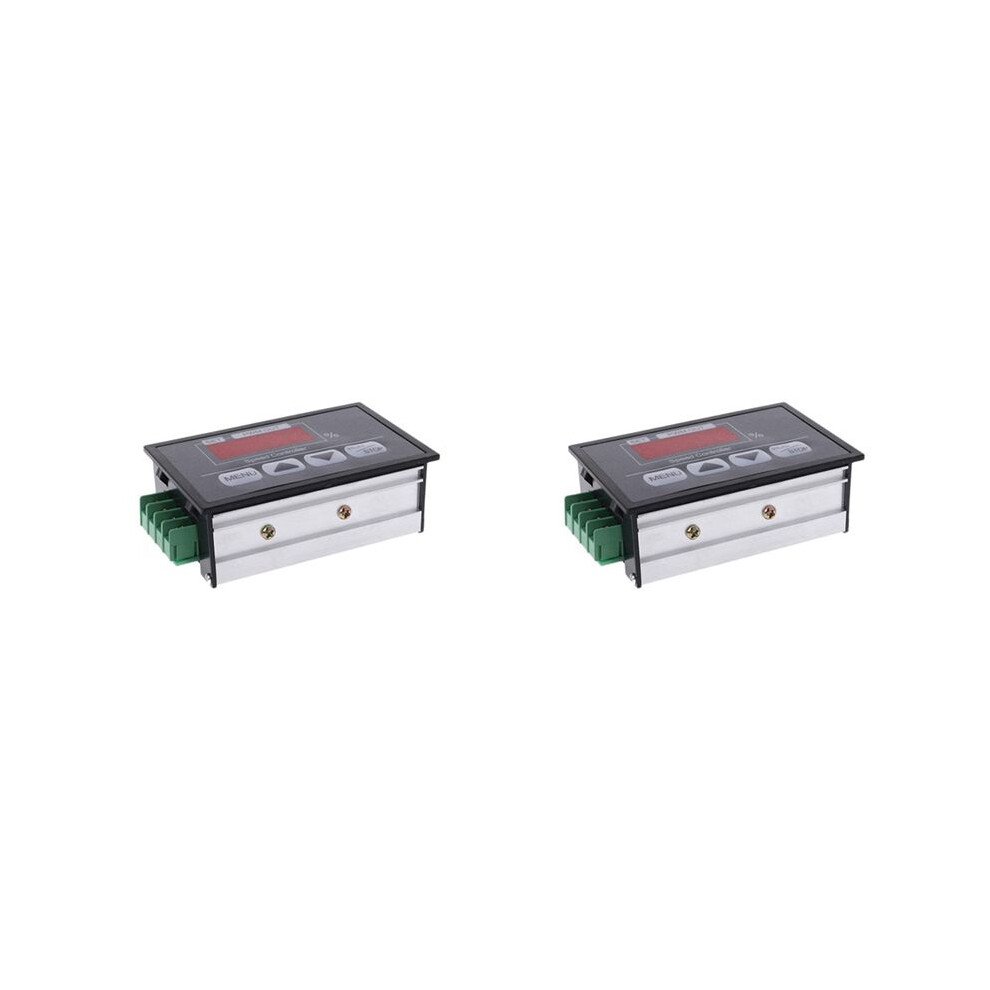

2 x Speed Controller (without retail package)
