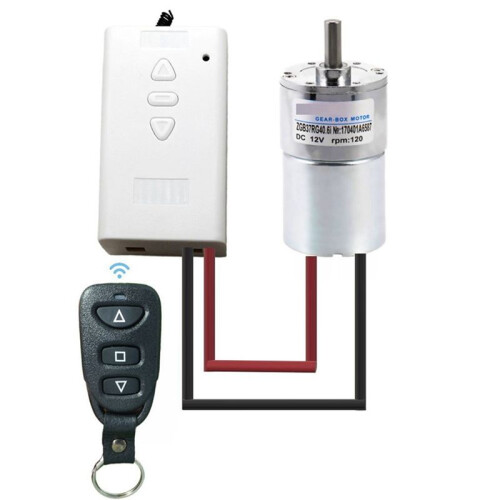

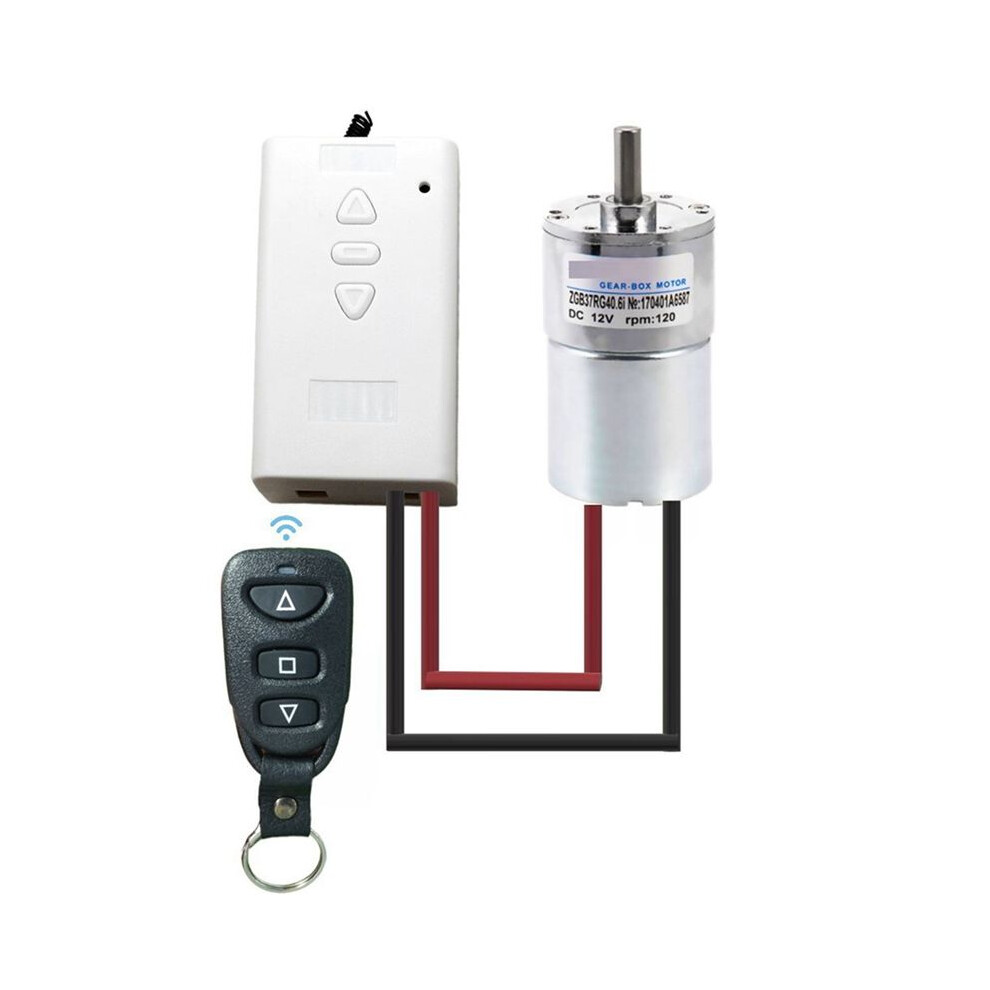

2X AC/ 12V 24V 36V Motor Controller Electric Linear Actuator Motor Remote Control Forwards Reverse Down Stop

2X AC/ 12V 24V 36V Motor Controller Electric Linear Actuator Motor Remote Control Forwards Reverse Down Stop Description

Working Voltage: AC/ 12V-36V
( AC& both are ok. Wide working voltage from 12V to 36V(12V 14V 16V 18V 24V 28V 36V)
Working Current: 48ma
Quiescent current:16ma
Max Load: 10A Relay ( have better load less than 5A (60W)

Color: white
Material: ABS

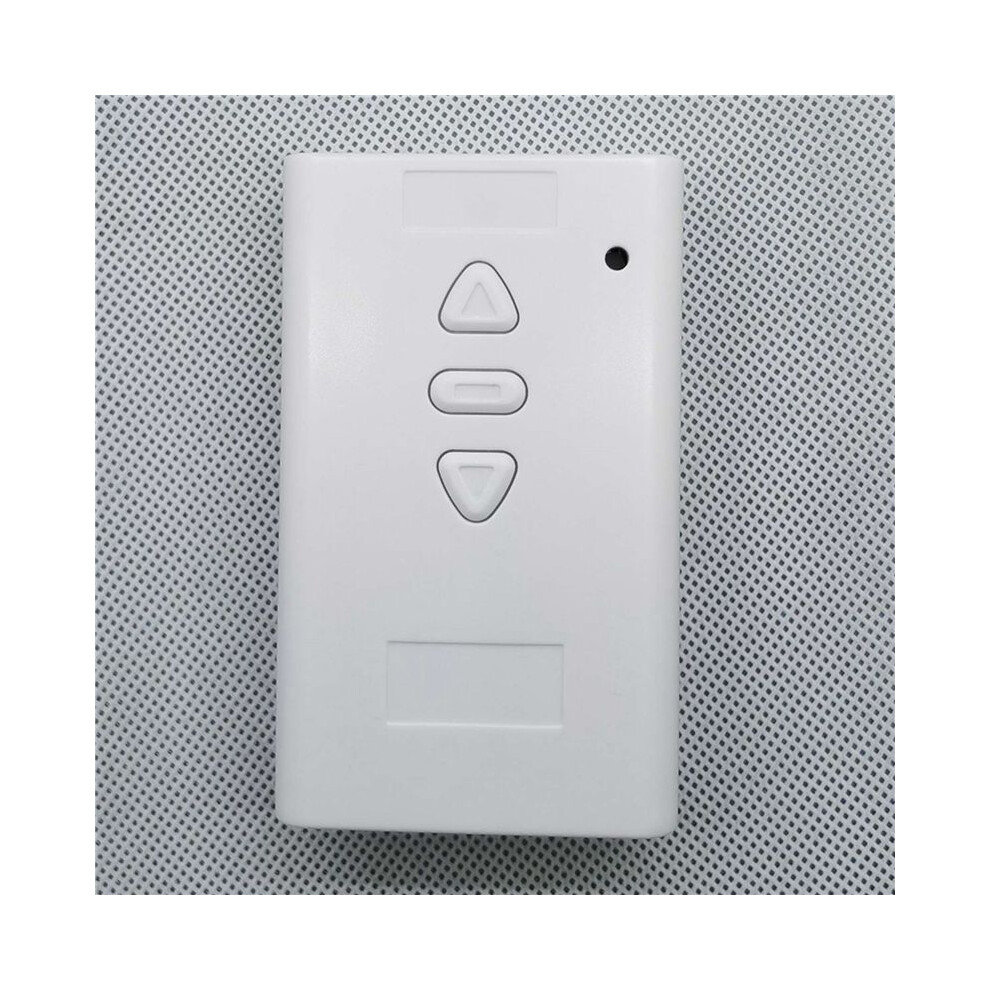

Function: Receiver Manual Button Control & Wire External Button (without transmitter)
( Wire the Normally Open Limited to the External Button Pin ( U--S--D--GND) make your motor Forwards Reverse Cycle
2. Original State OFF, (Suddenly, the electricity was cut off, then comes again, the State still is OFF, you need manual turn it )

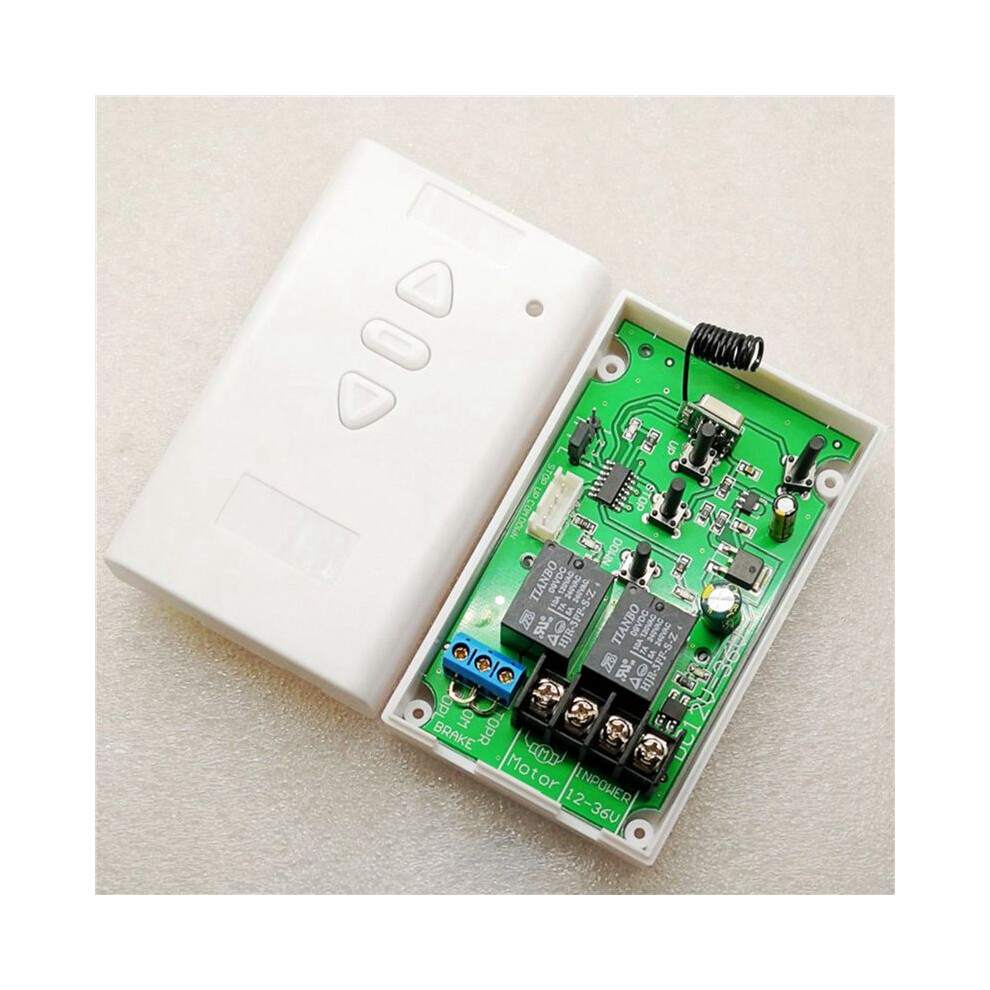

3. Out State: Momentary Toggle Latched Adjusted by the Jumper the Receiver,
( we ship default as Latched, if you need use Momentary to change the Jumper the Receiver ,Notice, please don't use Toggle)
4. Momentary----------Jumper "1&2"
5. Latched-----------Jumper "3&4"
6. Momentary -------------
Press button"", the Motor Forward, Release is Stop.
Press Button "Down", the Motor Reverse, Release is Stop.
Latched------------------
Press button "", the Motor Forward, Press Button "Stop" is stop.
Press Button "", the Motor Reverse, Press Button"Stop" is stop
7. If you don't need wire the Limited , you need connect the Down and COM with a , we have connect it before we ship out ,if you need use it take away the that is ok.
8. When the receiver output state is "Latched", we have set it 0.5s delay for forwards and reverse, it is the Protection function.

Package Contents:
2 x Wireless Remote Controller(2 CR2016 button batteries not included)
2 x Receiving Controller
