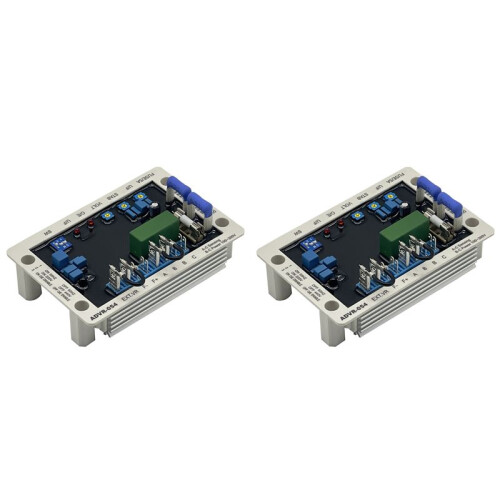

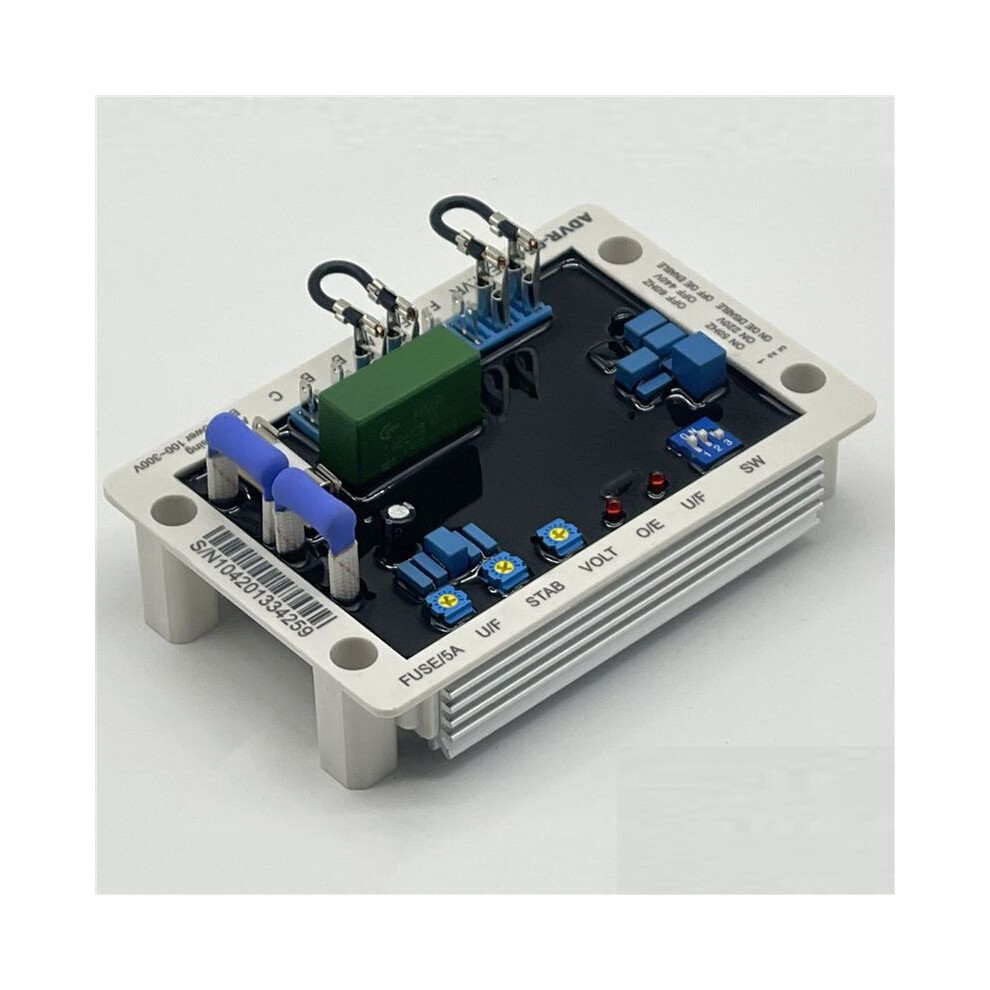

2X ADVR054 Advr-054 Voltage Regulator AVR Generator Universal Automatic Voltage Regulator
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (£6.32) | Mon 19th - Sat 24th Oct
Sold by: CollBea
Returns: 30 days
180-day payment protection
You might also like
Summary
- 1. Some generators even when working at high voltage are factory set to sense at lower voltages. Remember to set the DIP SW 2 to the sensing voltage not the working voltage of the generator even do sometimes it can be the same.
- 2. If you have a 480/277V generator but you have the sensing wires C and A connected to 240 Volts move DIP SW 2 to ON Another example are rental units with multi-voltage output with a switches for Y, YY, Delta & ZZ output, but sensing is always at 240V from T7 and T9 even though the generator is running sometimes at 480/277V.
- 3. All voltage readings are to be taken with an average-reading voltmeter Meggers and high-potential test equipment must not be used. Use of such equipment could damage the AVR.
- 4. Improper setting of under-frequency protection could cause the output voltage of the un
- AVR Generator Universal
2X ADVR054 Advr-054 Voltage Regulator AVR Generator Universal Automatic Voltage Regulator Description
1. Some generators even when working at high voltage are factory set to sense at lower voltages. Remember to set the DIP SW 2 to the sensing voltage not the working voltage of the generator even do sometimes it can be the same.
2. If you have a 480/277V generator but you have the sensing wires C and A connected to 240 Volts move DIP SW 2 to Another example are rental units with multi-voltage output with a switches for Y, YY, Delta & ZZ output, but sensing is always at 240V from T7 and T9 even though the generator is running sometimes at 480/277V.
3. All voltage readings are to be taken with an average-reading voltmeter Meggers and high-potential test equipment must not be used. Use of such equipment could damage the AVR.
4. Improper setting of under-frequency protection could cause the output voltage of the un
Colour:As Shown
Material:Metal + Plastic
Package Contents:
2 x Automatic Voltage Regulator
Details
| OPC | PRYNSNC |
|---|---|
| Codes | 4713401898126 (EAN) |
Product Data
| Height | 12cm |
|---|---|
| Width | 10cm |
| Length | 15cm |
| Weight | 0.663kg |
| Colour | As Shown |
| Material | Metal + Plastic |
