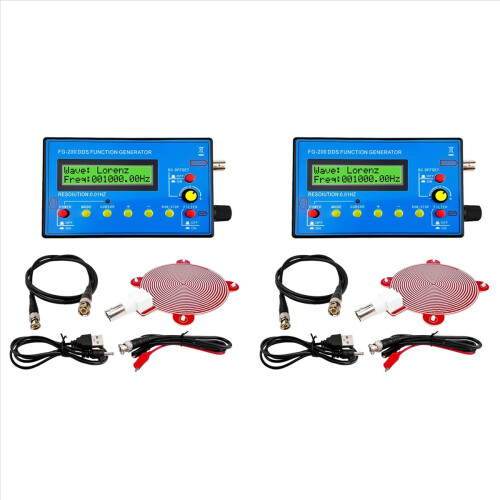

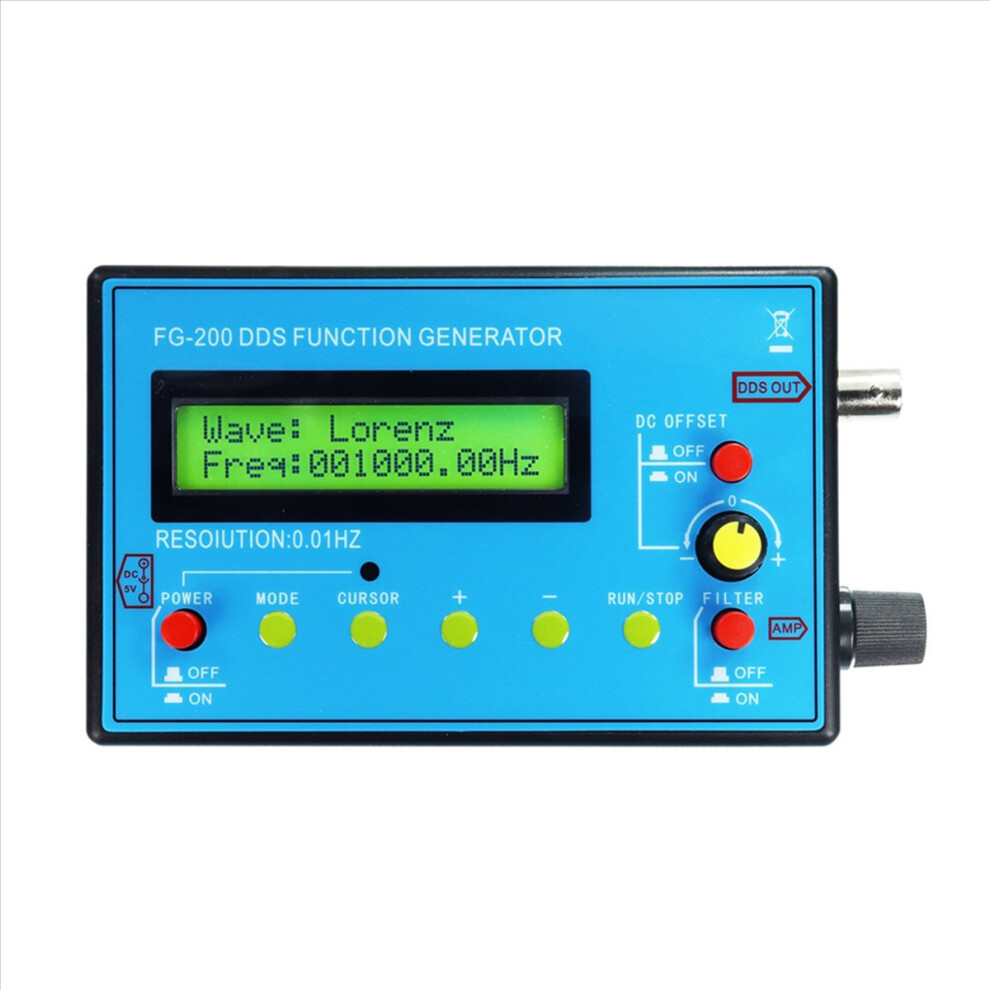

2X FG200 DDS Function Generator Frequency Counter 0.01Hz-500KHz Signal Source Module Sine+Square+Sawtooth Waveform

2X FG200 DDS Function Generator Frequency Counter 0.01Hz-500KHz Signal Source Module Sine+Square+Sawtooth Waveform Description

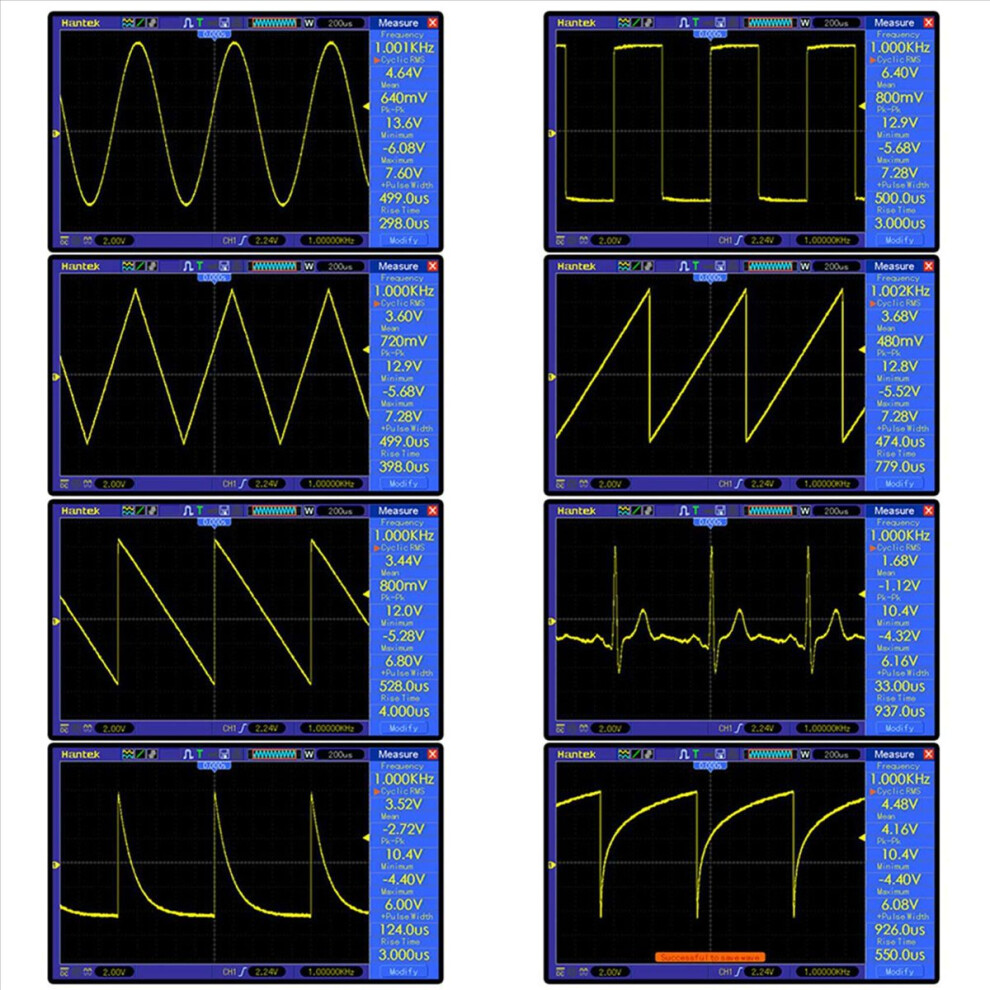

1. Output waveforms: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, ECG wave, exponential rise, exponential fall, Lorentz pulse, Gauss pulse, Sinc pulse, half-wave, -wave, wave, noise wave, and so on 15 kinds of waveforms.
2. Power supply: DC4-9V, DC5V is recommended when using adapter, 3.7V lithium battery is recommended when using battery power.
3. Current: 180MA at voltage 5V
4. Frequency range: sine wave 0.01Hz- 500.00kHz (with further increase in frequency, the output amplitude decrease), other waveforms 0.01Hz-100.00kHz (but does not limit the upper limit of the adjustable frequency, if the distortion and jitter requirements are not high, the use of frequency can be further increased).
5. Resolution: 0.01Hz.

Sine wave distortion: Less than 1% below 1kHz, Less than 0.5% above 1kHz.
Output amplitude: Maximum t10V (P-P).
output impedance: 50 ohms.

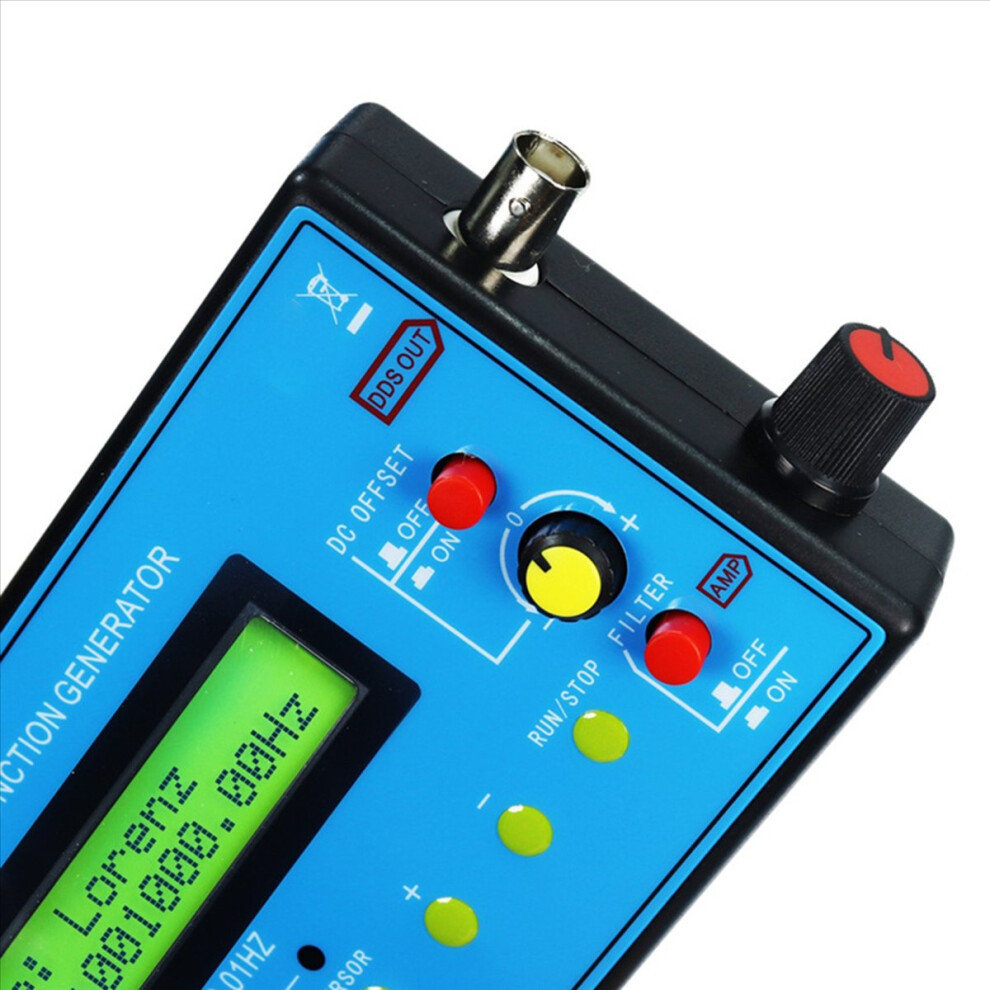

DC offset: maximum10V, with shutdown function.
All setup parameters can be saved.
there are filters can be turned on and off, can be well adapted to sinusoidal and pulse waveform output.
Features:

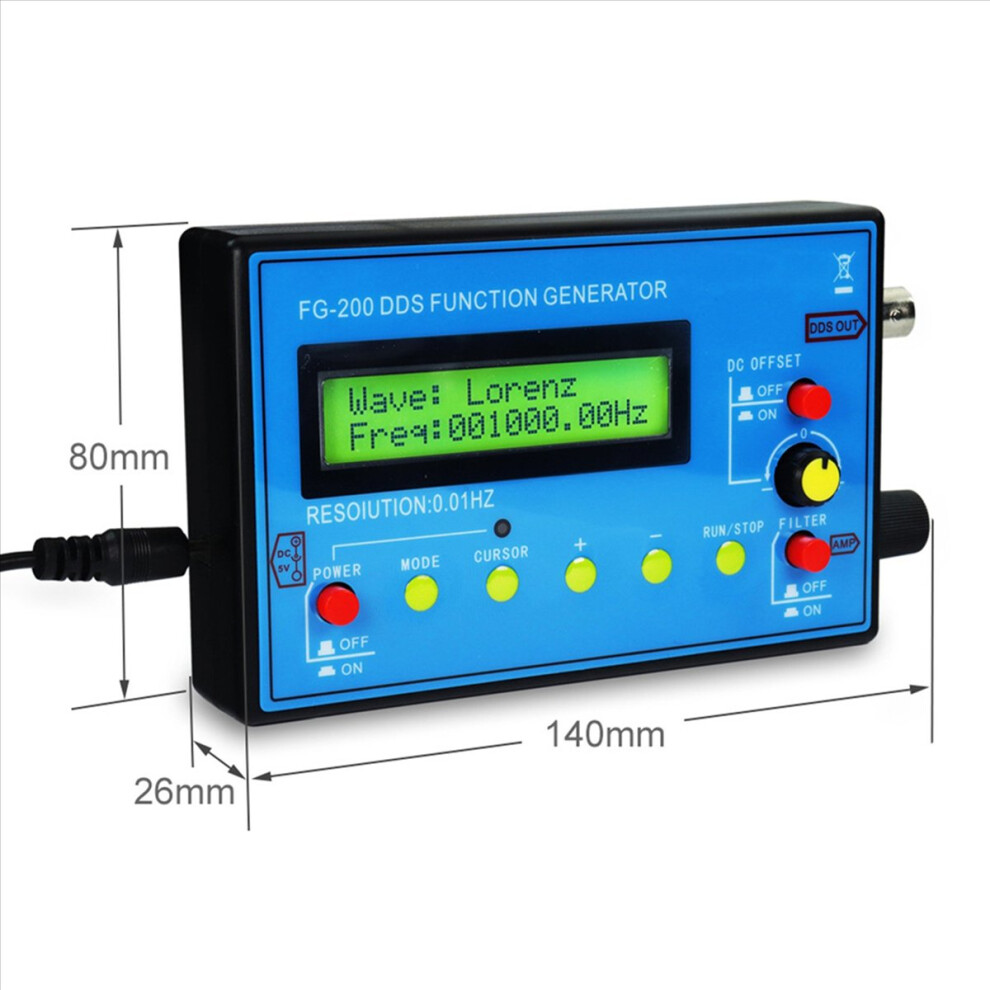

Compact size (125x80x 26.5MM),complete functions, simple operation, easy to carry. It can be powered by a power adapter or a 3.7V lithium battery. Together with an oscilloscope, it can be used for electronic circuit test and debugging, frequency characteristics and impulse response test and measurement of audio amplifiers. Due to the good accuracy and frequency stability of DDS, it is also very suitable for oscilloscope sweep time factor calibration. The square wave output is suitable for oscilloscope attenuator and probe pulse characteristic adjustment.
Colour:Photo Color
Material:Plastic + Metal

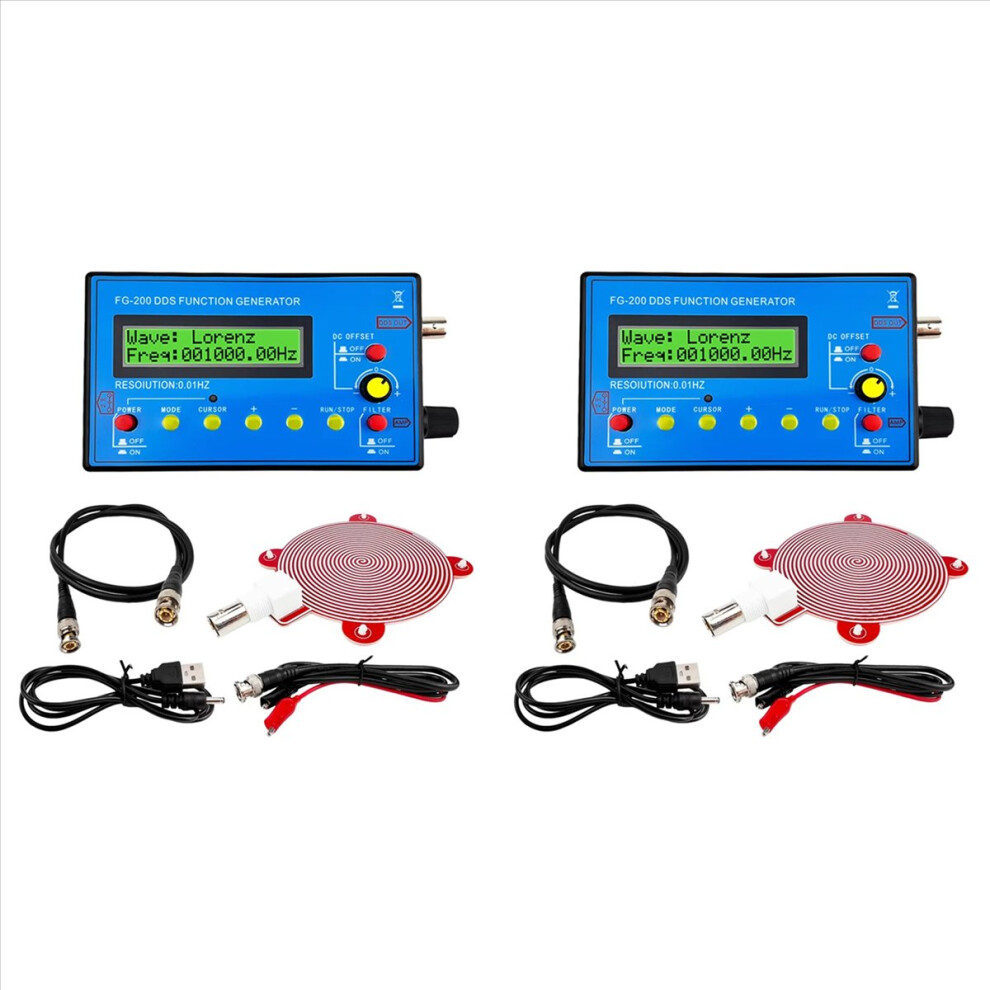

Package Contents:
2 x signal generator

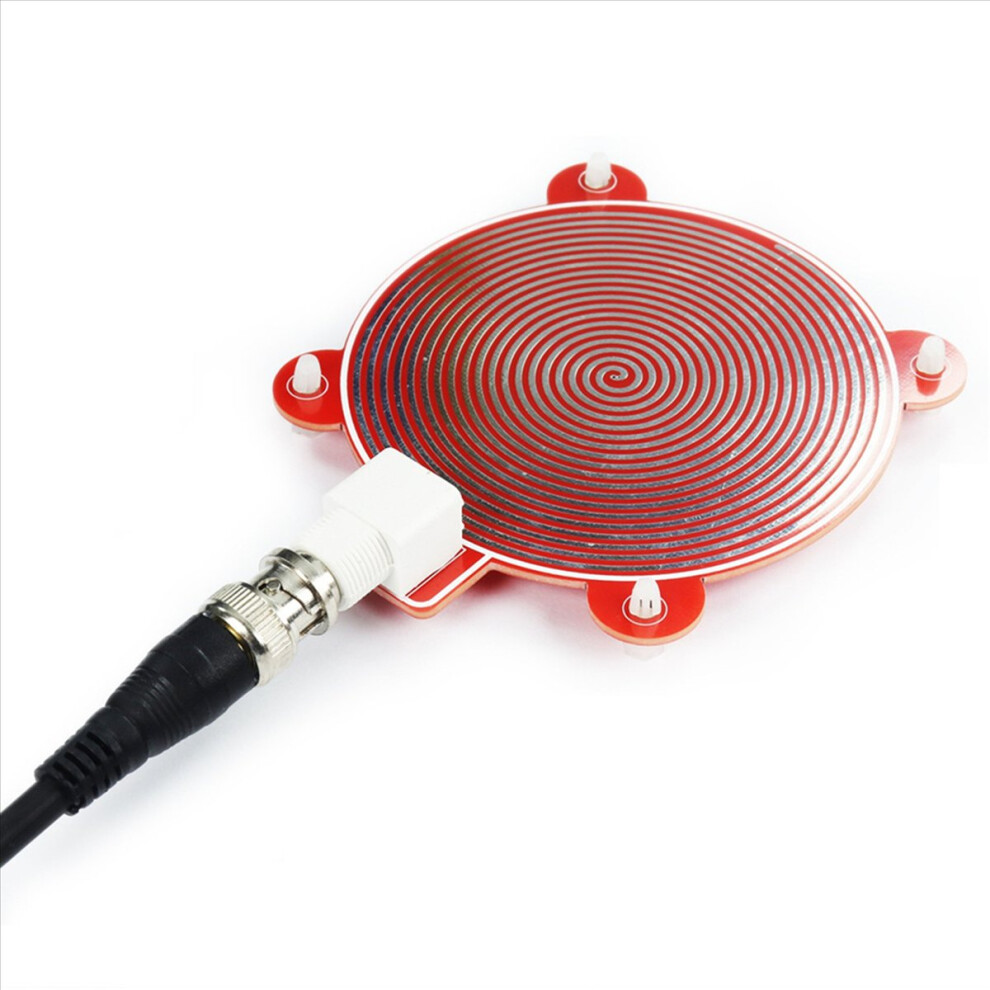

2 set x accessories

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
