2X PM02 V3 Power Module Supply XT60 Plug From APM PIX32 Pixhawk 4 Flight Controller for RC FPV Racing Drone

2X PM02 V3 Power Module Supply XT60 Plug From APM PIX32 Pixhawk 4 Flight Controller for RC FPV Racing Drone Description

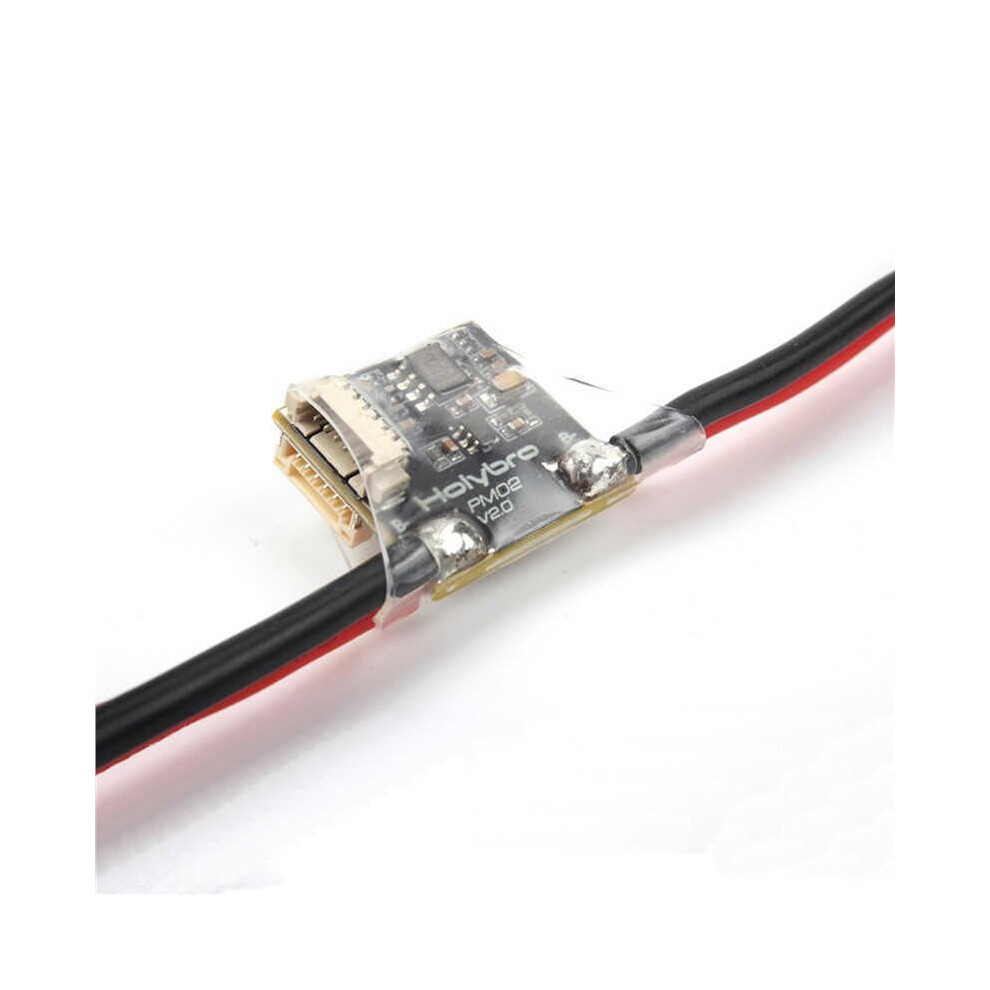

The PM02 is an easy way to provide your APM and Pix32 with clean power from a LiPo battery as well as current draw and battery voltage measurement via a 6-position cable
Onboard switching regulator outputs 5.2V at 3A for to 10S LiPo batteries

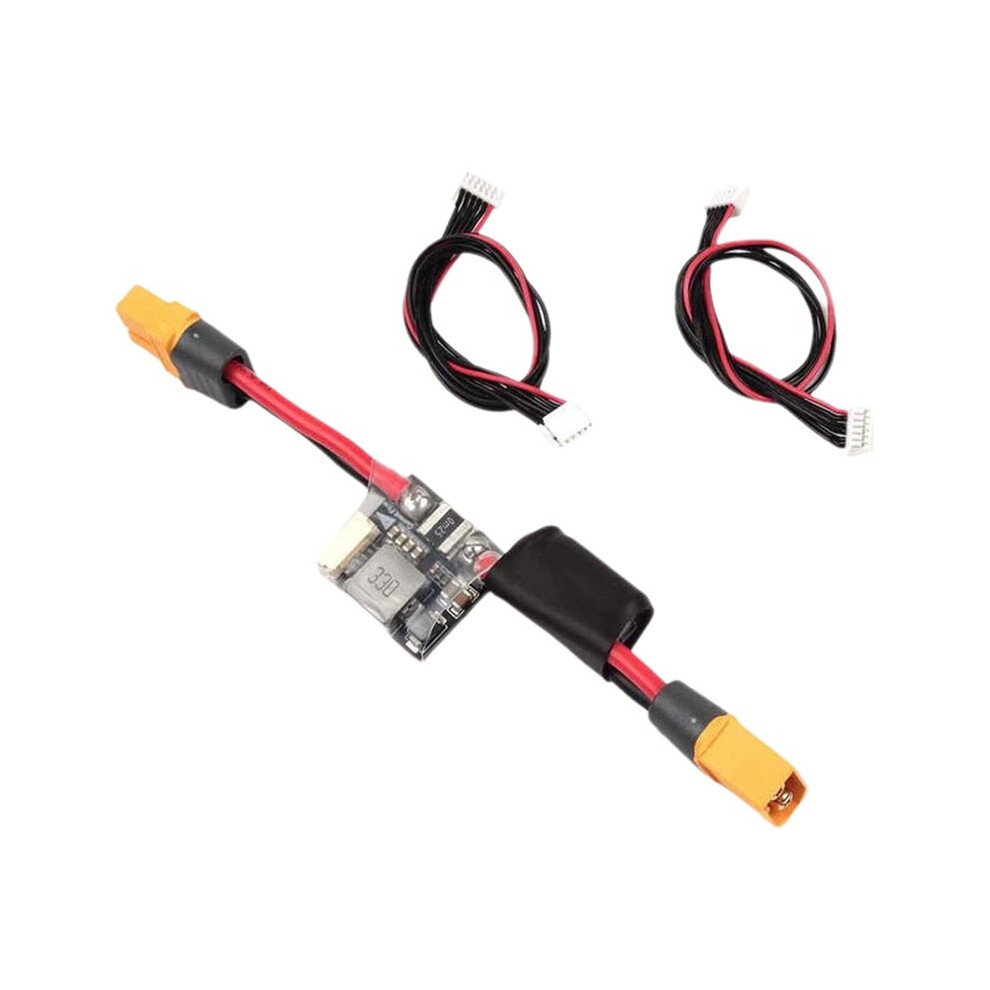

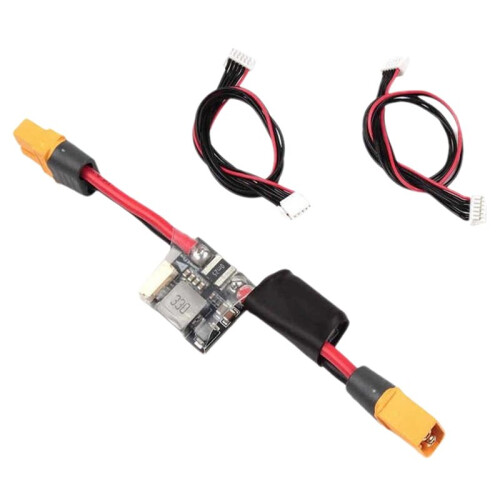

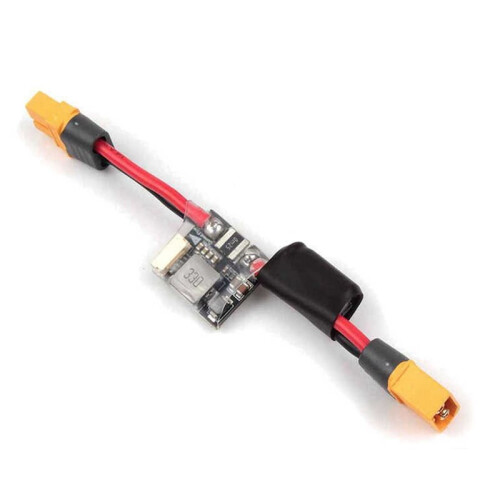

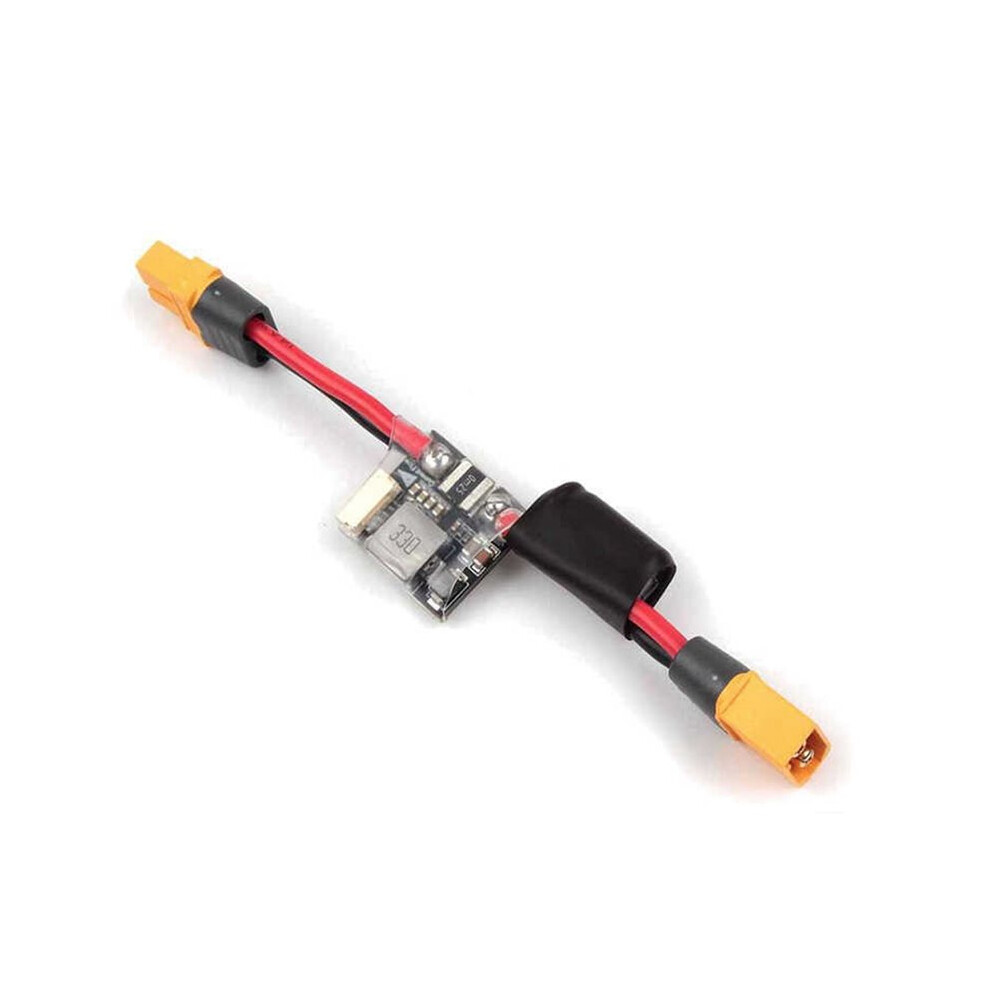

The power module comes fully assembled with XT60 connectors and wrapped in shrink tubing for protection
The power module is designed to power APM, Pix32, RC receivers and APM accessories (GPS, radio). It is not designed for servo power
GH terminals are also compatible with for Pixhawk4 and for Pixhawk4

Maximum input voltage: 60V
Maximum current sense: 120A
Configured for 5V ADC for voltage and current measurements
BEC regulated output 5.2V and 3A maximum
6-position cable plugs directly into APM/Pix32's 'PM' connector
6-position GH cable plugs directly into Pixhawk4/Pixhawk4 'PM' connector
(Due to different batches, the printed words the product will be different, which does not affect use)
Colour:As Shown
Material:plastic

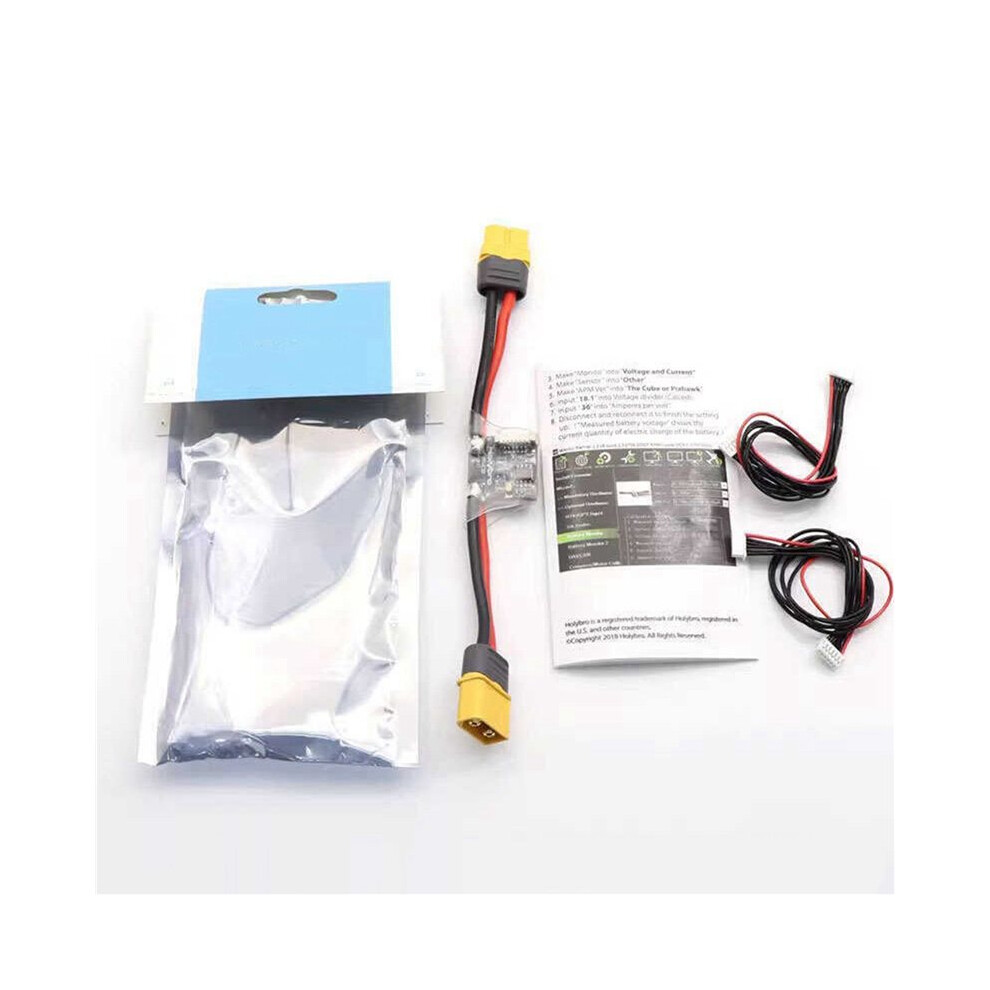

Package Contents:

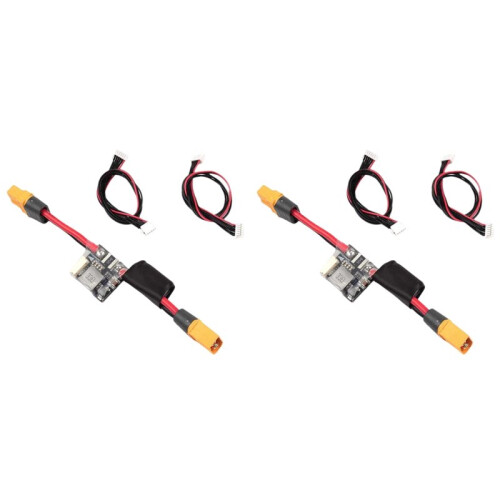

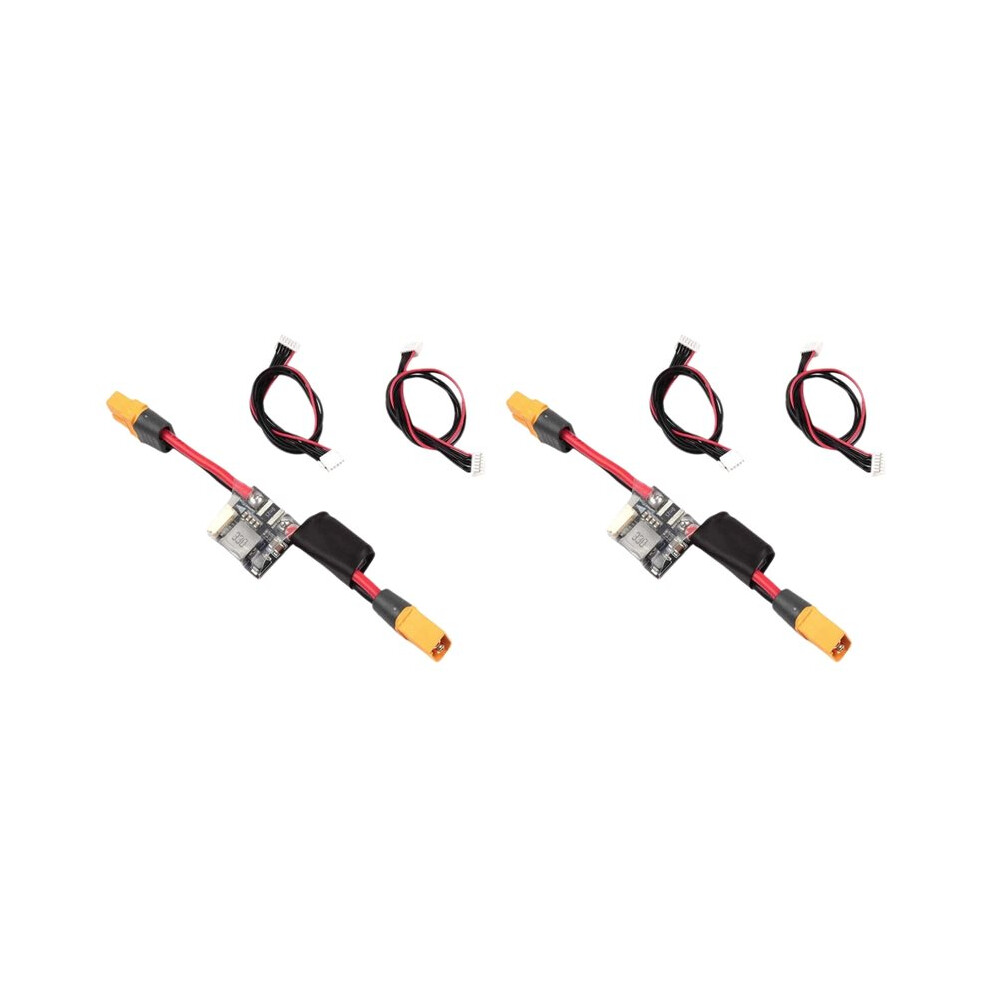

2 x Power Module
2 x 6-position cable
2 x GH 6-position cable
2 x English manual
