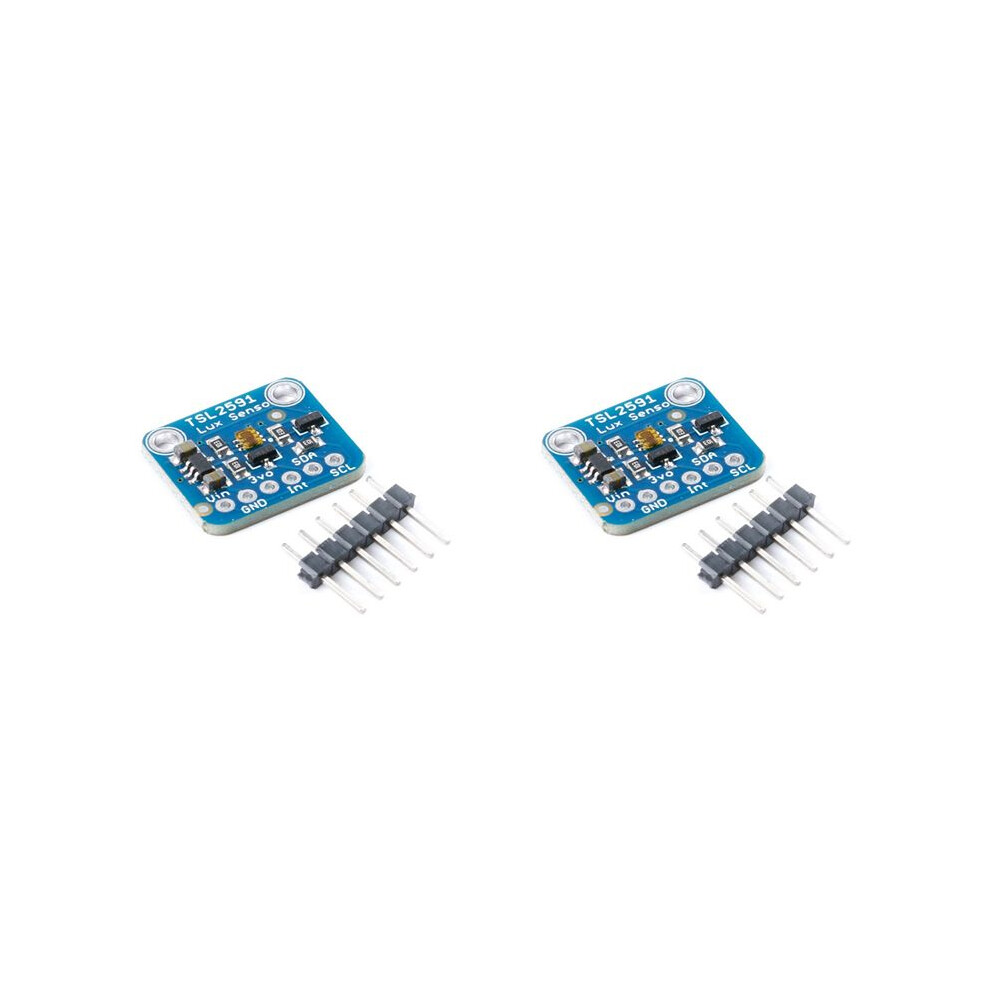

2X TSL2591 Digital Light Sensor Breakout Module High Dynamic Range IR Infrared Full Spectrum Diodes Detect 3.3V-5V
In stock
By law, vaporisers, electronic cigarettes and relevant paraphernalia cannot be bought by people under the age of 18. A valid form of ID and a signature will be required upon delivery of this product.
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Thu 23rd - Tue 28th Jul
Sold by: JJBRDZ
Returns: 30 days
180-day payment protection
Most Popular in E-Cigarettes & Vape Pens
Summary
- The TSL2591 light sensor is an advanced digital light sensor, suitable for use in various light conditions.
- Compared to low-cost cadmium sulfide cells, this sensor is more accurate, allowing precise lux calculations and configurable for different gain/timing ranges, with a 188 DULUX light detection range up to 88,000 lux at a flying distance. It contains both infrared and full-spectrum diodes, which can measure infrared, full-spectrum or human visible light respectively.
- The TSL2591 light sensor has a huge dynamic range of 600 million:1. Please note that compared to the previous TSL256 1, the 7-bit I2C address (0x29) of the sensor cannot be changed.
- The board has a voltage regulator and can work at a voltage of 3.3V-5.0V.
- The built-in ADC device can take advantage of this with any microcontroller, even if it does not have an analog input. Actively sense 0.4mA, less than 5μA in power-down mode. The device current consumption is extremely low, so it is very suitable for low-power data recording systems.

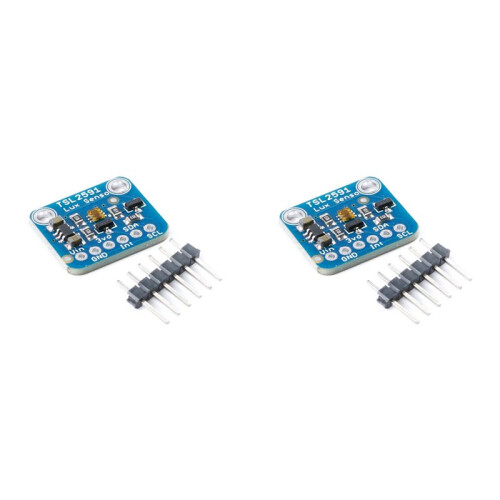

2X TSL2591 Digital Light Sensor Breakout Module High Dynamic Range IR Infrared Full Spectrum Diodes Detect 3.3V-5V Description
The TSL2591 light sensor is an advanced digital light sensor, suitable for use in various light conditions.
Compared to low-cost cadmium sulfide cells, this sensor is more accurate, allowing precise lux calculations and configurable for different gain/timing ranges, with a 188 DULUX light detection range to 88,000 lux at a flying distance. It contains both infrared and full-spectrum diodes, which can measure infrared, full-spectrum or human visible light respectively.
The TSL2591 light sensor has a huge dynamic range of 600 million:1. Please note that compared to the previous TSL256 1, the 7-bit I2C address (0x29) of the sensor cannot be changed.
The board has a voltage regulator and can work at a voltage of 3.3V-5.0V.
The built-in ADC device can take advantage of this with any microcontroller, even if it does not have an analog input. Actively sense 0.4mA, less than 5μA in power-down mode. The device current consumption is extremely low, so it is very suitable for low-power data recording systems.
Interface type: IIC
Voltage range: 3.3V-5V
Dynamic range count: 1 600,000,000
Lux range: 188 uLux sensitivity, to 88,000 lumens input measurement.
Temperature range: -30Celsius~80Celsius
Dimensions: 1 9mmx16mmx1mm
Pin Definition:
VIN: Power +
GND: ground
SCL: I2C serial clock
SDA: I2C serial data
INT: interrupt pin
Colour:As shown
Material:plastic
Package Contents:
2 set x Digital Light Sensor Module
Details
| OPC | PWKVKB2 |
|---|---|
| Brand | Torribaly |
| Codes | 6033892460441 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 8cm |
| Weight | 0.004kg |
| Colour | As Shown |
| Material | plastic |
