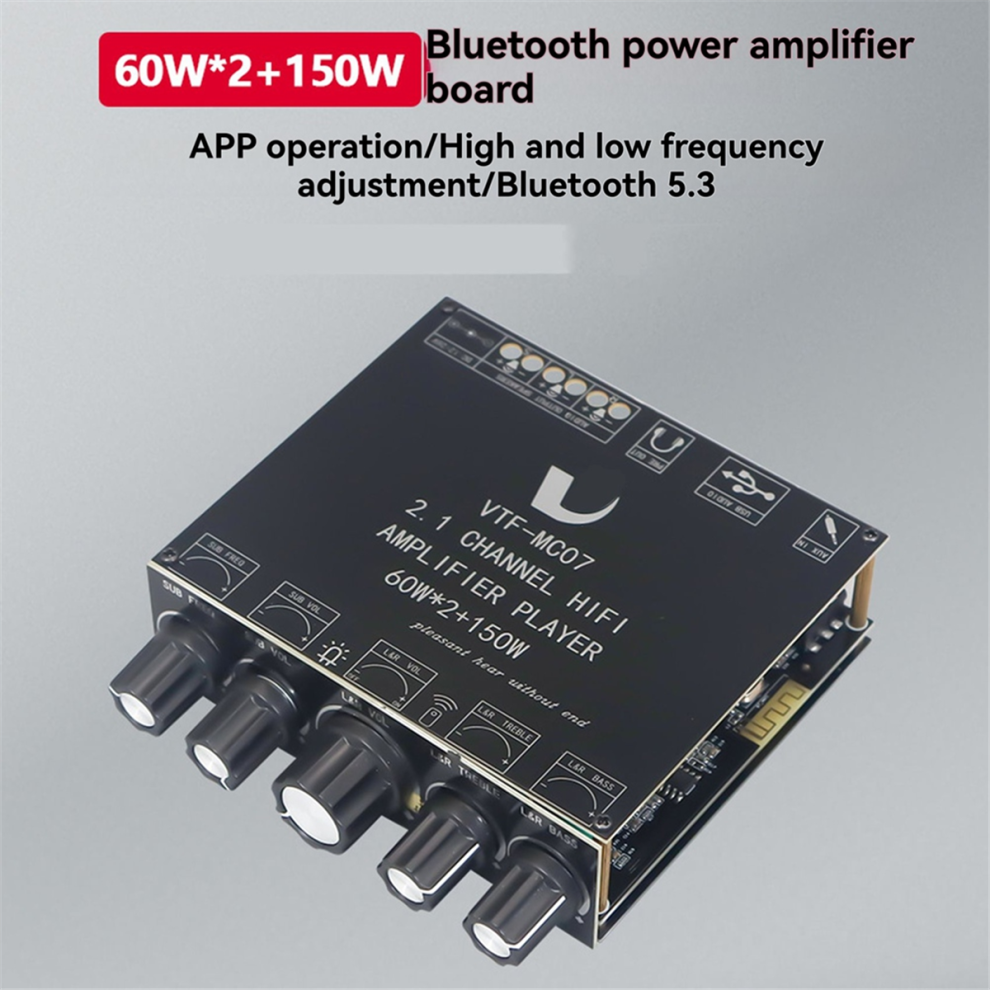

2x60W+150W Subwoofer Bluetooth 5.3 Power Amplifier Board B

2x60W+150W Subwoofer Bluetooth 5.3 Power Amplifier Board B Description

Product: Class D audio decoding amplifier
Amplifier IC: TPA3116 x 2
Input voltage: DC12-26V
Op amp: 5532
Channel: 2.1 channel

Bluetooth version: V5.3

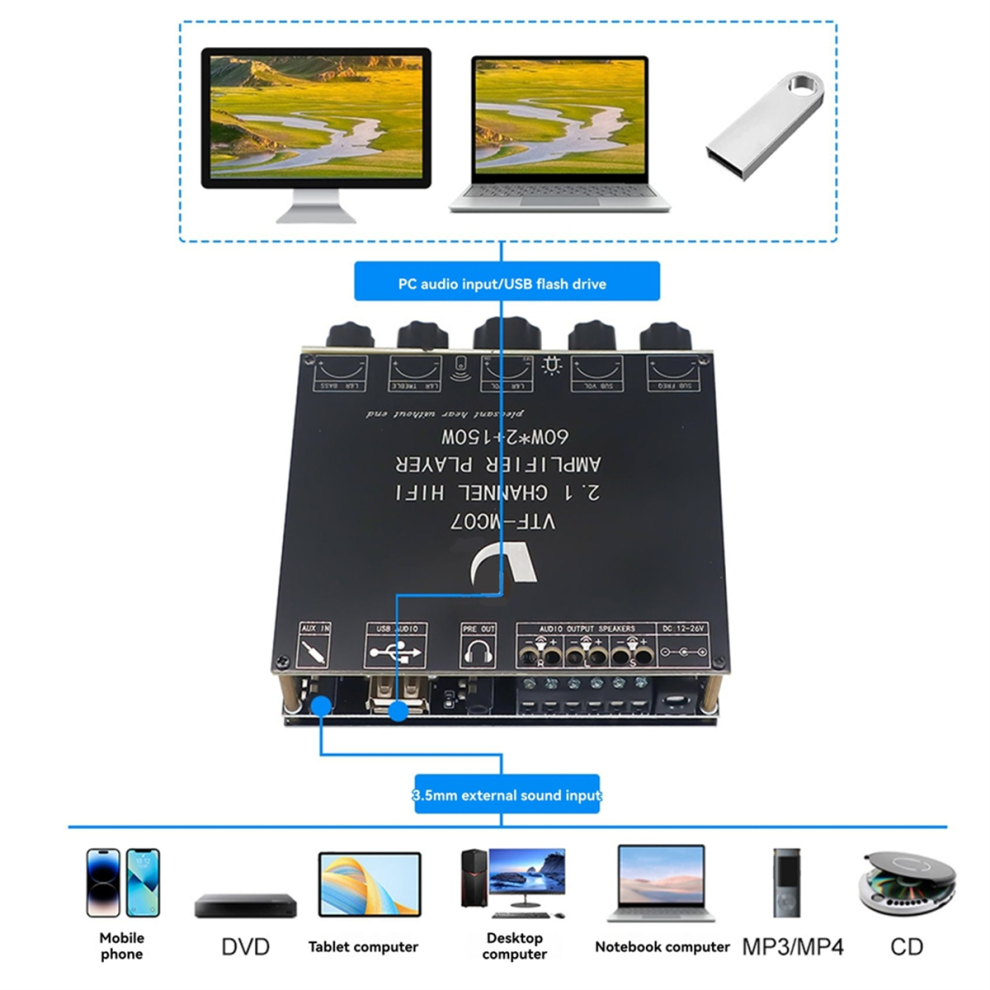

Function: U disk + external audio input + Bluetooth + APP + front-end output
Audio input: 3.5MM headphone jack
Output power: 2 x 60W+150W
Output impedance: 4-8Ω full-range speaker + 3-8Ω bass speaker
Note:
1.The higher the voltage, the louder the sound. Please give up this misconception. Only the right power supply and the right speakers can produce perfect sound.
2.The power supply and speakers determine the output power of the amplifier. (Please refer to the power output table in the details page)
3.Our power amplifier input generally requires 1.5V-2V. If your decoding output is 500mV-1V, that is not enough. Even if your power supply and speaker are adapted, the power amplifier output cannot reach 2x100W.

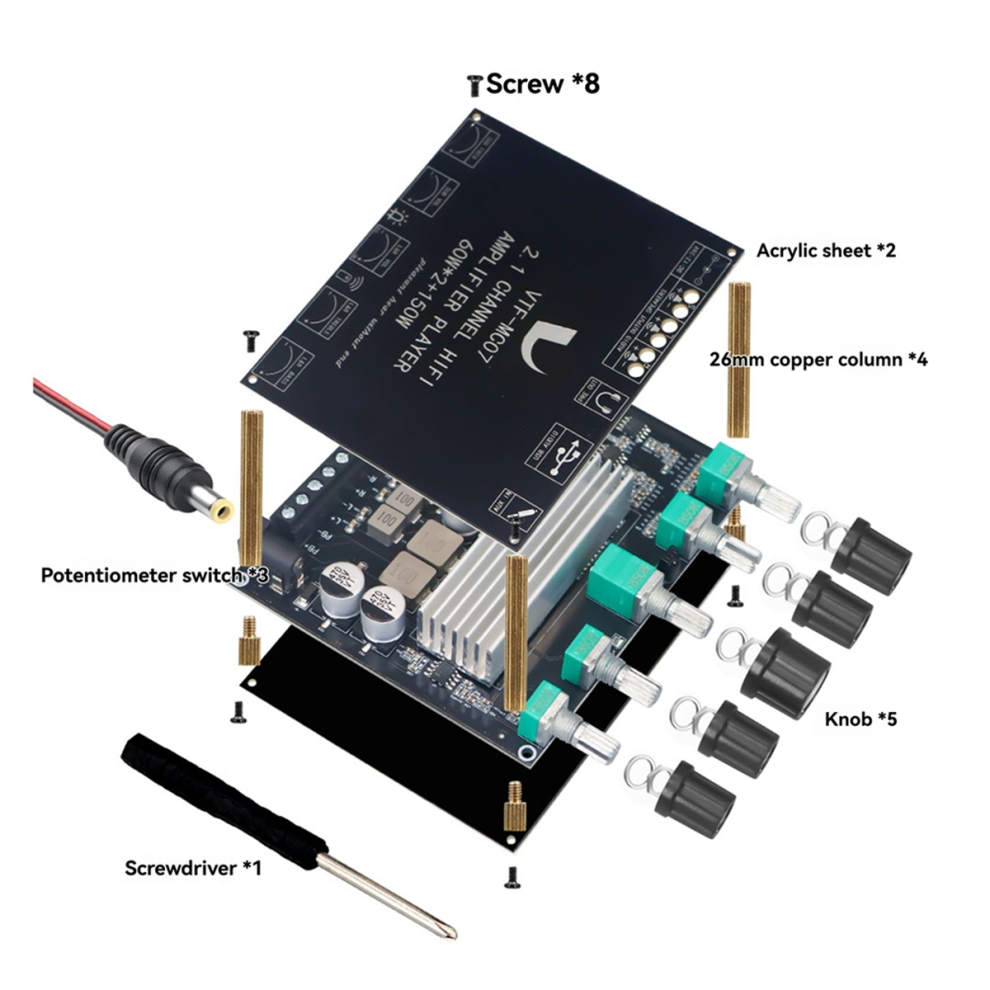

4.The product needs to be assembled by yourself
(The product appearance and printed words depending on the batch, but this does not affect use)
Specifications: B: White remote control
Color: Black
Material: PCB

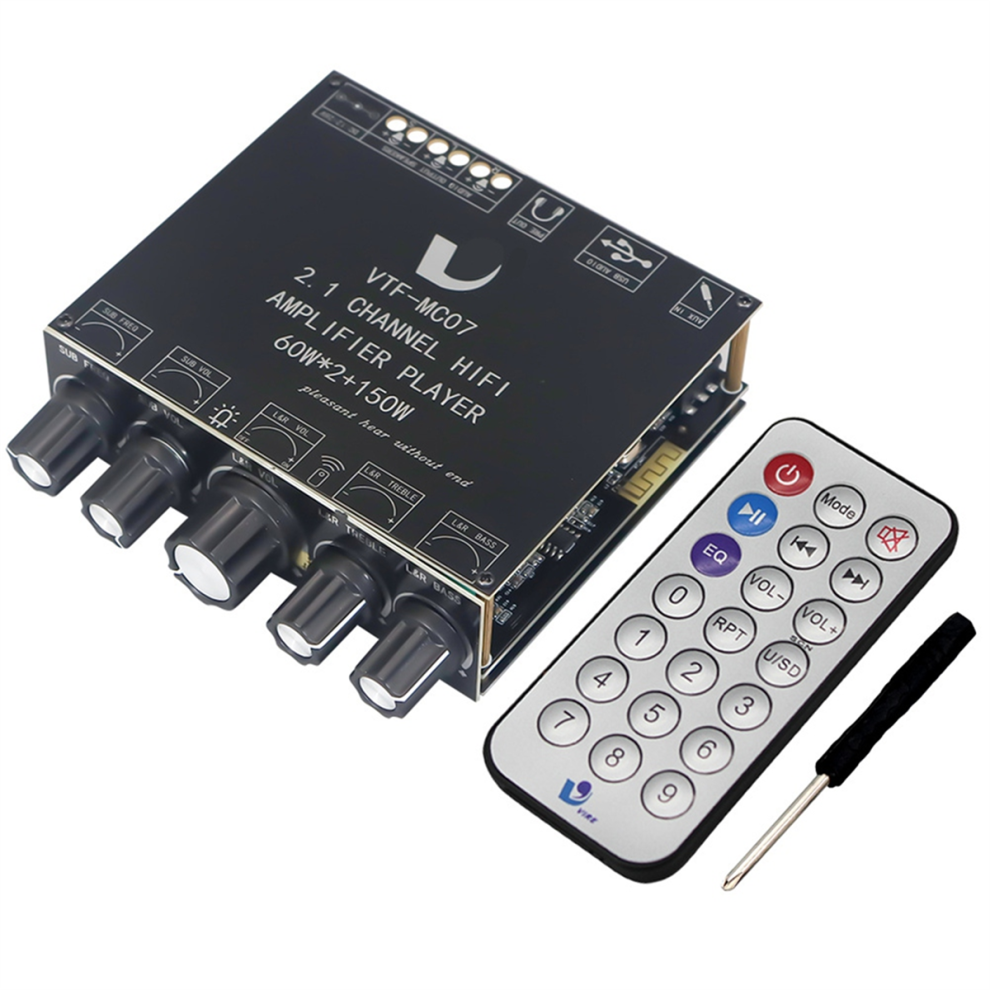

Package Contents:
1 x remote control
1 x Amplifier Board (Screwdriver color is random,Specified color is not accepted)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
