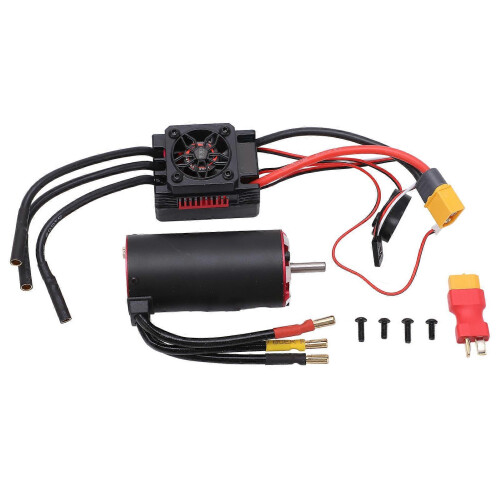

3674 2000KV 4 Pole Rotor Sensorless Brushless Motor with Temperature Sensor Port Waterproof 100A ESC

3674 2000KV 4 Pole Rotor Sensorless Brushless Motor with Temperature Sensor Port Waterproof 100A ESC Description

Feature:
1. 4 Pole Rotor: High hardness aluminum CNC shell, high temperature resistant copper coil, 0.2mm thickness silicon steel sheet. 4 pole rotor design, with strong torsion and stable output power.
2. High Precise Bearings: High toughness stainless steel output shaft, explosion proof rotor, and high precise bearings ensure super durability of the motor.
3. Removable Design: The detachable structure is convenient for cleaning and maintenance, which helps to prolong the service life of the motor and improve work efficiency.
4. Overheating Protection: The motor has a built in temperature sensor and port, which can be used with ESC to realize the motor overheating protection function.
5. 100A ESC: Waterproof and dustproof, XT60 to T connector, suitable with 1/8 1/10 RC cars. Built in switch mode BEC 5.8V/5A for high torsion and high voltage servos, with strong current resistance, easy programming, and compatible with pocket program cards.
6. Multiple Protection Functions: ESC overheating protection, lithium battery or MH Ni battery low voltage cut off protection, motor overheating protection, motor stall protection, throttle signal loss protection.
Specification:
Item Type: RC Brushless Motor ESC
Material: Aluminum alloy, copper, plastic
Color: Black and red
Product Model: 3674
KV (RPM/V): 2000KV
Wattage: 1900W
Maximum Voltage: 26V
Maximum Current: 73A
Maximum Speed: 50000
No Load Current: 3.2A
Number of Motor Poles: 4
Internal Resistance (??): 0.0083
Motor Length: Approx. 74mm / 2.9in (Without Shaft)
Motor Diameter: Approx. 36mm / 1.4in
Shaft Diameter: Approx. 5mm / 0.2in
Shaft Length: Approx. 17mm / 0.7in
Gold Plated Plug: Approx. 4mm / 0.2in
100A ESC:
Continuous Current: 100A
Instant Current: 520A
Motor Type: Sensorless Brushless Motor
Internal Resistance: 0.0004ohm
Battery: 2-4S lithium battery / 4-12S Ni-MH
BEC Output: 5.8V/5V (switching mode)
Product Size: Approx. 50 x 35 x 34mm / 2 x 1.4 x 1.3in
Plug Type: XT60 to T plug connector
Suitable for 1/8 1/10 RC car.
Package List:
1 x 3674 Brushless Motor1 x 100A ESC 1 x XT60 to T Plug4 x Screw2 x Manual
Note:
1. Please allow 1?3mm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.3. Please unload the cooling fan before using this ESC in water; please clean and dry it as soon as possible after use to prevent the connector from rusting.
