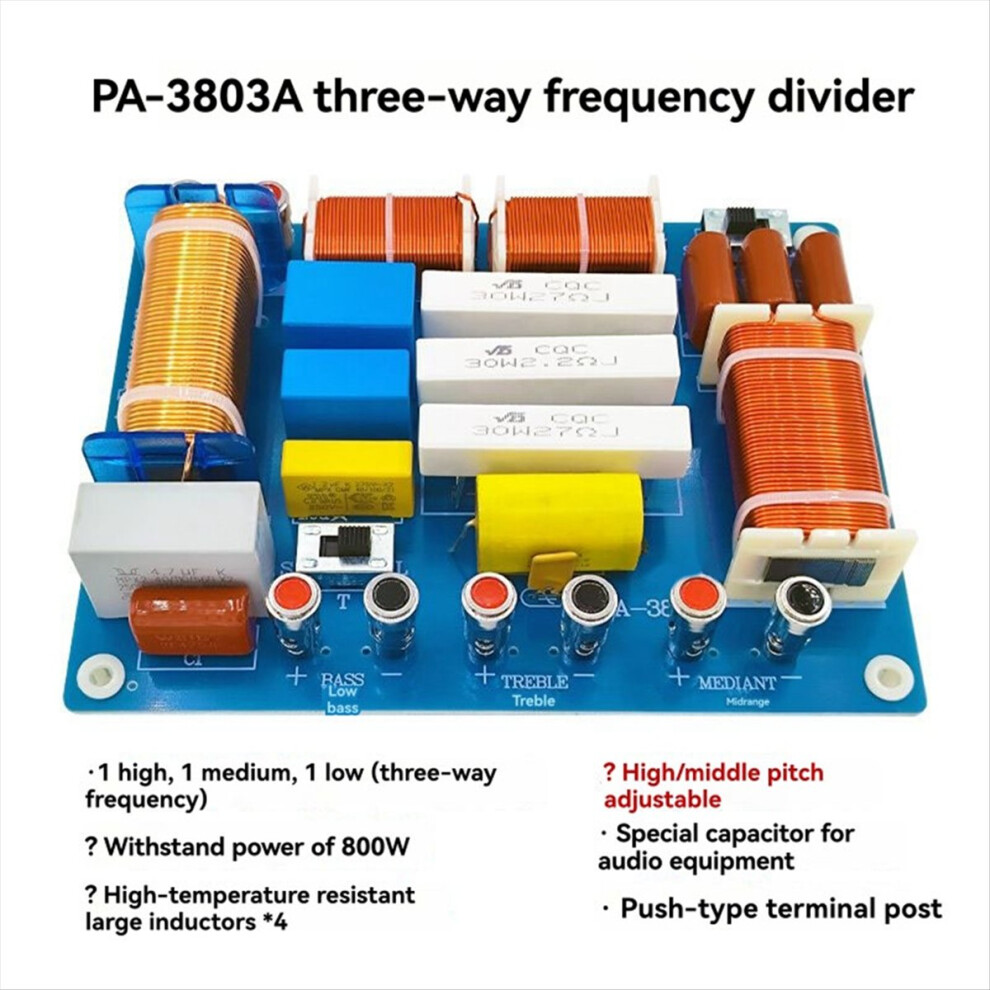

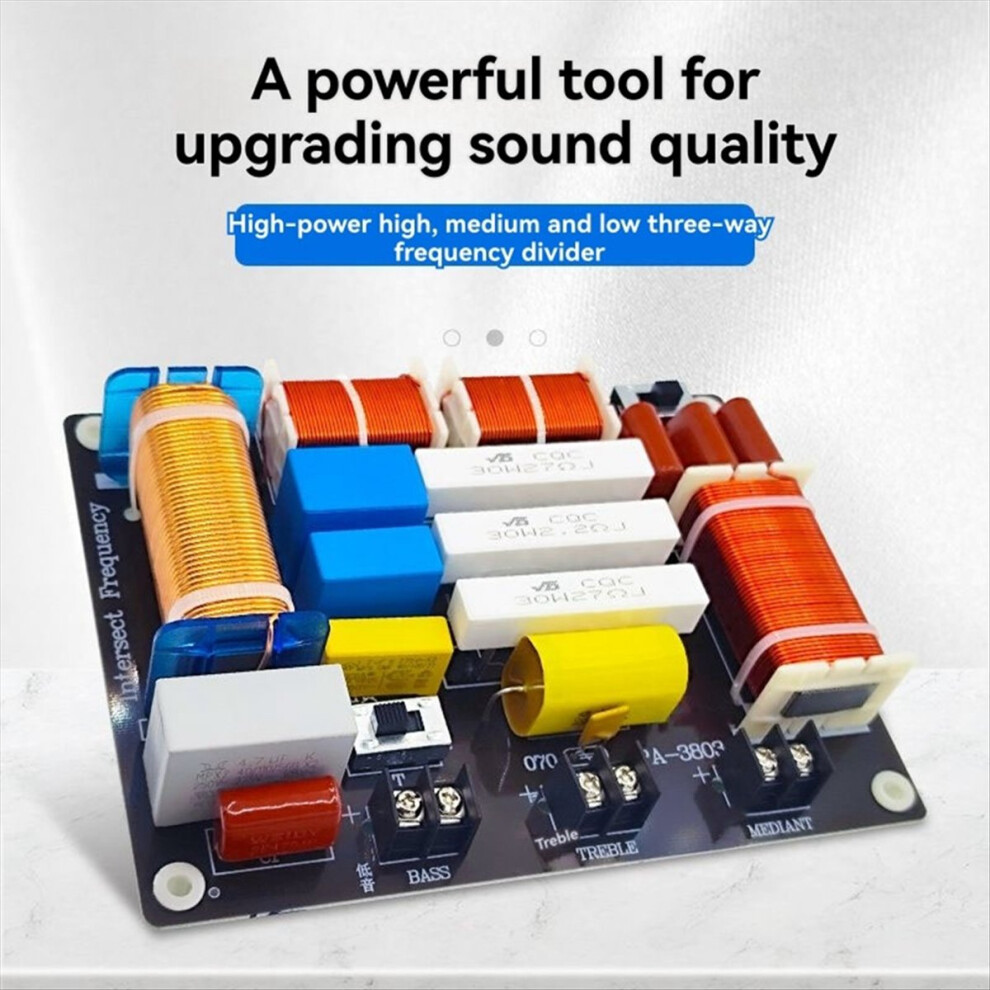

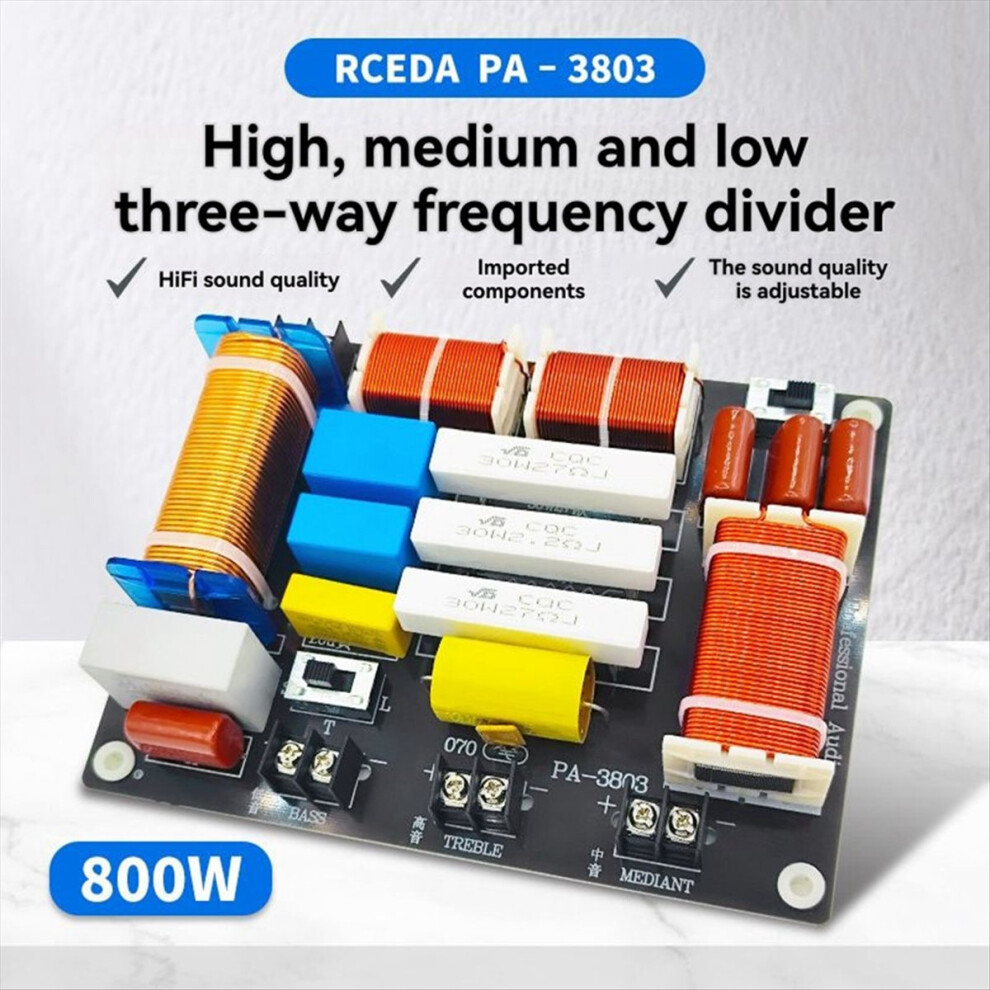

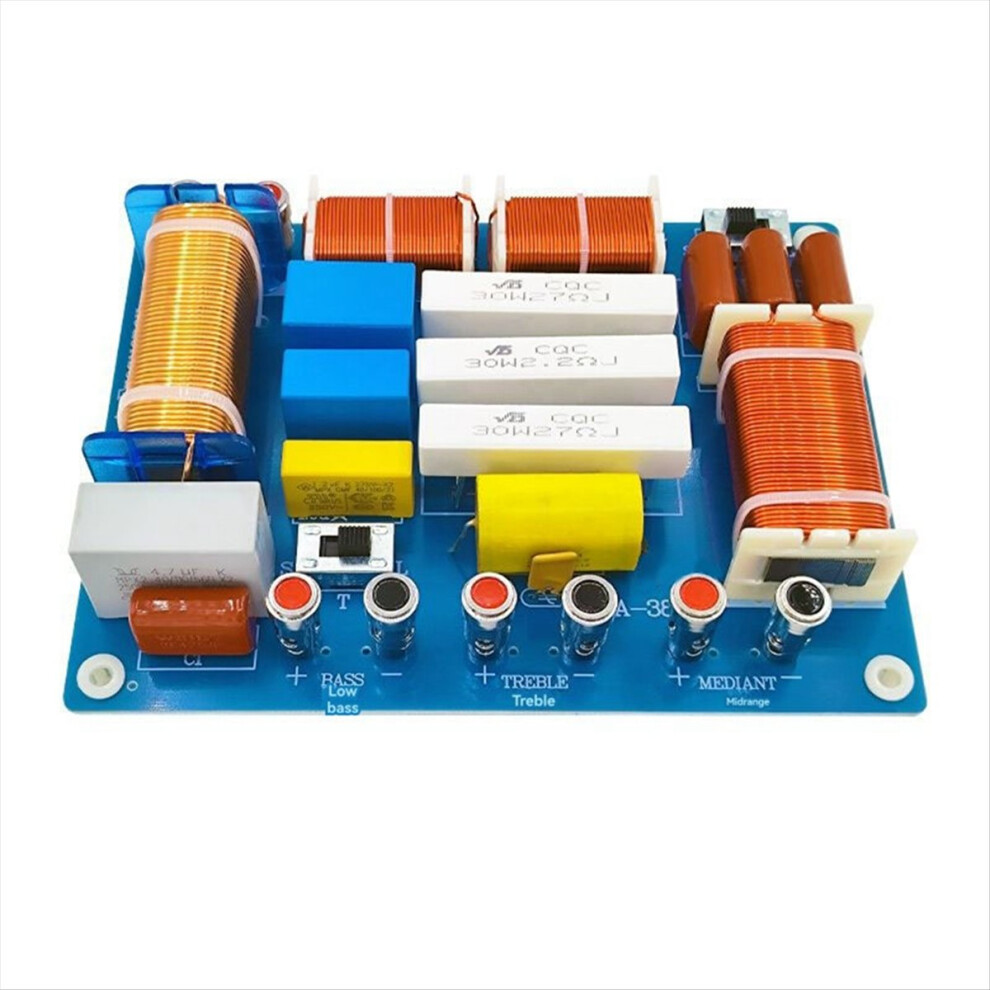

3Way 800W High Power Multi Speaker High Medium Low Converter PA-3803A

3Way 800W High Power Multi Speaker High Medium Low Converter PA-3803A Description

Description/Features:

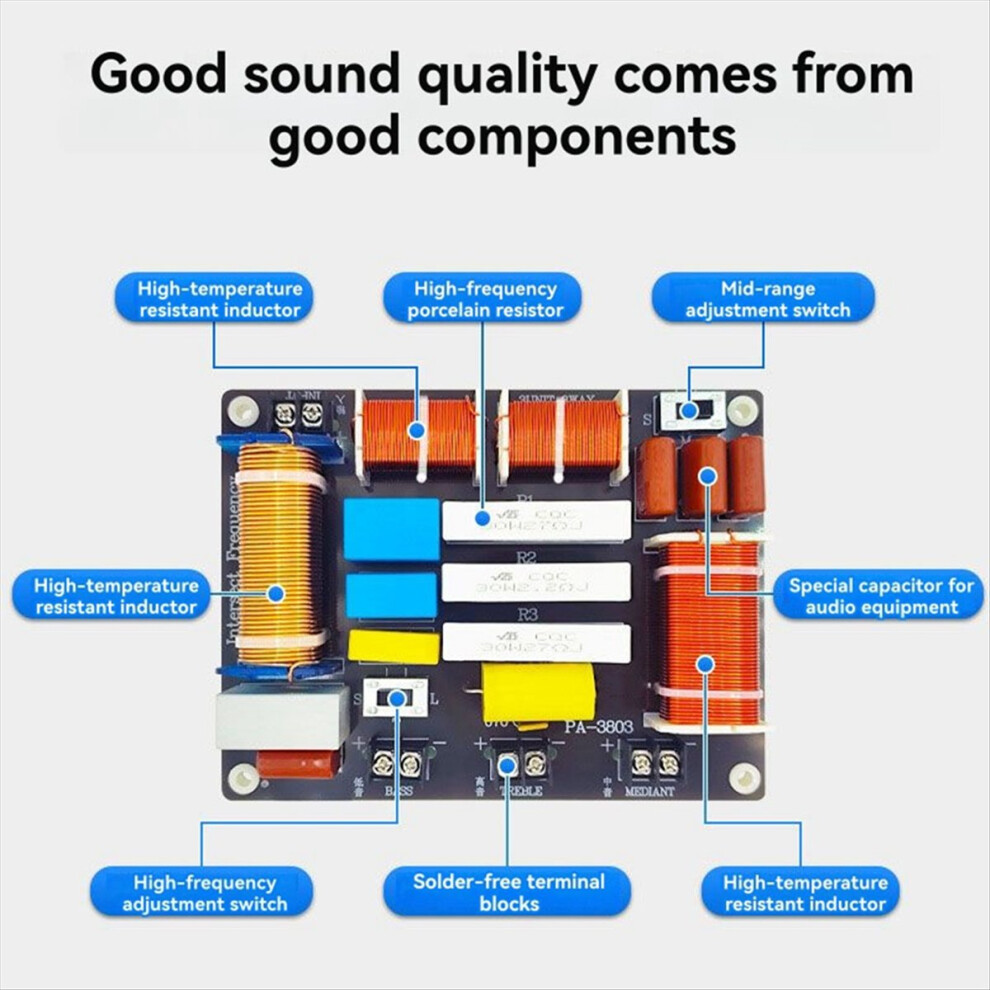

Adopting 4 high temperature inductors, the sound quality is significantly improved and the inductors are staggered at 90 to avoid mutual interference
The crossover is equipped with multiple high-quality audio-specific capacitors to make the muddy sound quality clear, delicate and layered
The midrange and treble can be fine-tuned through the switch 4 different sound quality combinations, choose the sound quality you like

Specifications:
Frequency division: 1 high, 1 mid, 1 low (three-way division)
Power: 800W ()
Frequency division point (switch adjustable):
Bass/midrange: 780Hz (midrange loud L) /830Hz (midrange quiet S)
Midrange/treble: 5300Hz (treble loud L) /5500Hz (treble quiet S)
Applicable impedance: 4 ~ 8Ω

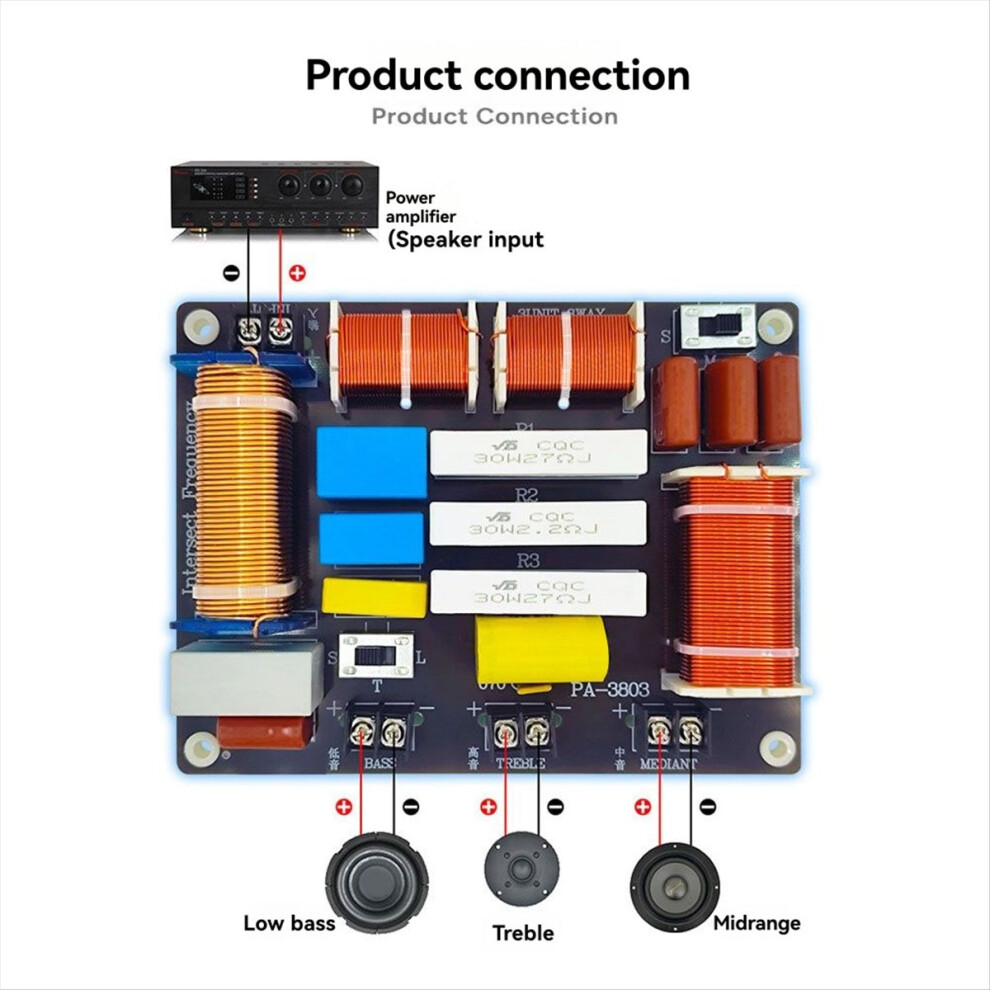

Wiring method: spring column (PA-3803A)
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Color: As Shown
Material: PCB

Package Contents:
1 x Crossover

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
