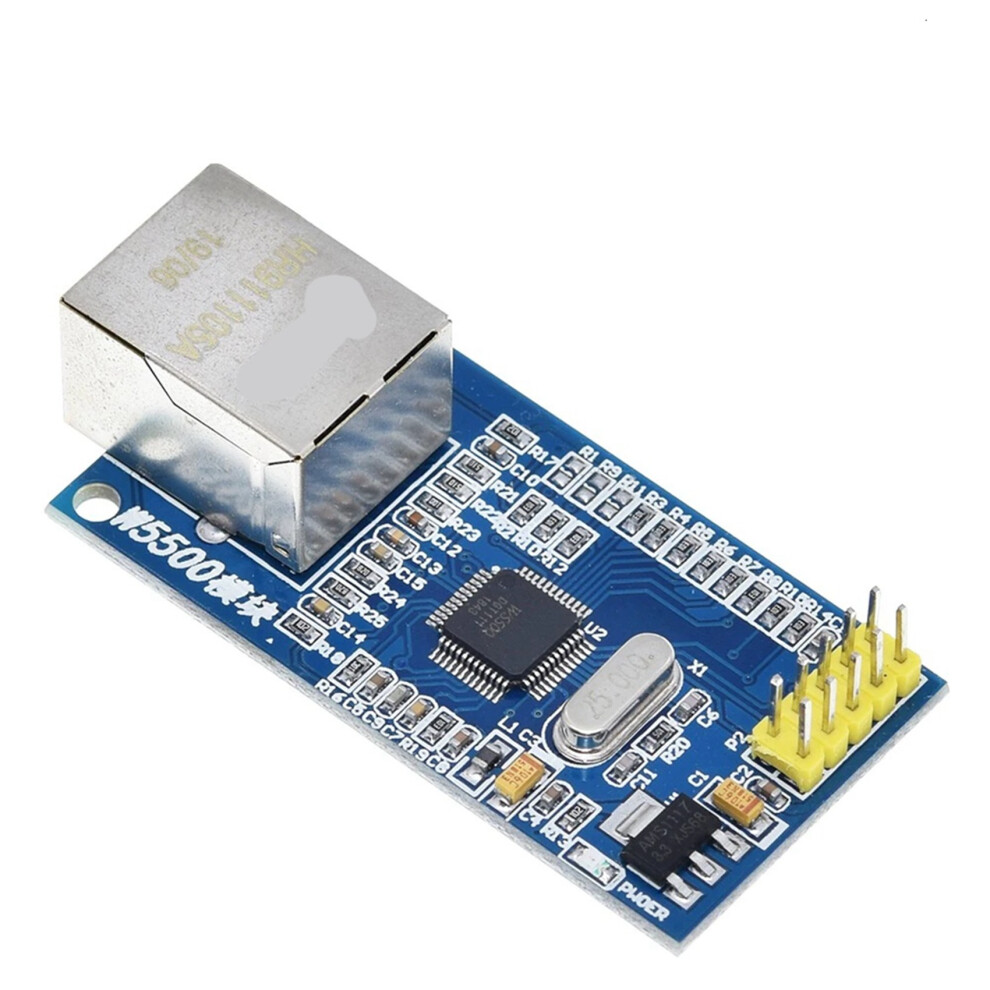

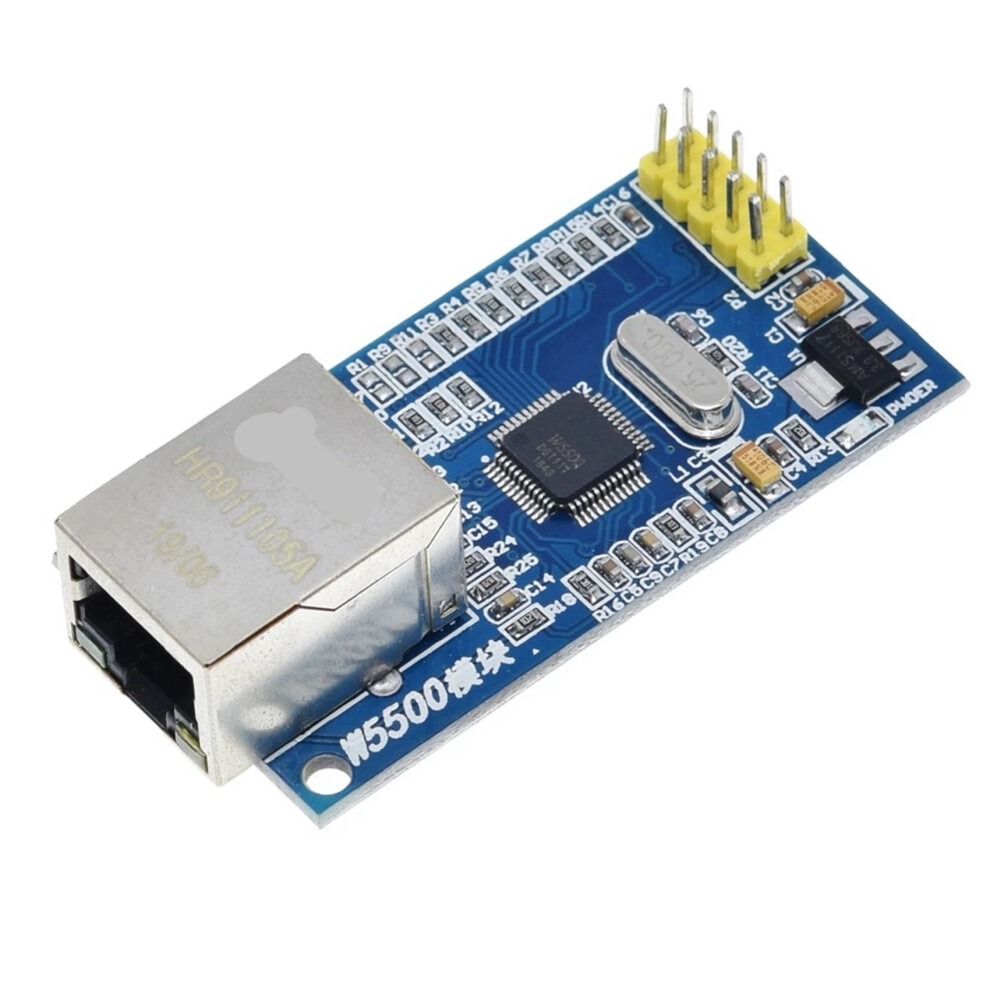

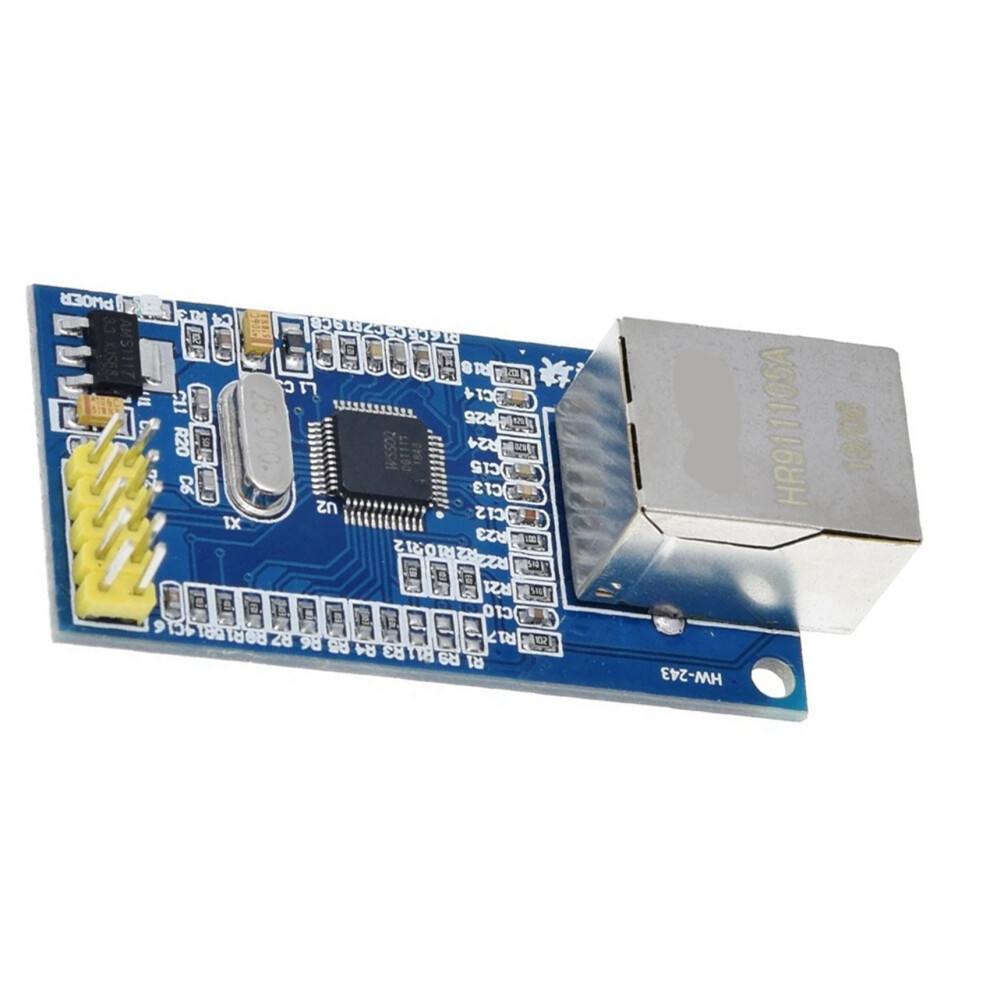

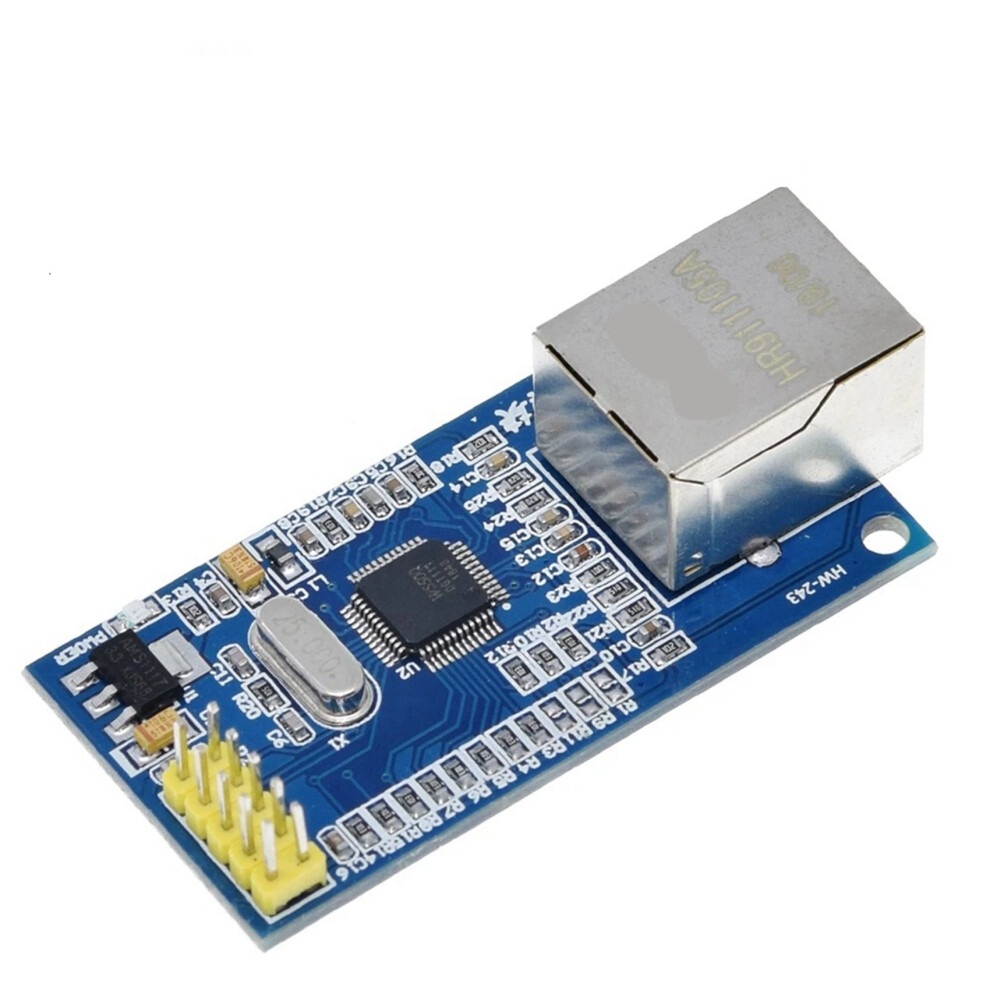

3X Replace W5100 Ethernet Shield LAN Network Module W5500 Support TCP/IP 51/ STM32 Microcontroller with 32k Bytes SPI

3X Replace W5100 Ethernet Shield LAN Network Module W5500 Support TCP/IP 51/ STM32 Microcontroller with 32k Bytes SPI Description

new and high quality!
Supports Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Supports Power down mode

Supports High Speed Serial Peripheral Interfac(SPI MODE 0, 3)
Internal 32Kbytes Memory for TX/RX Buffers
10BaseT/100BaseTX Ethernet PHY embedded
Supports Auto Negotiation (Full and half duplex, 10 and 100-based )
Not supports IP Fragmentation
3.3V operation with 5V I/O signal tolerance
Chip type: W5500
Supports both 3.3V & 5V.
Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
10BaseT/100BaseTX Ethernet PHY embedded
Supports automatic response (full duplex / half duplex mode)
Supports 8 independent sockets simultaneously
Internal 32Kbytes Memory for Tx/Rx Buffers
Power off mode: support
Network wake: support
SPI interface (SPI MODE 0, 3),convenient connection with MCU
Colour:As Shown
Material:PC
Size:55mm x 28mm

Package Contents:

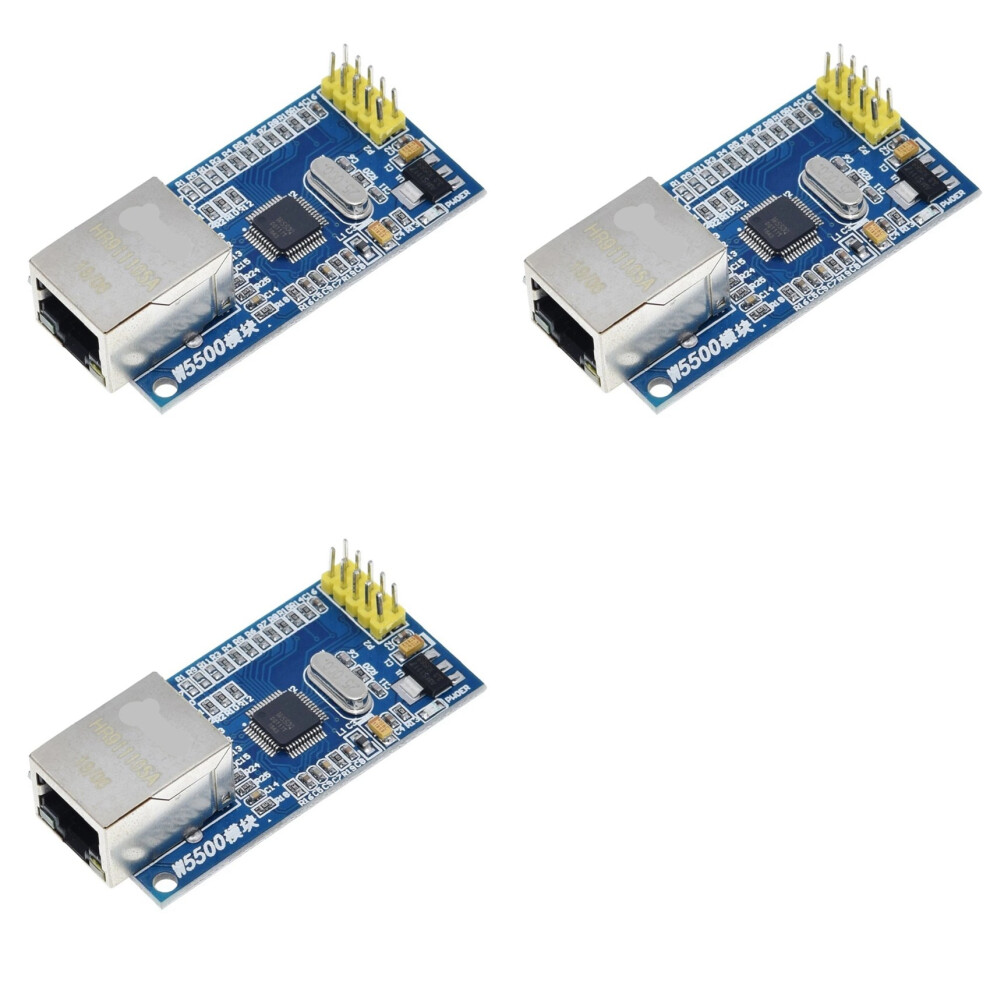

3 x Ethernet Shield LAN Network Module(Due to different product batches, the appearance may vary, which does not affect the use)
