450W Six-Way High Power Simple CNC Indicator Shell A

450W Six-Way High Power Simple CNC Indicator Shell A Description

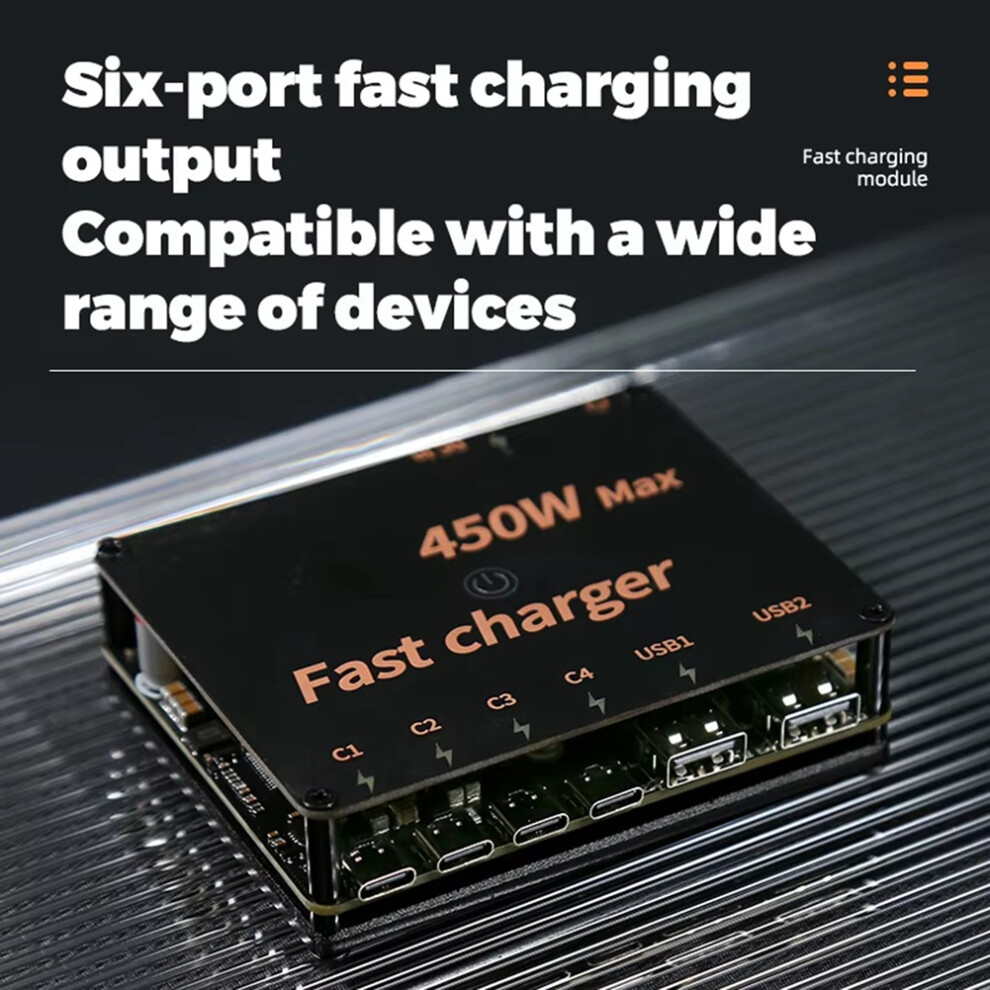

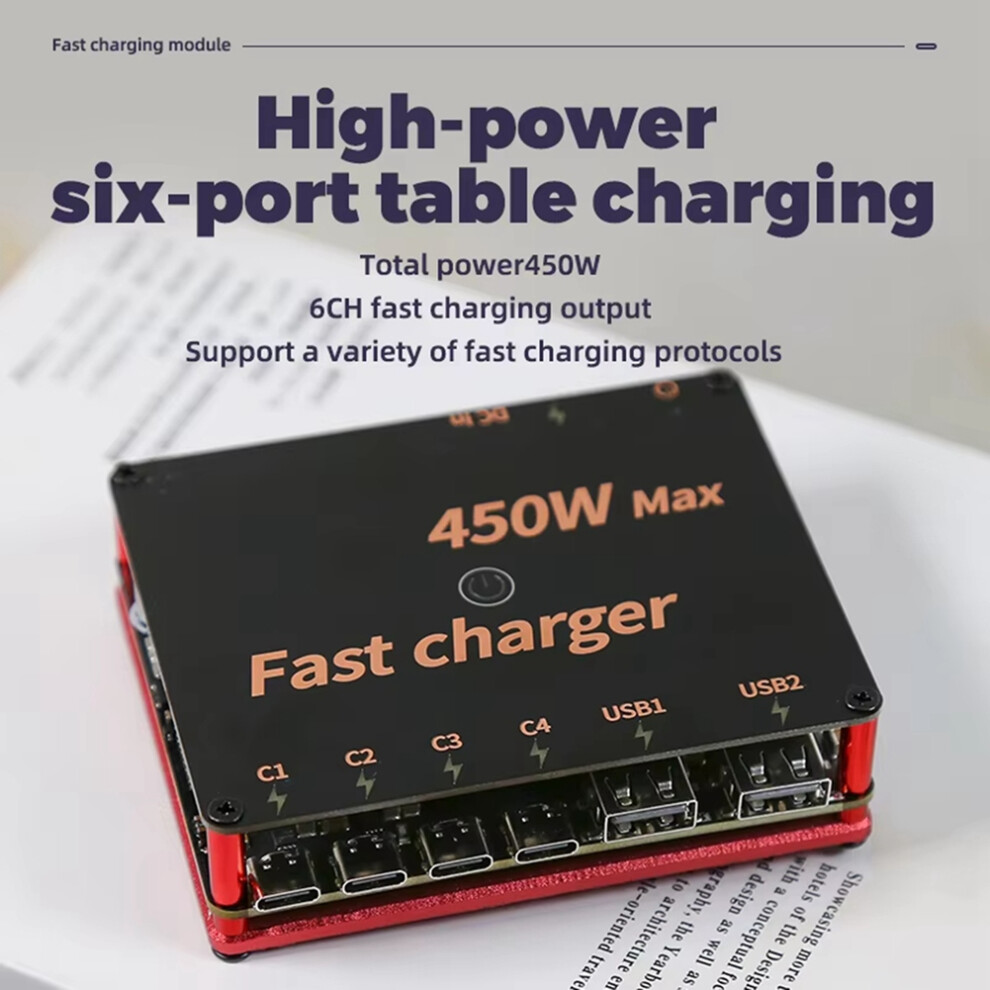

Product Introduction:This is a brand new table charging product that can meet most charging needs. The product has a total of 6 outputs and a total power of 450W.
Introduction to input:There are four type-c ports and two usb ports in the six ports. Two of the four C ports are voltage up and down outputs, that is, when 12V is input, the two C ports on the left can also output up to 20v5a. Therefore, in addition to the two ports on the left, the other four ports require 24V to achieve maximum output power
Introduction to output:C1-C2 has a maximum output of 100w, 20v5a, and a maximum output of C3, C4, USB1, and USB2 has a maximum output of 65w. It is recommended to use a 24v power supply to supply power. The product can achieve maximum power. The LM5175+sw2303 scheme is used for the voltage reduction and pressure reduction of the two circuits. Each circuit has four TPH3R704 mos tubes with lower heat generation, and the remaining four circuits use the sw3526 voltage reduction scheme.

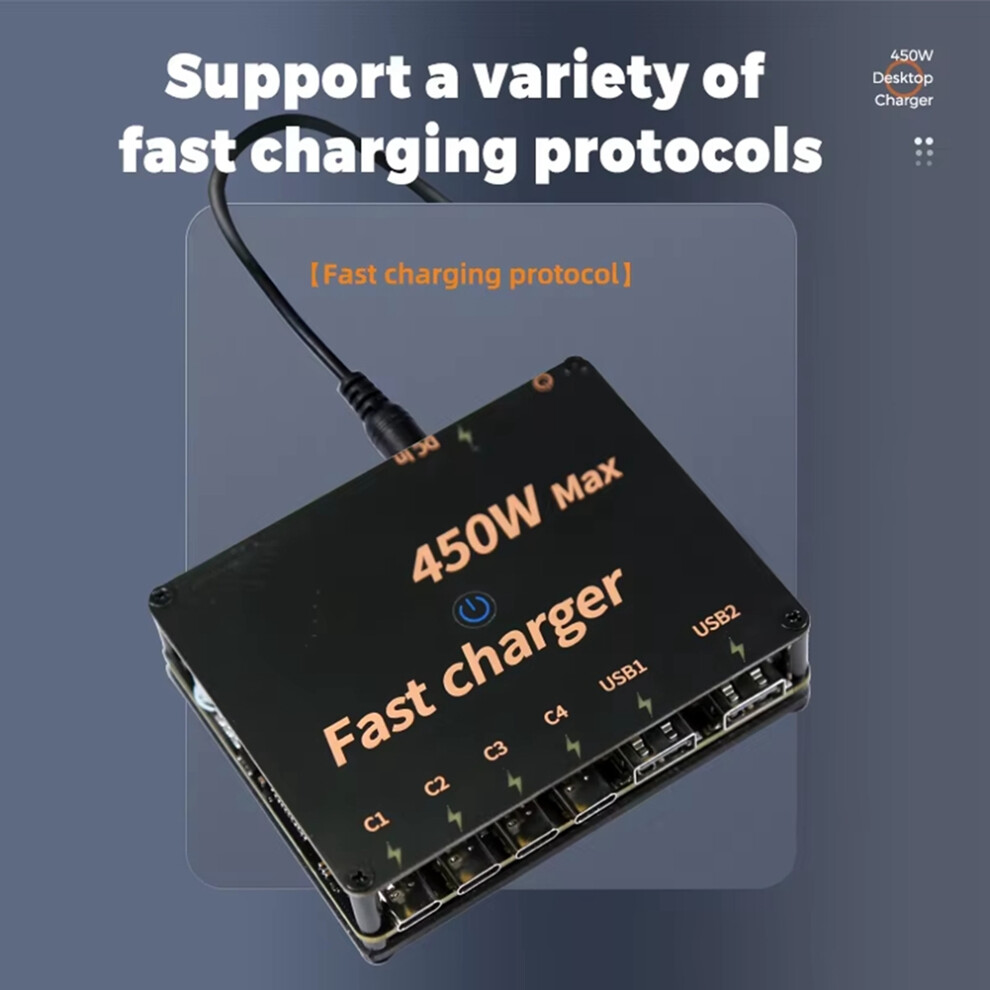

Introduction to input methods:DC: The input end of the product is a DC 5.5 x 2.5mm circular socket. When purchasing a power supply, everyone also needs to choose this plug for normal use.
Type-C: Use another charger connection to use it. It is possible to expand a single port or dual port charger such as a PD100W to a multi port output

Colour:A black
Material:Aluminum Alloy
Product Properties:

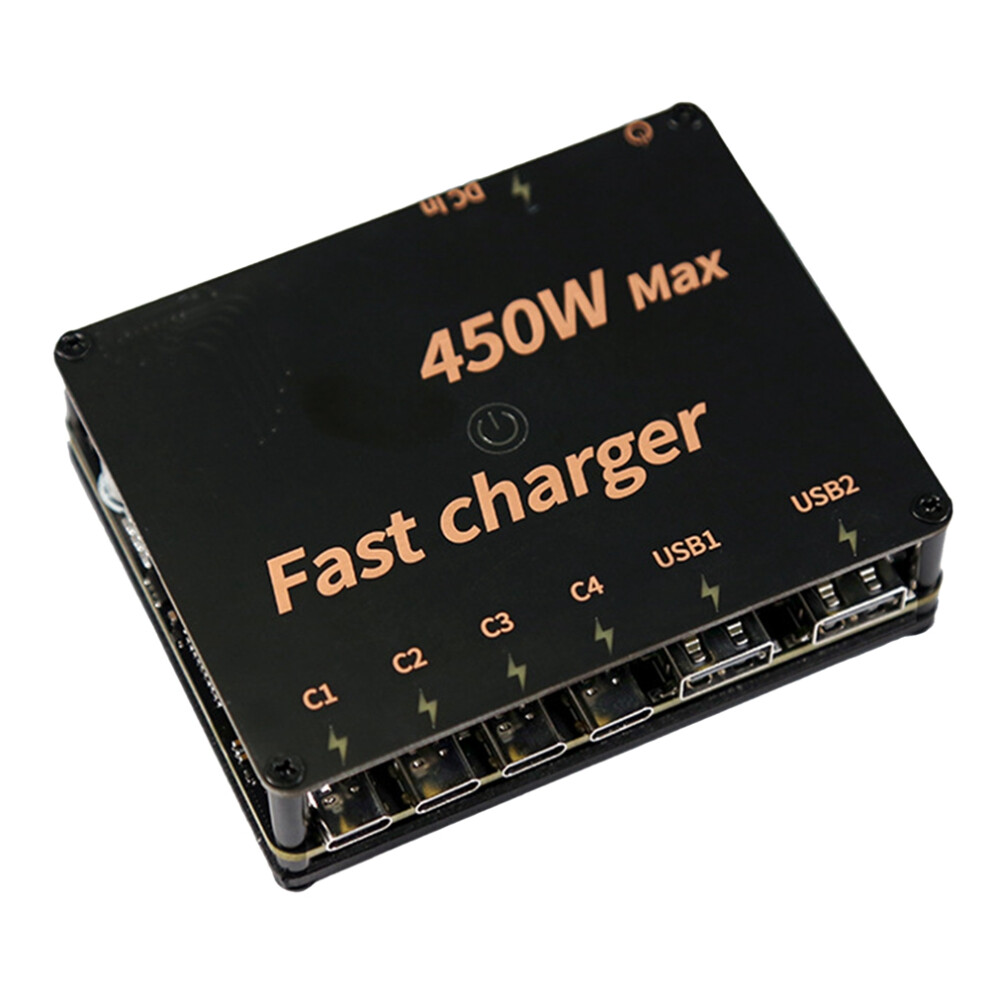

Size: 95 x 75 x 27mm
Weight: 195g
Output power: 450w max (100w+100w+65w+65w+65w+65w)
Input voltage 12-24V

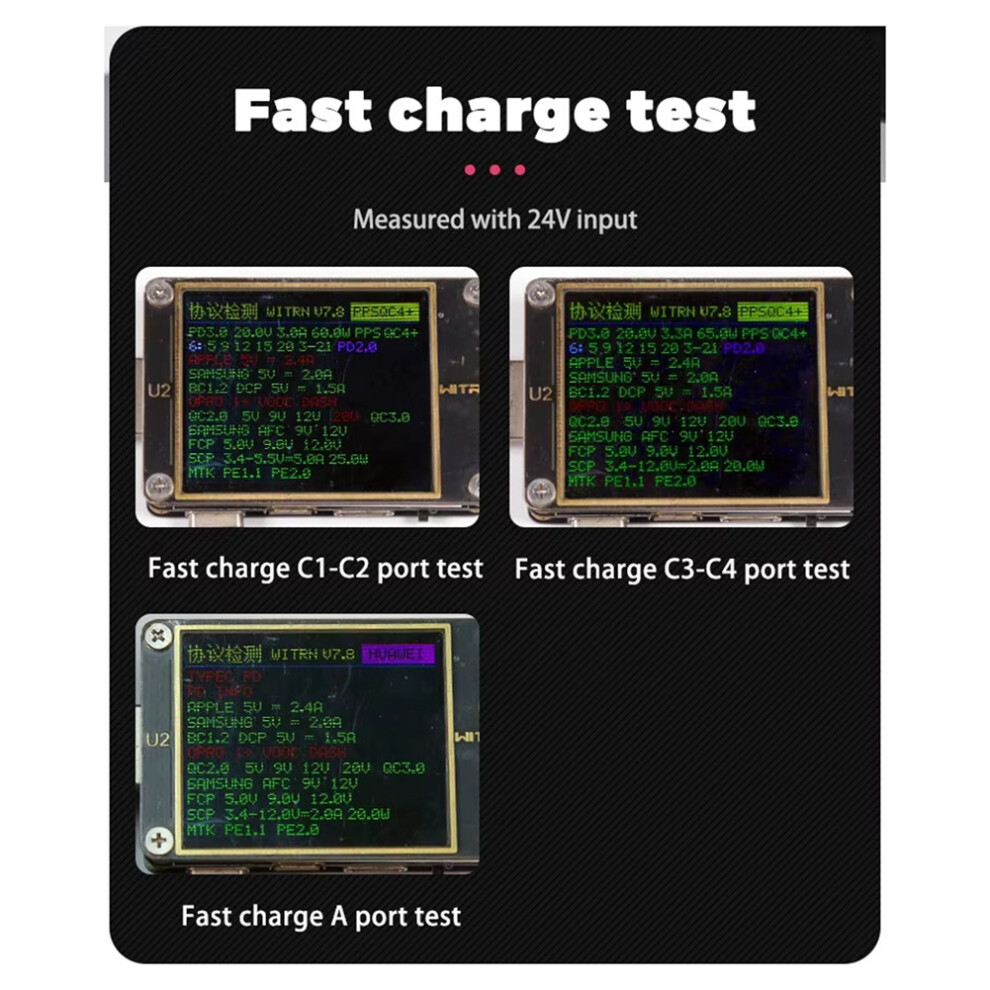

Output c1-c2:5v3a 9v3a 12v3a 15v3a 20v5a (max100w)
Output c3-c4-usb1-usb2: 5v3a 9v3a 12v3a 15v3a 20v3.2a (max65w)

Package Contents:
1 * 450W Desktop Charger

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
