47mm Cylinder Piston Big Bore Kit for Minarelli Horizontal Type 70cc Engine

47mm Cylinder Piston Big Bore Kit for Minarelli Horizontal Type 70cc Engine Description

70cc 2-Stroke Big Bore Kit For Chinese Scooters.

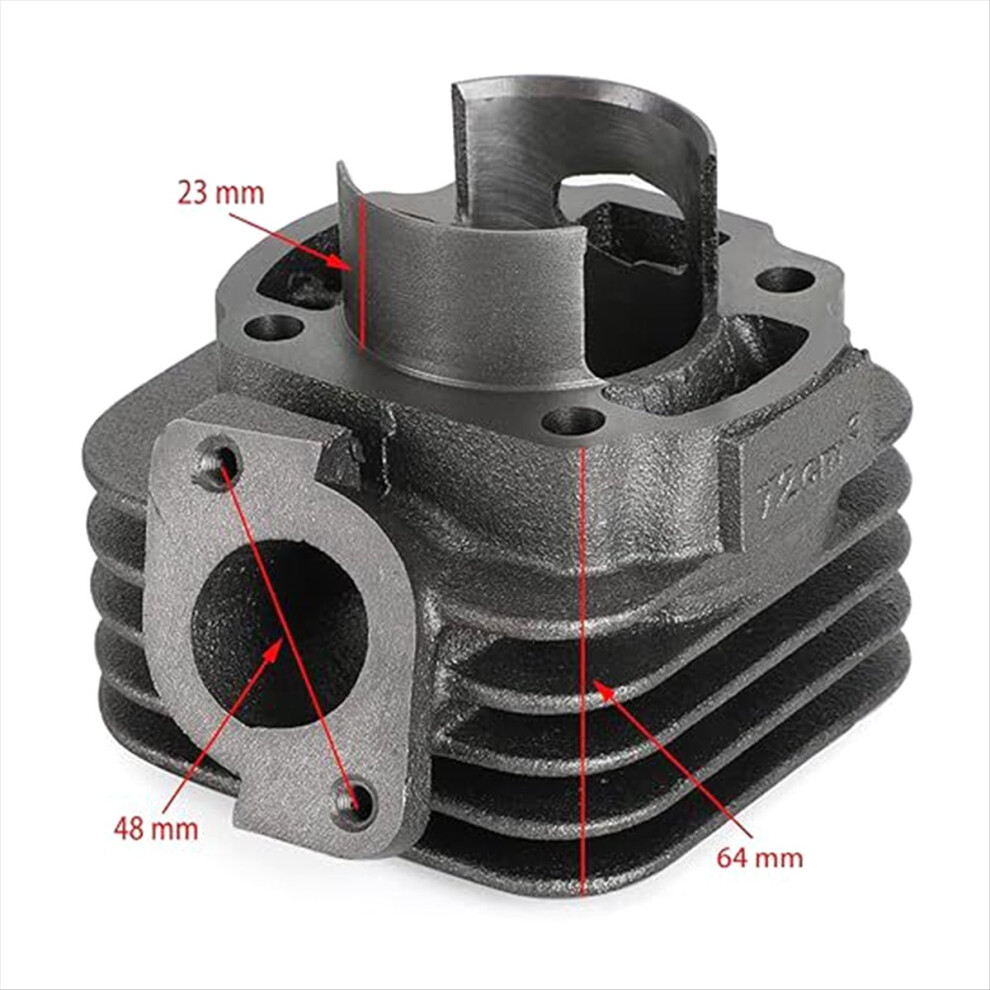

This kit has a 47mm cylinder bore, 10mm wrist pin and pin bearing.
For 50cc 2-Stroke 40QMB, E40QMB, 1E40QMB and 1PE40QMB Minarelli Engines to increase drive power.
Please make sure to compare your old parts to the photos provided.

Type:Big Bore Rebuild Kit
Condition: 100% new
Wrist Pin Length: 36.8mm
Wrist Pin Diameter: 10mm
Piston Diameter: 47mm
Displacement: 70cc
Fitment:
Fits for Most Chinese Scooters With Jog / for Minarelli / for Clone Motors
Fits for Jonway, for Jmstar Roketa, for Sunl, for and Many Others
Note:The gasket color is random, and the specification is not accepted.
Color:Silver Gray
Material:Metal

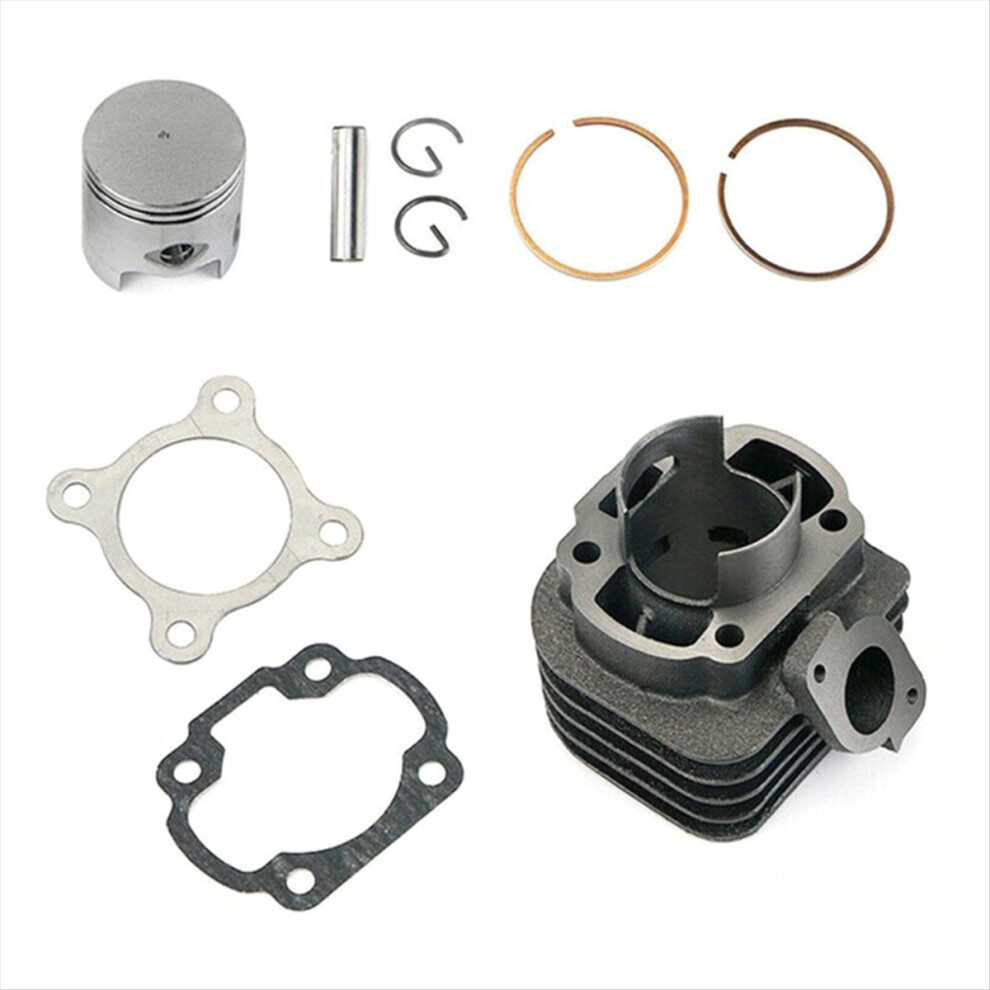

Package Contents:
1 x Master cylinder
1 x Piston ring kit
1 x Wrist pin
2 x Clamp ring
1 x Piston
2 x Paper gasket
1 x Rolling pin bearing

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
