-4KX CNC Converter Power Module Adjustable Regulated Power Supply

-4KX CNC Converter Power Module Adjustable Regulated Power Supply Description

1. LCD can input / output voltage, output current / output power / output capacity / output time;
2. CNC adjustment, accurate and fast, can boost and lower voltage, output voltage can be adjusted at of 0.5-30v, limit current 0-4a can be adjusted at ;
3. Anti-reverse connection protection from input end, which not burn;
4. Anti-reverse irrigation on the output, no additional anti-reverse irrigation diode is required to charge the battery;
5. Multiple software protection mechanisms are available, and the protection threshold is adjustable. When the working parameters of the module exceed the protection threshold, the output be closed automatically.

Input voltage: 5.0-30 v
Output voltage: 0.5-30 v
Output current: can work stably at 3A for a long time, and can reach 4A under improved heat dissipation
Output power: natural heat dissipation 35 W, enhance heat dissipation 50 W
Voltage screen resolution: 0.01 V
Current display resolution: 0.001A
Conversion efficiency : about 88%

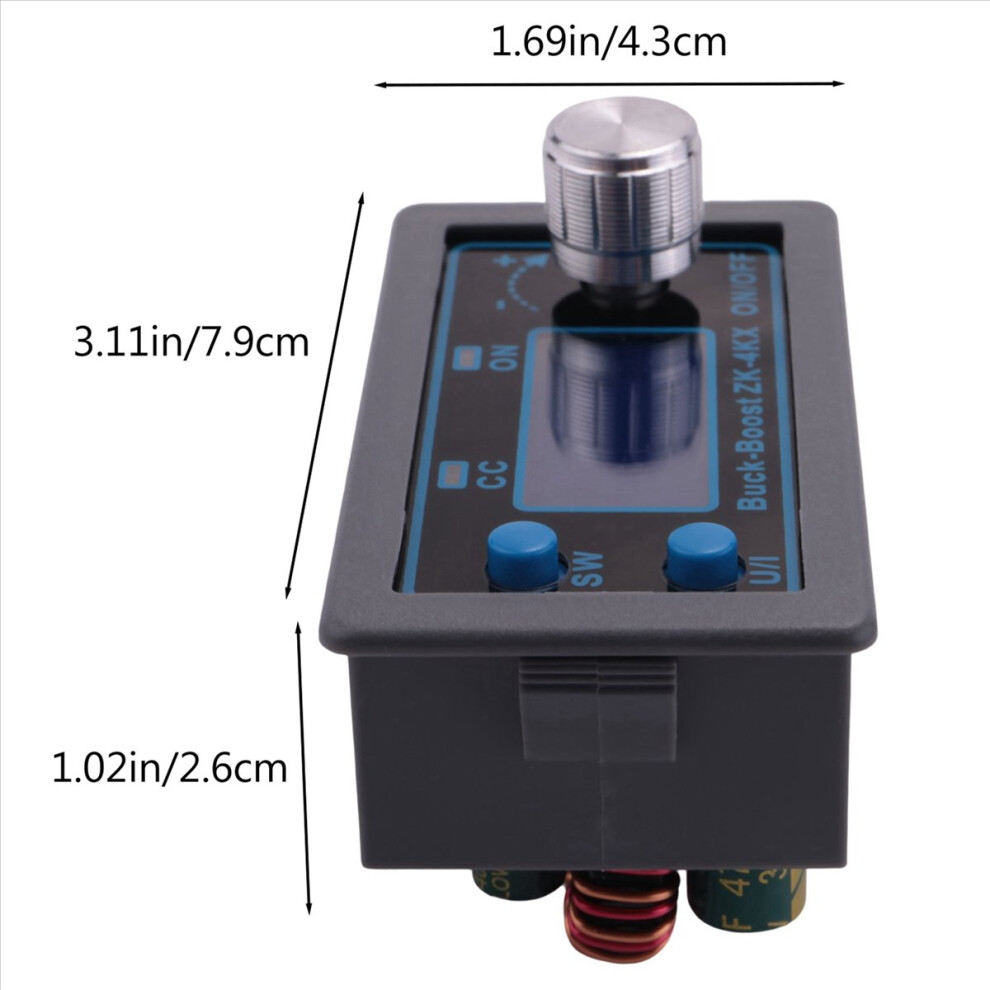

Size:7.9*4.3*2.6cm
Material:ABS+ metal
Colour:gray

Package Contents:

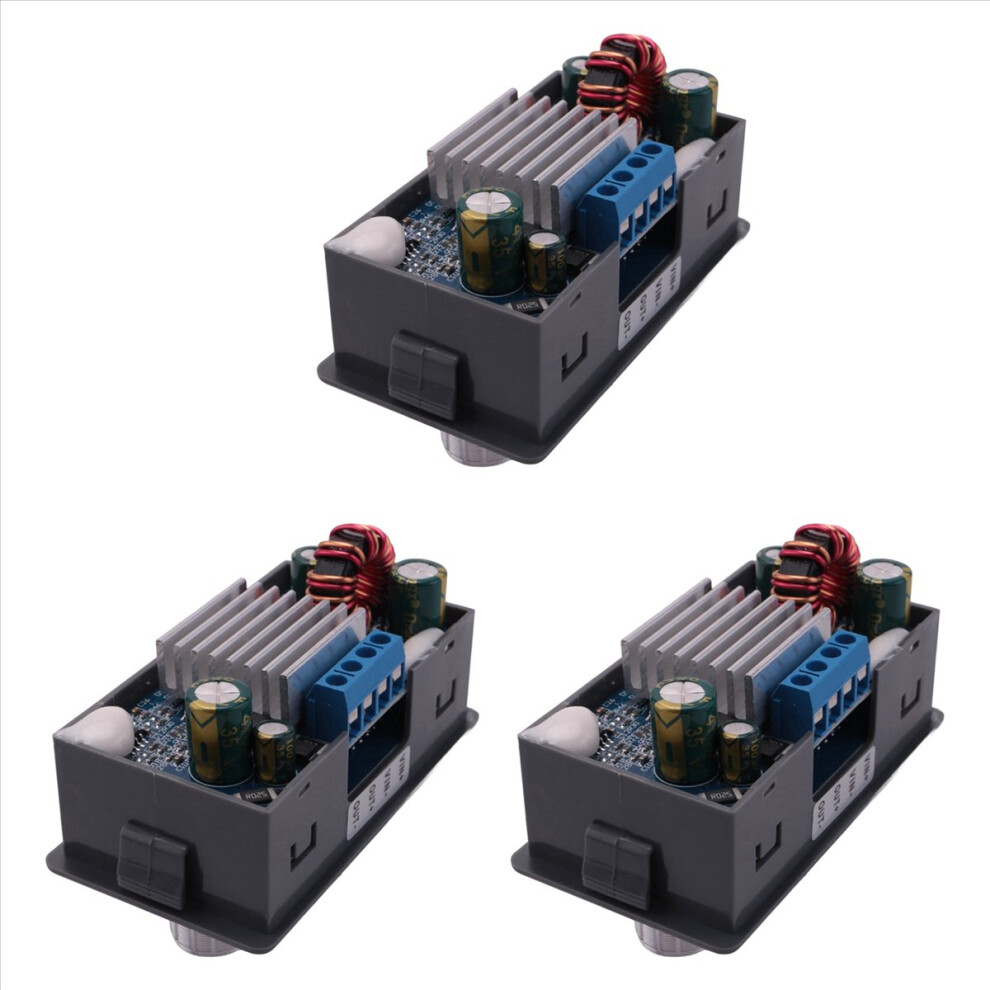

3 * Power module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
