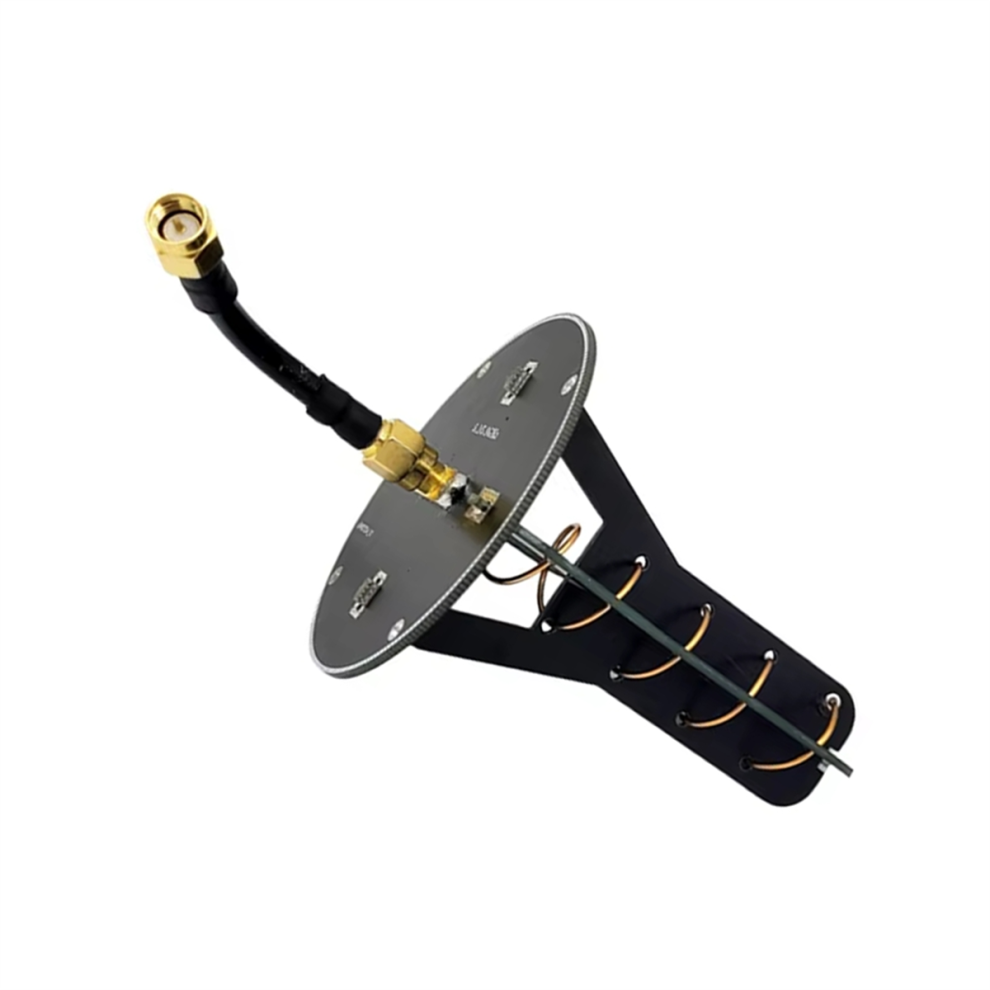

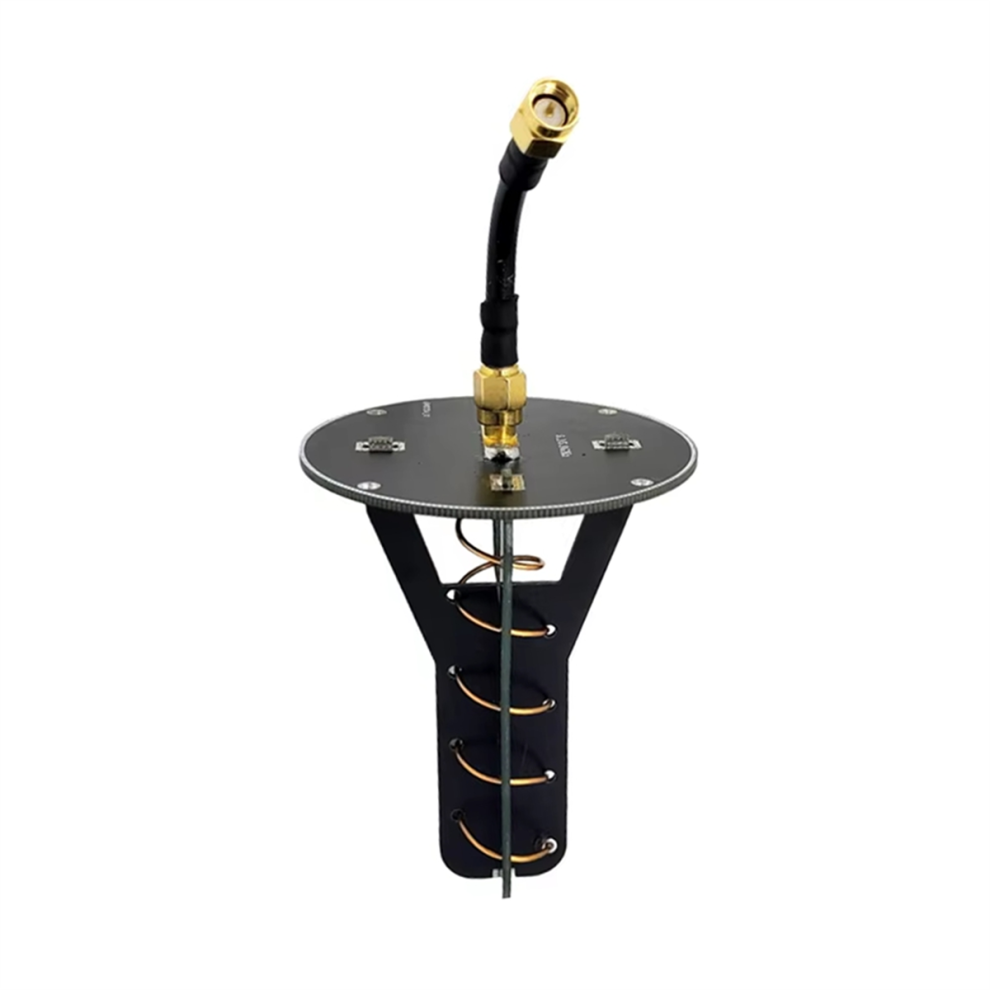

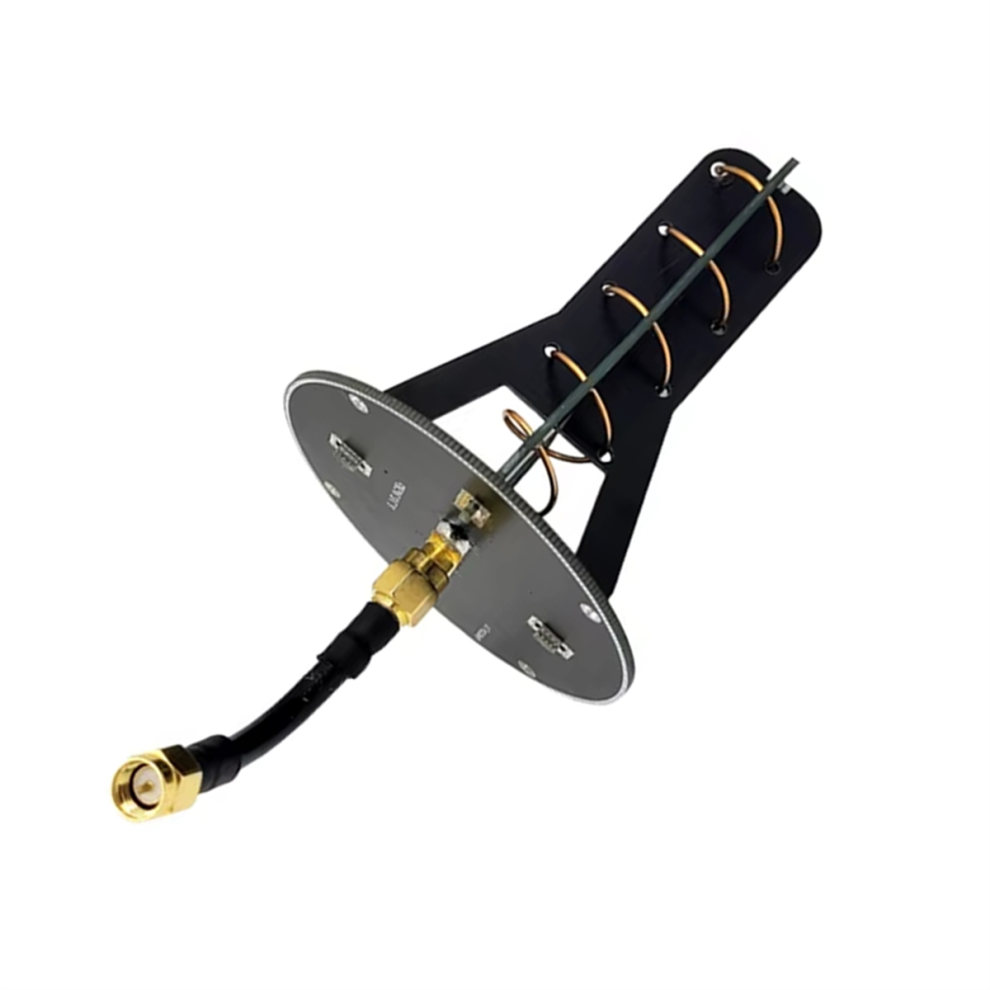

5.8GHz Directional Antenna Helical Antenna Image Transmission B

5.8GHz Directional Antenna Helical Antenna Image Transmission B Description

1. Frequency bandwidth: 5GHZ-6GHz
2.Polarization method: circularly polarized antenna
3. Impedance: 50Ω
4.Gain:13.8dBi
5. Radiation angle: 42

Standing wave ratio: (5.5GHZ-6GHz)Less than 1.2
Maximum power: 50W

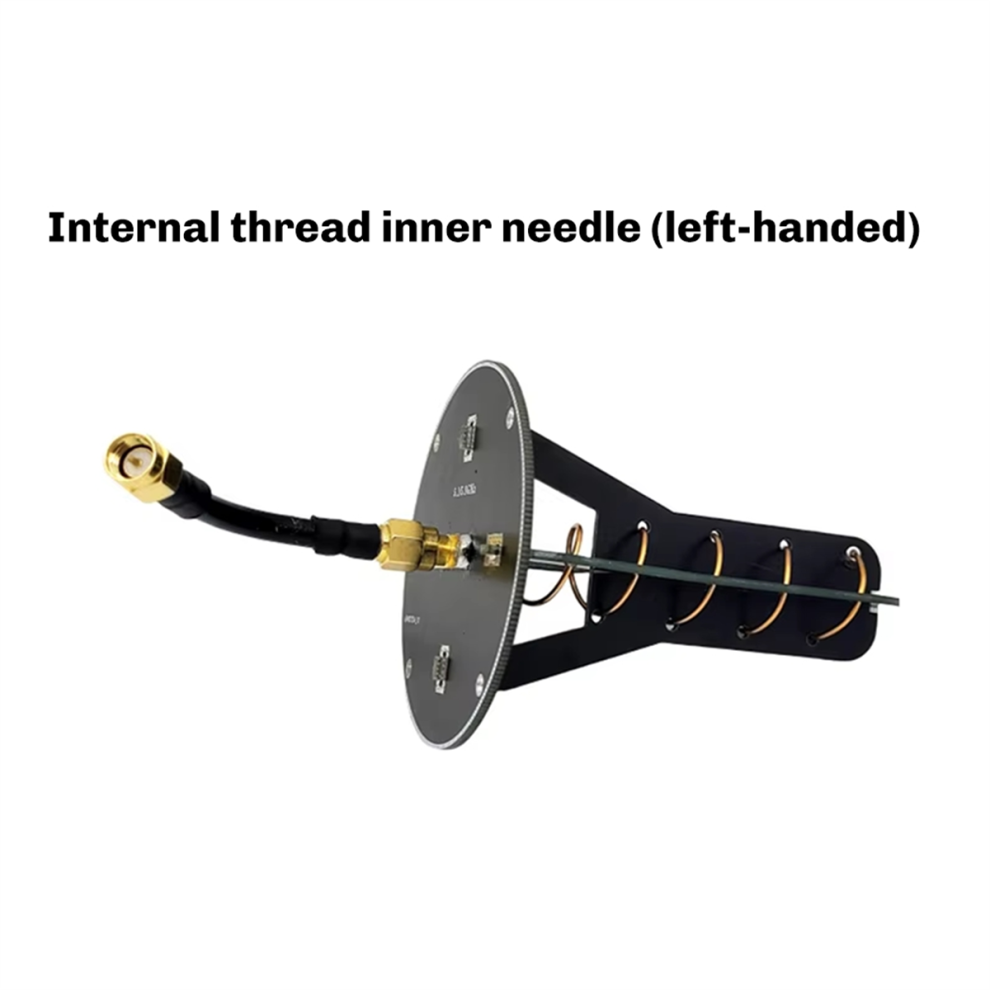

Connector type: SMA female (external thread internal hole)
important :Because the gain of this antenna is too high, although the radiation angle of the pattern is narrow, it is suitable for long-distance communication. If the short-range communication requires the transmitter antenna and the receiver antenna to be aligned, the communication effect not be achieved if the antenna deviates from the radiation range. Suitable for long-distance travel machine image transmission remote control, eyes.
Specification:Left-Handed
Colour:Black
Material:Metal

Package Contents:
1 x Antenna

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
