5Pcs DRV8871 6.5-45V H-Bridge Motor Driver Module 3.6A Brushed Motor Driver PWM Control Driver Module
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£6.83
£8.19
17% off!
+£4.65 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£4.65) | Fri 31st Jul - Thu 6th Aug
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Hardware
Description & Details
Summary
- 1. PWM Control: Supports pulse width modulation interface for precise speed and power control
- 2. Wide Application: Can be used in printers, industrial equipment, and mechatronic systems
- 3. Sensorless Current Regulation: Current can be adjusted without external resistors, simplifying design and enhancing stability
- 4. Multiple Protections: Built-in overcurrent, short-circuit, undervoltage, and overheat protection ensure safe and stable operation of the equipment
- 5. Multi-Functional Drive: Suitable for DC motors, stepper motor windings, and other loads, meeting diverse application requirements
5Pcs DRV8871 6.5-45V H-Bridge Motor Driver Module 3.6A Brushed Motor Driver PWM Control Driver Module Description

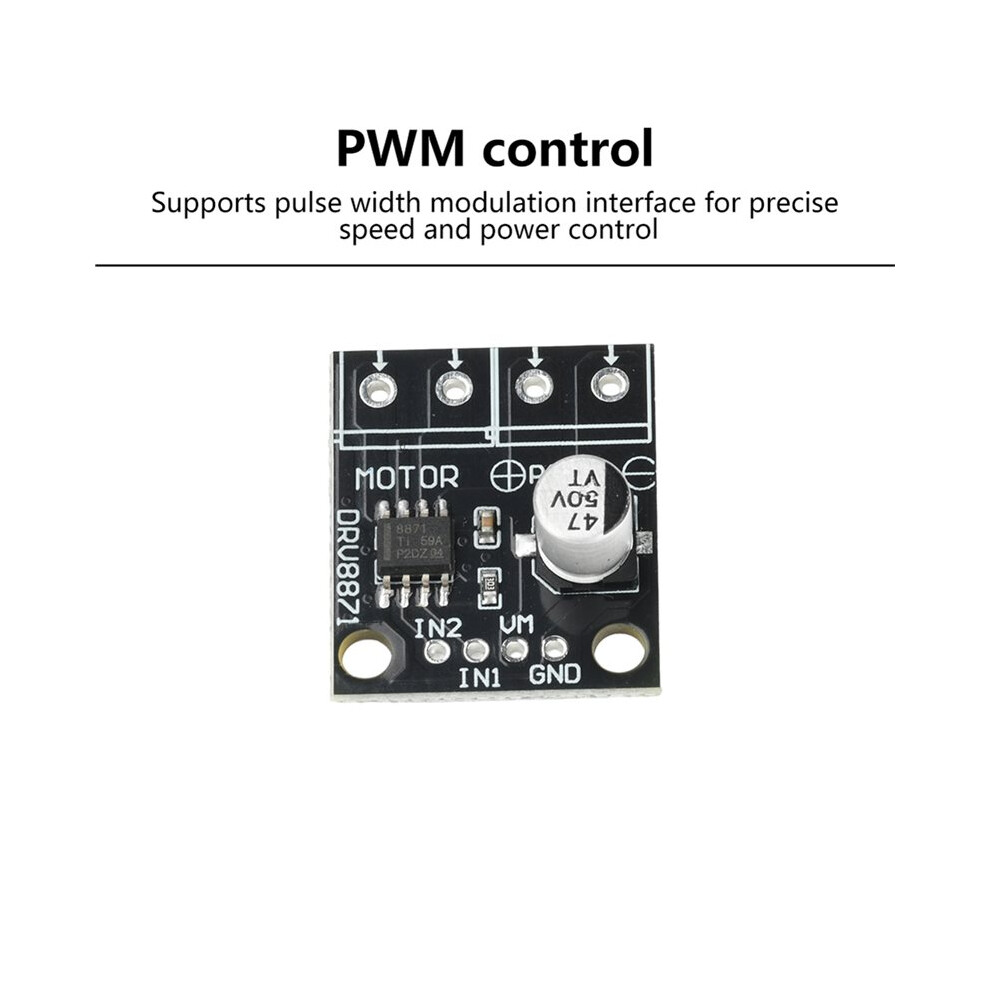

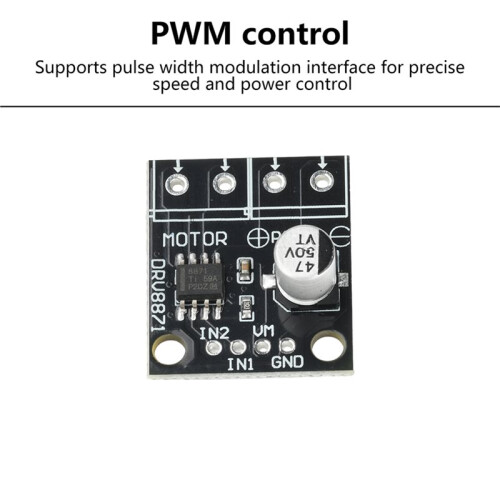

1. PWM Control: Supports pulse width modulation interface for precise speed and power control
2. Wide Application: Can be used in printers, industrial equipment, and mechatronic systems
3. Sensorless Current Regulation: Current can be adjusted without external resistors, simplifying design and enhancing stability

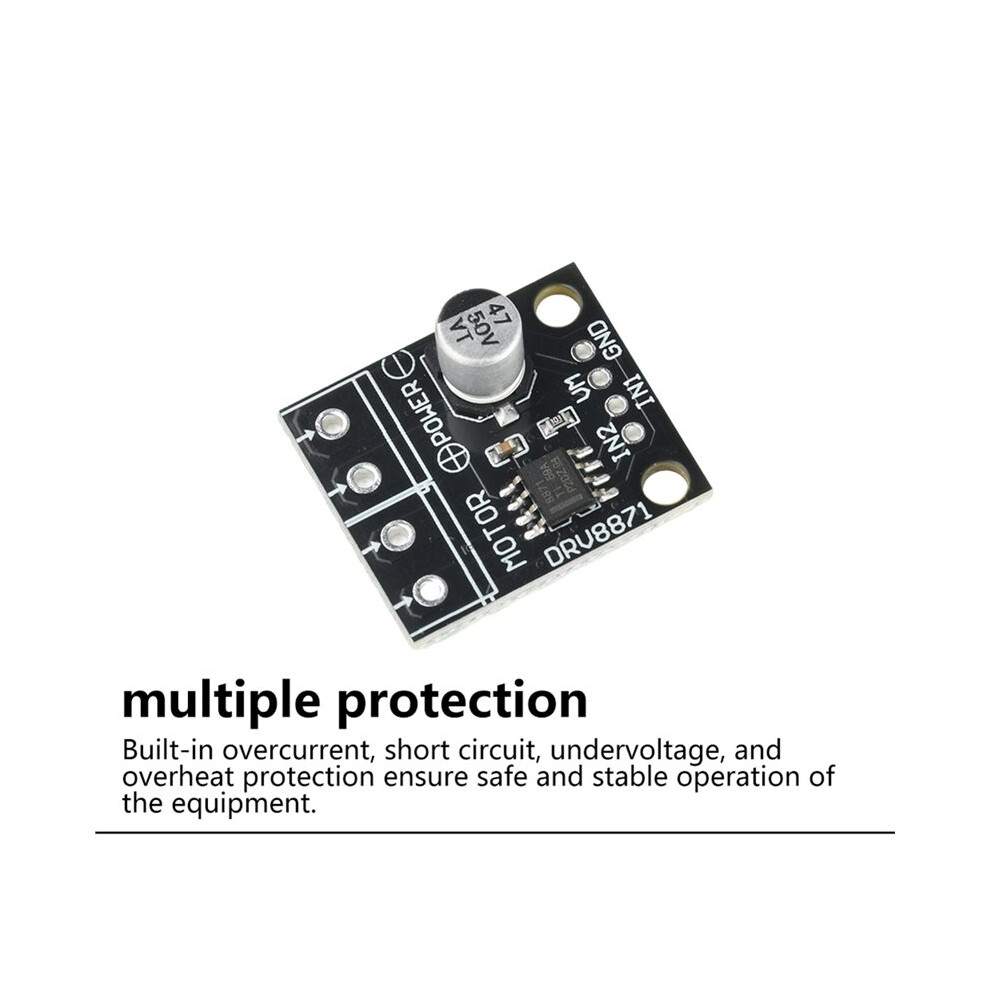

4. Multiple Protections: Built-in overcurrent, short-circuit, undervoltage, and overheat protection ensure safe and stable operation of the equipment

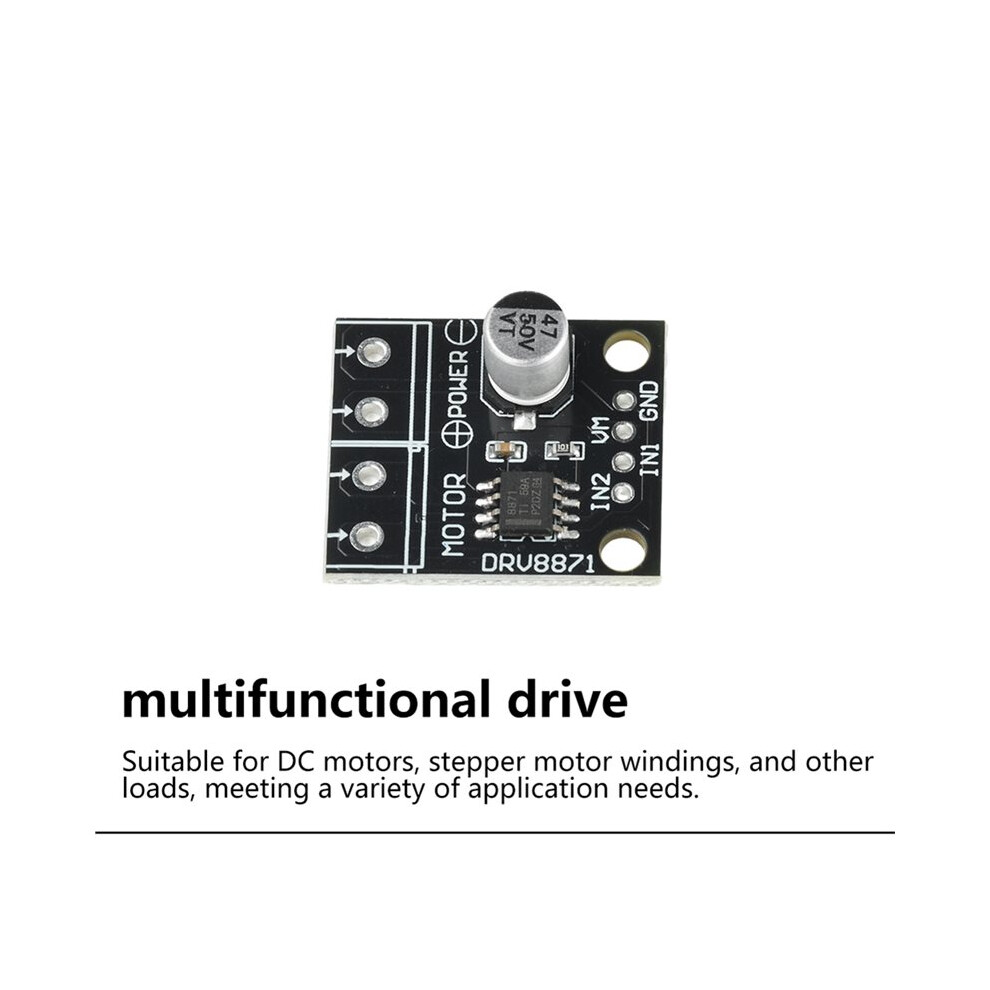

5. Multi-Functional Drive: Suitable for motors, stepper motor windings, and other loads, meeting diverse application requirements
Parameter:
Operating voltage: 6.5-45V
Control level: 3.3/5V

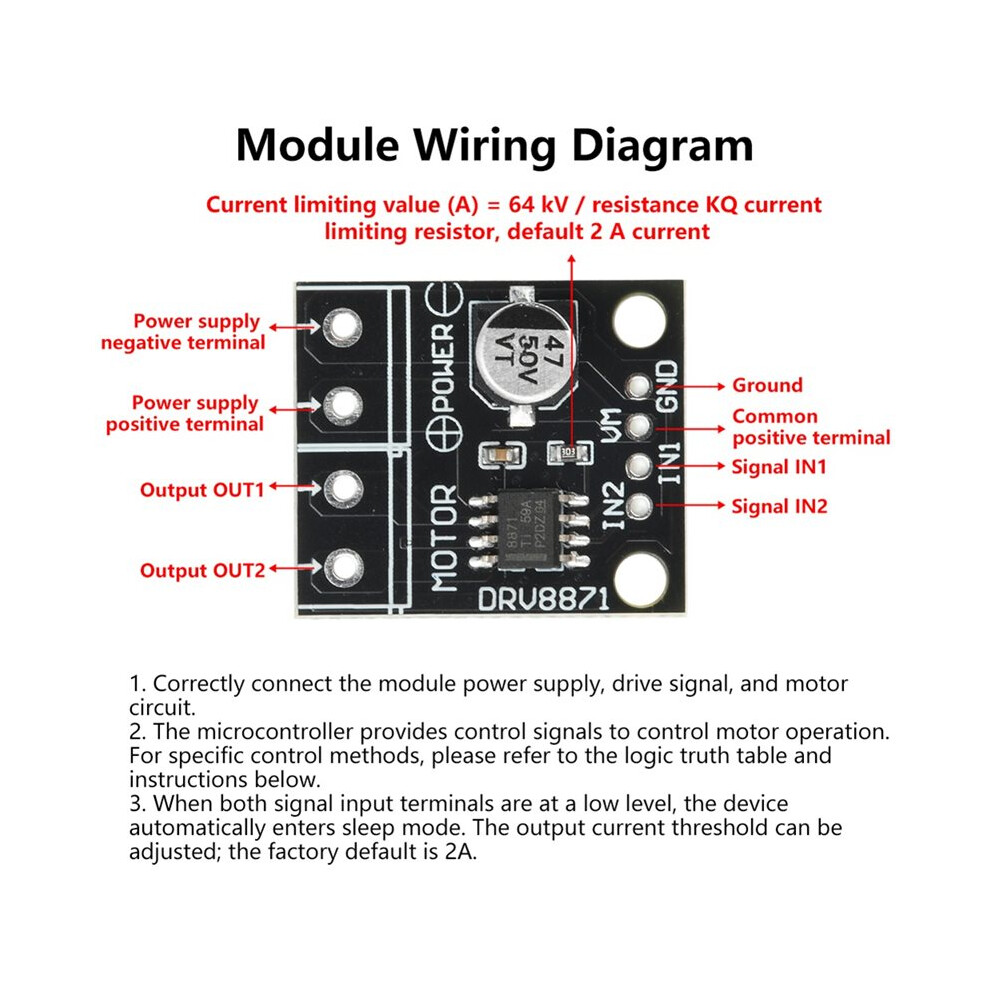

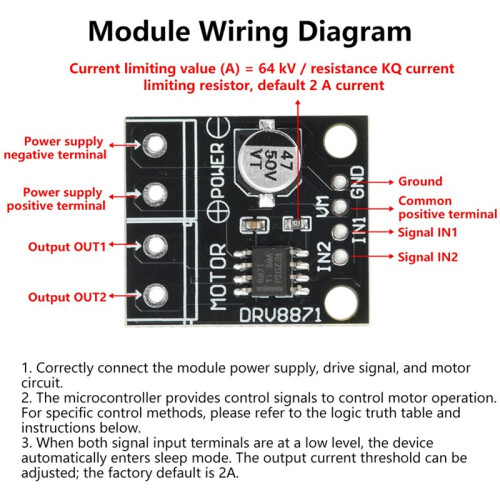

Single H-bridge output current: 3.6A (default current threshold 2A)
Typical RDS() (HS+LS): 565 mΩ

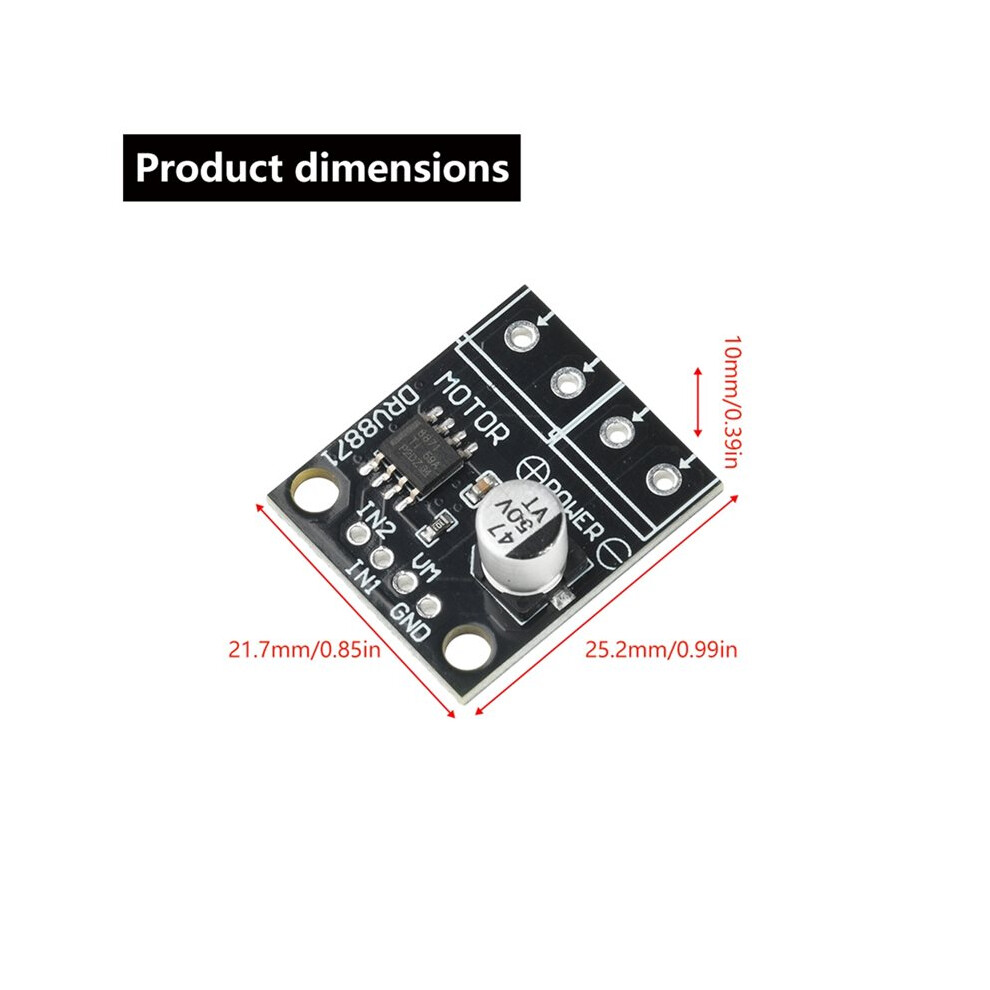

Product dimensions: 25.2 x 21.7 x 10 mm
Module interface: 2.54 mm pitch solder holes
Precautions:
1. Do not reverse the power supply, otherwise there is a risk of burning out the chip.
2. After receiving the module, please test that it is functioning properly before soldering.
Color:As Shown
Material:PCB
Package Contents:

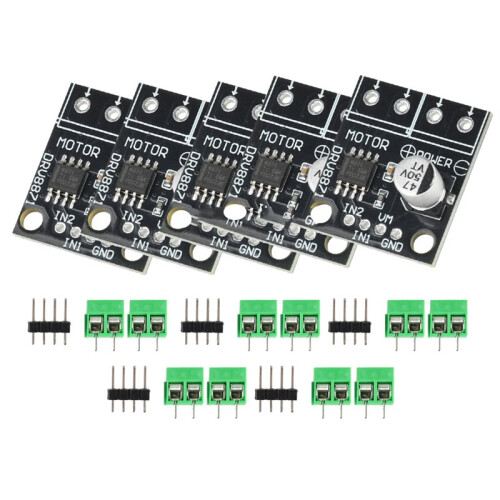

5 * Module sert
Details
| OPC | PS6V68R |
|---|---|
| Codes | 6032668585708 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 8cm |
| Length | 10cm |
| Weight | 0.033kg |
| Colour | As Shown |
| Material | PCB |
