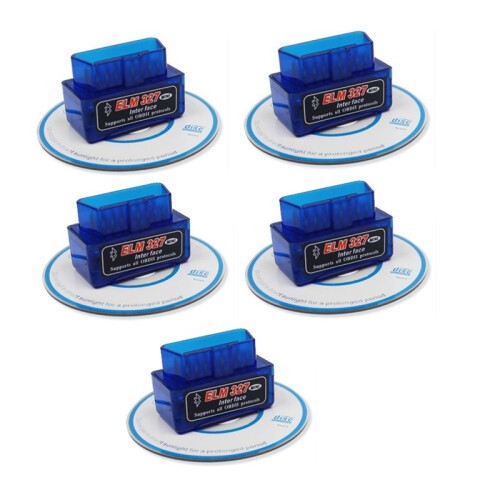

5Set ELM327 V2.1 OBD2 Car Diagnostic Scanner ODB2 Scan Code Reader ODB2 Diagnostic Tool

5Set ELM327 V2.1 OBD2 Car Diagnostic Scanner ODB2 Scan Code Reader ODB2 Diagnostic Tool Description

OBD2 Scanner for Multi-brands CAN-BUS as same as ELM327 . Supports All OBD2 Protocol works Android Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).
OBD2 Scanner for Multi-brands CAN-BUS as same as ELM327 .
Works with all OBD-II compliant vehicles
Compatible systems:Software support platform: Windows XP, Windows 7/8, Android, Symbian .
Compatible software:Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

Colour:
Material:ABS
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)(no)
2.SAE J1850 VPW (10.4Kbaud)(no)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
OBD2 Scanner Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)

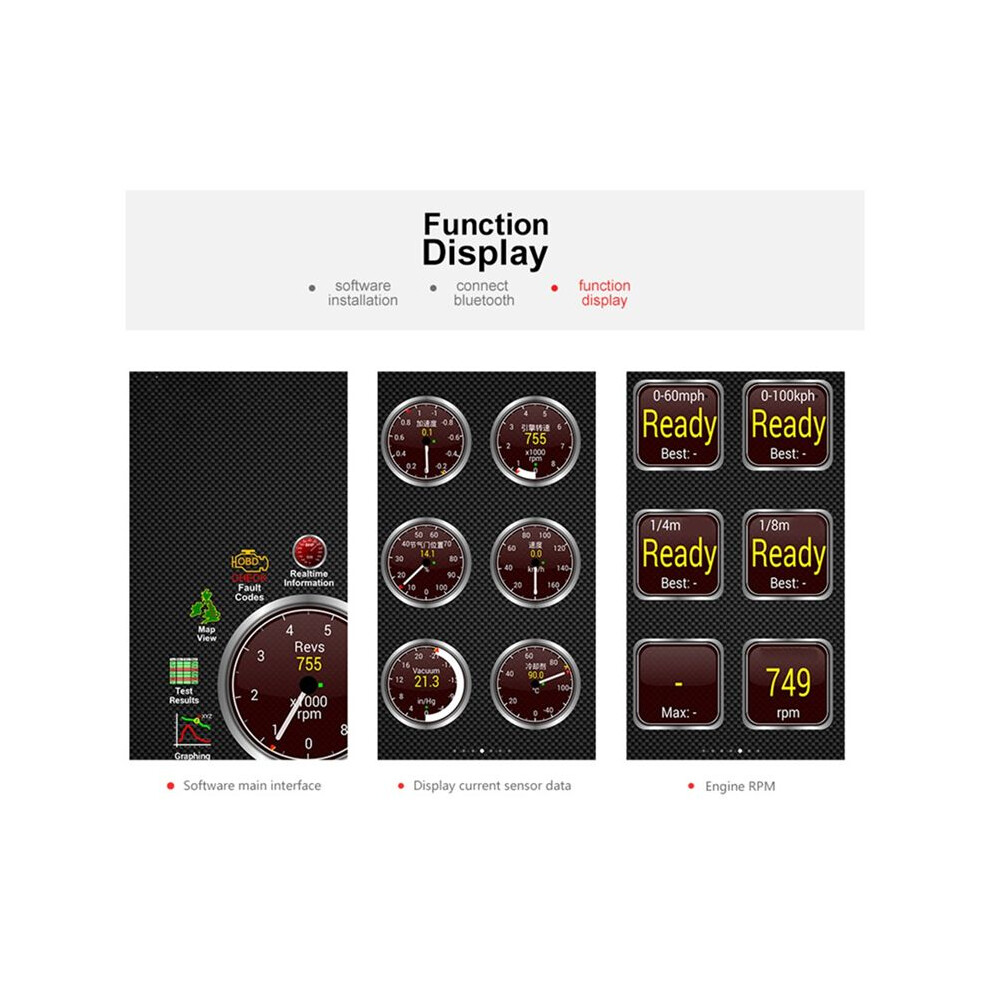

3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status

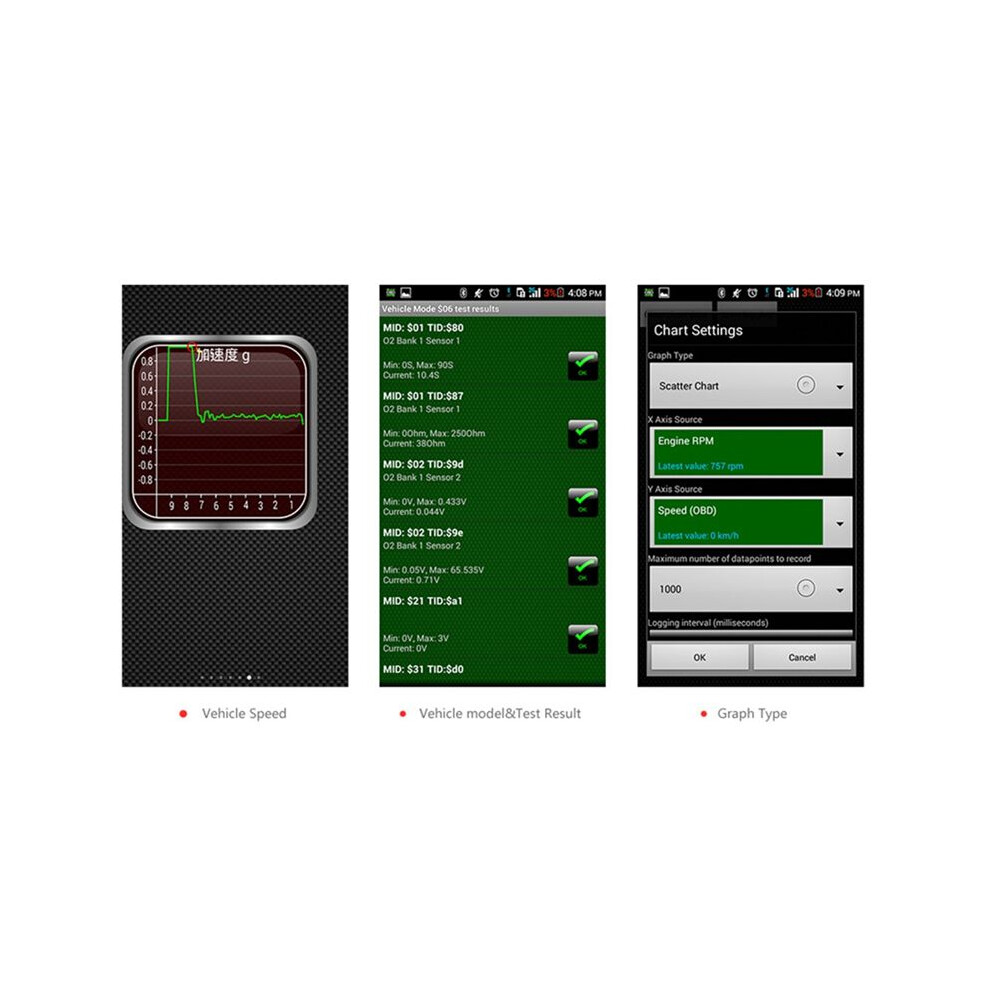

8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, O
