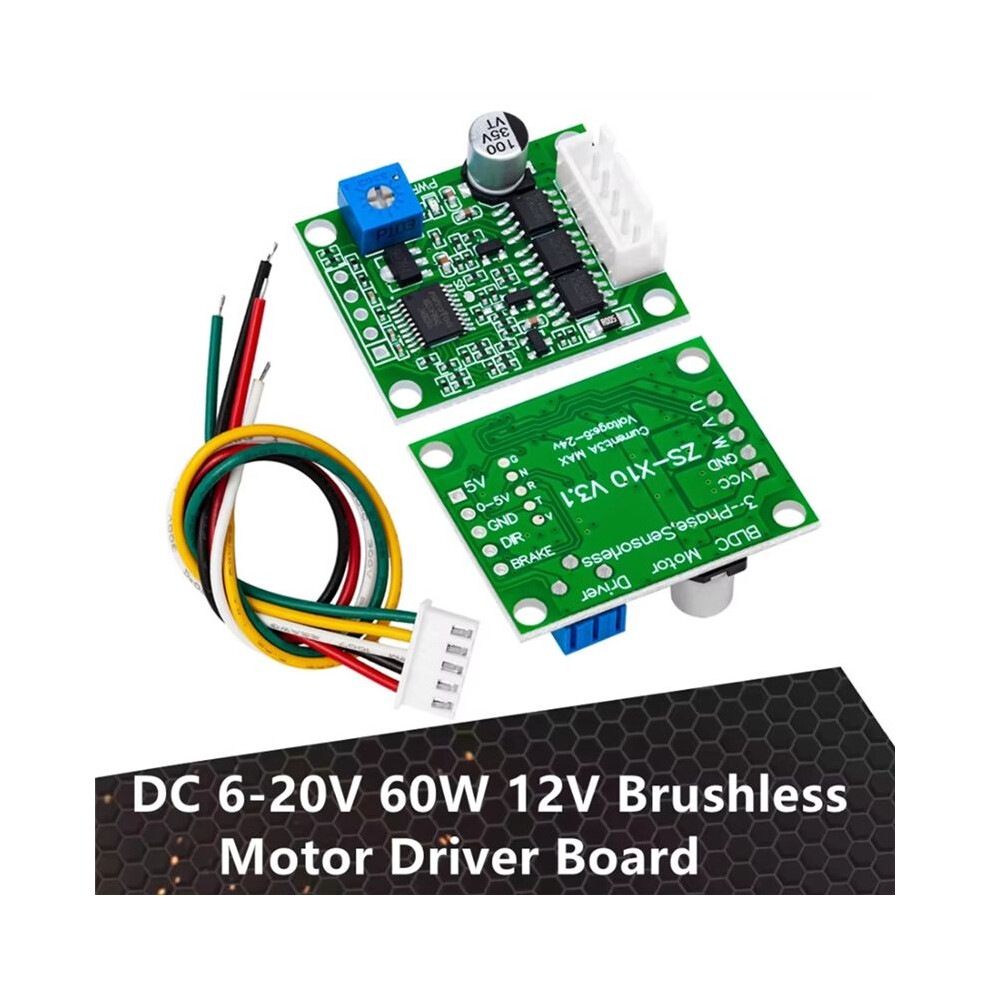

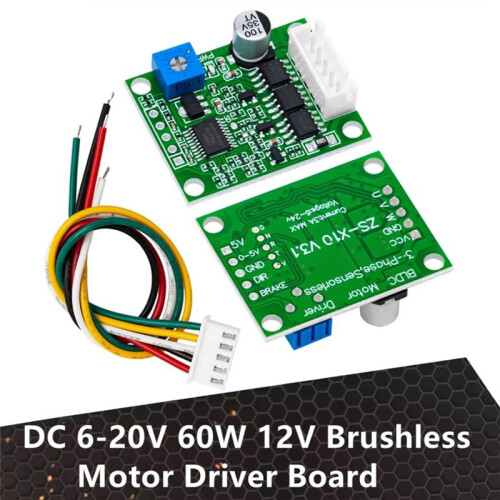

6-20V 60W 12V Brushless Motor Driver Board BLDC Speed Controller 3-Phase Governor Hallless Module with Cable
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (£4.04) | Tue 1st - Mon 7th Sep
Sold by: CollBea
Returns: 30 days
180-day payment protection
You might also like
Summary
- 1. This driver is a low-power brushless driver, and can also be embedded in other systems
- 2. It is specially used for air pumps, water pumps, oil pumps, fans, etc. of small-space and low-power DC three-phase brushless motors and industrial control electric tools, etc. The default timing angle is medium and it is not suitable for high-power motors. If it works at full load current for a long time, it is recommended to add fan cooling
- 3. This driver is a DC three-phase brushless Hall-free control board motor that can work normally without Hall
- 4. The board has a potentiometer speed control and supports PLC0-5V analog signal speed control
- 5. The single-core driver can replace the brushless driver using DVR11873 chip on the market, with good performance and multiple functions, and can stably drive almost all small motors and hard disk motors
6-20V 60W 12V Brushless Motor Driver Board BLDC Speed Controller 3-Phase Governor Hallless Module with Cable Description
1. This driver is a low-power brushless driver, and can also be embedded in other systems
2. It is specially used for air pumps, water pumps, oil pumps, fans, etc. of small-space and low-power three-phase brushless motors and industrial control electric tools, etc. The default timing angle is medium and it is not suitable for high-power motors. If it works at full load current for a long , it is recommended to add fan cooling
3. This driver is a three-phase brushless Hall-free control board motor that can work normally without Hall
4. The board has a potentiometer speed control and supports PLC0-5V analog signal speed control
5. The single-core driver can replace the brushless driver using DVR11873 chip the market, with good performance and multiple functions, and can stably drive almost all small motors and hard disk motors
Product name: three-phase brushless without Hall drive
Working voltage: 6-20V (limit 5-24V)
Drive current: rated 2A 3A
Maximum speed: 22400RPM (2-pole motor), 74000RPM (6-pole motor), 40000 RPM (12-pole motor), 35000RPM (14-pole motor)
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color: Green
Material: PCB
Package Contents:
1 * Brushless Motor Driver Board Kit
Details
| OPC | PWHRXR5 |
|---|---|
| Codes | 6031624641588 (EAN) |
Product Data
| Height | 1cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.009kg |
| Colour | Green |
| Material | PCB |
