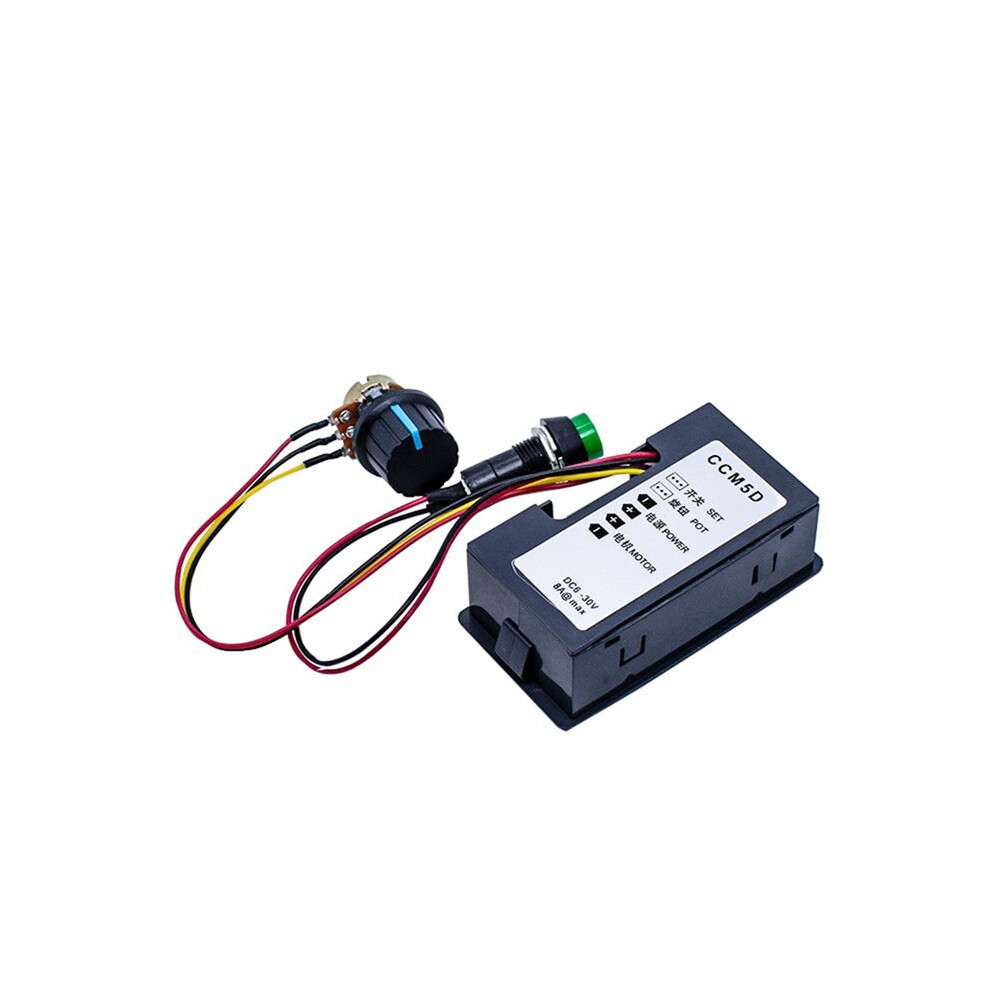

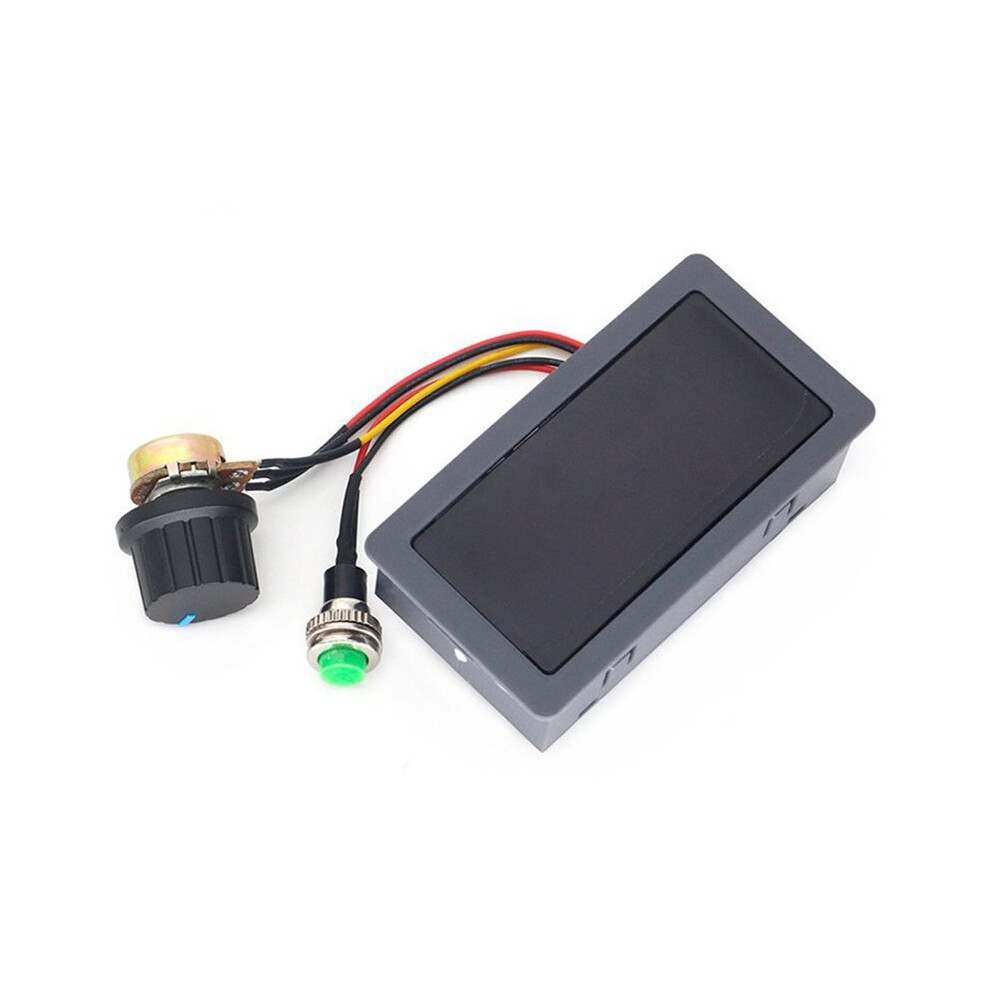

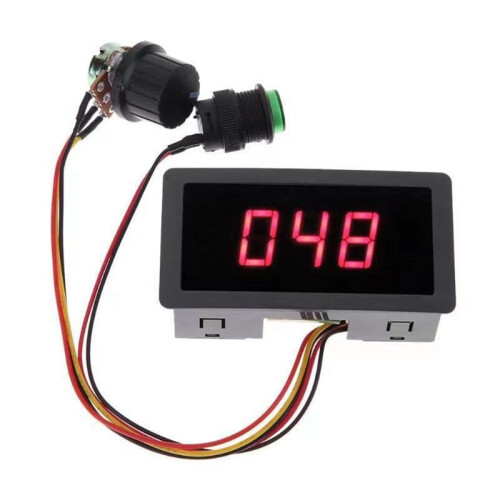

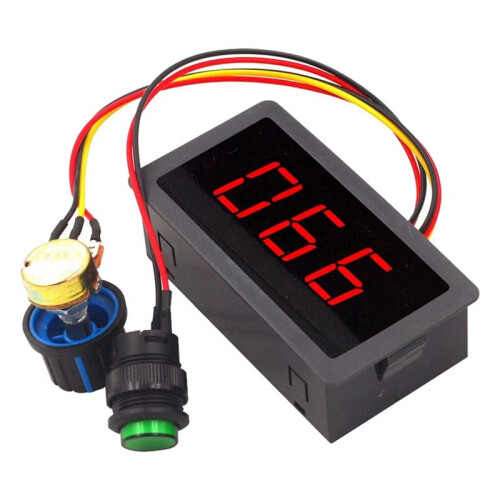

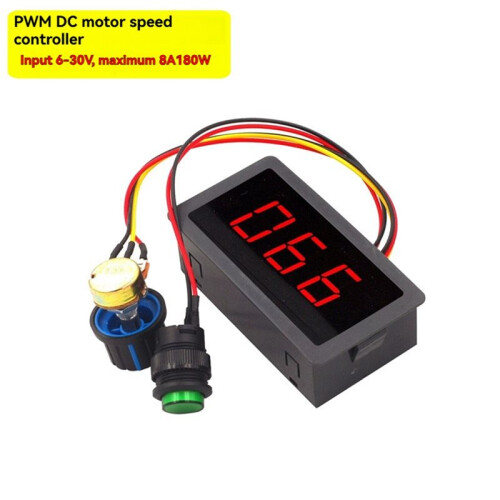

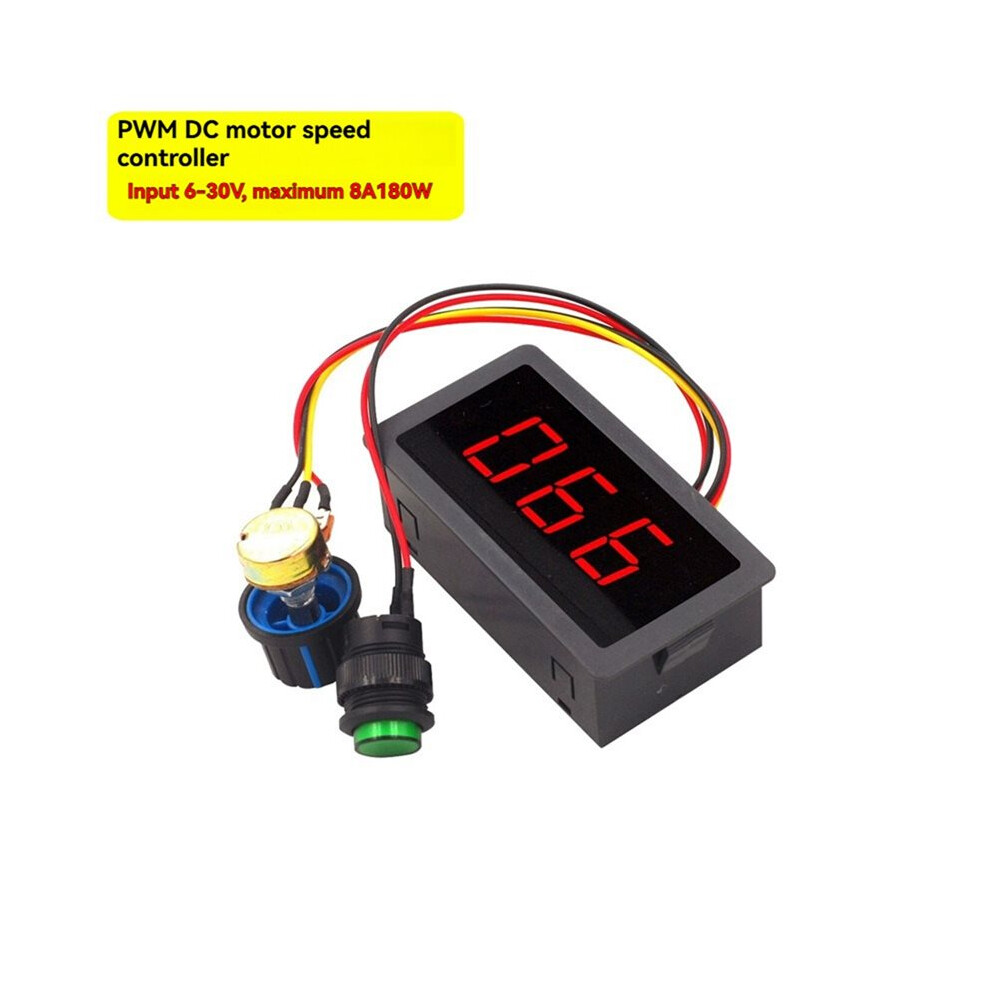

6V 12V 24V 6A PWM Brushed Motor Speed Controller Infinitely Variable Led Digital Display Motor Control Module
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£2.67
£9.95
73% off!
+£3.70 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£3.70) | Mon 27th Jul - Sat 1st Aug
Returns: 30 days
180-day payment protection
Most Popular in Electrical Voltage Converters
Description & Details
Summary
- 1. Using high-quality materials, the quality is guaranteed. Wide range of applications.
- 2. The CCM5D DC Motor Speed Controller controls the speed of the DC motor by adjusting the Pulse Width Modulation (PWM)
- 3. Large 0.56 inch 3 digit LED display digits allow viewing in the harshest conditions
- 4. The display range of the 3-digit LED display is "000"-"100"
- 5. Adjustable speed range from 0% to 100%. Suitable for DC motors (or DC loads) within 5A
6V 12V 24V 6A PWM Brushed Motor Speed Controller Infinitely Variable Led Digital Display Motor Control Module Description
1. Using high-quality materials, the quality is guaranteed. Wide range of applications.
2. The CCM5D Motor Speed Controller controls the speed of the motor by adjusting the Pulse Width Modulation (PWM)

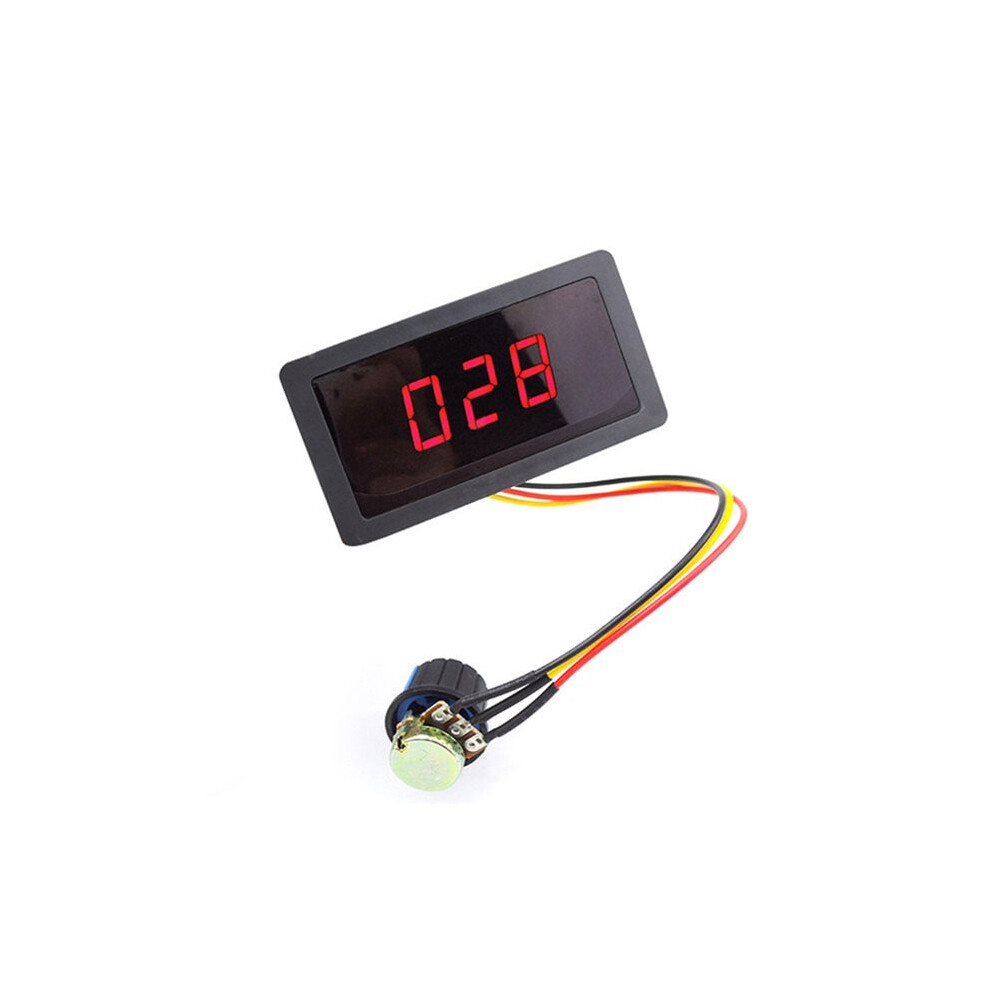

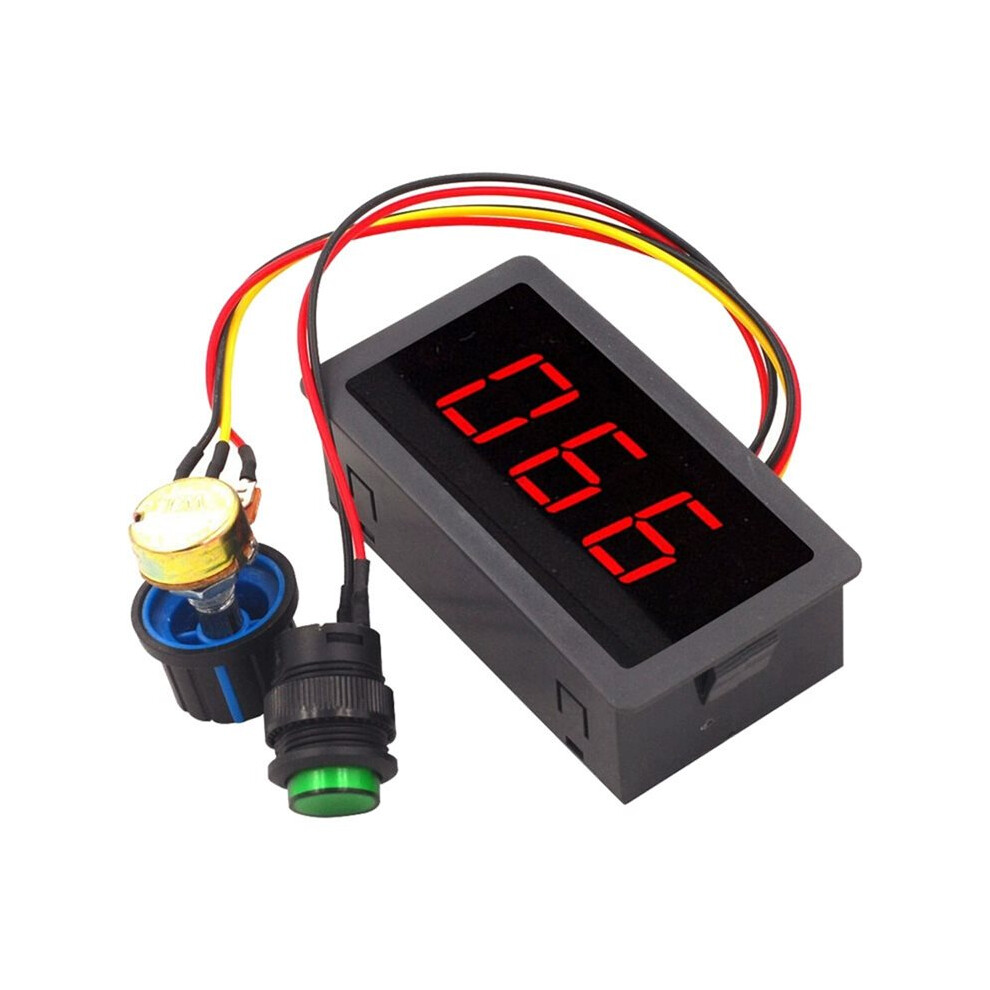

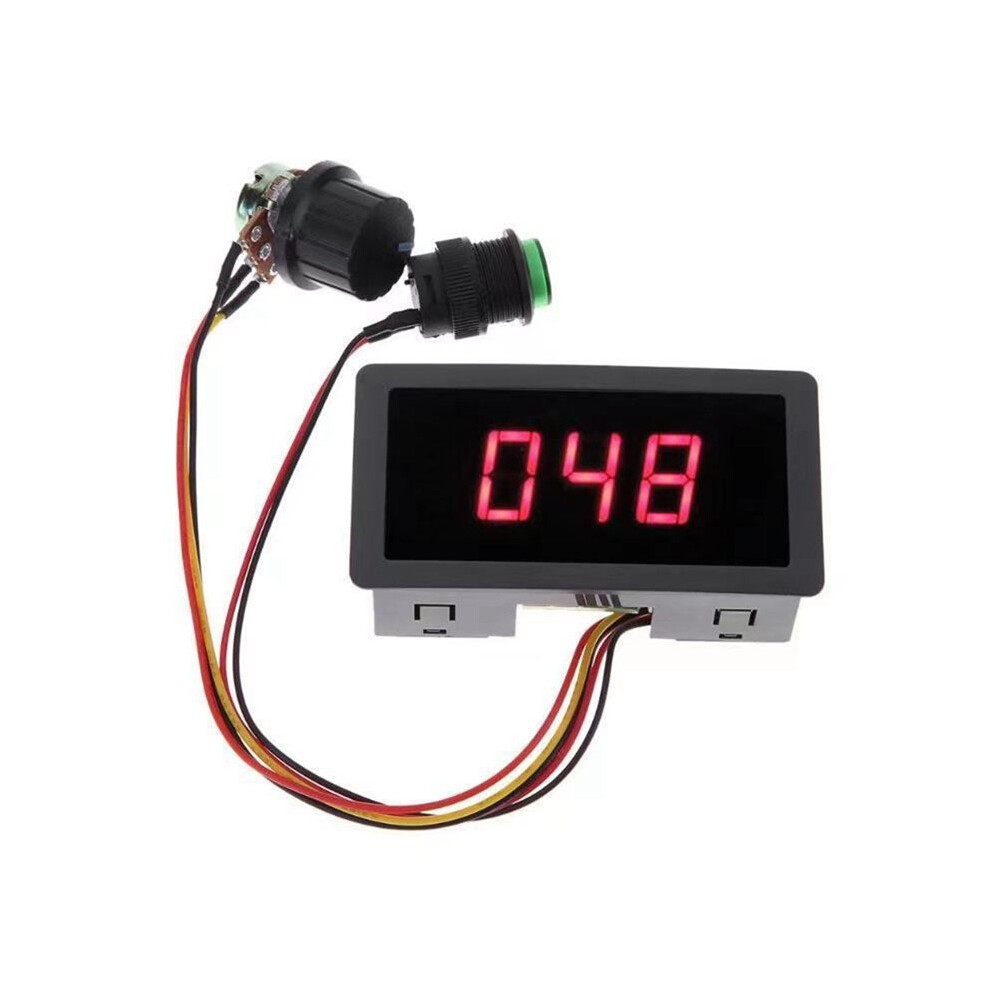

3. Large 0.56 inch 3 digit LED display digits allow viewing in the harshest conditions
4. The display range of the 3-digit LED display is "000"-"100"
5. Adjustable speed range from 0% to . Suitable for motors (or loads) within 5A
Parameter:
Input power supply voltage: DC6V-30V
Maximum output power: 180W
Maximum current: 8A
Rated current: 6A
LED display duty cycle 0-
PWM frequency: 16kHz
Cyclic adjustable duty cycle: 0%-
Note:
1. The motor speed controller input is ; do not connect directly to AC power (such as household 220V AC), otherwise it will burn out.

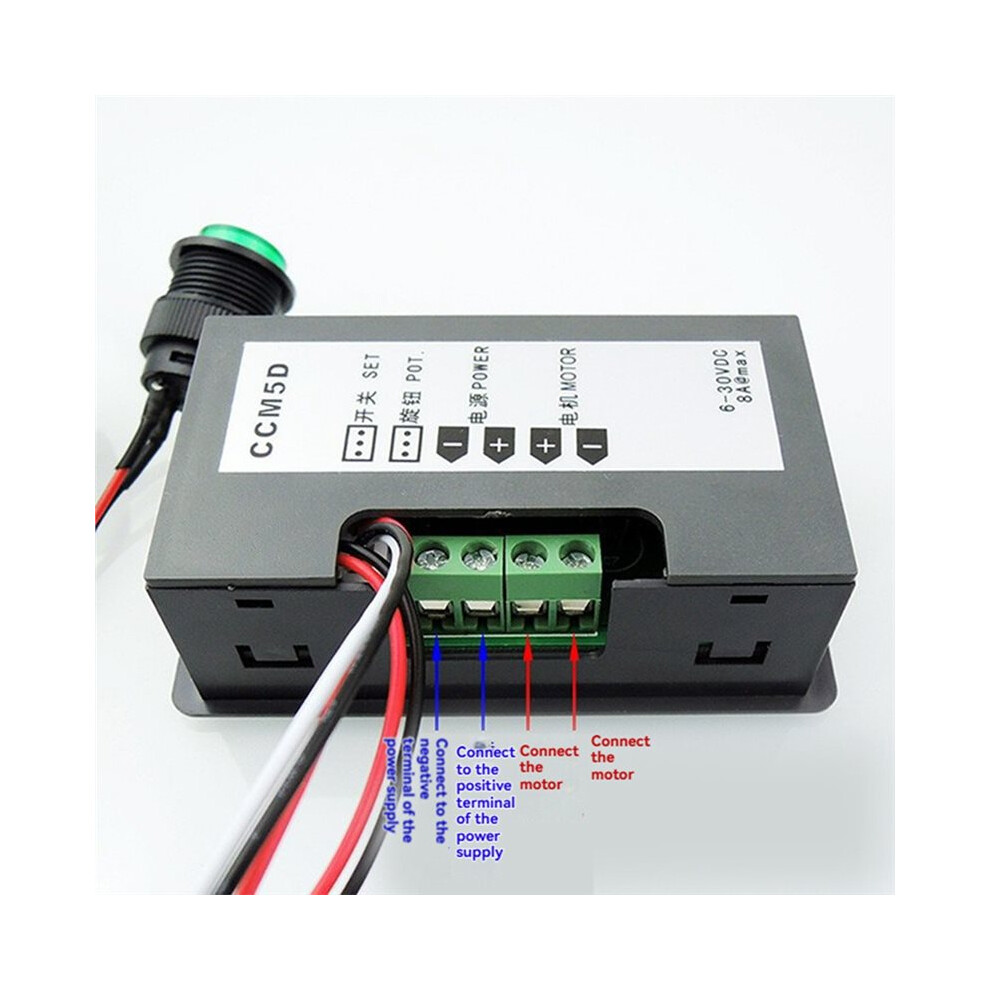

2. The positive and negative terminals of the power supply must not be reversed, otherwise the speed controller will be damaged.
3. The motor does not distinguish between positive and negative; when the running direction is inconsistent with the desired direction, the direction can be changed by adjusting the wiring sequence.

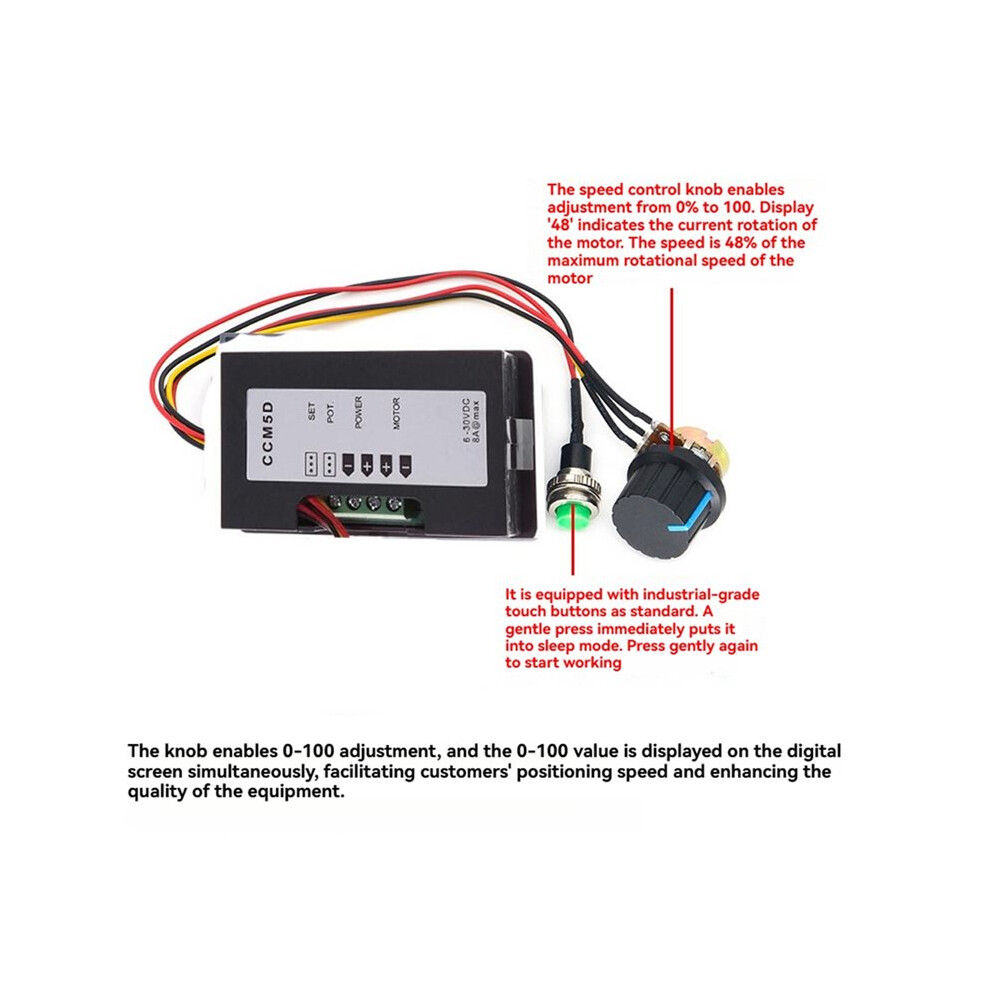

4. Adjusting the potentiometer knob can change the duty cycle of the speed controller output, thereby changing the motor speed.
Color: As Shown
Material: plastic
Package Contents:
1 * Digital display motor governor
Details
| OPC | PVJFWS5 |
|---|---|
| Codes | 6031399421385 (EAN) |
Product Data
| Height | 4cm |
|---|---|
| Width | 7cm |
| Length | 10cm |
| Weight | 0.065kg |
| Colour | As Shown |
| Material | Plastic |
