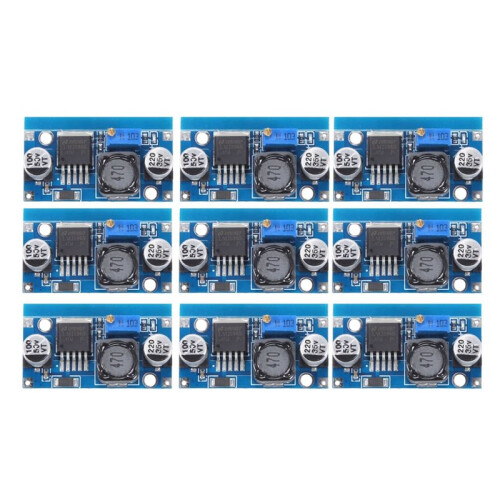

9PCS LM2596S - Step Down Power Supply Module 3A Adjustable Step-Down Module 1.5-35V Power Supply Step Down Module

9PCS LM2596S - Step Down Power Supply Module 3A Adjustable Step-Down Module 1.5-35V Power Supply Step Down Module Description

Power indicator light, the module is working properly
Adjust the potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage
Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the step-down module, in order to ensure stable output Set,please keep the minimum 1.5V differential
Power supply for electronic equipment. When the equipment needs power and the corresponding voltage power supply is in hand, you can use this module to easily adjust the voltage to the required voltage, solve the problem, and test the system working voltage.
When doing projects, you can use this module to debug various The working voltage range of the voltage test system is very easy and convenient

You only need to connect the input terminal of this module to the car Car charger for power supply, then you can adjust the potentiometer, and the output voltage can be adjusted arbitrarily between 1.25-30V to power your mobile phone, MP3, MP4, PSP charging and many other devices. It is very simple and convenient
Name: LM2596 - Buck module
Input voltage:4V ~ 35V
The output voltage: 1.23V ~ 30V
Output Current:3A( Max)
Conversion efficiency:92%( MAX )
Output ripple: less than 30mV
Switching frequency: 150KHz
Working temperature: -45~+85
Connection mode:1. Welding: welding the power cord directly to the input (output) port; 2.Welding pin,which can be inserted into the pin through the lead or inserted into the hole board for use; Or solder directly PCB after adding pins
Color:
Material: PCB

Package Contents:
9*Module
