-A8S 2.4G 8CH Mini Receiver compatible for RC Qaudcopter FPV Racing Drone

-A8S 2.4G 8CH Mini Receiver compatible for RC Qaudcopter FPV Racing Drone Description

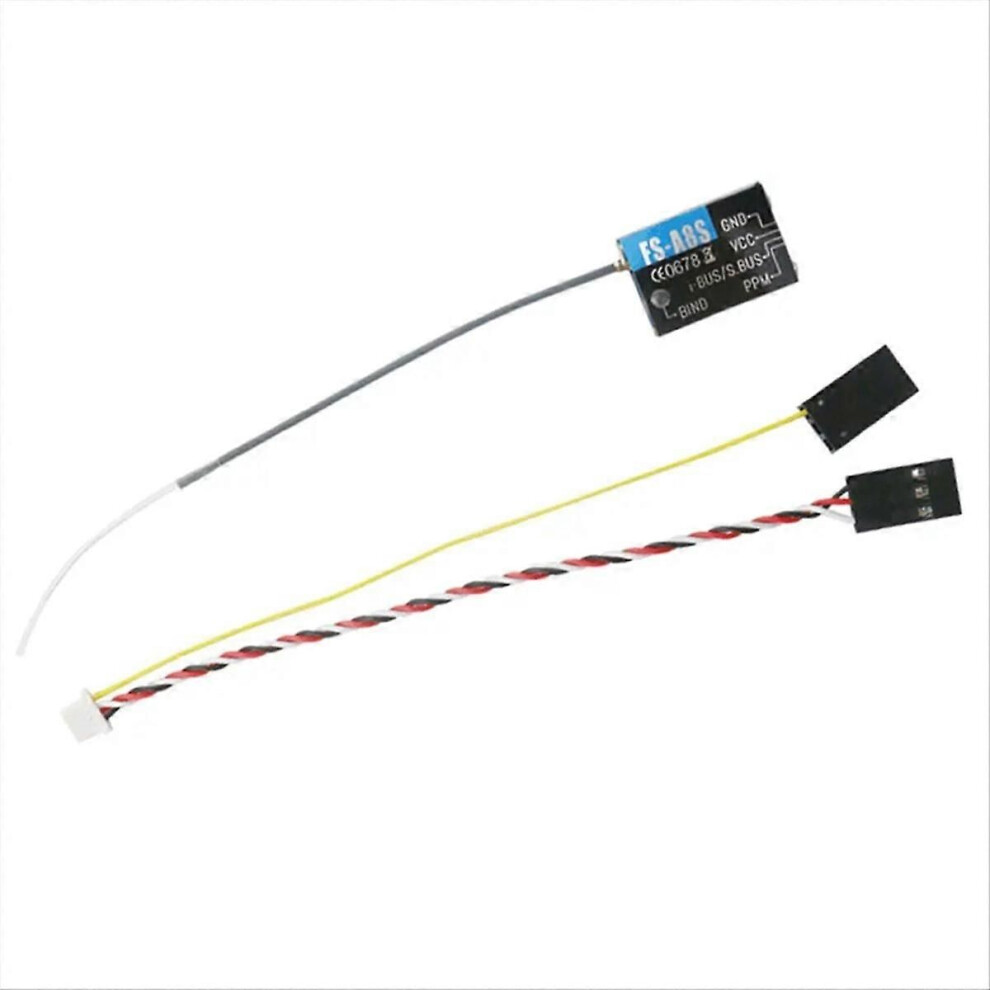

-A8S 2.4G 8CH Mini Receiver for RC Qaudcopter FPV Racing Drone
Efficient Power Consumption: Consumes just 40mA, ensuring extended flight times without draining your drone's battery.
Wide Range of Compatibility: Seamlessly integrates with -i4, -i6, -i6S, and more, expanding its usability.
Compact & Design: At just 1.2g and 20x14x5.3mm, this mini receiver is ideal for FPV racing drones.
F08a Receiver, High-Frequency Stability: Utilizes AFHDS 2A protocol for stable 2.4GHz frequency hopping, ensuring reliable signal transmission.
Versatile Channel Support: Features 8CH PPM and 18CH i-BUS support, catering to a wide range of RC multi-rotor setups.
Description:
The -A8S is a compact 1-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Aotumatic Frequescy Hopping Digital System) protocol, supports PPM output and has i-BUS support for up to 18 channels.
Item Name:-A8S Receiver
Channels:PPM 8CH, i-BUS 18CH
Model type:Multi-rotor
Frequency range:2.408-2.475GHz
Band width:500KHz
Band number:135
RX Sensitivity:-92 dBm
2.4GHz system:AFHDS 2A
Modulation type:GFSK
DSC port:PPM/i-BUS/S. BUS
Transfer method:FHSS
Data output:1.5mm*3 Pin PPM/i-BUS/S.BUS
Antenna length:26mm (Not including brass contacts)
Input power supply:4.0-8.4V
Display method:LED
No ground interference (Transmitting and receiving 1 m from the ground): 300m
Working current:40mA
Color:As Shown
Material:plastic
Package Contents:
1 x -A8S 2.4G 8CH Mini Receiver
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
