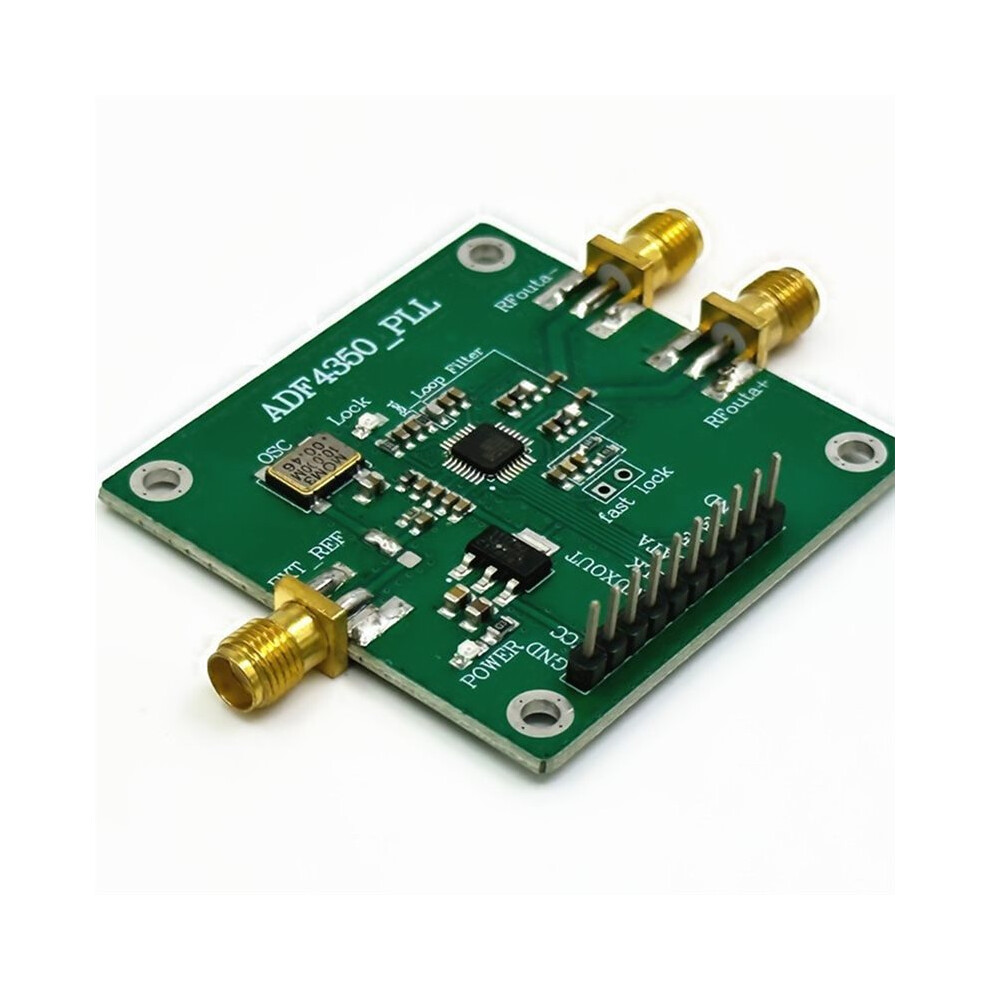

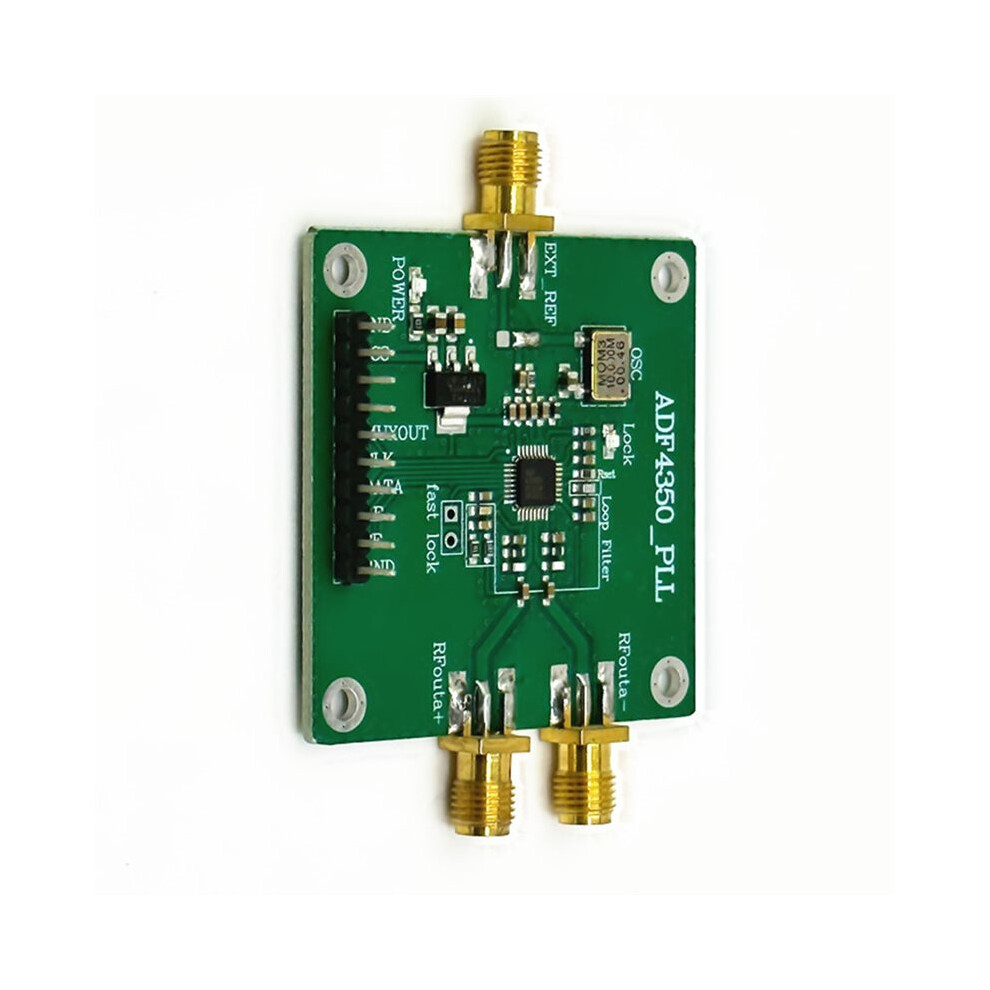

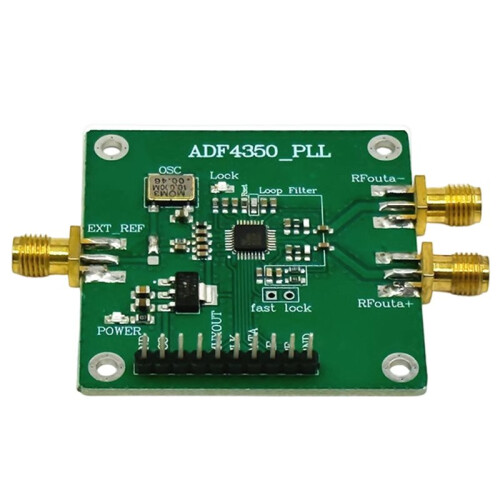

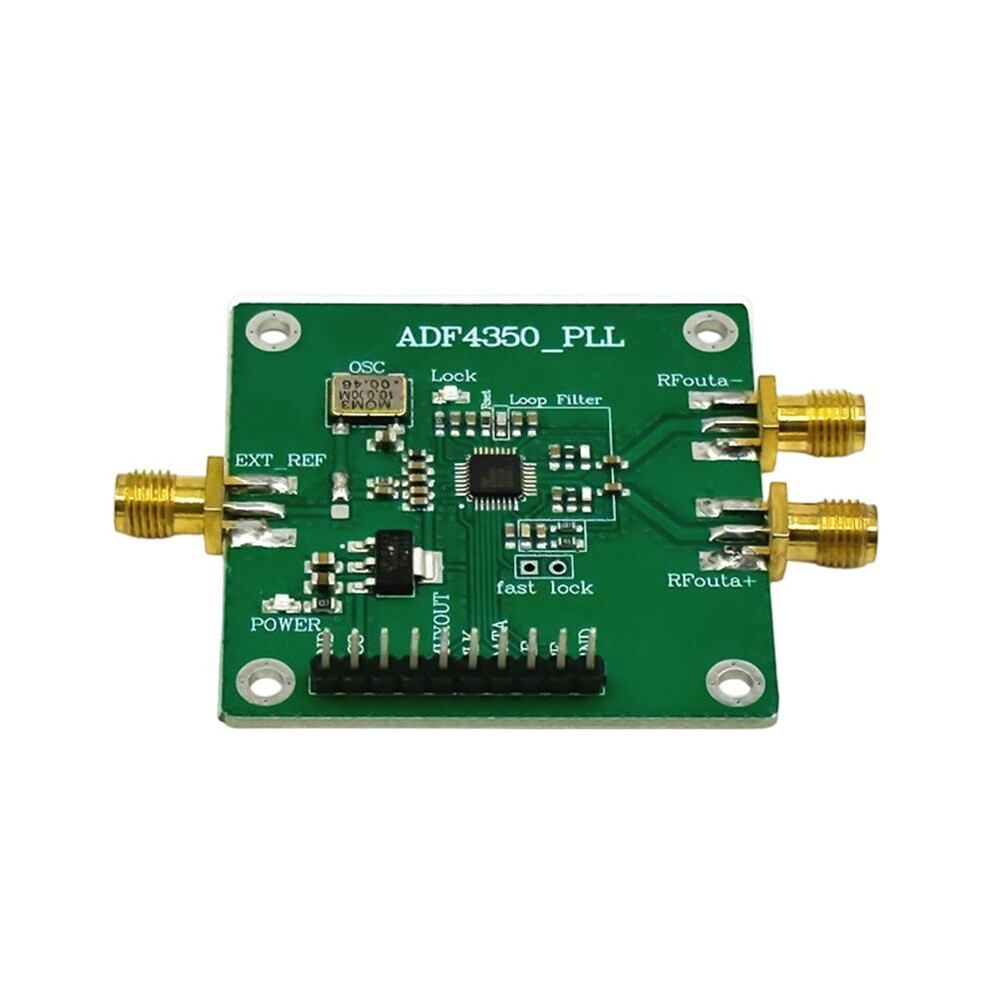

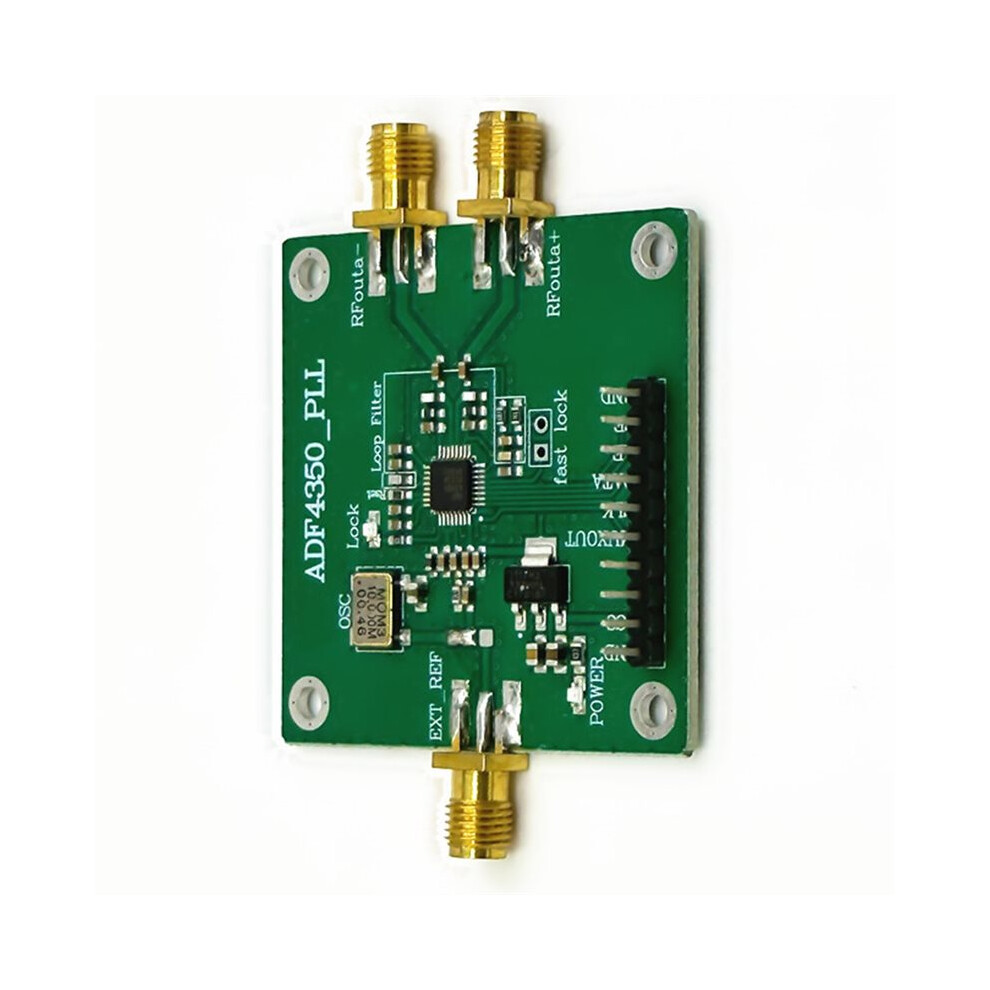

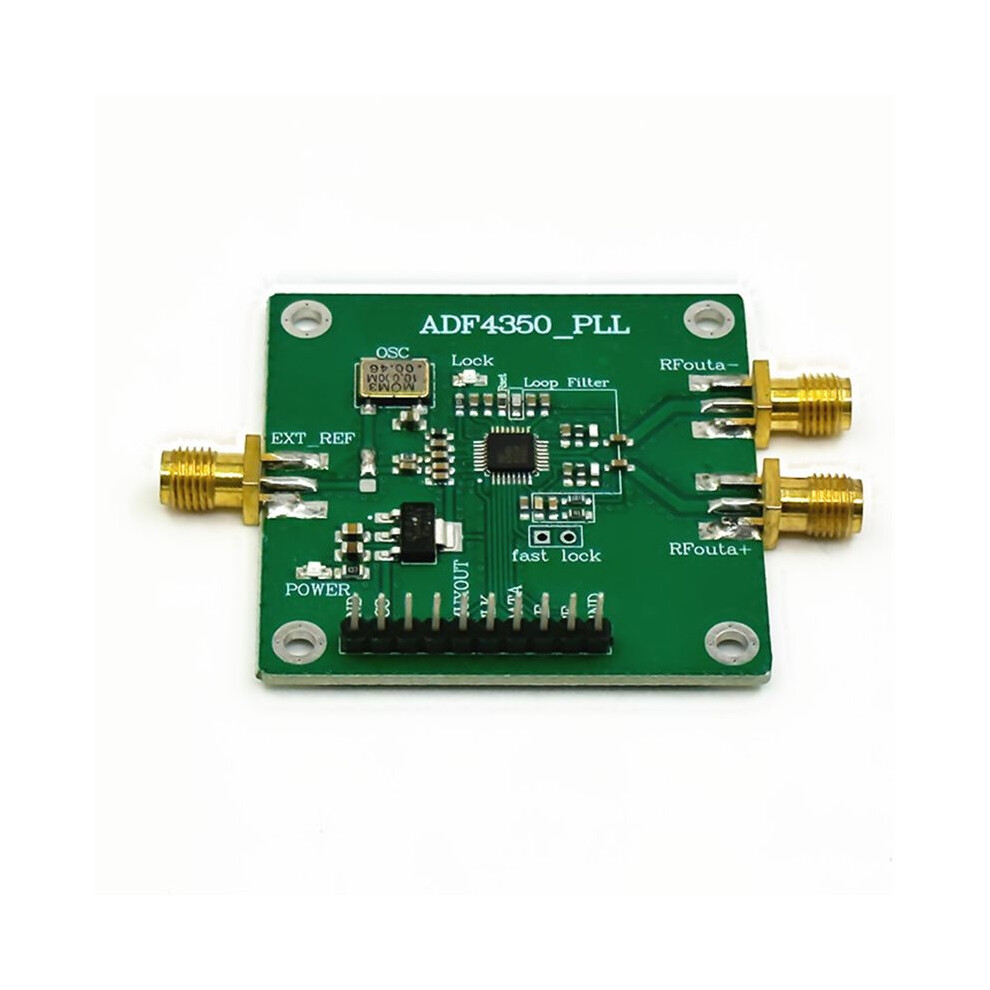

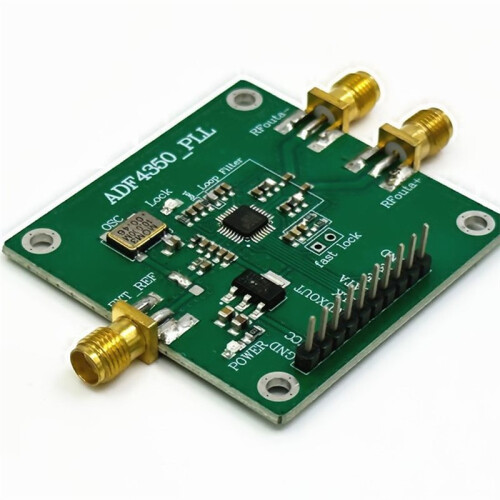

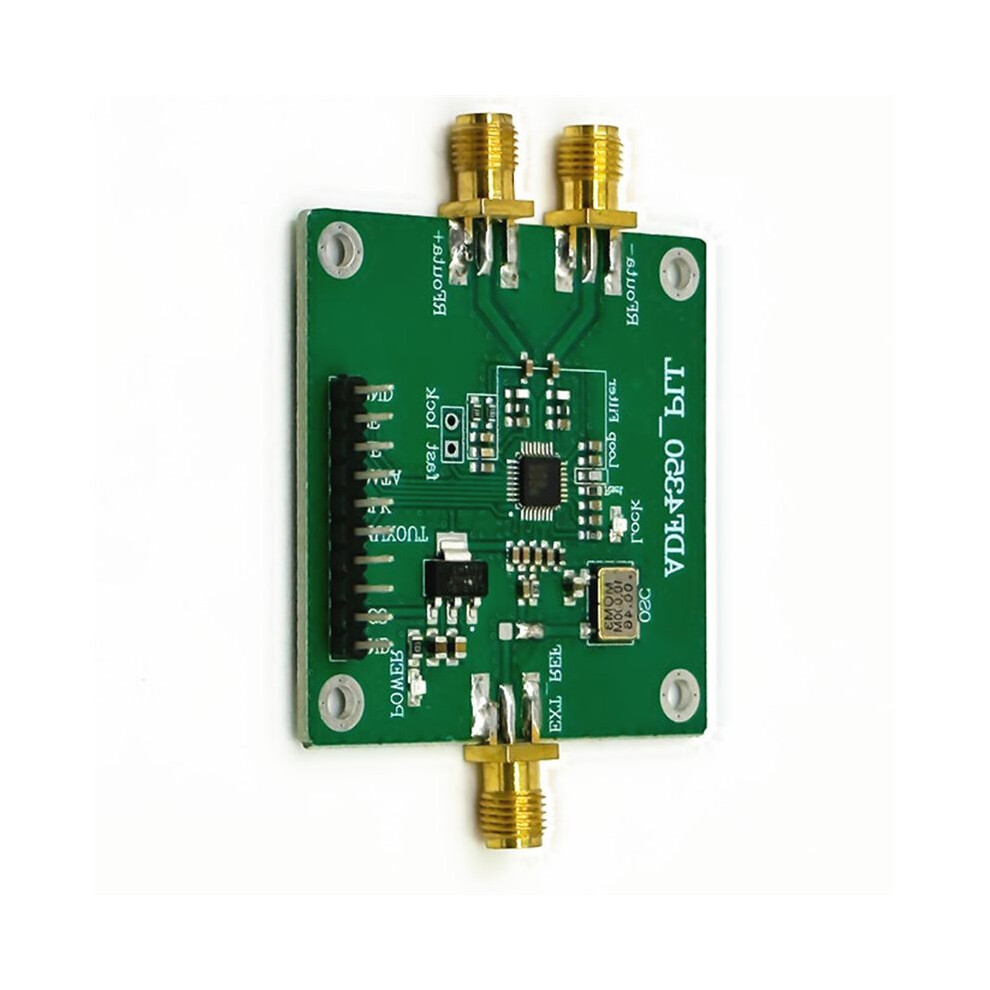

ADF4350 ADF4351 PLL Frequency Synthesizer Module RF Signal Source Phase Locked Loop for RF Debugging

ADF4350 ADF4351 PLL Frequency Synthesizer Module RF Signal Source Phase Locked Loop for RF Debugging Description

Broadband Frequency Coverage - Built ADF4350 / ADF4351 phase locked loop chipset, delivers wide frequency output range, covers common RF bands to fulfill various radio frequency debugging and testing demands.
Low Phase Noise Performance - Premium PLL architecture ensures low phase noise and excellent frequency stability, provides high-purity standard RF signal for accurate circuit debugging and device performance verification.
RF Debugging Dedicated - Designed as a stable RF signal source for radio frequency development, laboratory testing and product validation. Ideal for receiver calibration, filter testing and RF link commissioning work.
Integrated Module Design - Highly integrated -board circuit with streamlined peripheral design, easy to embed into test systems or custom equipment, simplifies RF development flow and improves debugging efficiency.
Wide Engineering Applications - Suitable for wireless communication R&D, RF lab testing, electronic equipment debugging, software defined radio and more, essential tool for RF engineers and electronic developers.

Output Frequency Range: 137MHz-4.4GHz(ADF4350); 35MHz-4.4GHz(ADF4351)
Supply Voltage: 4-9V (5VDC)
Output Signal: 2.2GHz-4.4GHz Sine Wave (Fundamental Wave); 137MHz-2.2GHz(ADF4350) Square Wave (Fundamental Frequency Division); 35MHz-2.2GHz(ADF4351) Square Wave (Fundamental Frequency Division)
Broadband output, signal strength +5dBm, programmable configuration

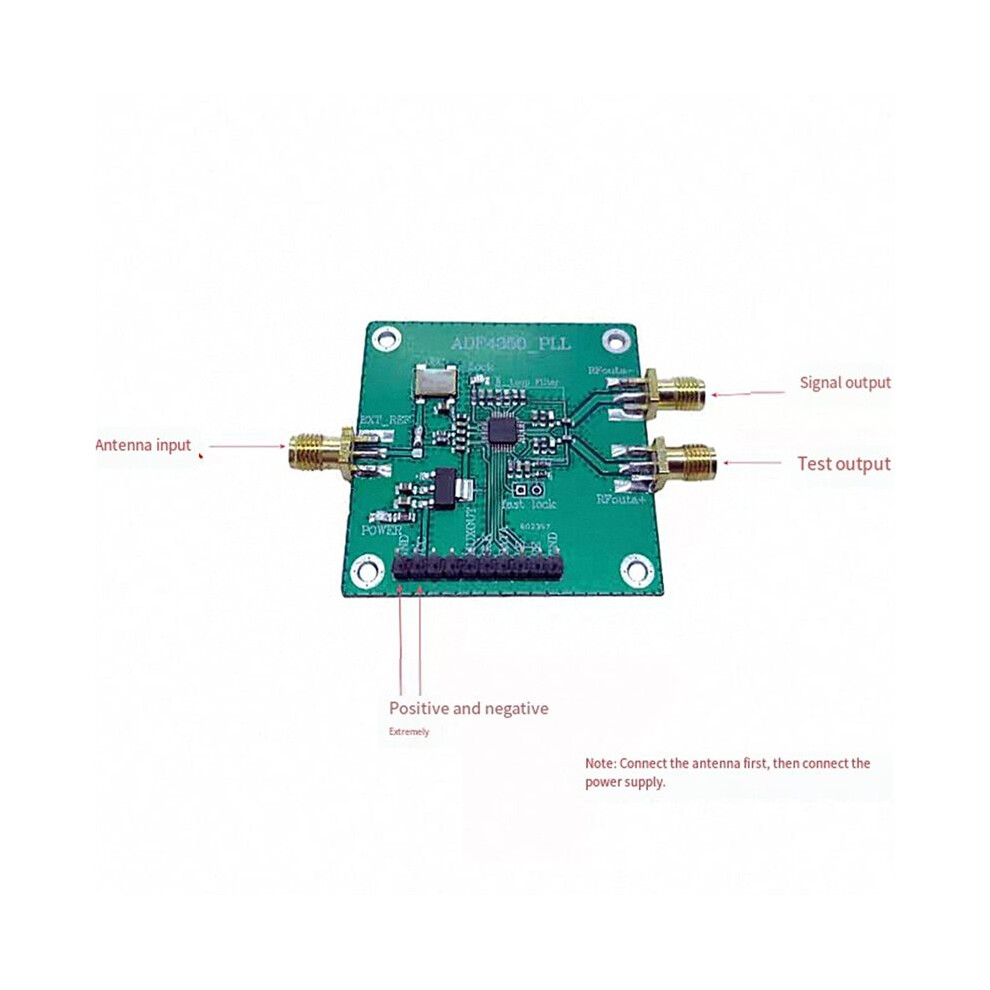

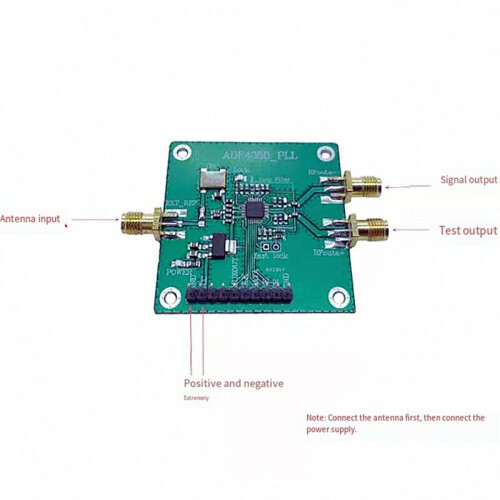

RF Connector: SMA Female
Control Interface: 3-wire SPI
Reference Clock: 10.000MHz(default), external clock input via SMA port
Color: As Shown
Material: PCB

Package Contents:
1*RF Signal Generator
