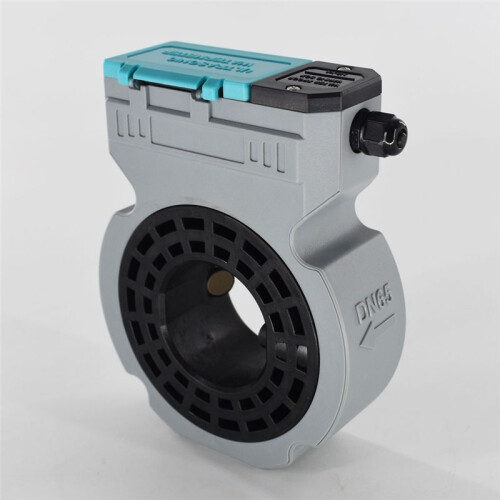

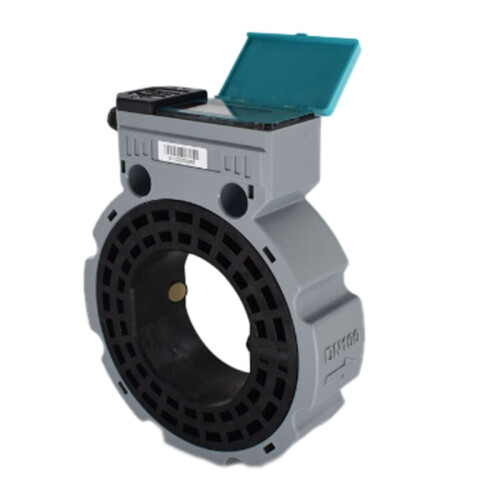

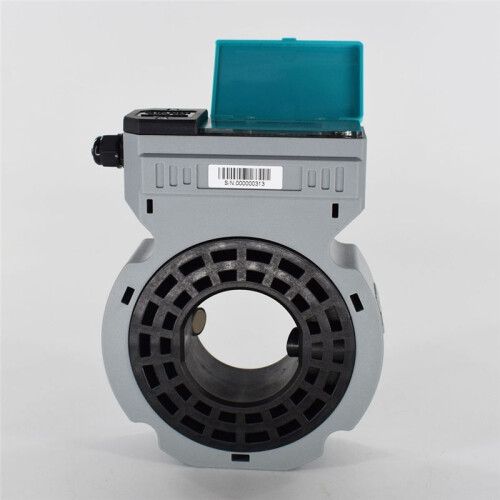

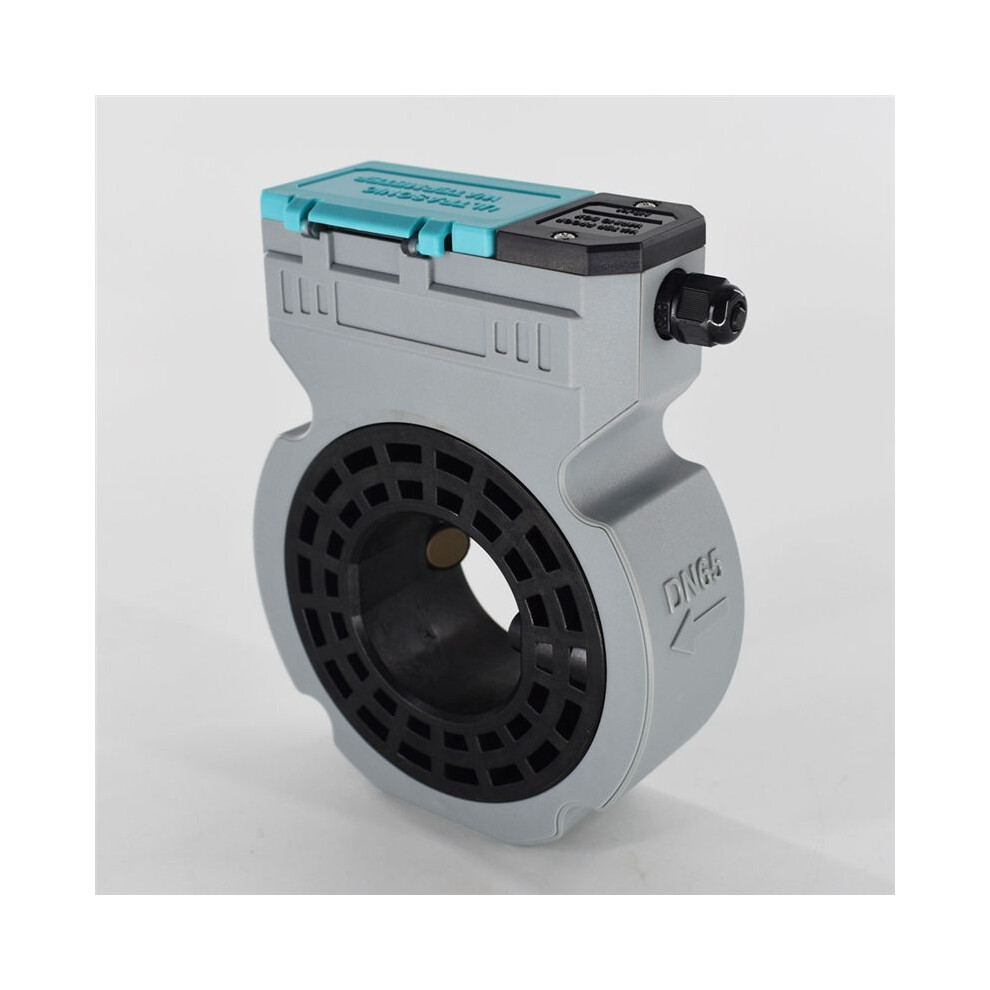

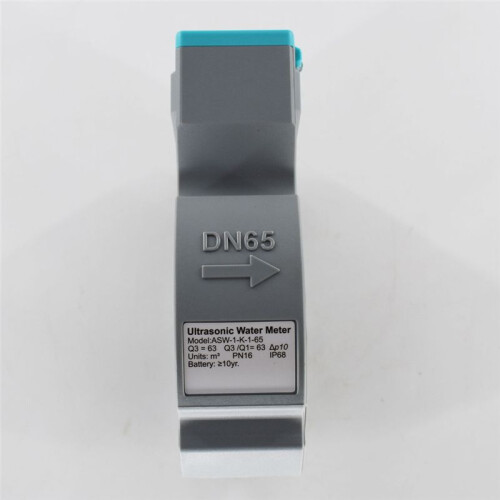

Battery Powered Ultrasonic Water Meter DN100 RS485 Digital Water Flowmeter IP68 Sandwich-Type

Battery Powered Ultrasonic Water Meter DN100 RS485 Digital Water Flowmeter IP68 Sandwich-Type Description

ASW-1-K series sandwich-type ultrasonic water meter is a new type of water meter specially designed for agricultural irrigation, garden management and water resources monitoring.
The water meter has some advantages,such as low cost, high measurement accuracy, low power consump-tion, stable and reliable operation and so . The thickness of the water meter is only 2 inches(50.8mm), which saves installation space, and the IP68 scheme is adopted for all parts, so that the water meter can be used in various harsh environment.
The uniquestructure of the water meter makes the measurement basically free from the influence of water quality and pressure loss, which is a major breakthrough in the agricultural irrigation water measurement.

Measured fluid:Water, sewage, seawater(Measuring other liquids requires customization)Ensure that water fills the pipe
Fluid temperature:0.1-30
Working environment:Temperature:-30-45; Humidity (RH)
Working pressure:1.6MPa
Pressure loss:No pressure loss
Sensitivity level of upstream flow field:U5
Sensitivity level of downstream flow field:D3
Climate and mechanical safety leve:Level C
Electromagnetic compatibility level:Level E2
Communication interface:RS485/USART/Infrared interface,optional M-BUS, NB-IOT wireless transmission
Output signal:Optional OCT
Power supply:Built-in lithium battery/External 8-24V power supply
Protection level:IP68
Local display:Two lines show 9-bit cumulative flow,6-bit instantaneous flow,various status prompts and units
Data storage:Lithium battery power is required for storing parameters.It can automatically record the cumulative flow of 31 months and the daily flow of the 32nd month.
Flow measurement period:Application status:once/second;Verification status:4times/second
Power consumption:Standard status:Less
