Bluetooth Audio Amplifier Board Module with for Home Theater,1Set

Bluetooth Audio Amplifier Board Module with for Home Theater,1Set Description

5.1 chip, simpler and faster connection, 15m transmission distance, more stable signal and faster transmission.
U disk playback function, open the U disk playlist, select songs at , support shake to switch songs.
Upgraded large chip, support AAC Bluetooth decoding, more lossless formats, low latency, support APP and .
Mono Bluetooth amplifier board 100W.
Easily connect your audio system.

Model:-1001B

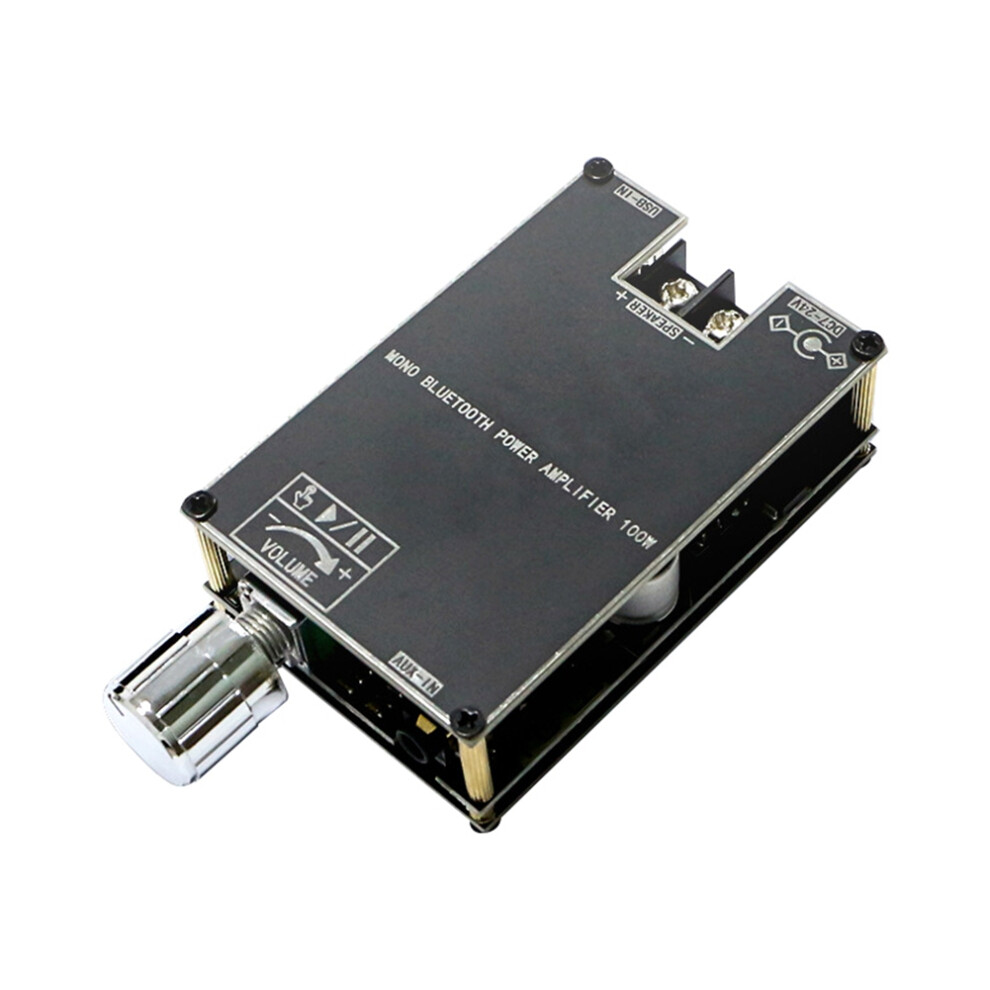

Name:Mono 100W Bluetooth audio amplifier board module

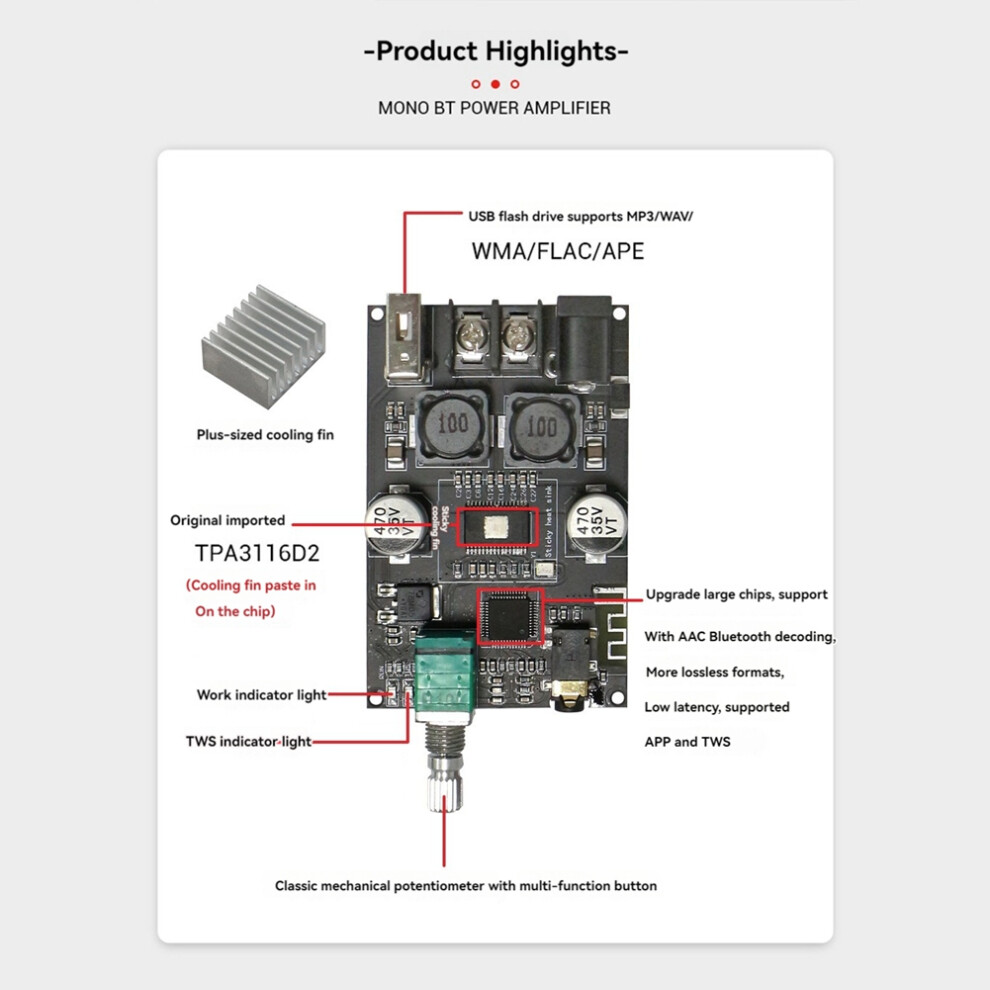

Amplifier chip:TPA3116D2
Bluetooth version:5.1
Bluetooth transmission distance:15 meters
Audio input:Bluetooth + AUX + U disk + USB sound card
Audio output:Mono 100W
Adaptive power supply:DC7-24V, 24A (not AC)
Adaptive speaker:20-100W, 3-8 ohms
Volume adjustment:total volume with button Single click: play/pause Double click: next song; triple click: enter or exit mode; long press: power off/on
Protection mechanism:input anti-reverse connection, over-temperature, over-current, short circuit, anti-static protection

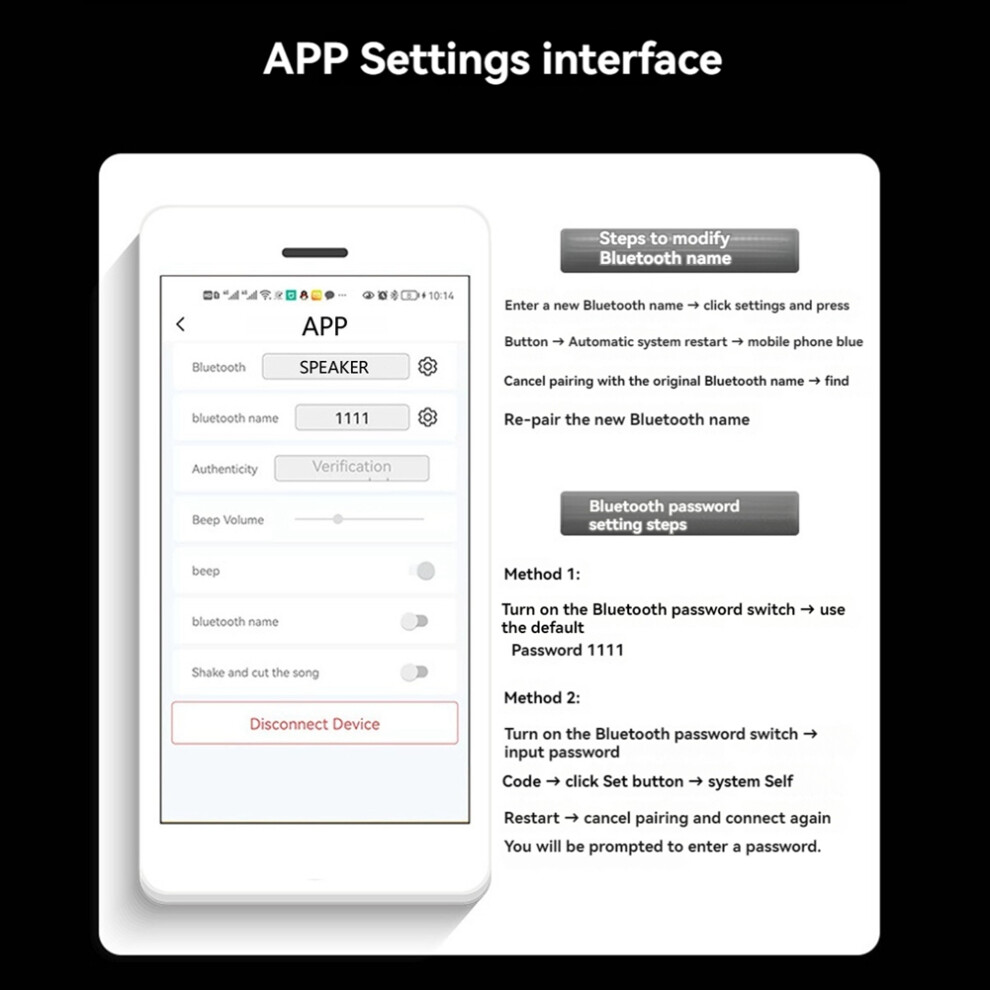

Featured function:support APP. Modify Bluetooth name, password setting, prompt volume adjustment, turn on/off prompt sound, sleep music, firmware upgrade, etc.

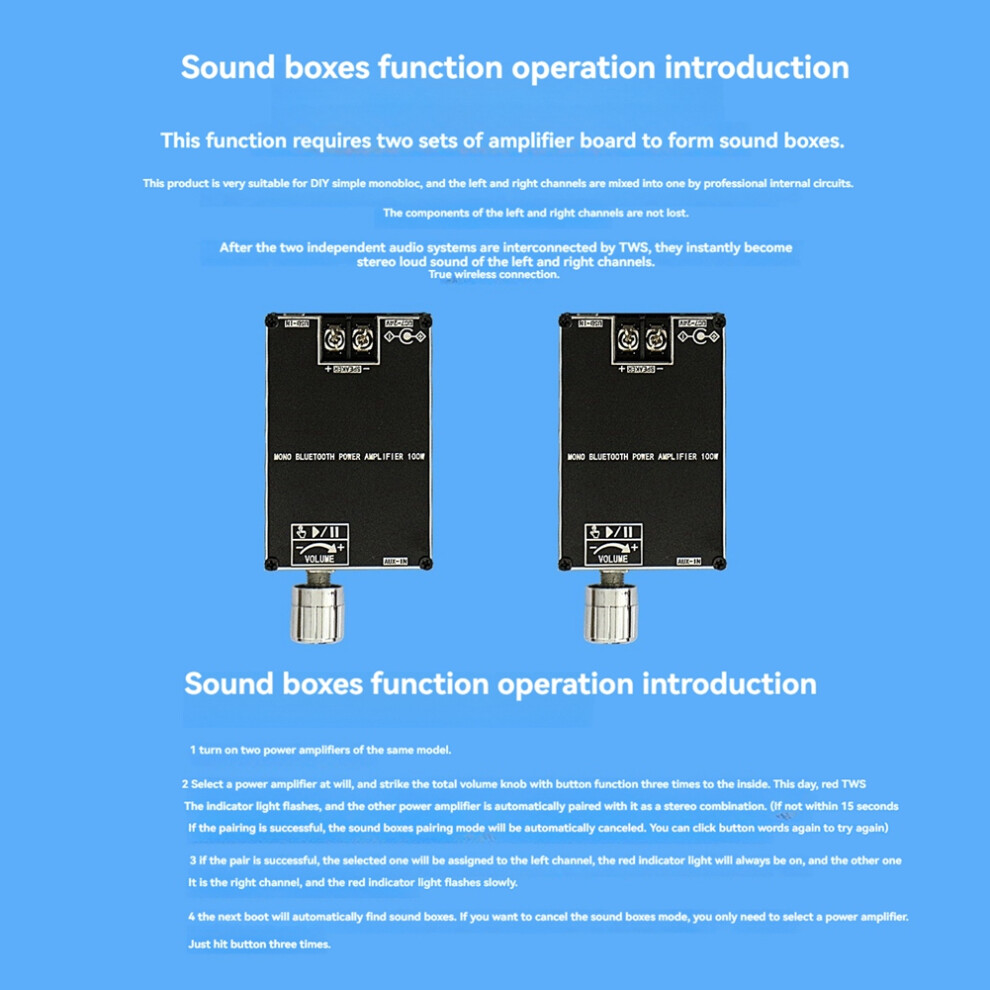

Pairing function, true wireless function allows two sets of speakers to be combined into left and right channels. Pairing, stronger spatial positioning.
Quantity:1Set
Colour:Black
Material:ABS

Package Contents:
1 * Pcd Board
1 * Upper Cover
1 * Lower Cover
1 * Screwdriver
1 * Knob Cap
1 * Radiator
1 * Power Adapter
1 * Copper Pillar Package
1 * Screw Pack

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
