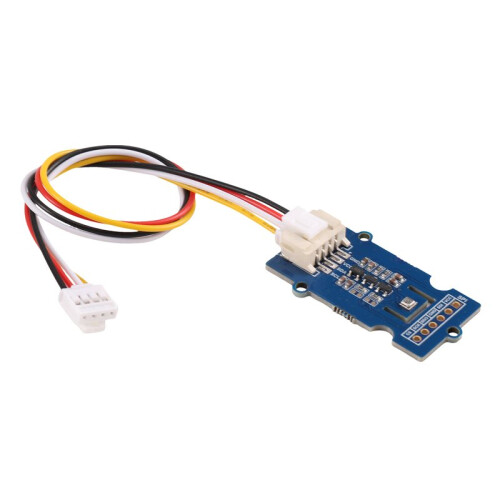

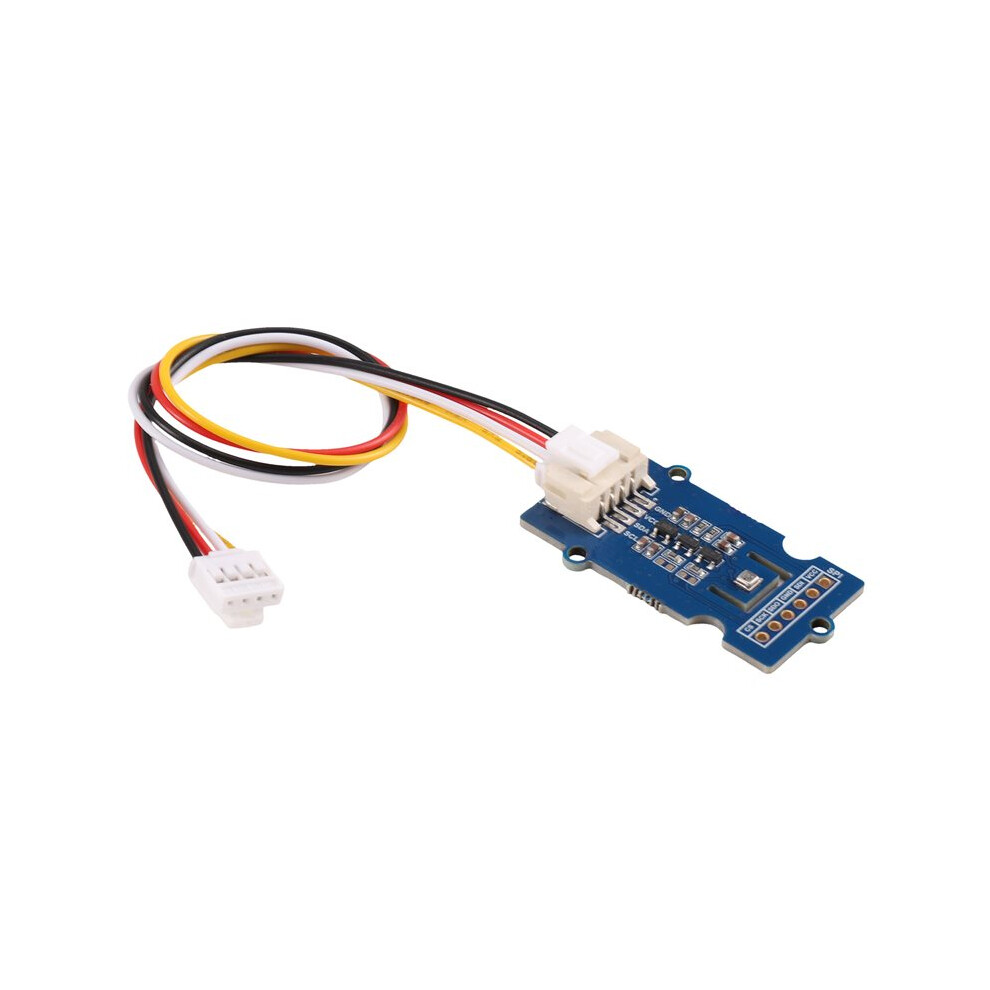

BME280 101020193 for Grove Temp&Hum& Barometer Sensor

BME280 101020193 for Grove Temp&Hum& Barometer Sensor Description

High-precision environmental sensing Equipped with the BME280 sensor, this for Grove module delivers accurate measurements for temperature, humidity, and barometric pressure, ideal for environmental monitoring projects and device integration.

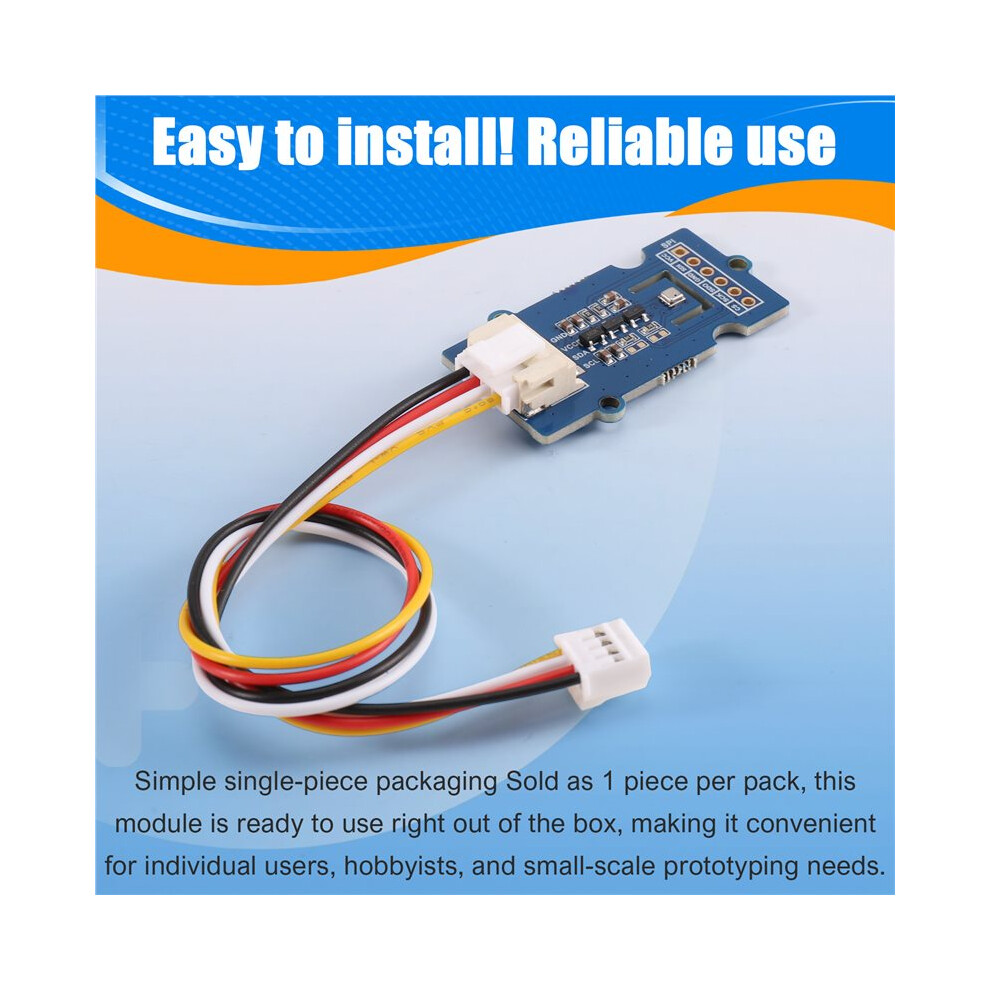

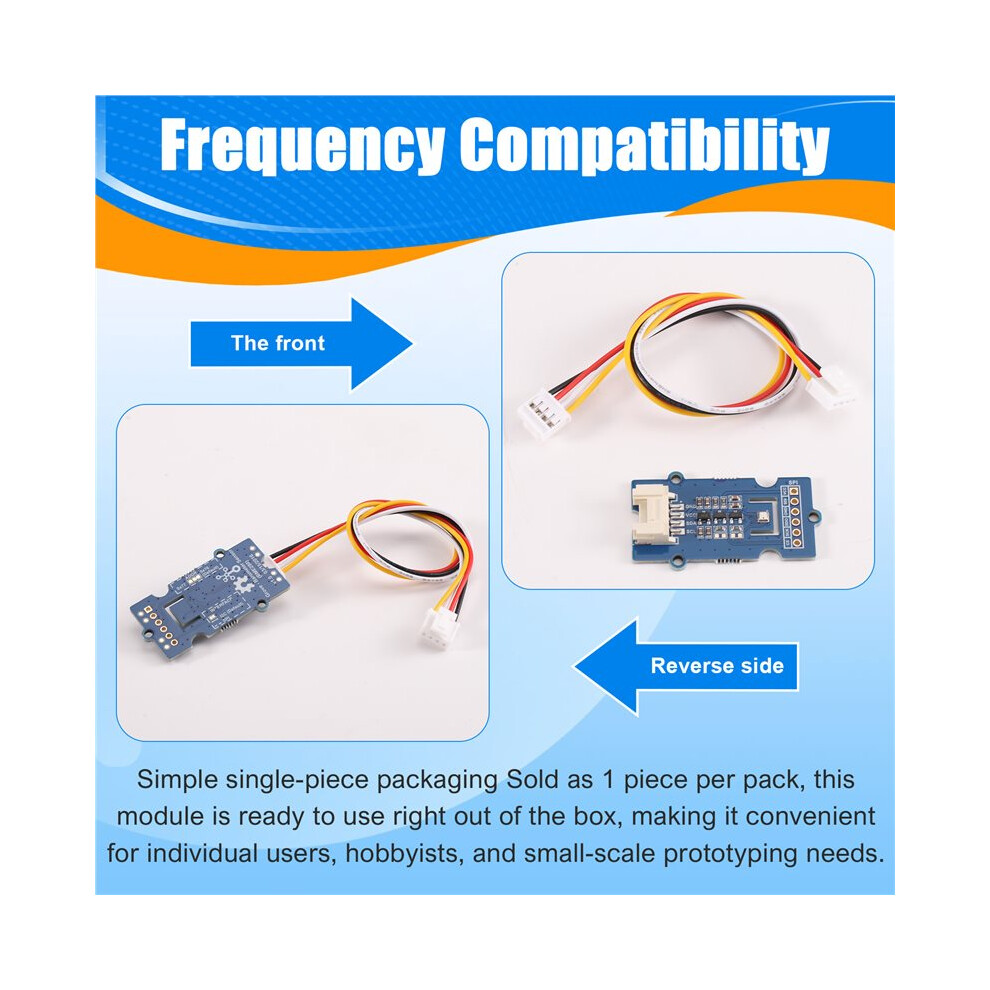

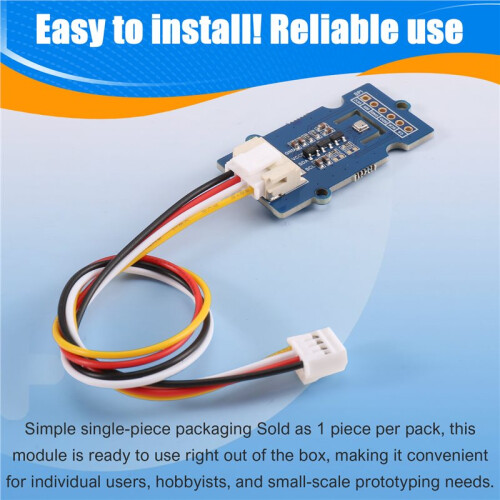

Simple single-piece packaging Sold as 1 piece per pack, this module is ready to use right out of the box, making it convenient for individual users, hobbyists, and small-scale prototyping needs.

Key features
Package 2.5 mm x 2.5 mm x 0.93 mm metal lid LGA
Digital interface I²C ( to 3.4 MHz) and SPI (3 and 4 wire, to 10 MHz)
Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V
VDDIO interface voltage range: 1.2 V to 3.6 V
Current consumption 1.8 &A @ 1 Hz humidity and temperature
2.8 &A @ 1 Hz pressure and temperature
3.6 &A @ 1 Hz humidity, pressure and temperature
0.1 &A in sleep mode
Operating range -40…+85 C, 0…100 % rel. humidity, 300…1100 hPa
Humidity sensor and pressure sensor can be independently enabled / disabled
Register and performance compatible to Sensortec BMP280 digital pressure sensor
RoHS compliant, halogen-free, MSL1
Key parameters for humidity sensor1
Response 1 s
Accuracy tolerance 3 % relative humidity
Hysteresis 1% relative humidity
Key parameters for pressure sensor
RMS Noise 0.2 Pa, equiv. to 1.7 cm
Offset temperature coefficient 1.5 Pa/K, equiv. to 12.6 cm at 1 C temperature change
Typical application
Context awareness, e.g. skin detection, room change detection
Health monitoring / well-being
Warning regarding dehydration or heat stroke
Spirometry (measurement of lung volume and air flow)
Home automation control
Color: As Shown
Material: PC+Metal

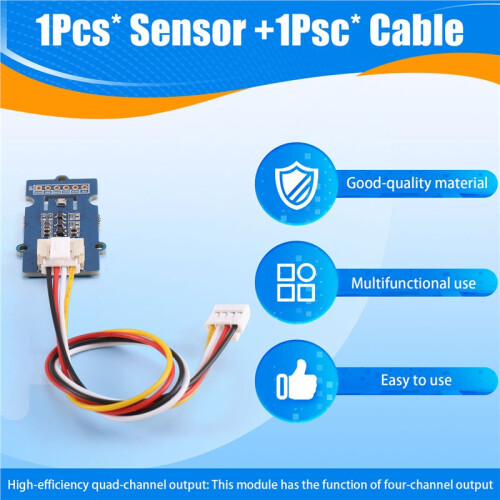

Package Contents:
1* Sensor
1* Cable
