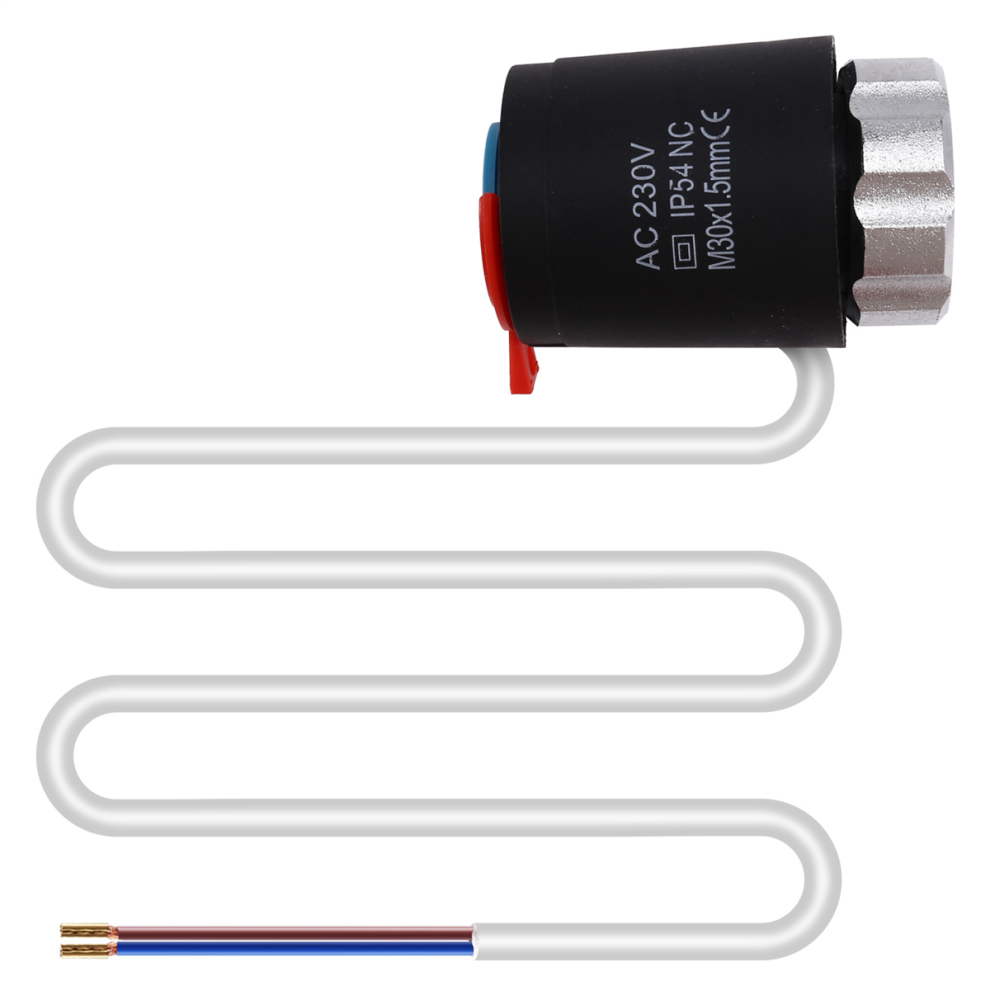

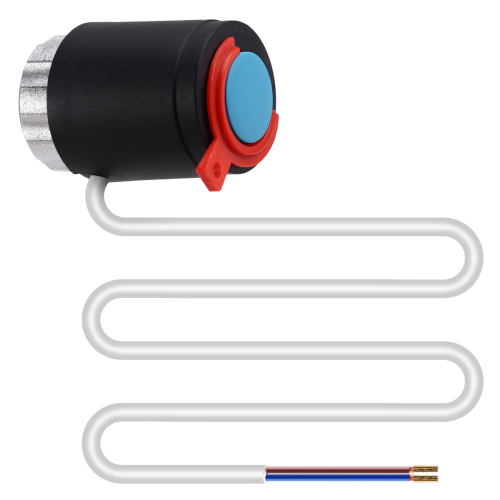

Closed Underfloor Heating Valve for Underfloor Heating Thermostats

Closed Underfloor Heating Valve for Underfloor Heating Thermostats Description

Used to open and close underfloor heating water separator, central air conditioning (water system) and small valves.

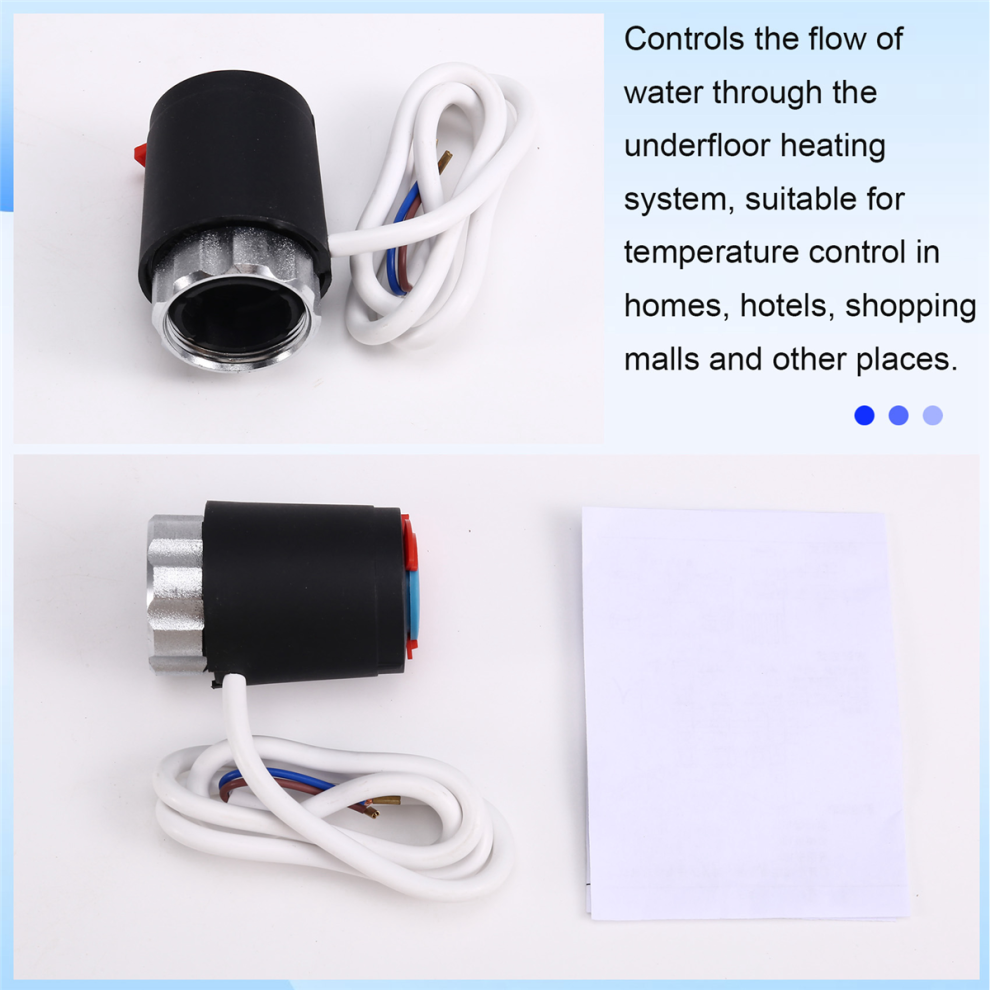

Controls the flow of water through the underfloor heating system, suitable for temperature control in homes, hotels, shopping malls and other places.
Simple installation, 2-wire connection, one valve per circuit, installation size M30 x 1.5mm
Normally closed actuator, opens automatically when energized, no noise, maintenance free.
Small size, light weight, space saving. 3W low power consumption, energy saving.

Voltage AC 230V, 50/60Hz
Power: 3W
Inrush current 250mA max.
Type: NC (Normally Closed) NC (Normally Closed)
Protection class: IP54
Storage temperature: -5-50
Colour:black
Material:plastic
Due to different batches, there may be differences in product appearance and printed text, which will not affect use

Package Contents:
1 * Electric heating actuator

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
